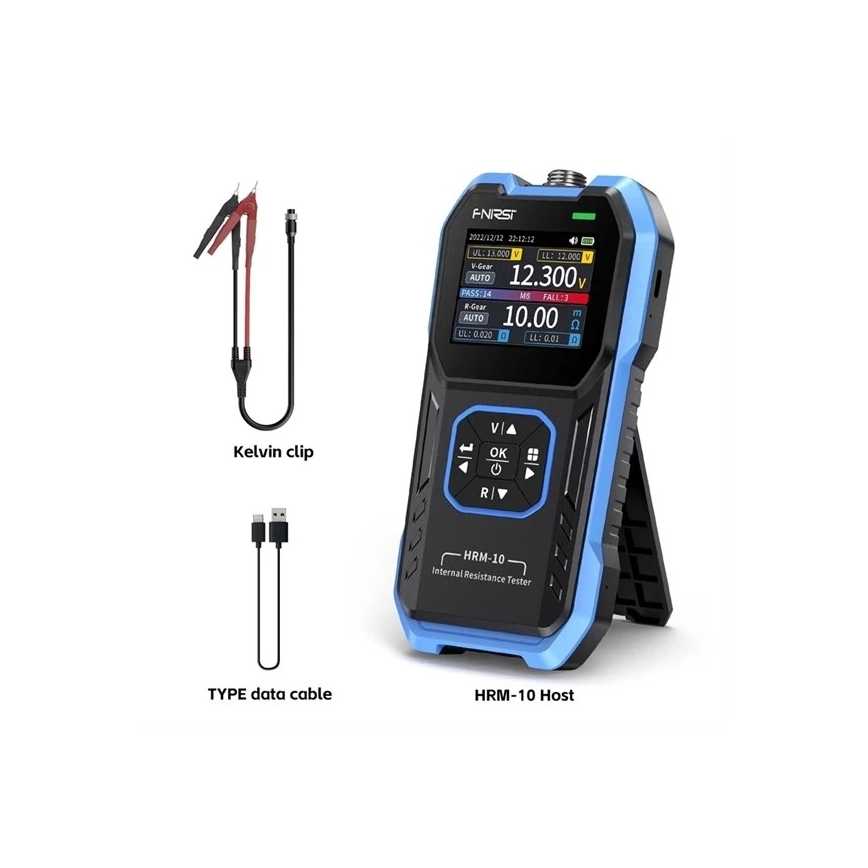

• Product description

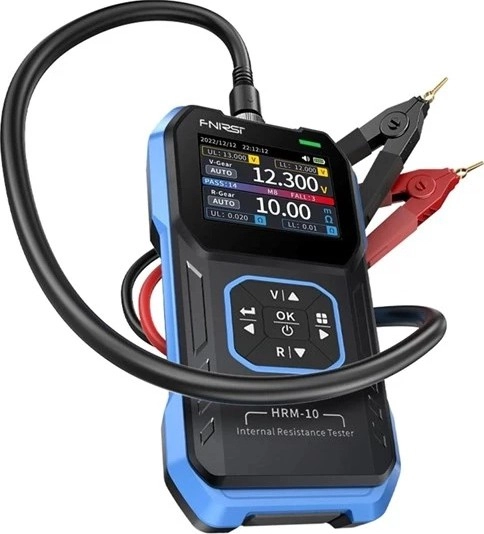

  • The portable battery tester is a specialized measuring instrument engineered for high-precision measurement of battery voltage and internal resistance.

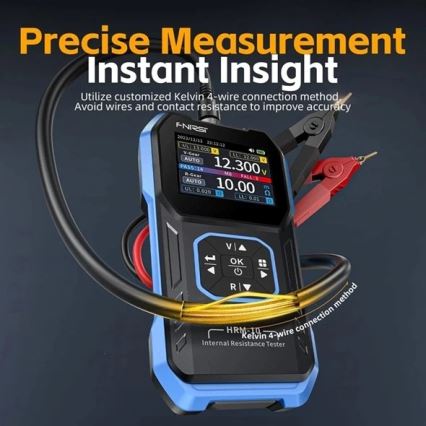

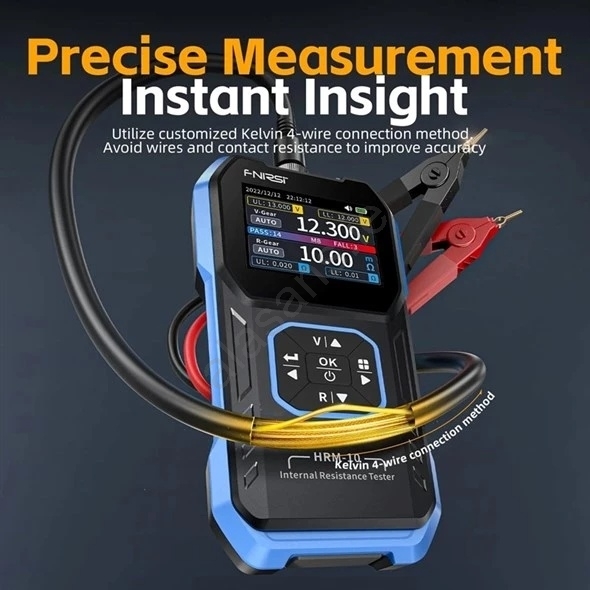

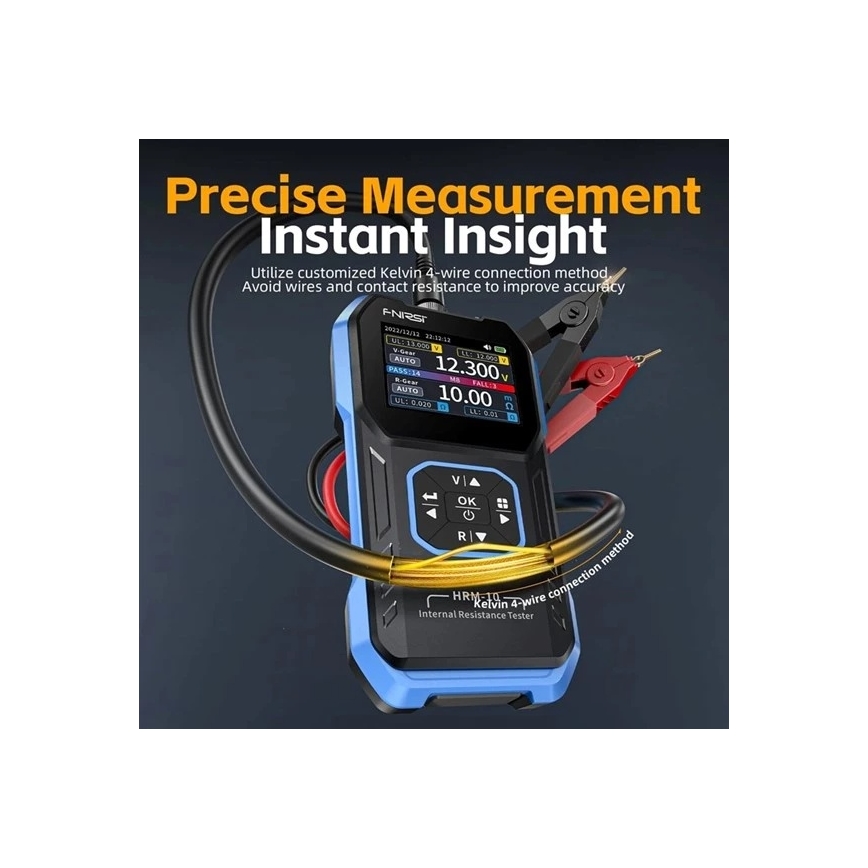

  • To achieve maximum accuracy it employs the four-wire Kelvin measurement method, which reliably eliminates distortion caused by the resistance of test leads and contacts, particularly beneficial when measuring low values.
  • The device can automatically and simultaneously test voltage (up to 100 V DC) and internal resistance (up to 200 ohms), enabling quick and easy diagnostics of the battery's overall condition and any decline in performance.
  • Measured values are displayed clearly on a high-quality color TFT HD display, which compared to traditional monochrome screens offers significantly improved readability, more vivid colors and a modern user interface.

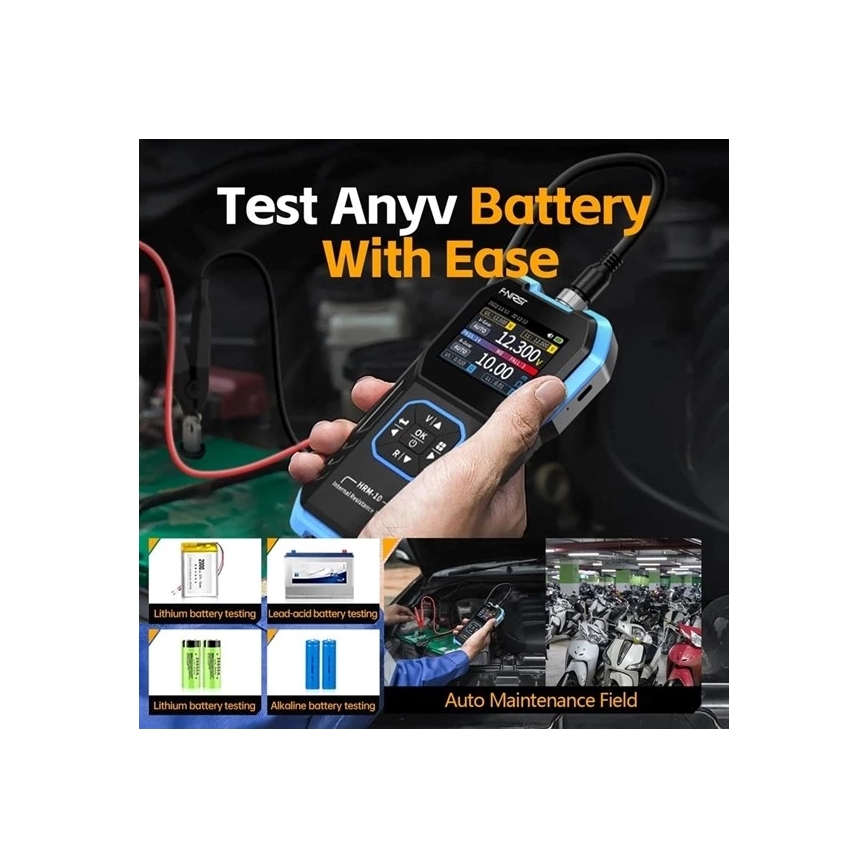

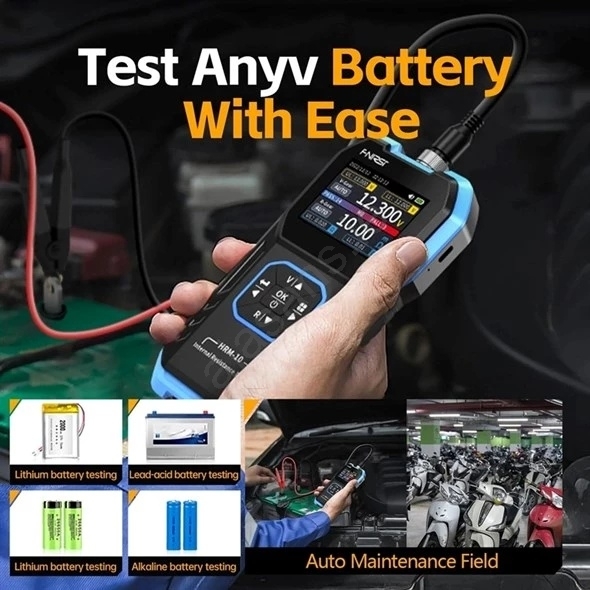

  • This versatile handheld tester is suitable for diagnostics of all common battery types.
  • Reliable operation is ensured by an integrated Li-Ion battery with a capacity of 1000 mAh, which can be conveniently charged via the USB-C interface.

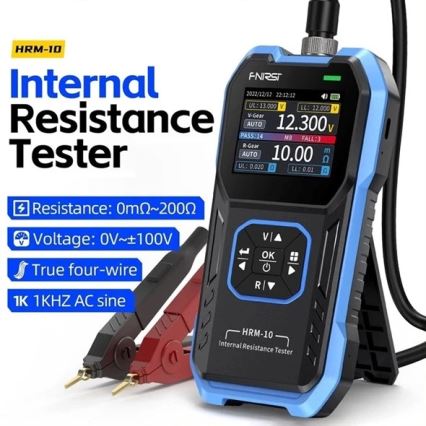

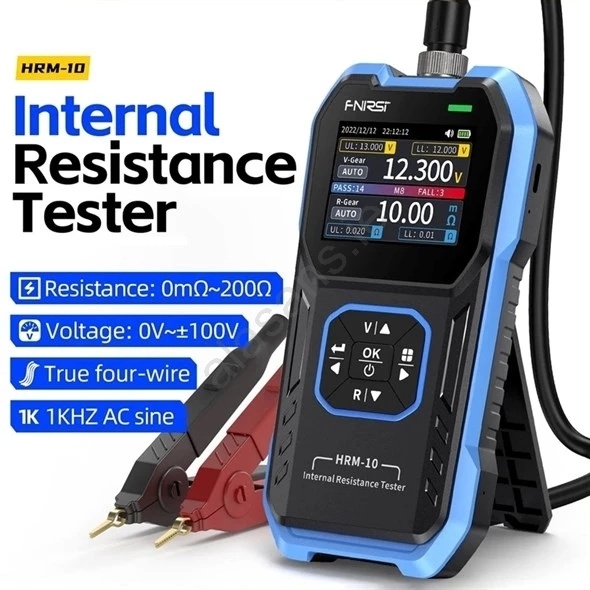

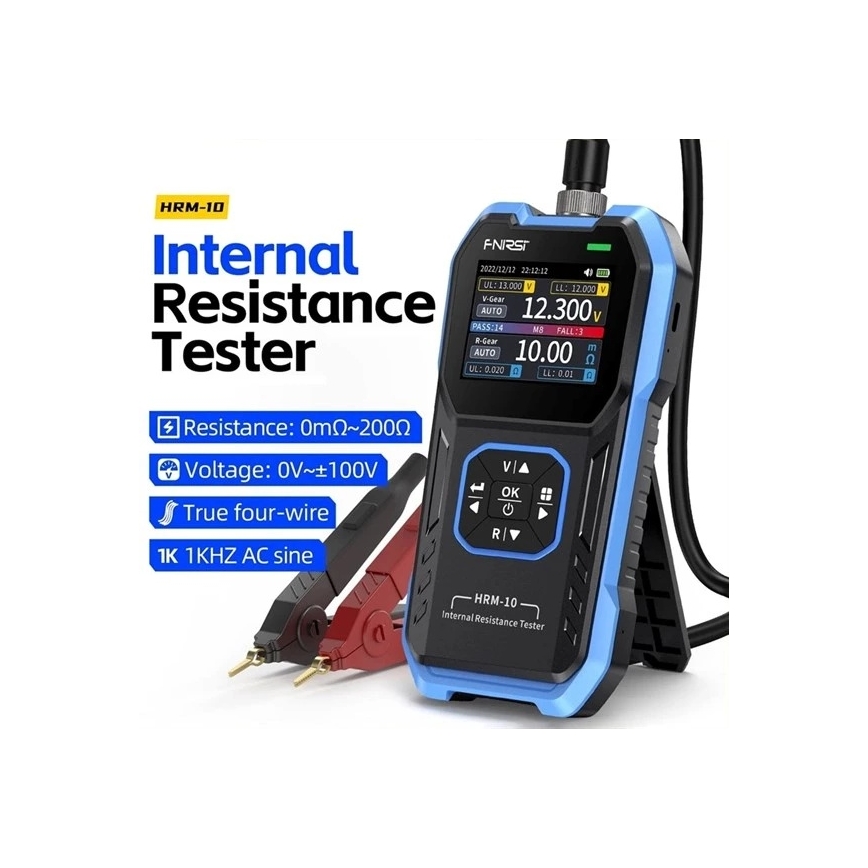

  • Technical specifications:
  • Voltage measurement (DC): 0 to ±100 V (ranges: Auto, 1 V, 10 V, 100 V)
  • Resistance measurement: 0 to 200 ohms (ranges: Auto, 20 mOhm, 200 mOhm, 2 Ohm, 20 Ohm, 200 Ohm)
  • Measurement accuracy: ±0.5%
  • Measurement method: four-wire Kelvin method (test signal frequency AC 1 kHz)
  • Display: color TFT HD
  • Power supply: built-in Li-Ion battery 3.7 V / 1000 mAh.
  • Charging: USB-C interface (5 V / 1 A).
