• Product description

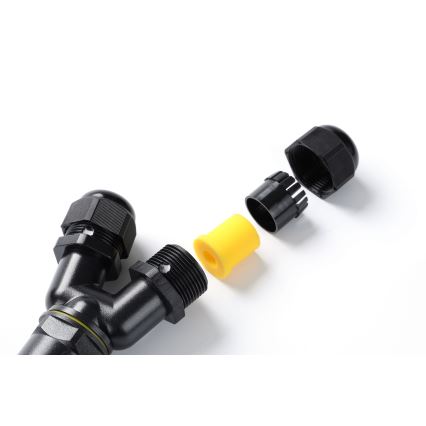

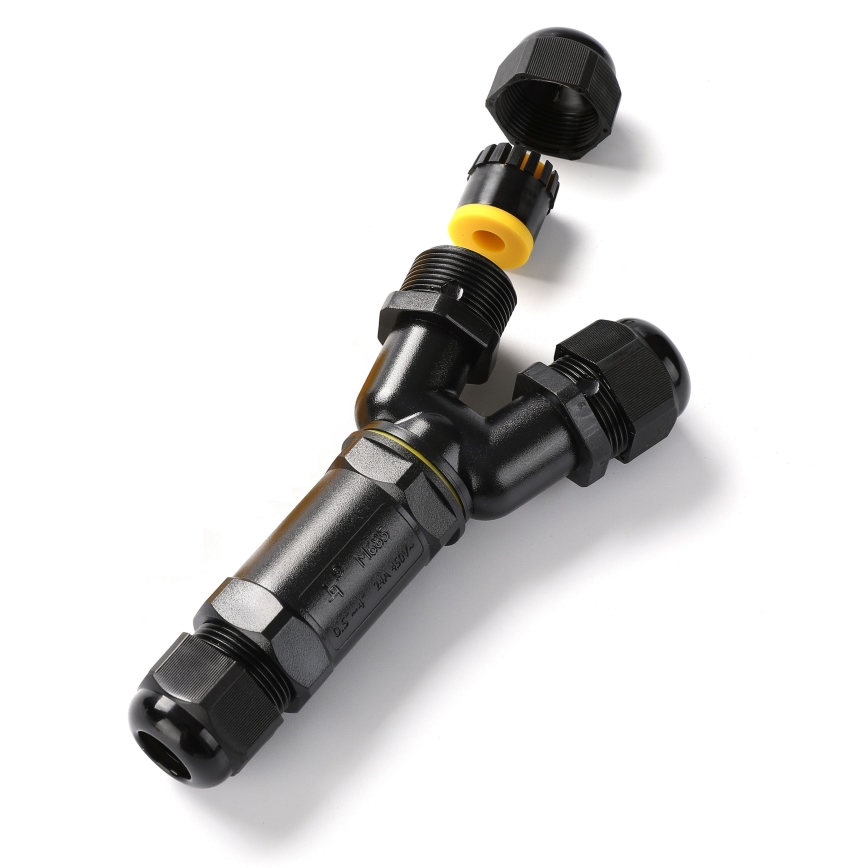

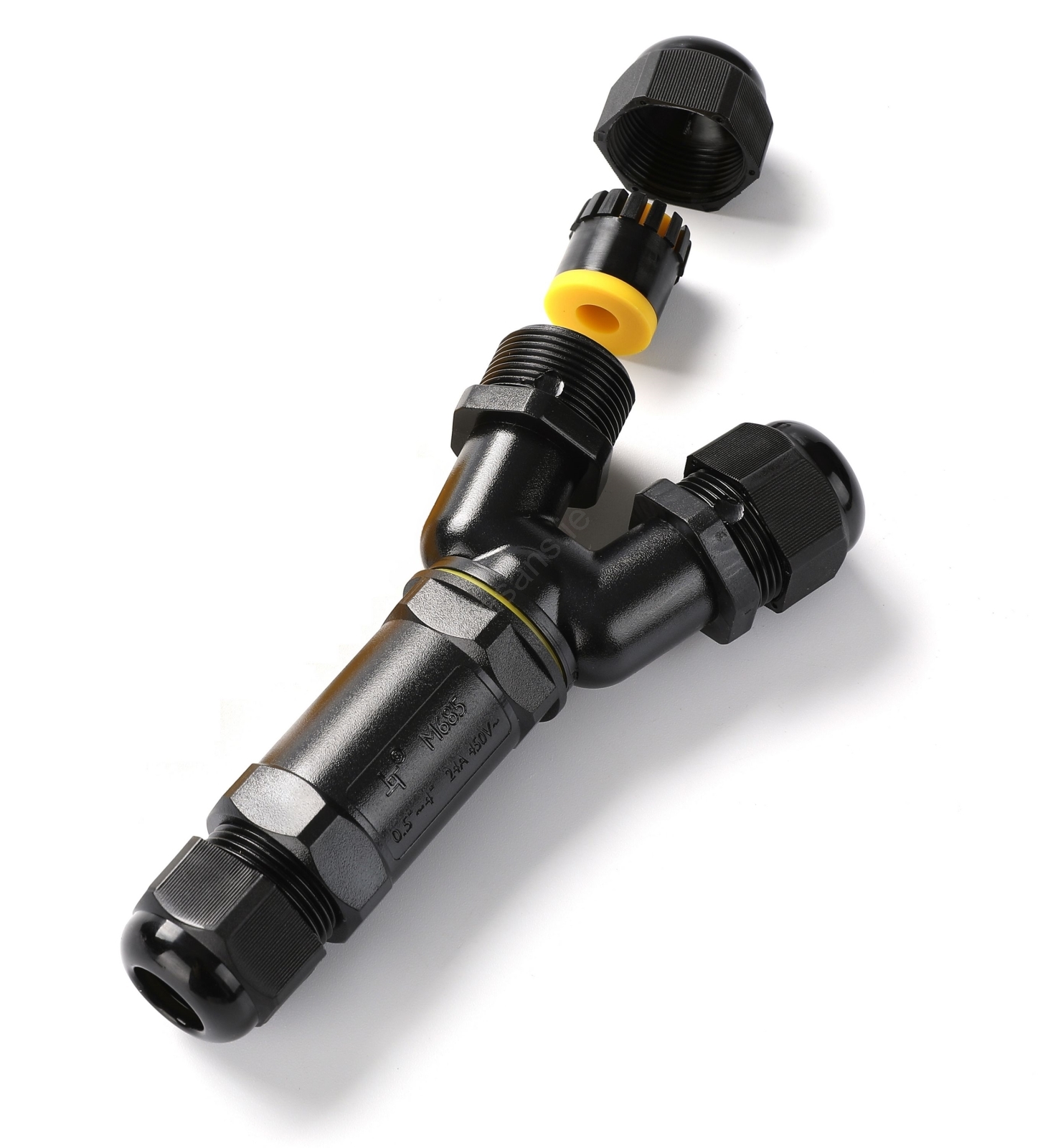

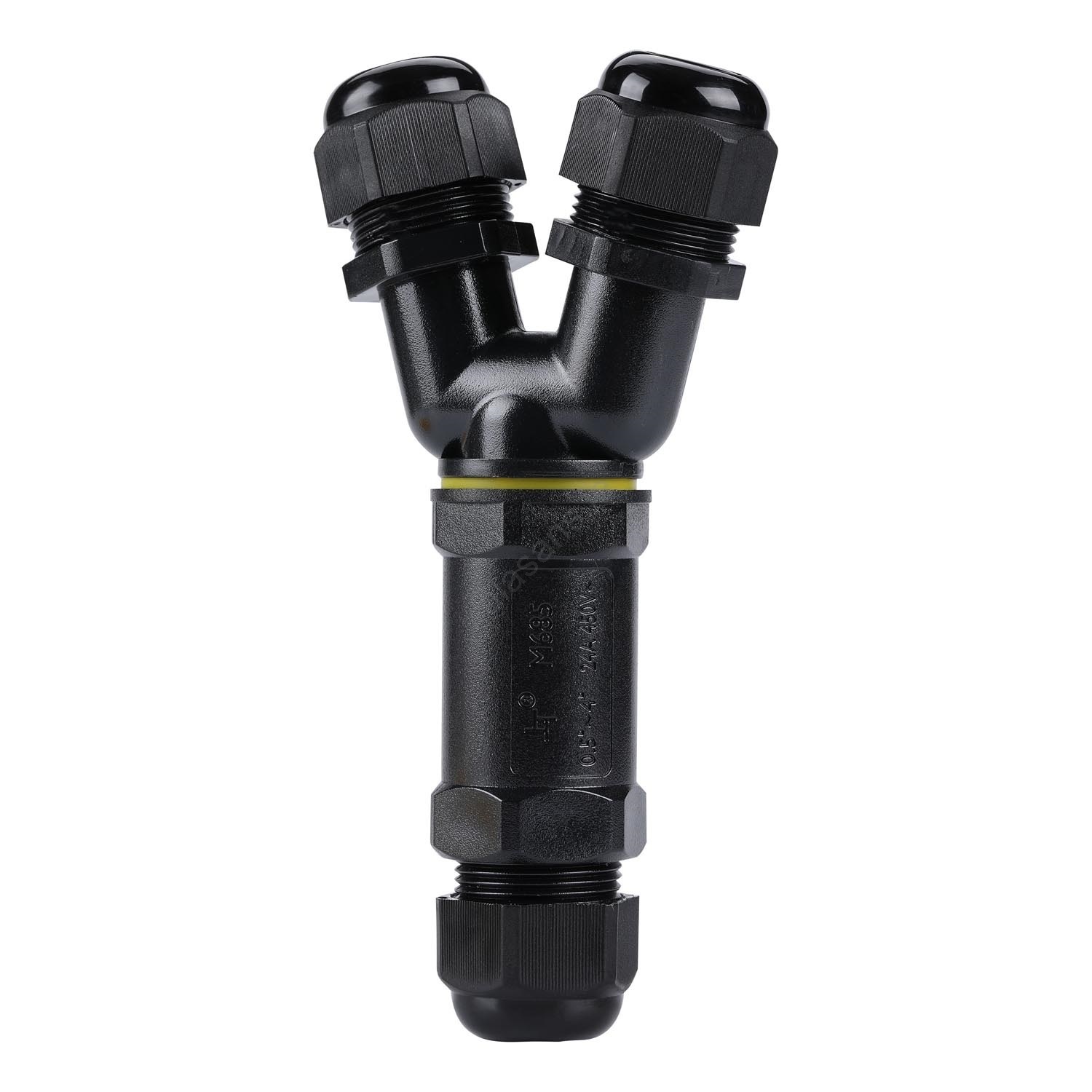

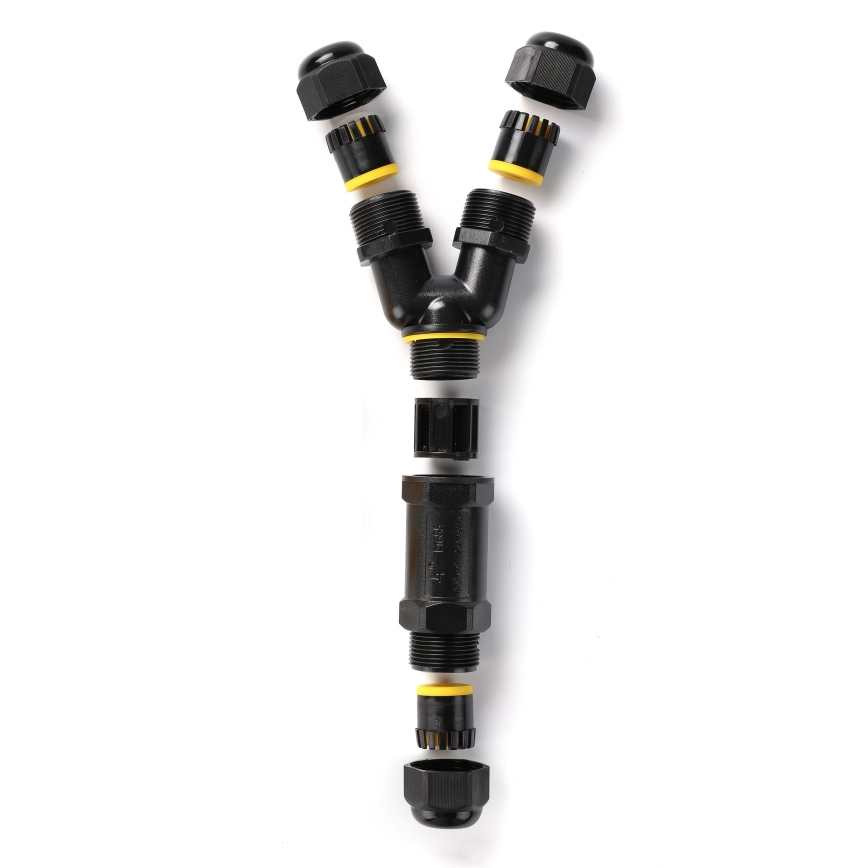

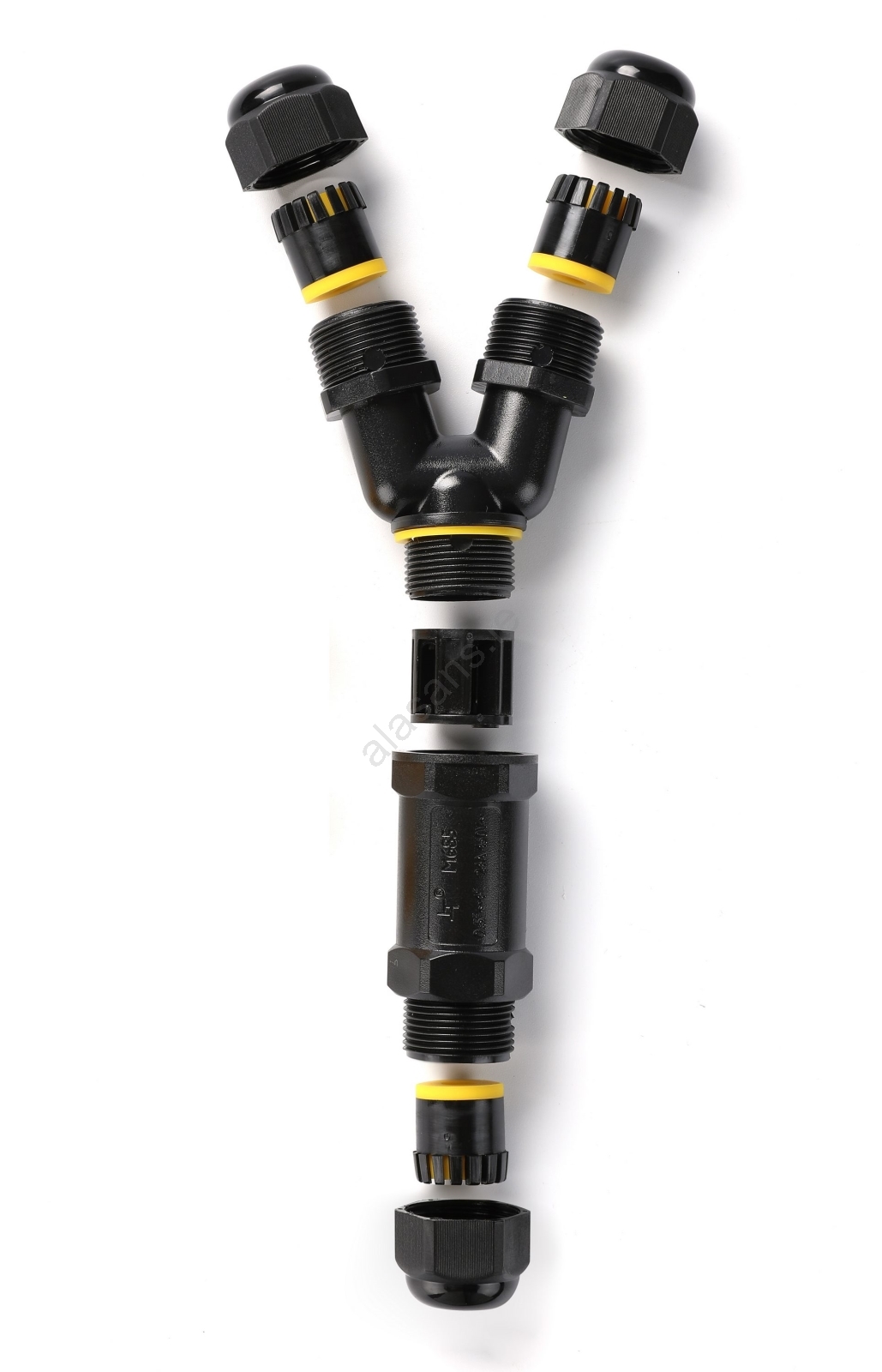

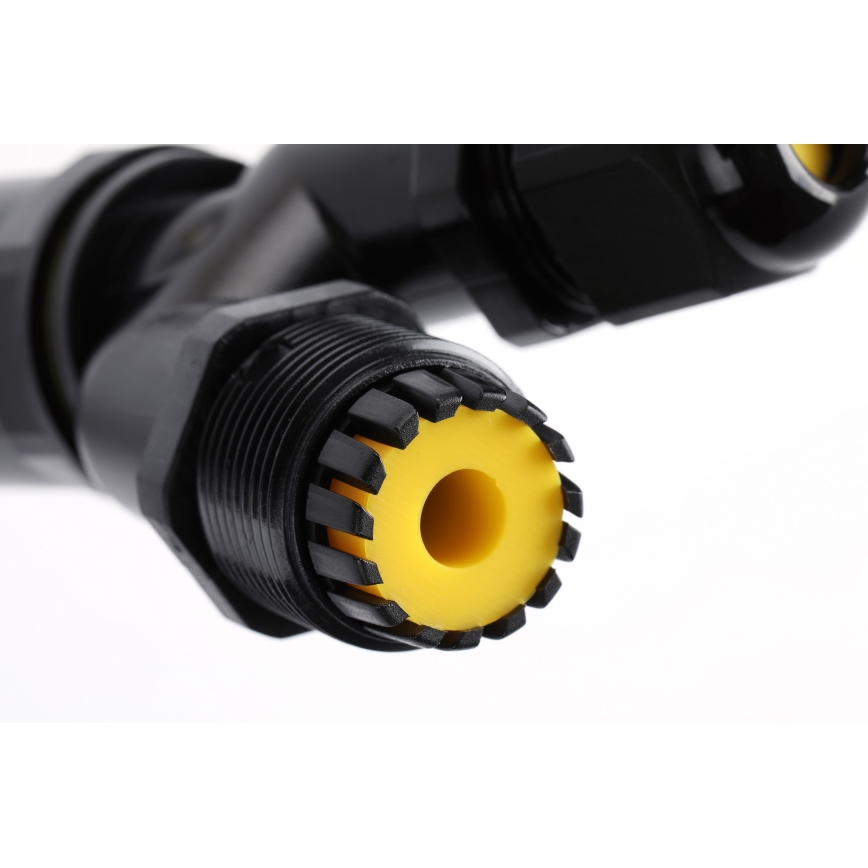

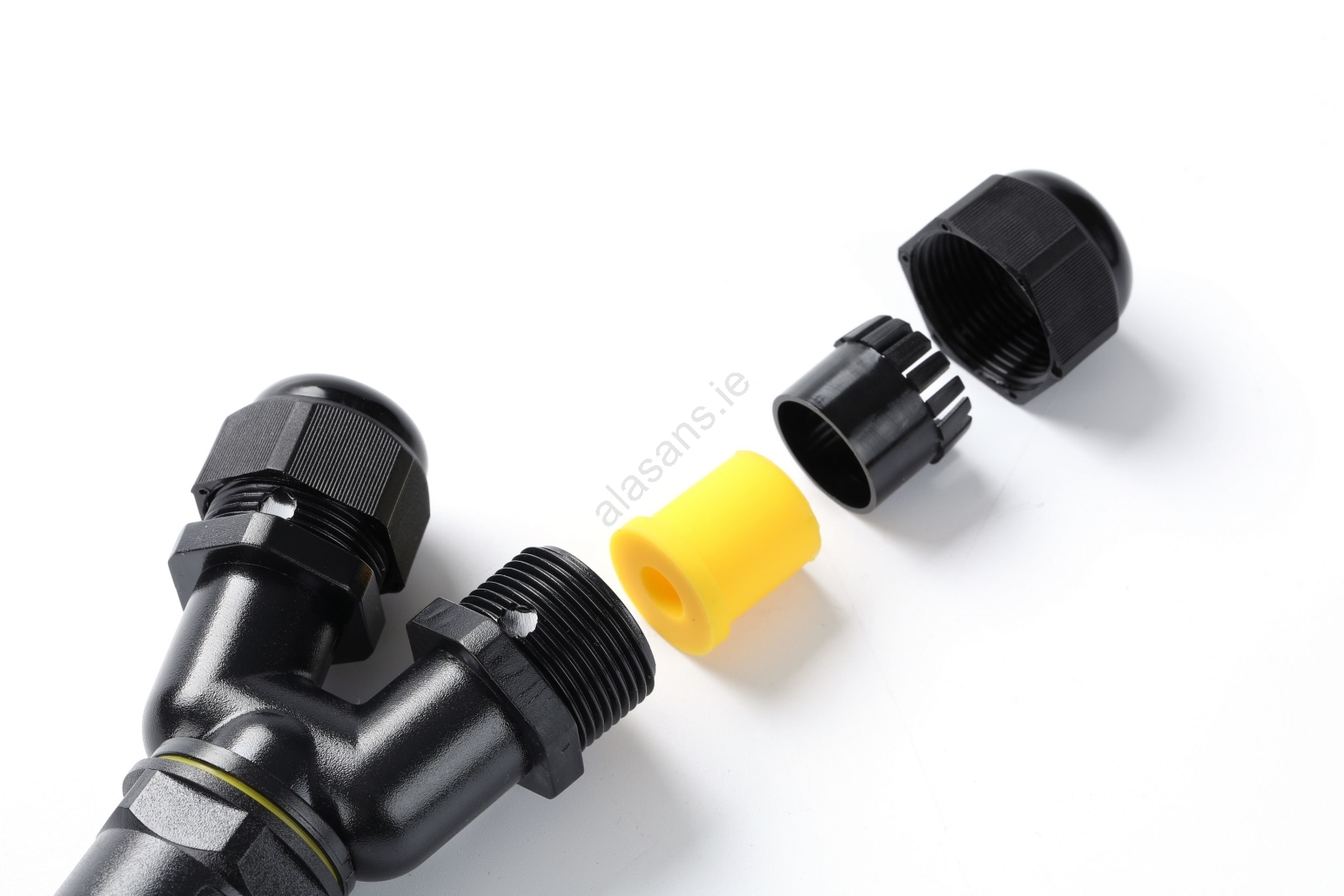

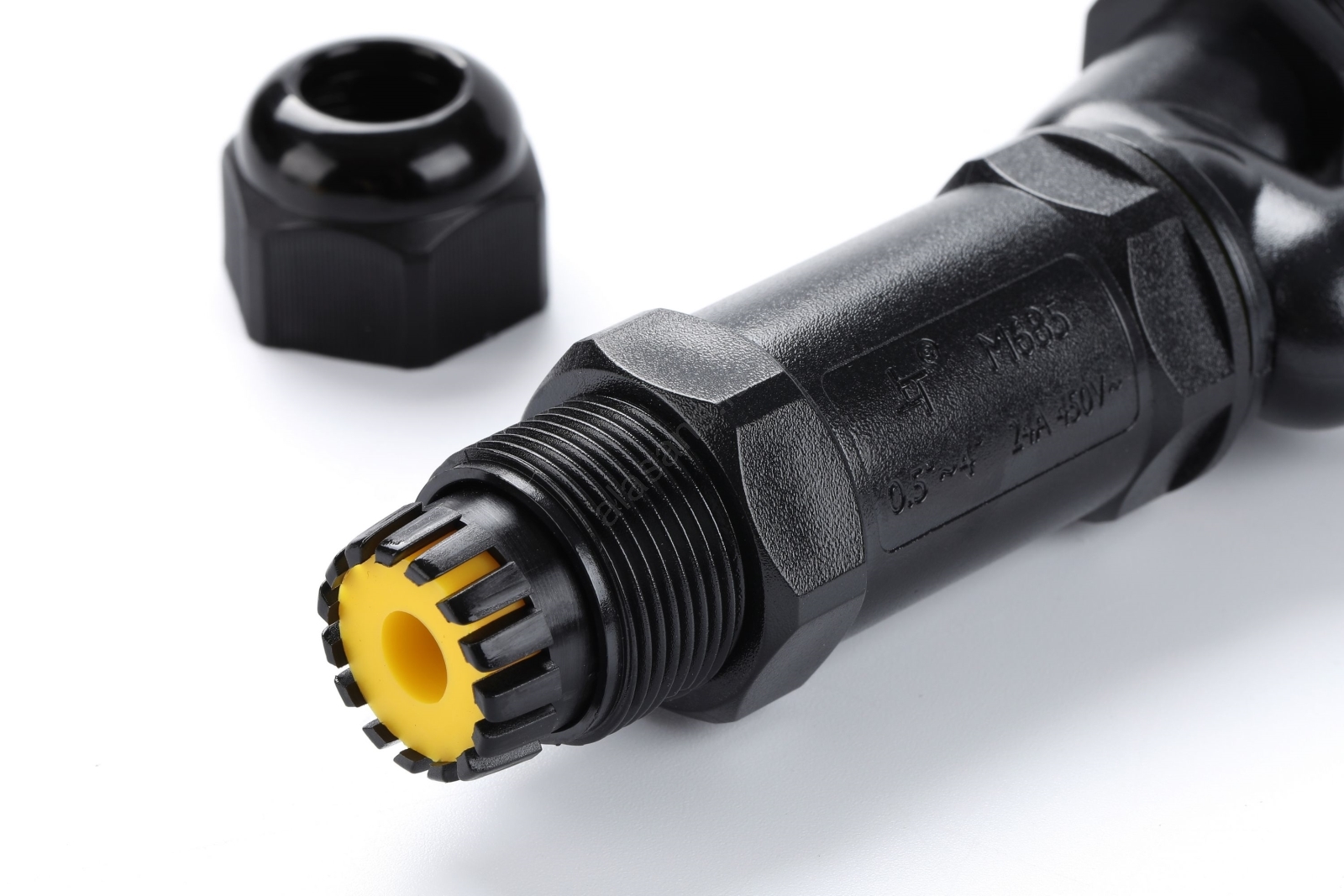

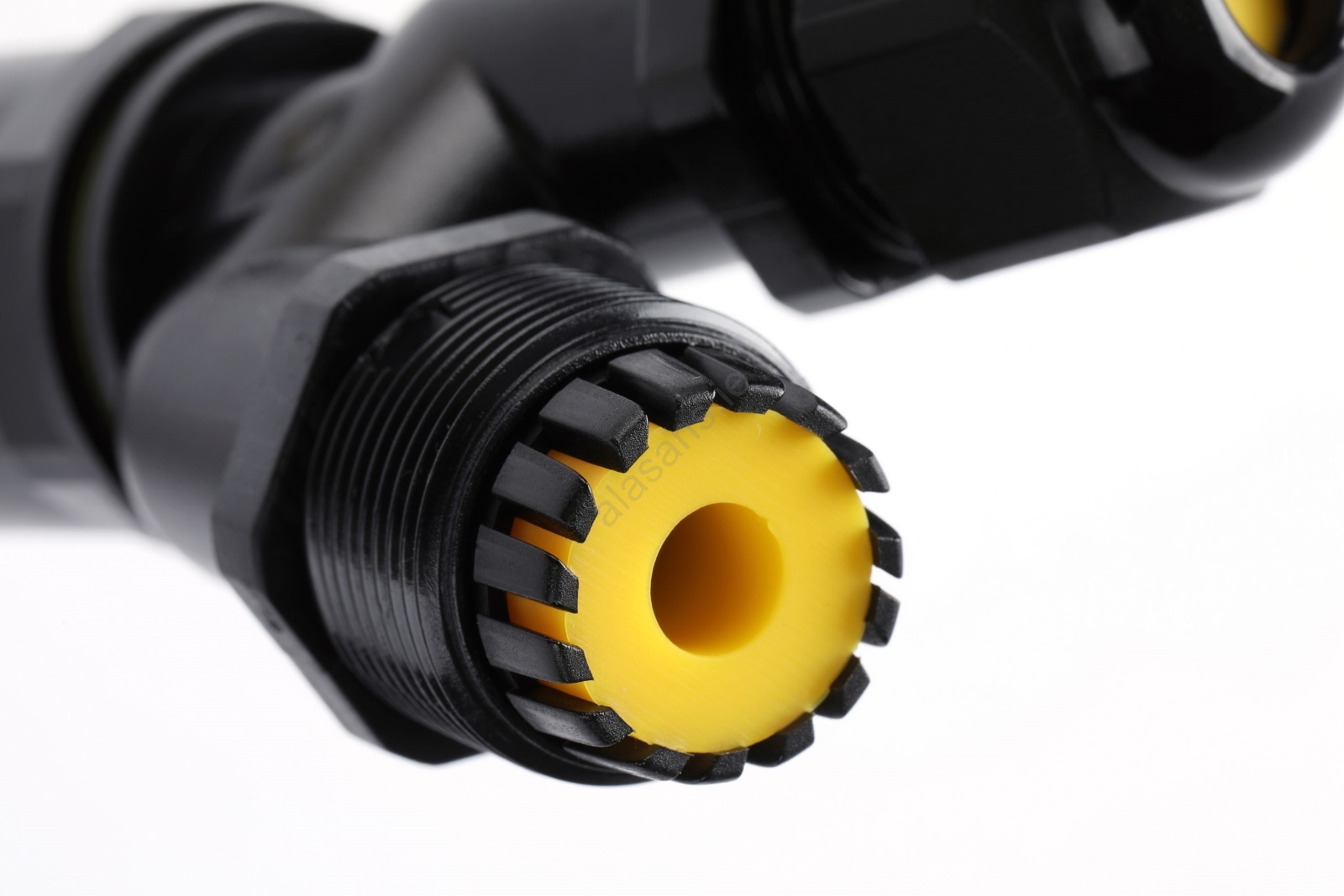

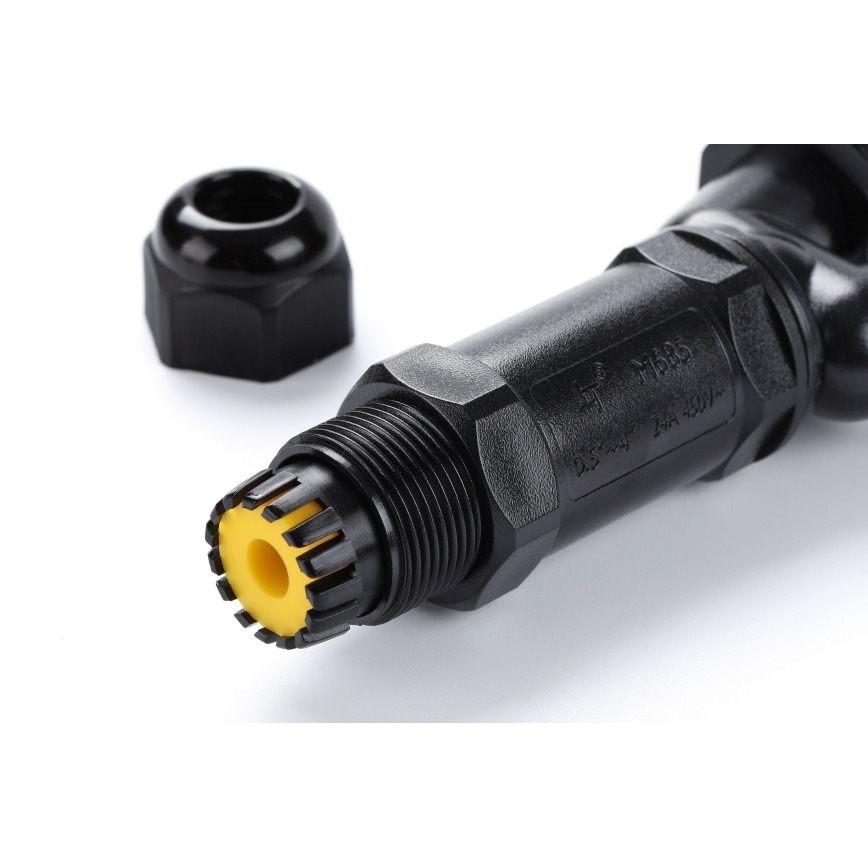

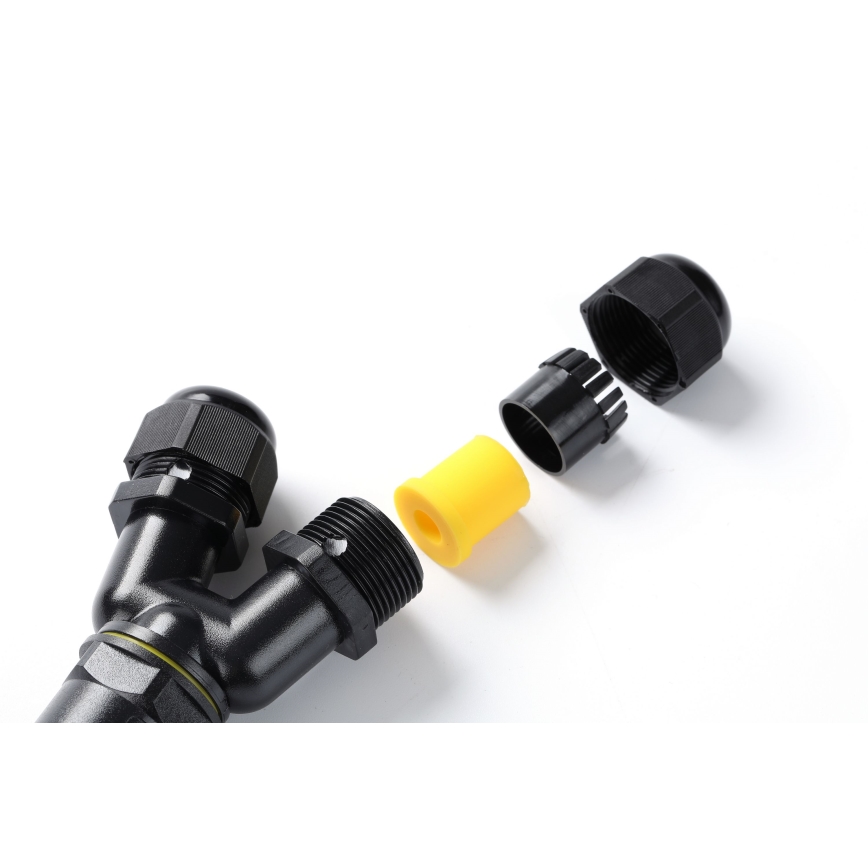

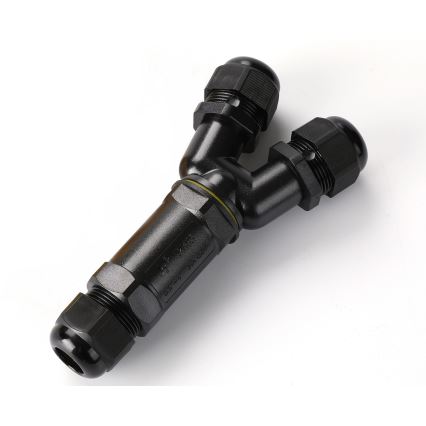

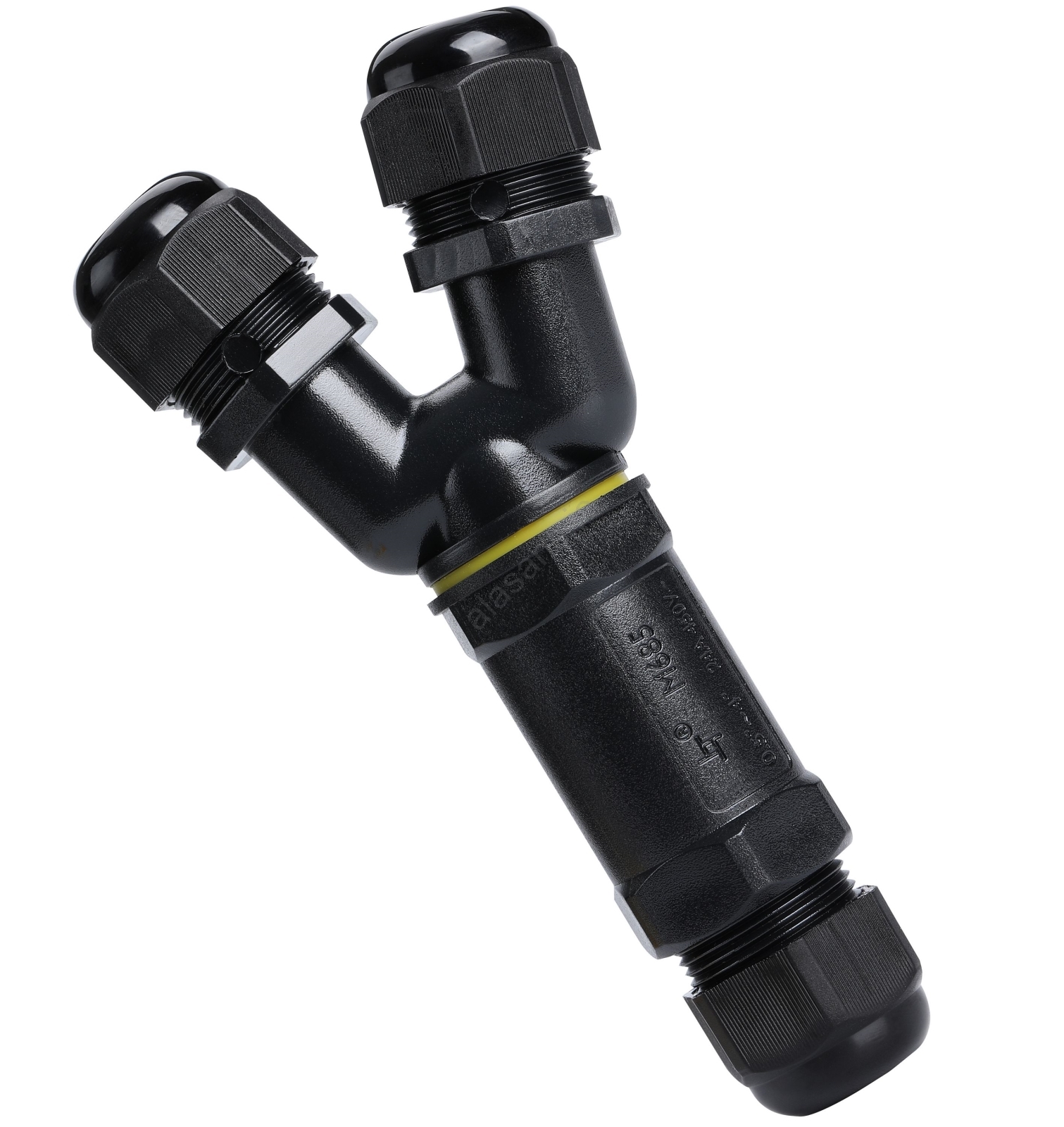

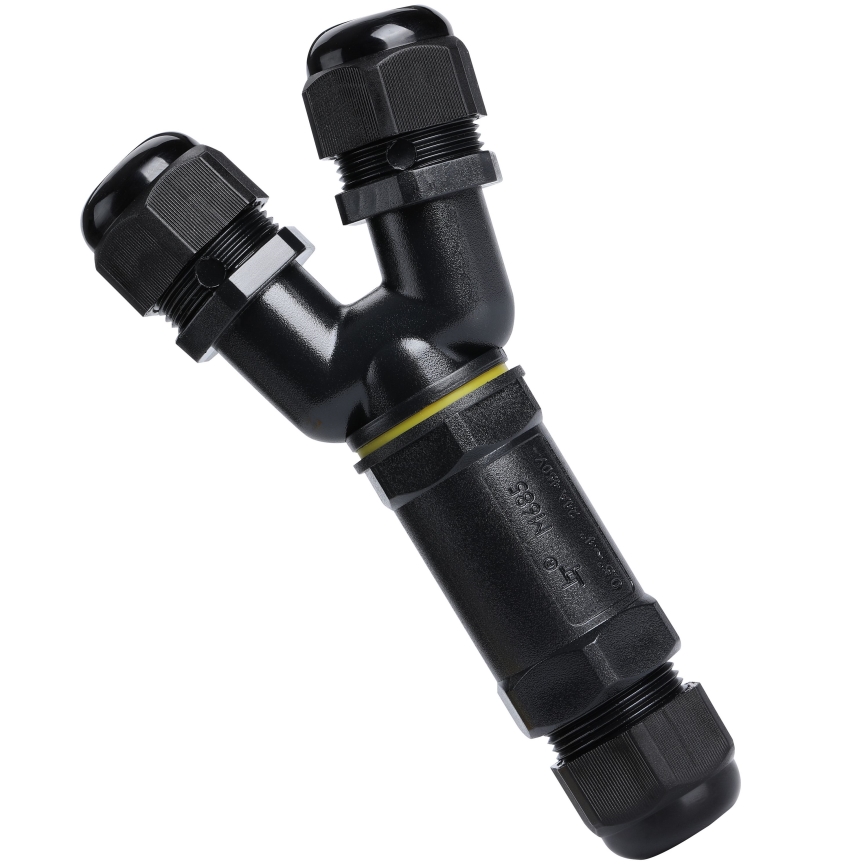

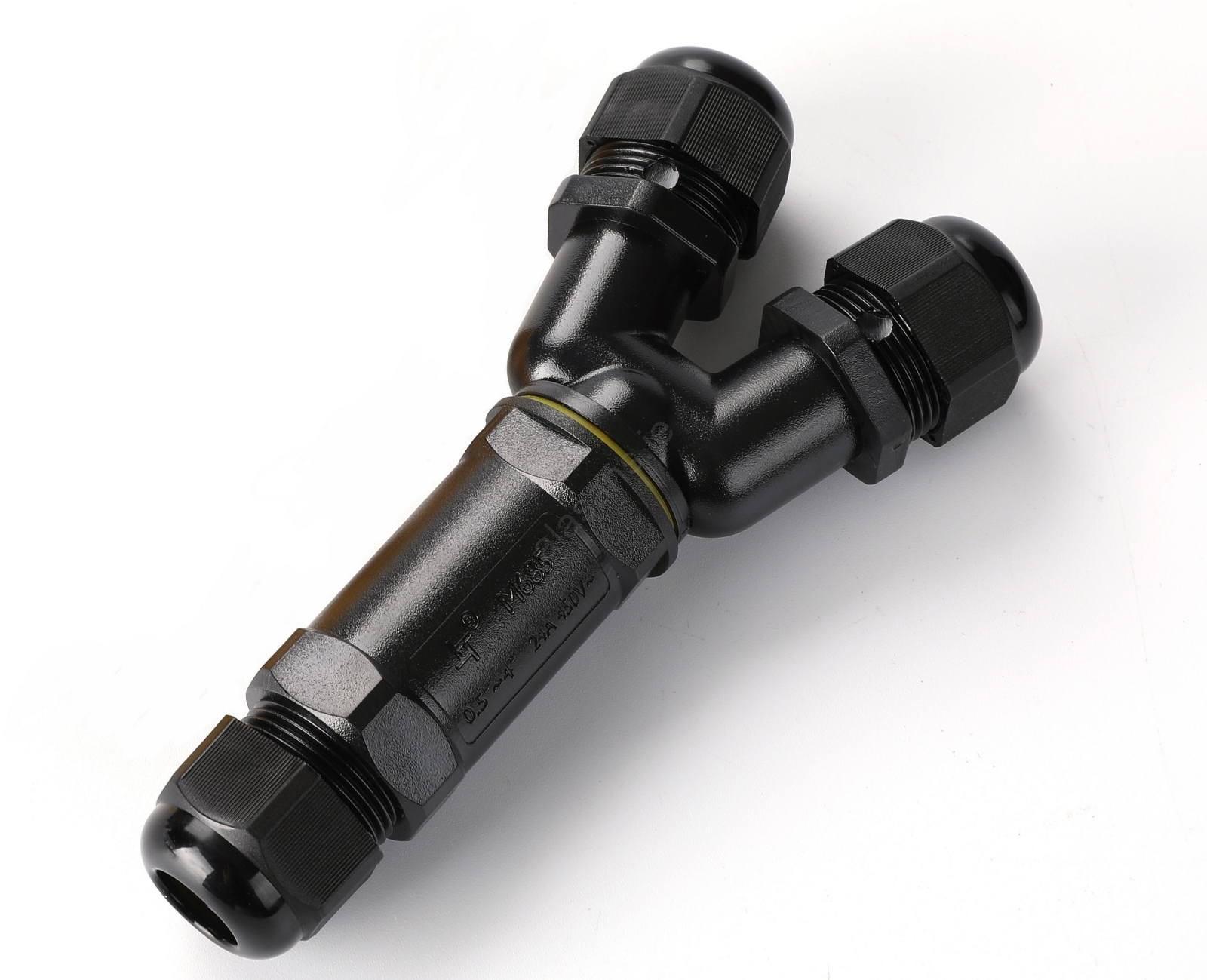

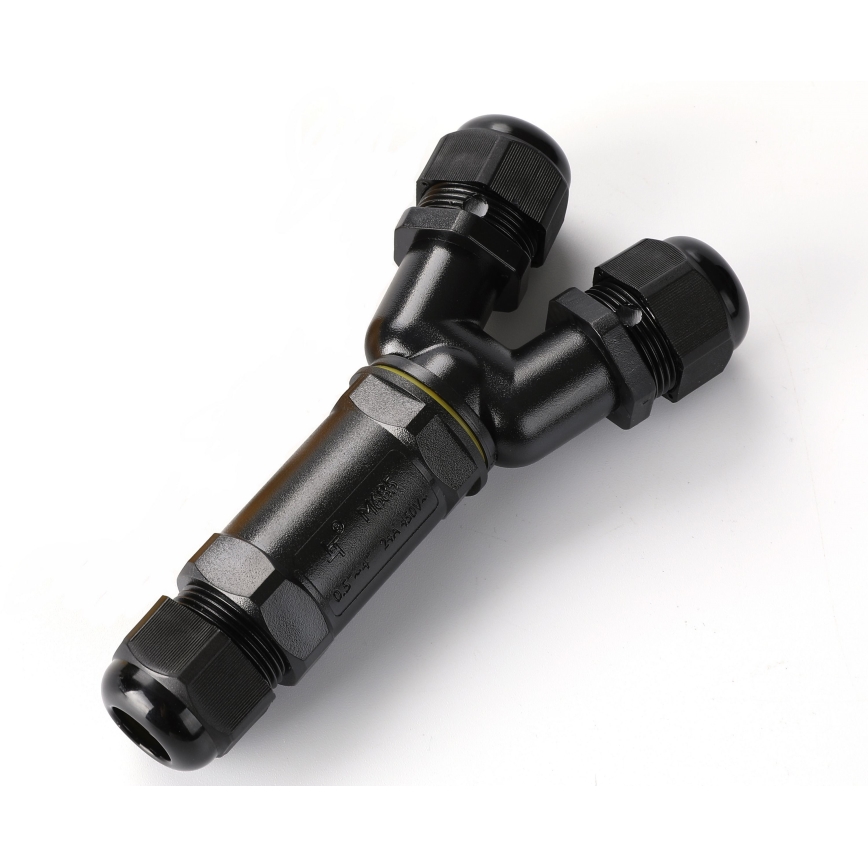

  • The "Y" cable connector is used for a safe and reliable connection of electrical cables.
  • Provides protection against moisture, water, dust and other contaminants.
  • Made from high-quality materials ensuring a tight seal, weather resistance and long service life.
  • Type:  3-pin hermetic cable connector.
  • Number of inputs/outputs: 3.
  • Number of wires: 3.
  • Wire types: single-core, multi-core and stranded.
  • Cable diameter: 4 - 8 mm / 6 - 11 mm.
  • Conductor cross-section: 0.5 - 2.5 mm².
  • Connection type: lever-type quick connector.
  • Maximum rated voltage: 450 V.
  • Maximum current: 24 A.
  • Ingress protection (IP) rating: IP68.
  • Enclosure flammability class (UL94): V-2.
  • Material: polyamide (PA66).
  • Intended use: hermetic cable connection.
  • Operating and storage temperature:  -40 °C ~ +110 °C.
  • Relative humidity: < 90 %.

  Special coupon offer applies to this product.

  This product is listed in the following categories

  Electrical equipment, Electrical installation, Lights, Outdoor accessories, Outdoor lighting, Plugs, sockets and connectors

• Parameters

• Documents for download

• Ratings and reviews1

• Questions about the product0

Buy

Add to favourites

Product code: MX0194
