• Product description

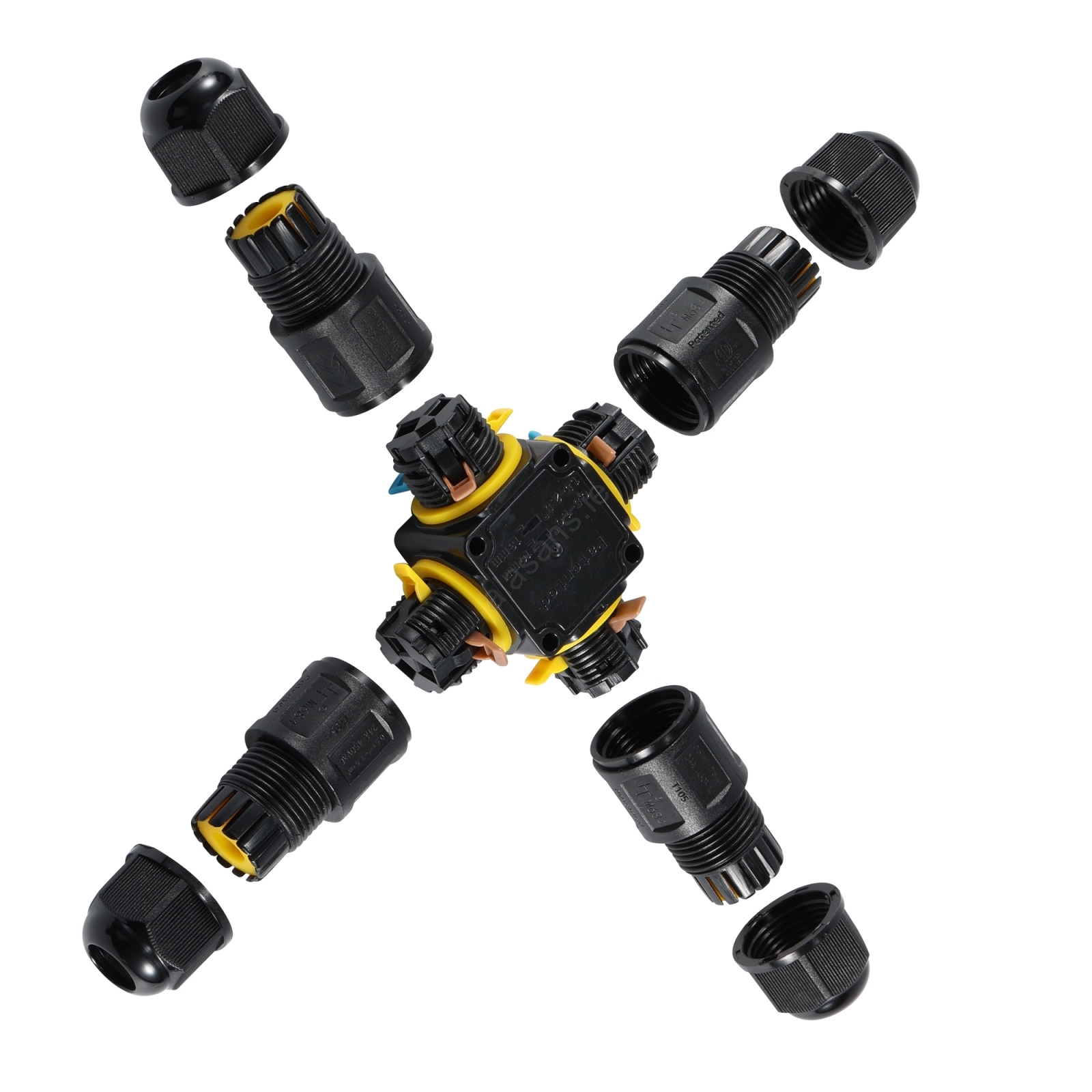

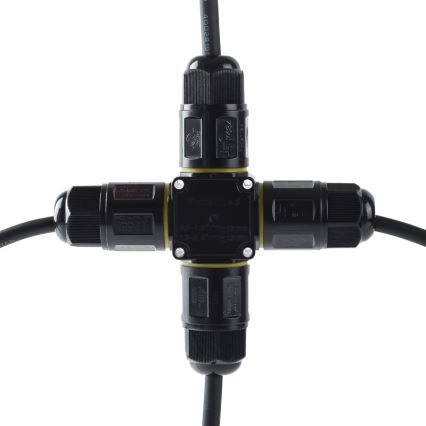

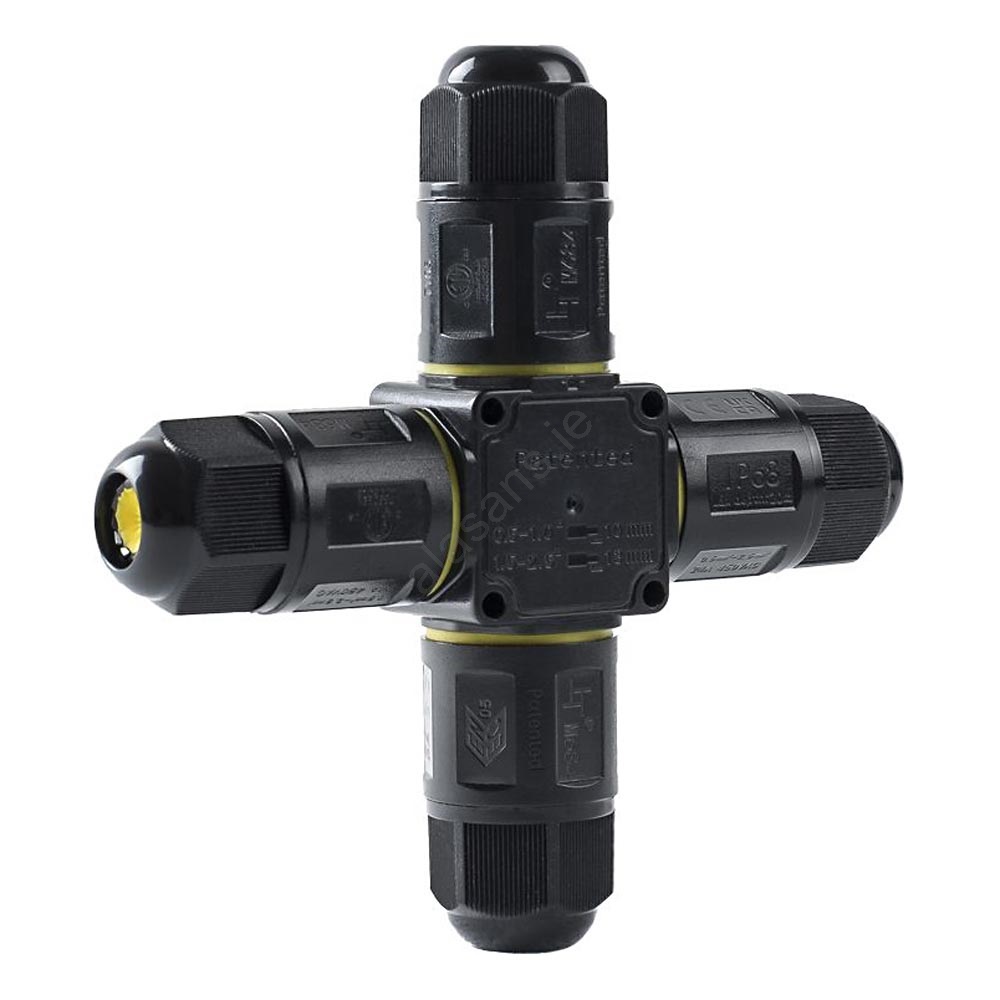

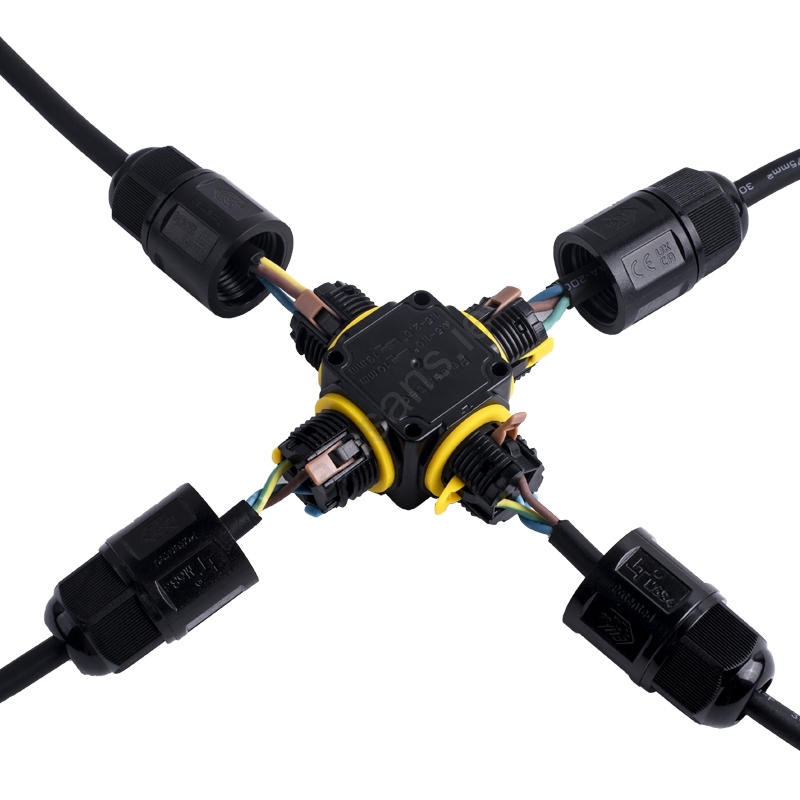

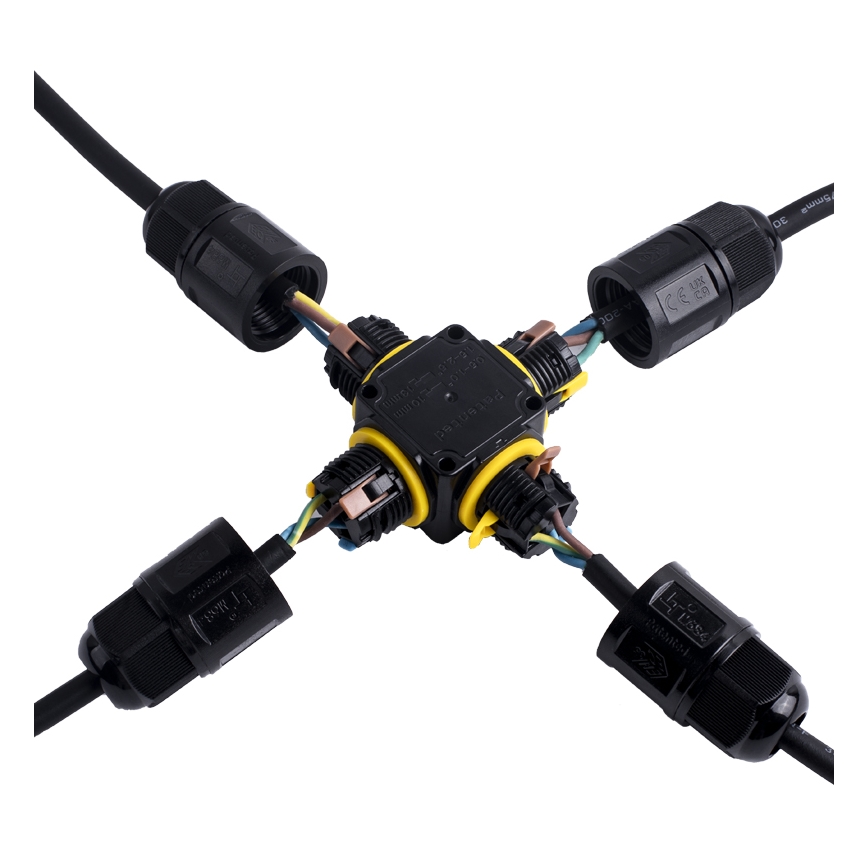

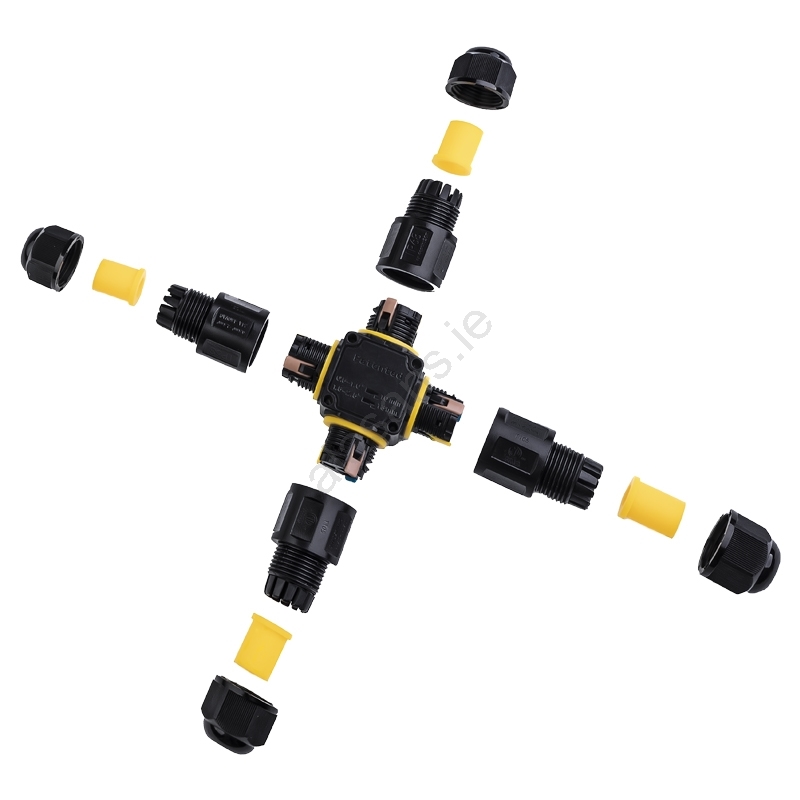

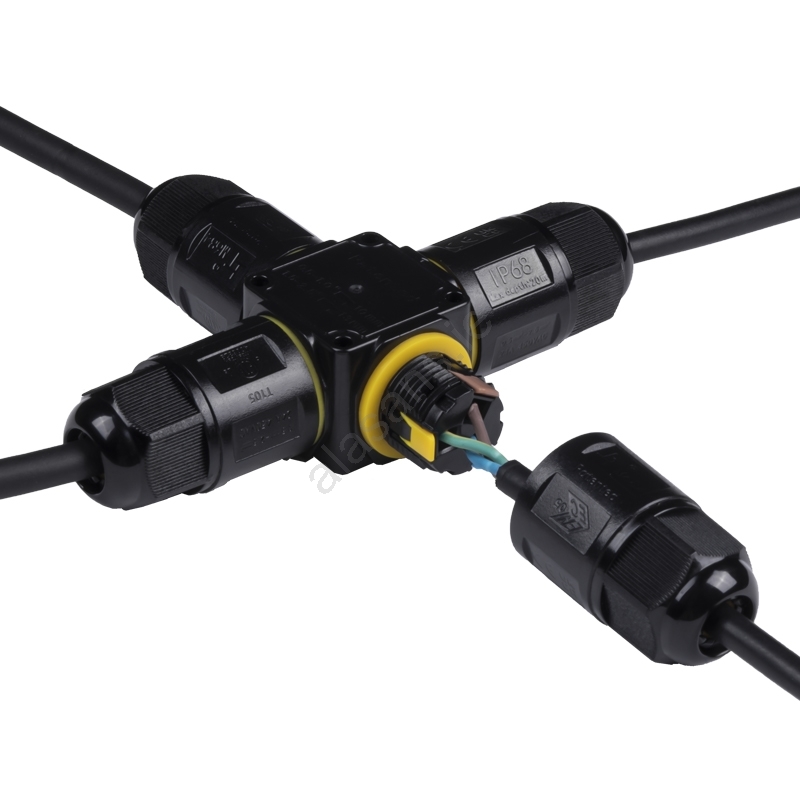

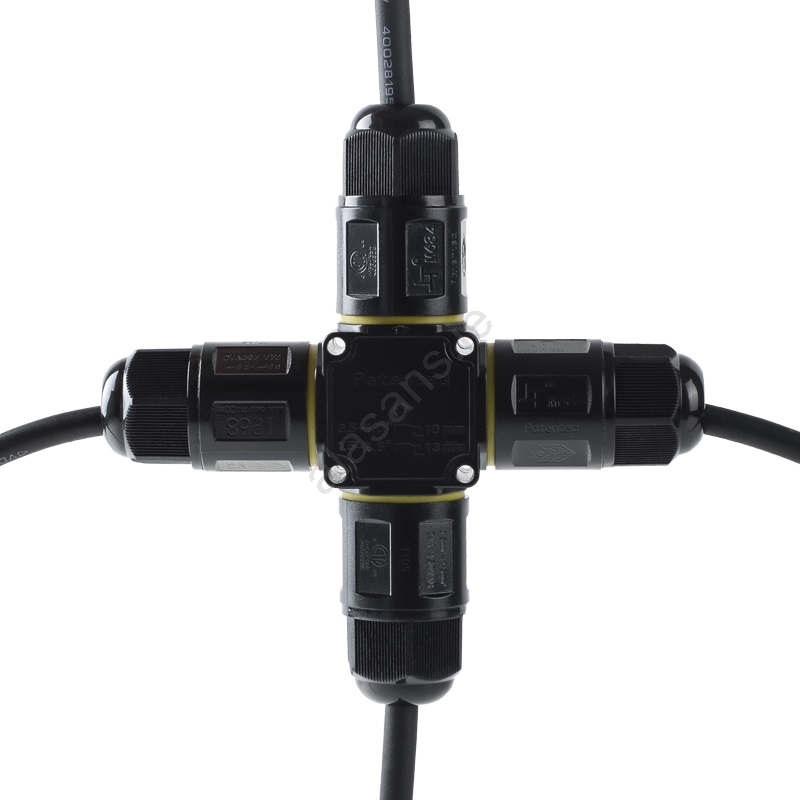

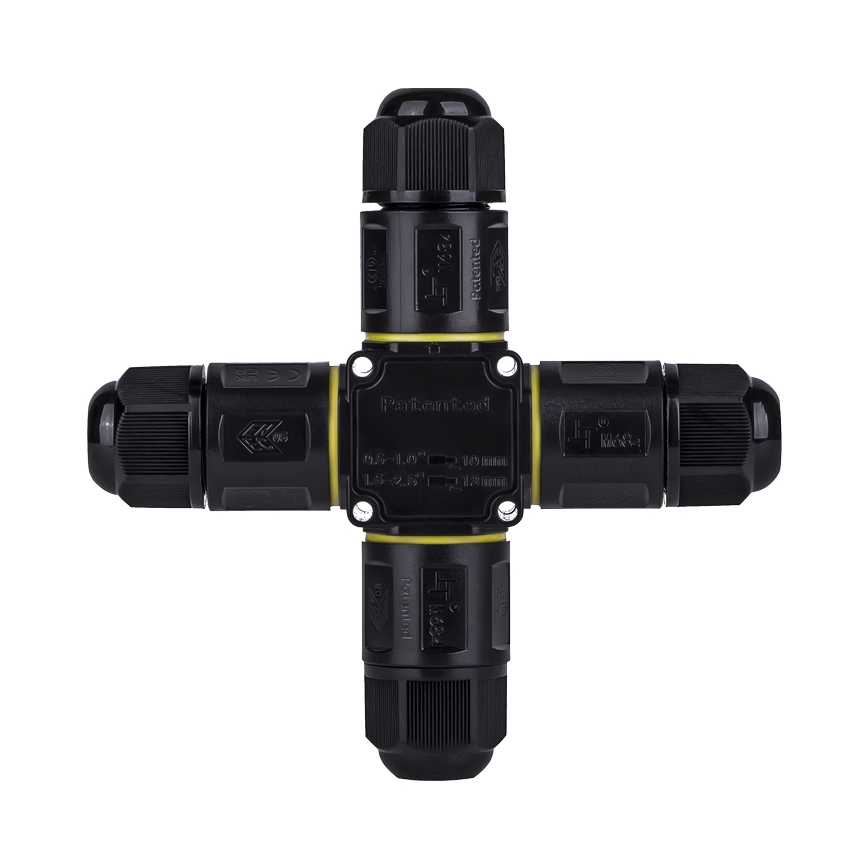

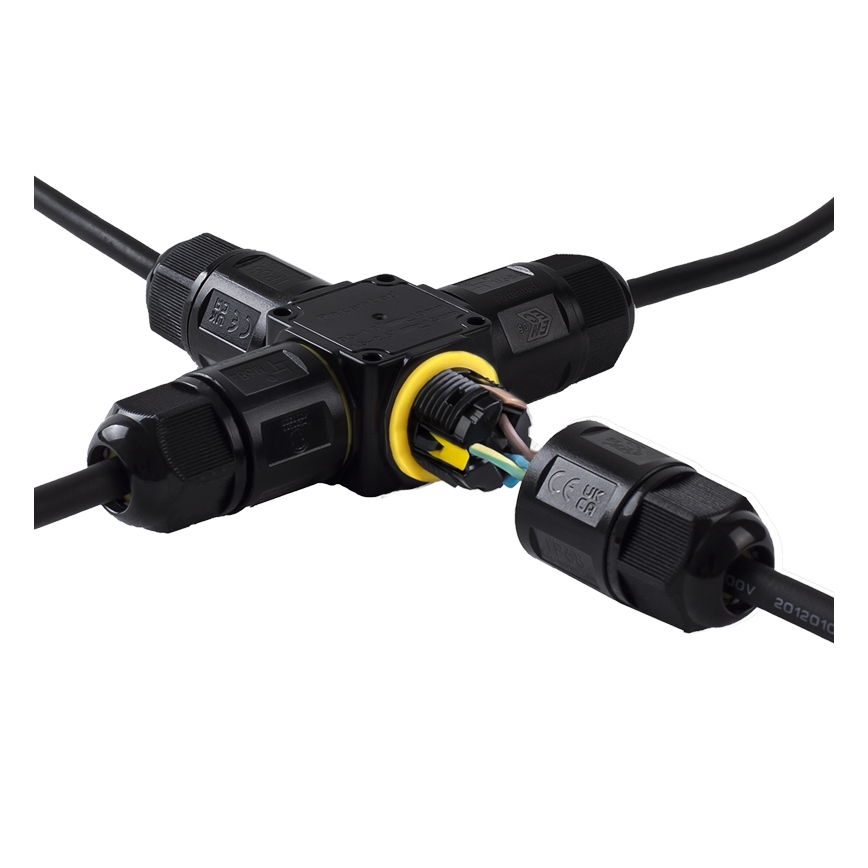

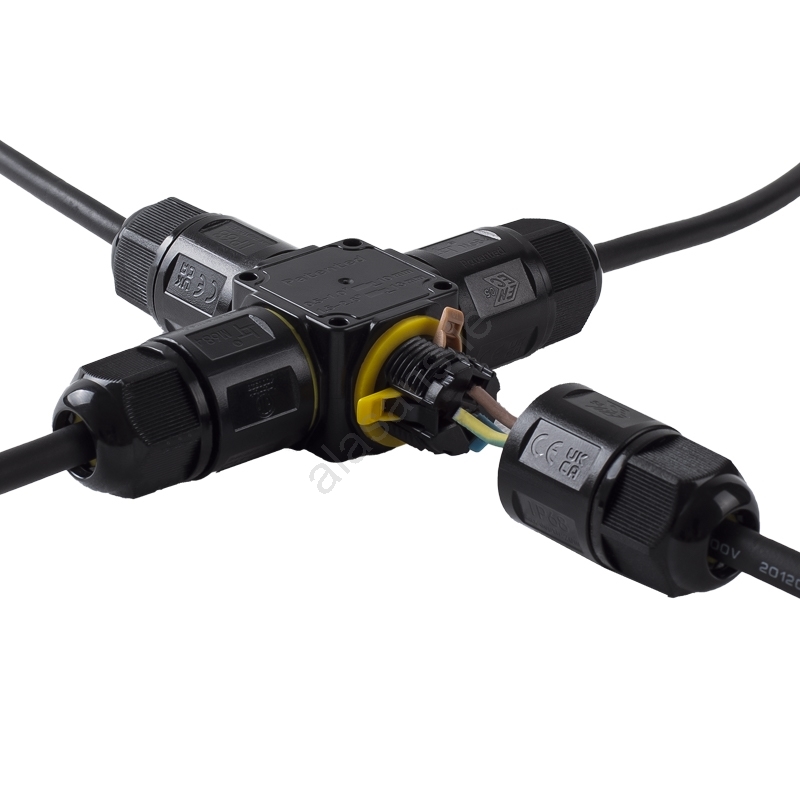

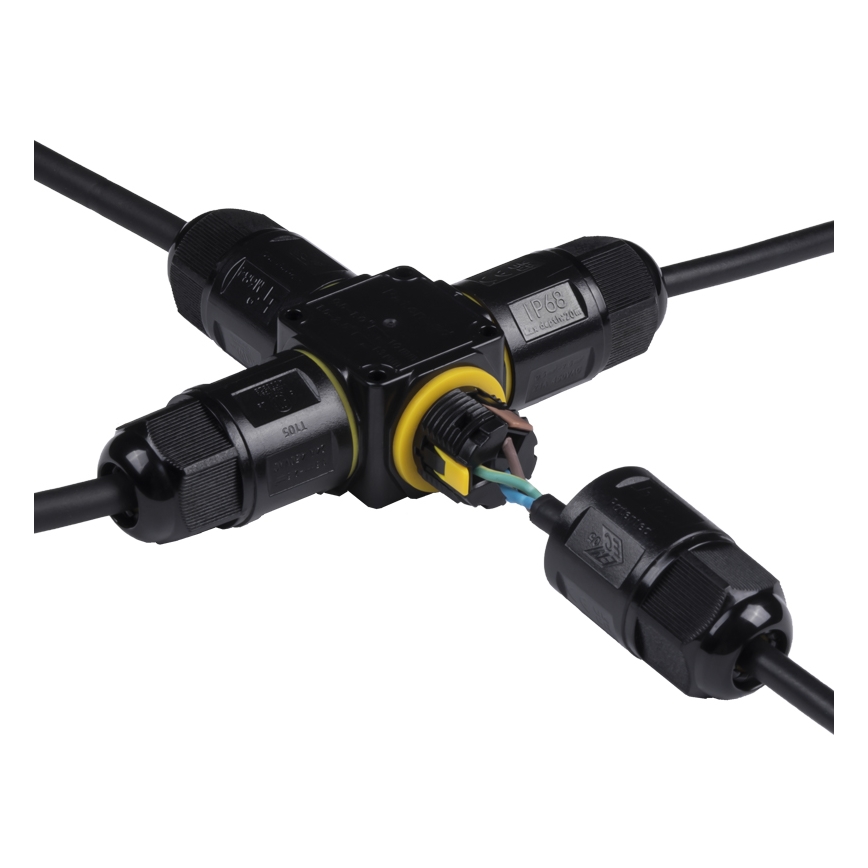

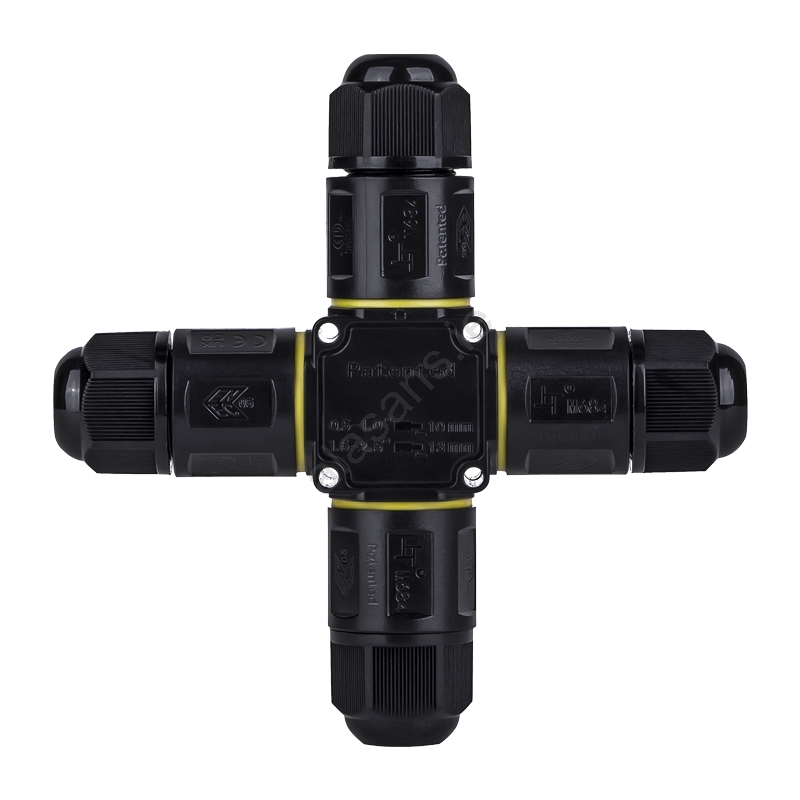

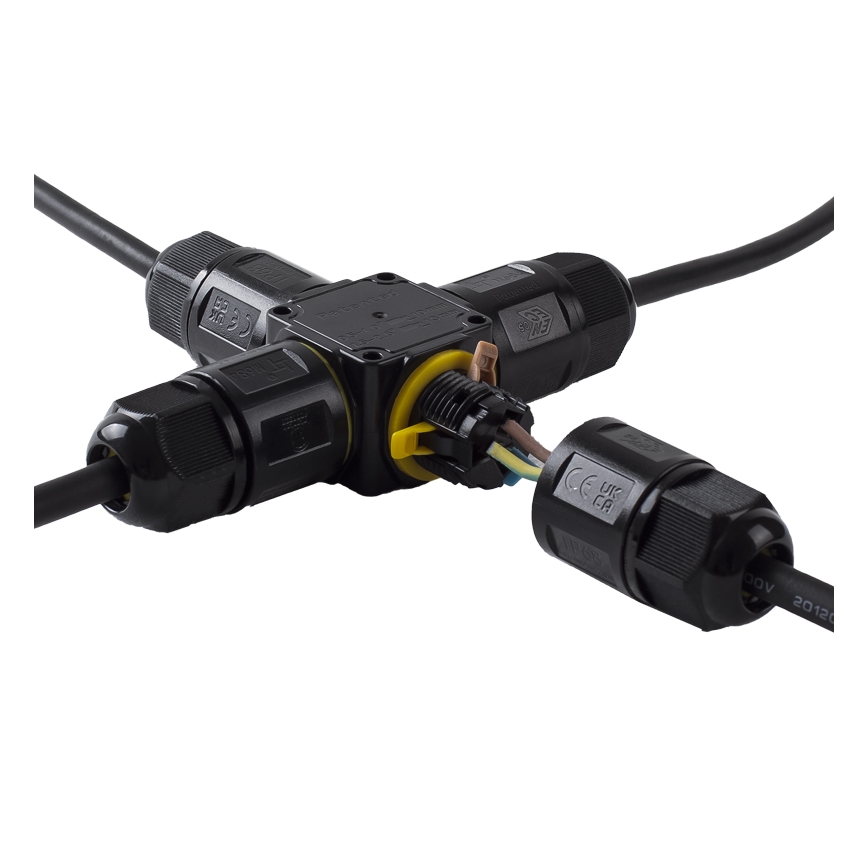

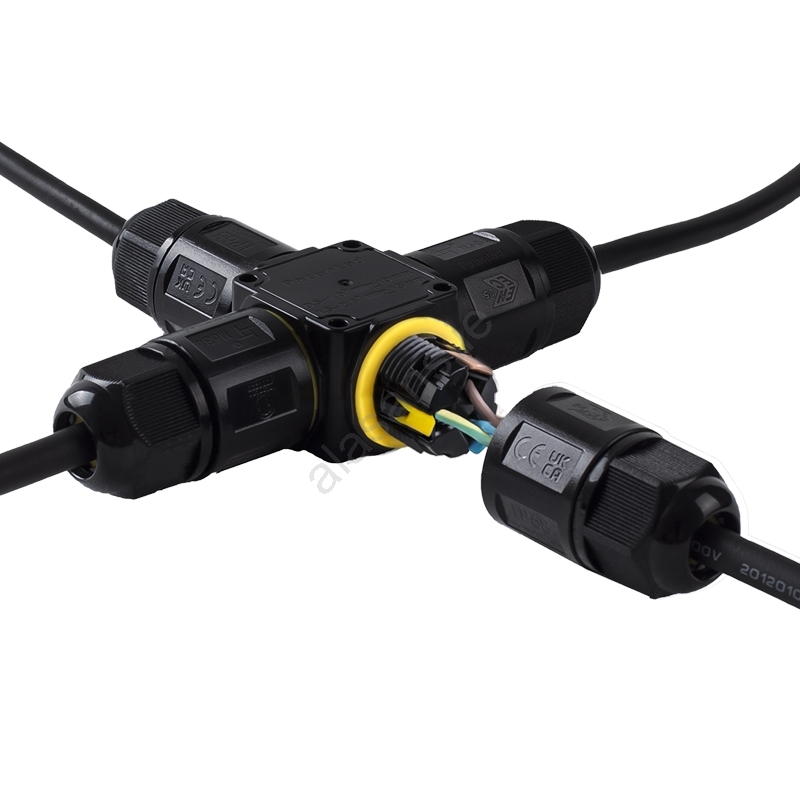

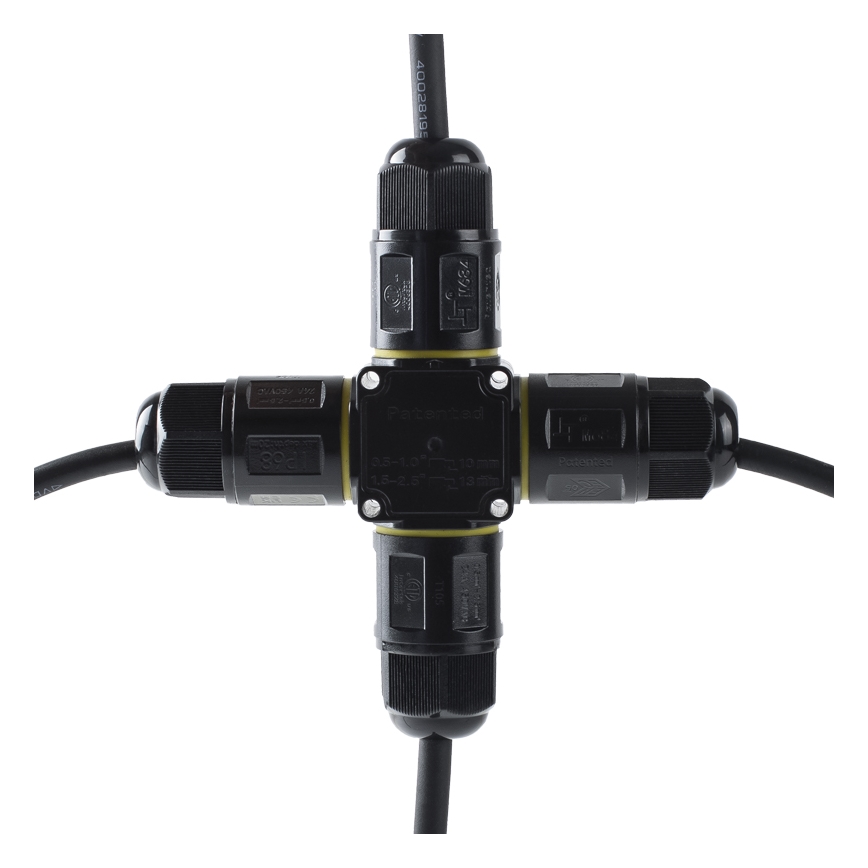

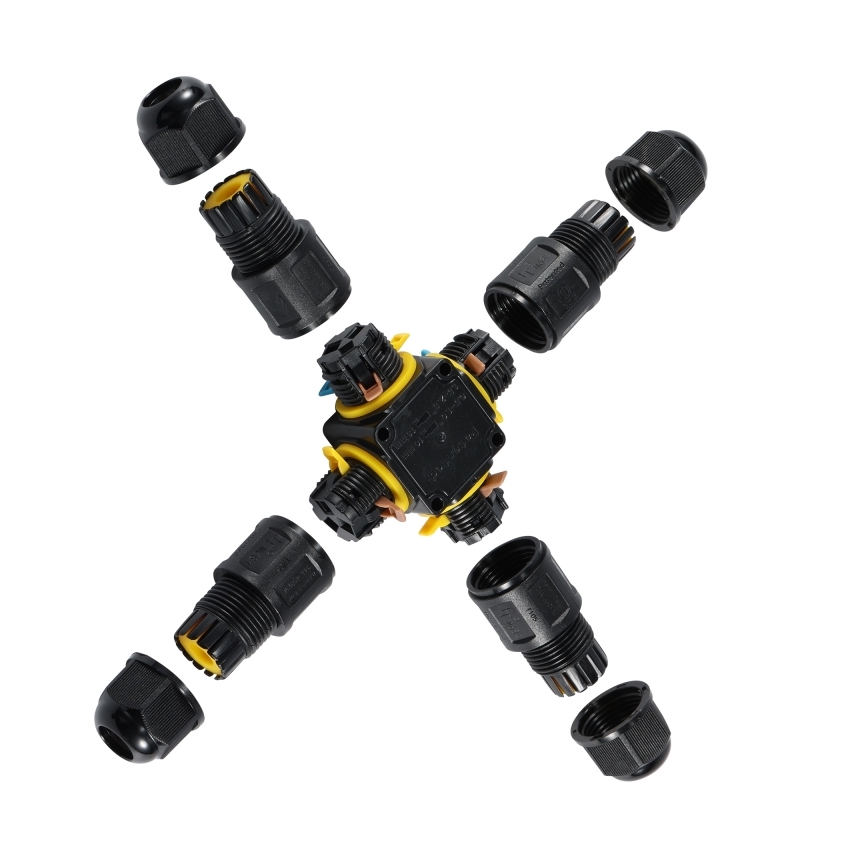

  • The "X" cable connector is used for safe and reliable connection of electrical cables.
  • It protects against humidity, water, dust, and other contaminants.
  • Manufactured from high-quality materials to ensure tightness and weather resistance, and long life.
  • Type: 3-pin hermetic cable connector.
  • Number of inputs/outputs: 4.
  • Number of wires: 3.
  • Wire type: solid, multi-strand, and stranded.
  • Cable diameter: 4 - 8 mm.
  • Core diameter: 0,5 - 2,5 mm.
  • Connection type: lever quick coupler.
  • Maximum rated voltage: 450V.
  • Maximum current: 24 A.
  • Protection class: IP68.
  • UL94 enclosure flammability class: V2.
  • Material: polyamide (PA66).
  • Product purpose: hermetic connection of cables.
  • Operating and storage temperature: -40 °C ~ +110 °C.
  • Relative humidity: < 90%.

  This product is listed in the following categories

  Electrical equipment, Electrical installation, Lights, Outdoor accessories, Outdoor lighting, Plugs, sockets and connectors

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: MX0247
