• Product description

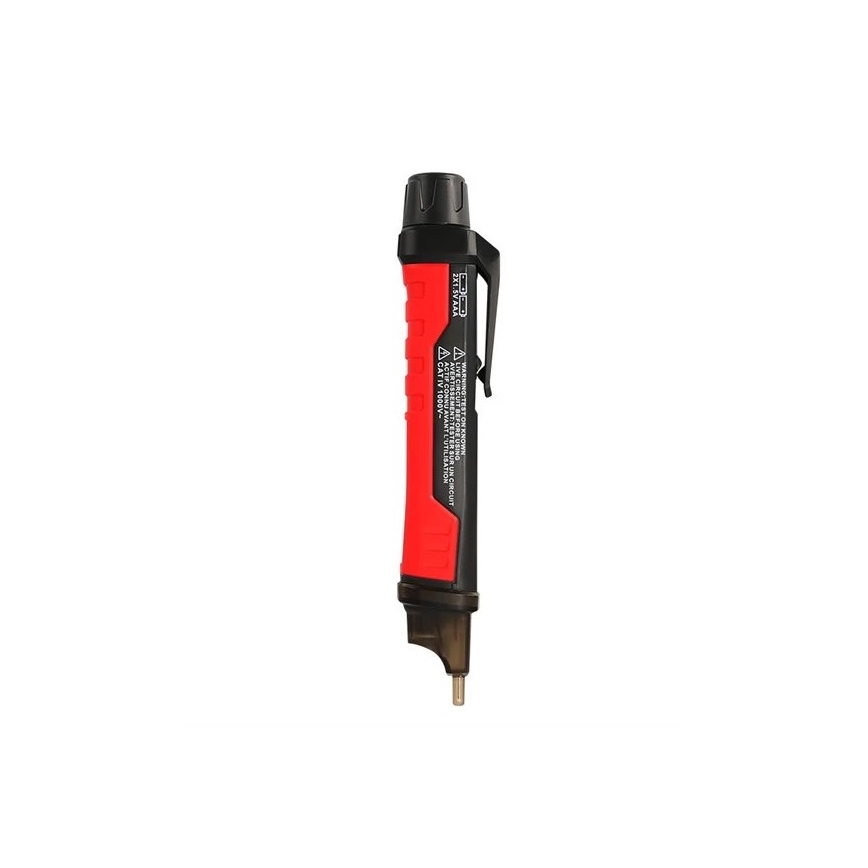

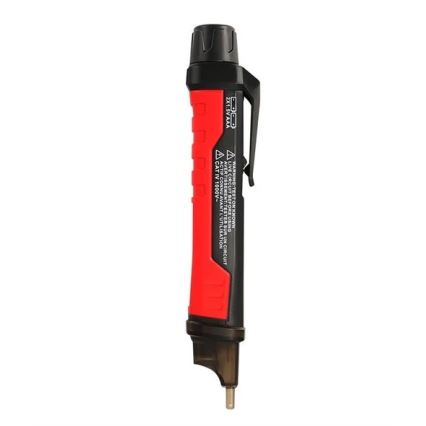

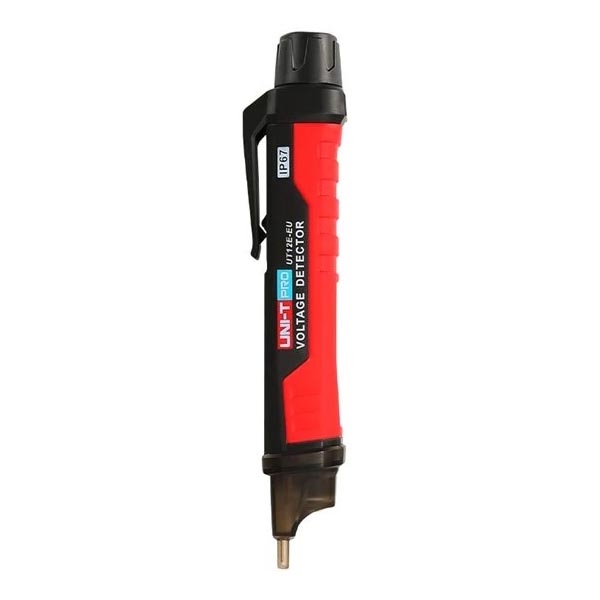

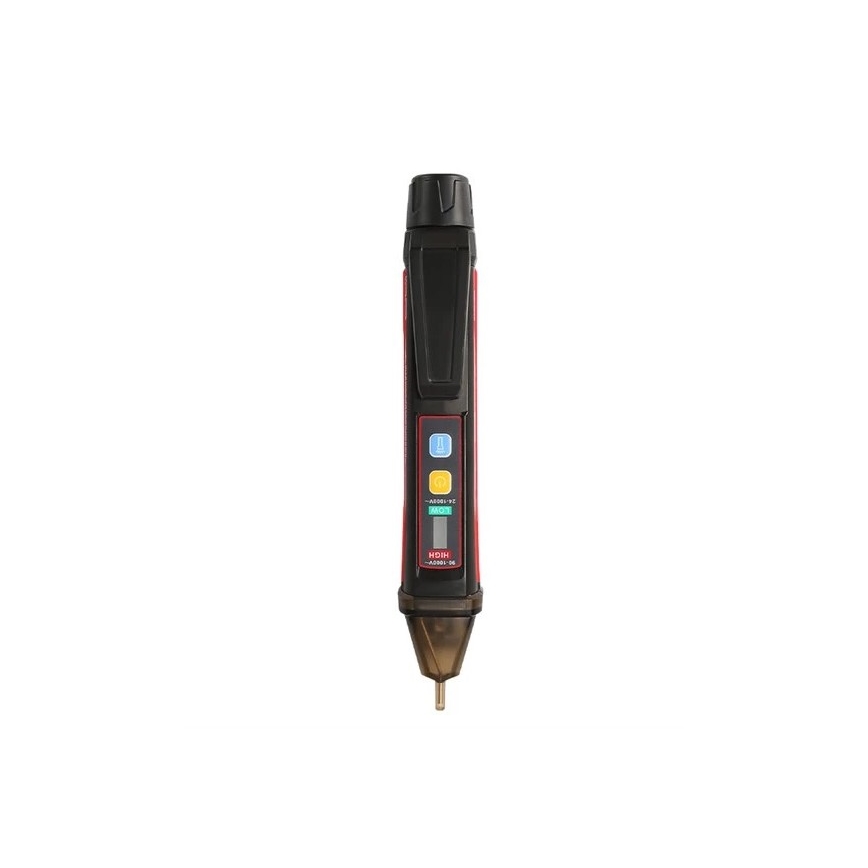

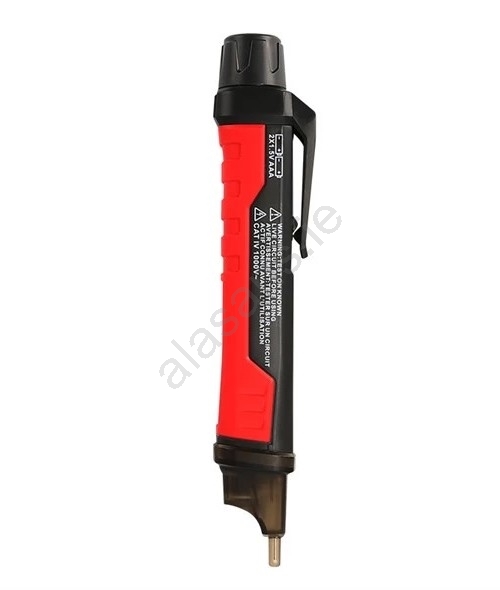

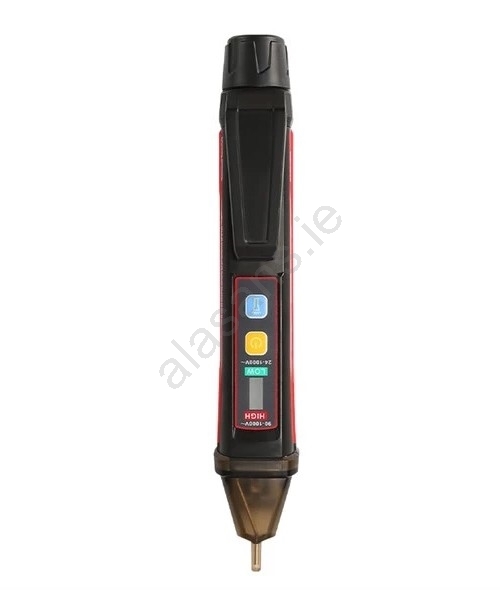

  • Professional non-contact AC voltage detector with a built-in flashlight and acoustic-optical synchronous warning function.
  • In low-voltage mode, it is suitable for testing low-voltage motors (<90V), audio systems, arc welding machines, underground mine lighting, cables with a thick insulation layer, and other weak electromagnetic equipment.
  • In high-voltage mode, it can be used to test power distribution systems in the range (90~1000V), electrical panels, electrical appliances, and three-phase systems.
  • It is widely used in the maintenance of low-voltage equipment such as wires, cables, sockets, and other electrical/electronic devices.
  • It is a very useful tool for electricians.
  • Just place the sensor head close to the object under the test or AC voltage outlet.
  • When AC voltage is detected, the red or green LED on the tip will light up and a buzzer will sound.
  • The frequency of the buzzer and detection LED increases as the detector gets closer to the test object.
  • Product parameters:
  • Non-contact detection of AC line voltage.
  • Indication of the presence of voltage by an audible signal and flashing LED, optional vibration.
  • Automatic switching off in case of inactivity.
  • Flashlight with white light.
  • IP67 dust and water resistance.
  • Technical parameters:
  • Low voltage measurement range: 24 ~ 1000 V AC (green LED lit).
  • High voltage measurement range: 90 ~ 1000 V AC (red LED lit).
  • Frequency: 50/60 Hz.
  • Voltage indication: audio/visual.
  • Automatic shutdown: about 5 minutes.
  • Low battery warning.
  • Vibration function.
  • Relative humidity: ≤80% (no condensation).
  • Drop resistance: 2 m.
  • Safety class: CAT IV 1000V.
  • Battery: 2x 1.5V AAA (included).

  Special coupon offer applies to this product.

  This product is listed in the following categories

  Hand tools, Hobby, House and garden, Power tools, Workshop

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: TI0108
