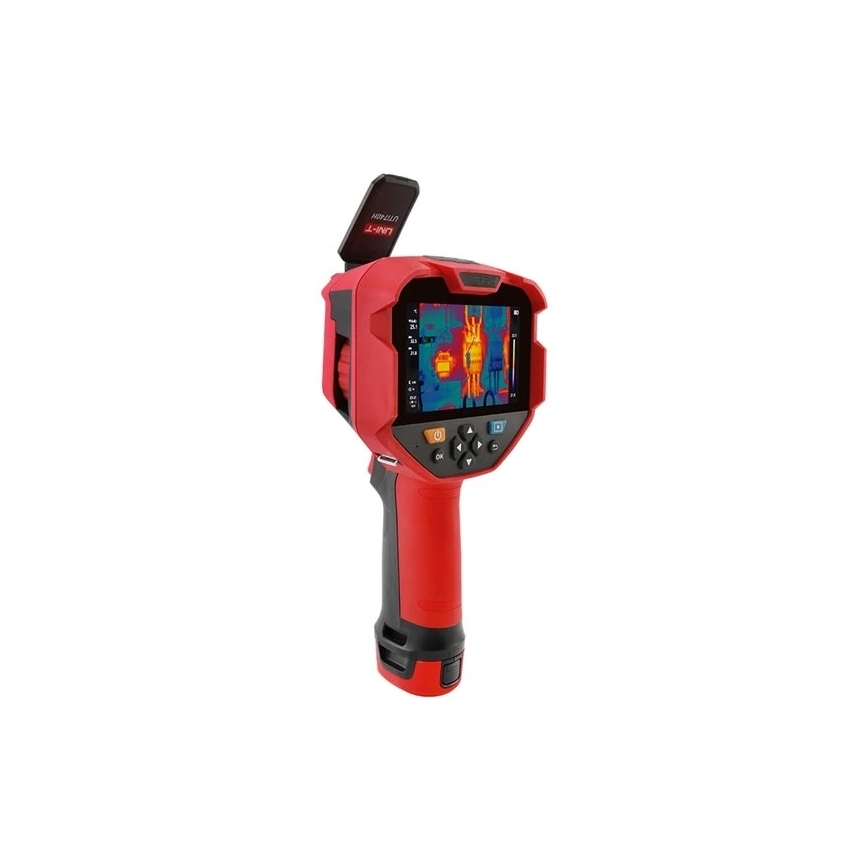

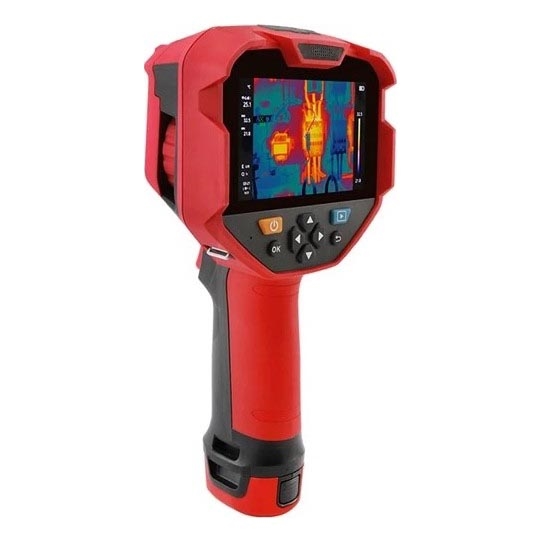

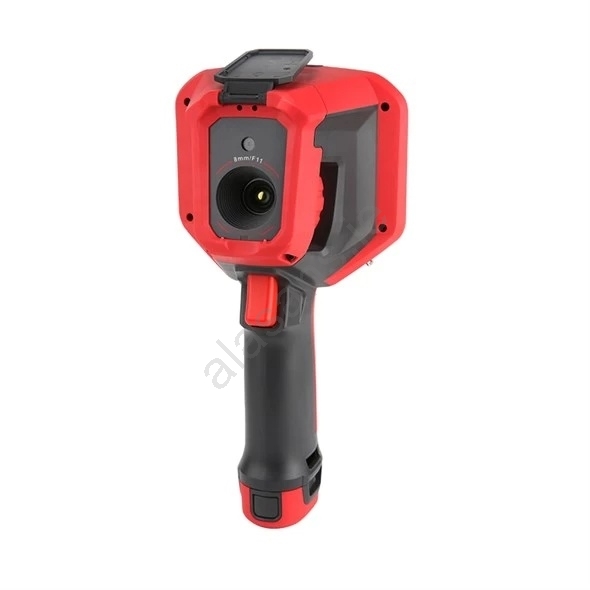

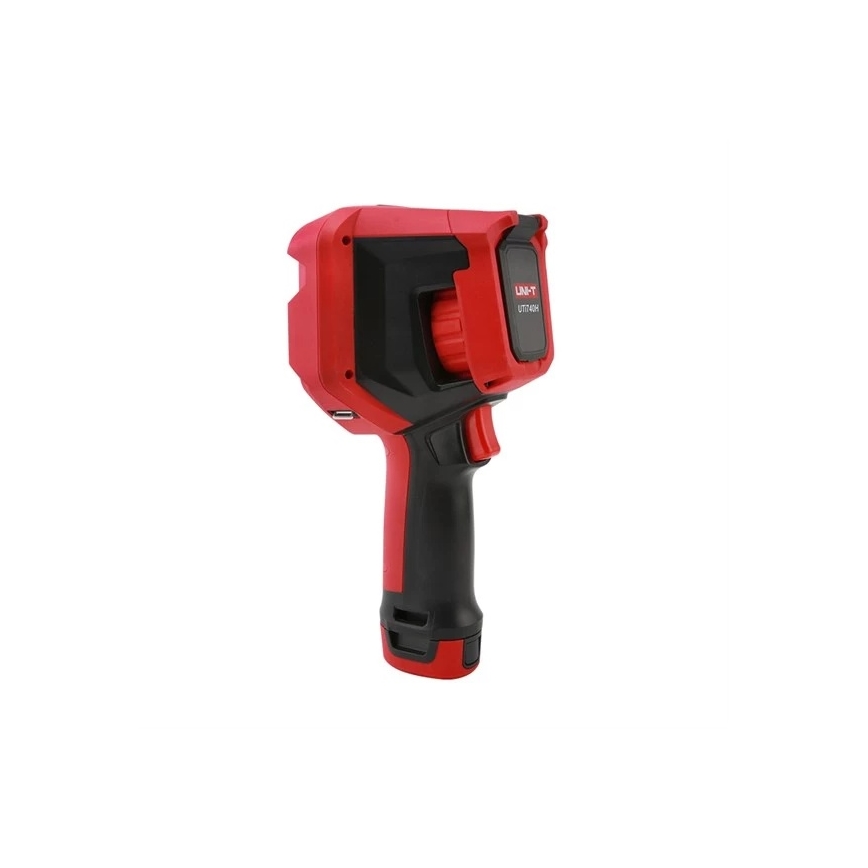

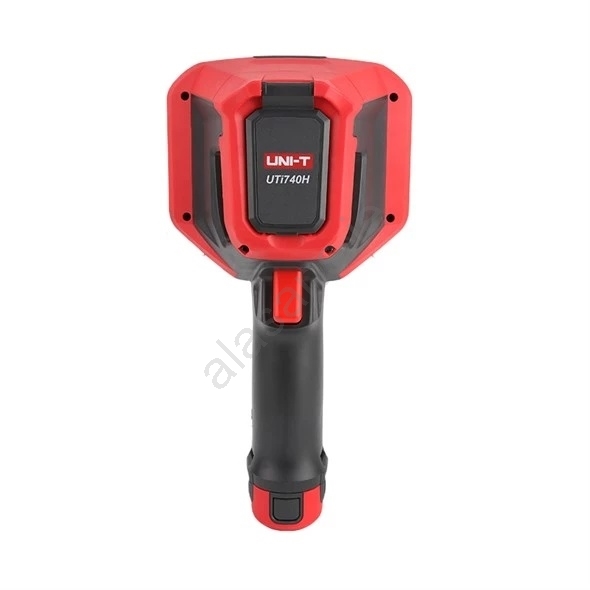

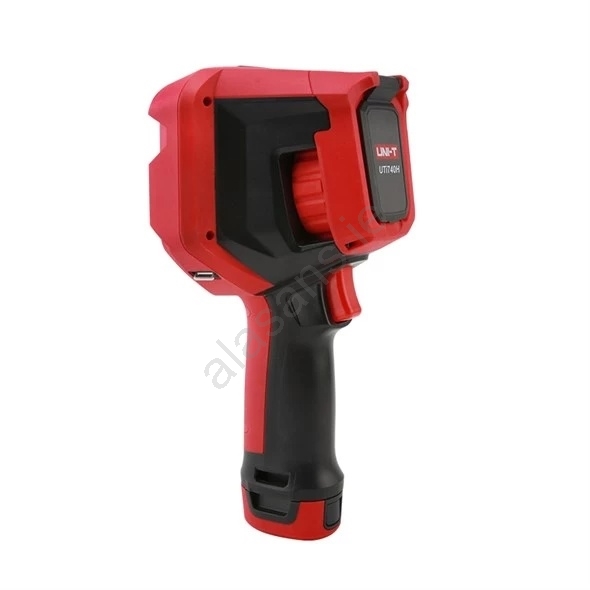

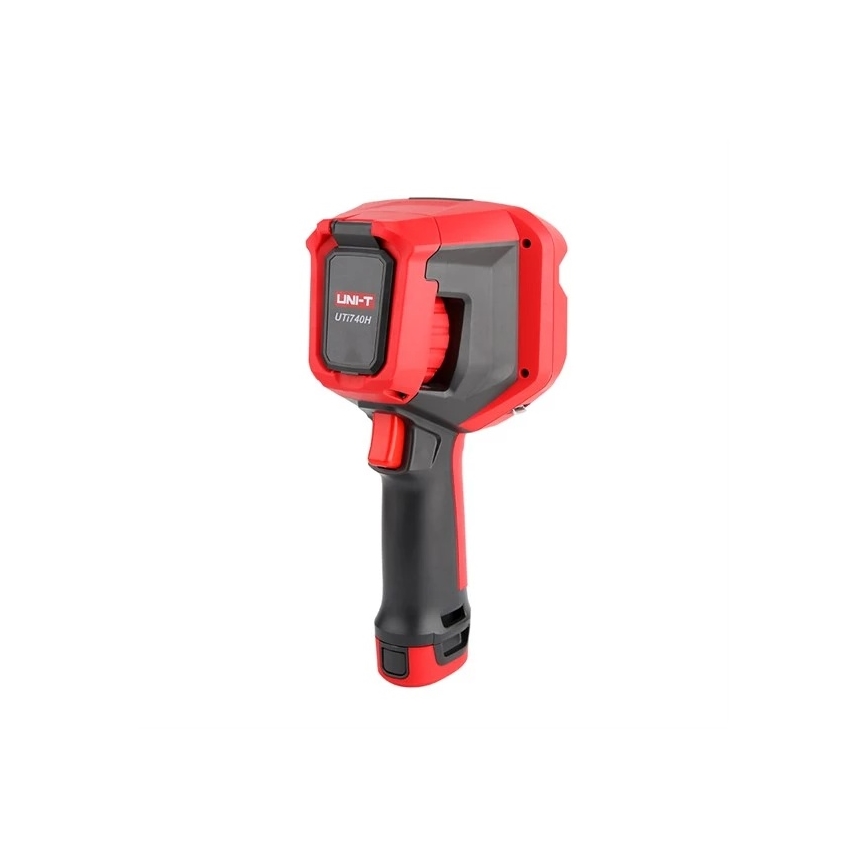

• Product description

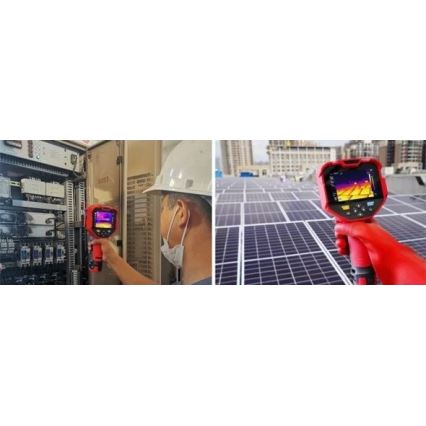

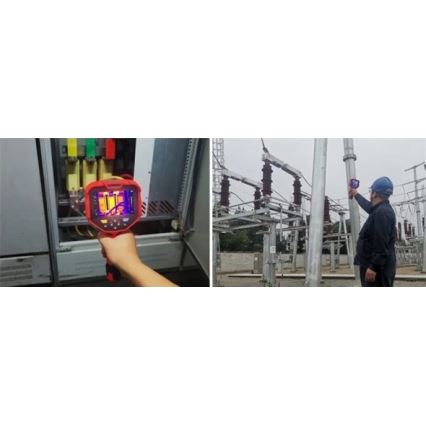

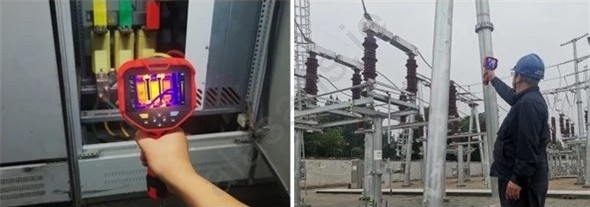

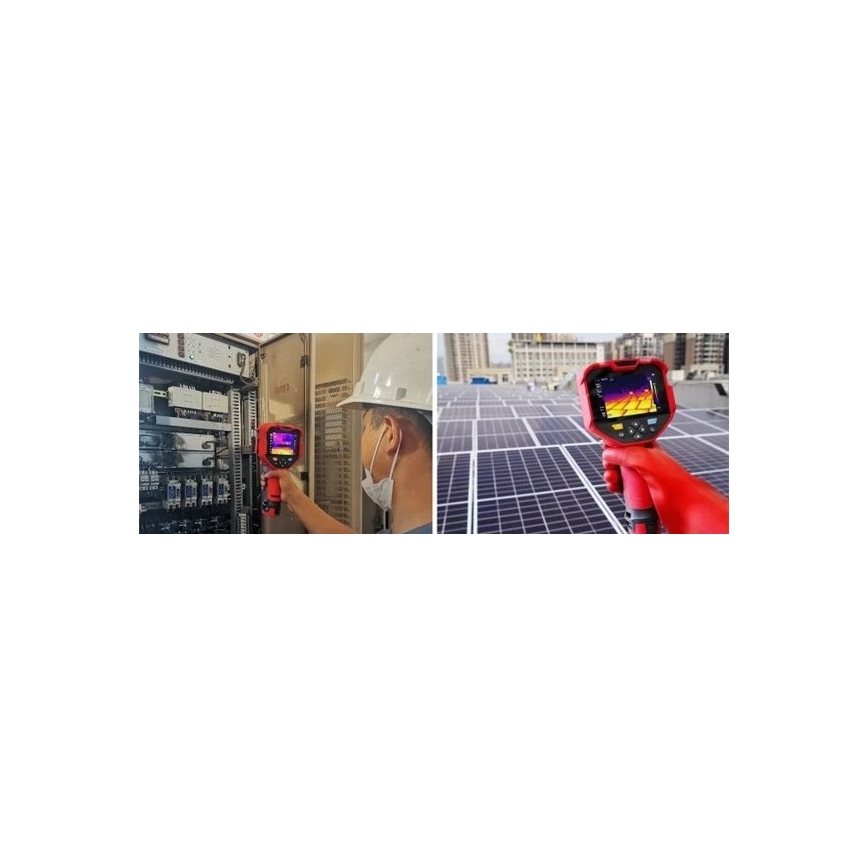

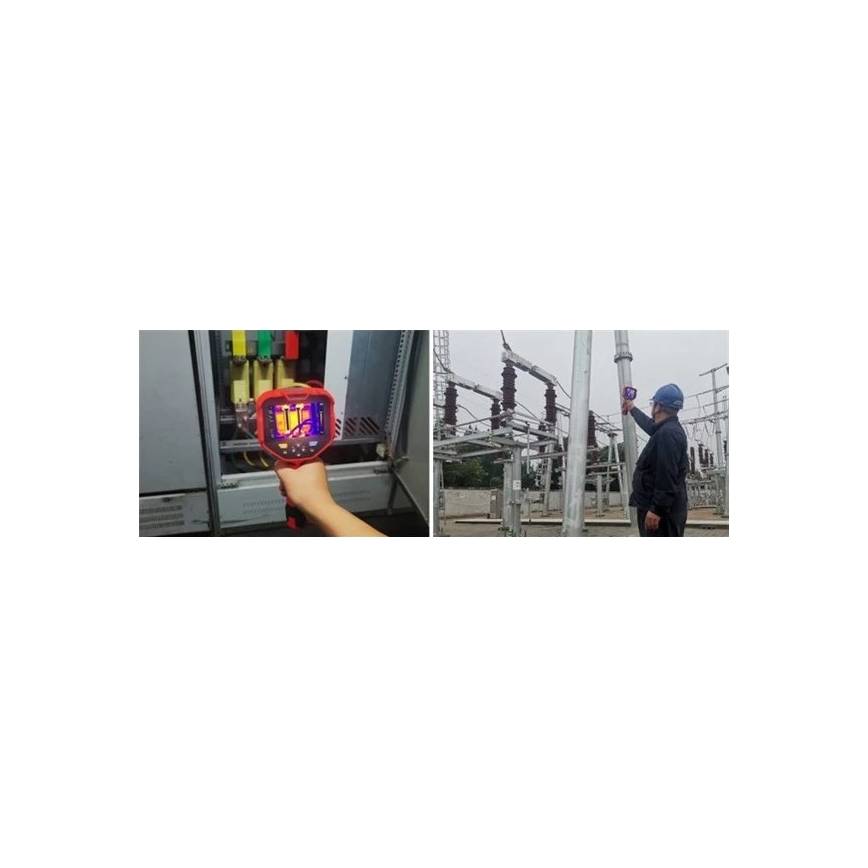

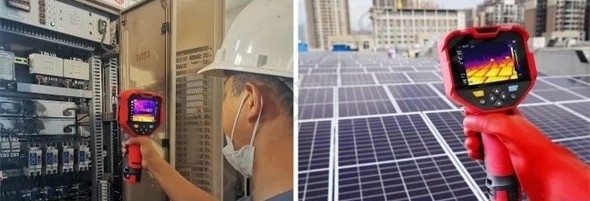

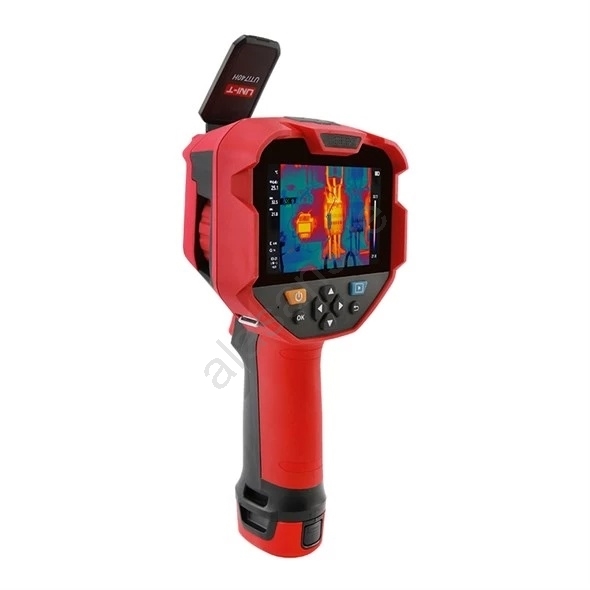

  • The thermal camera is designed for industrial use with a temperature range of -30 °C to +650 °C.

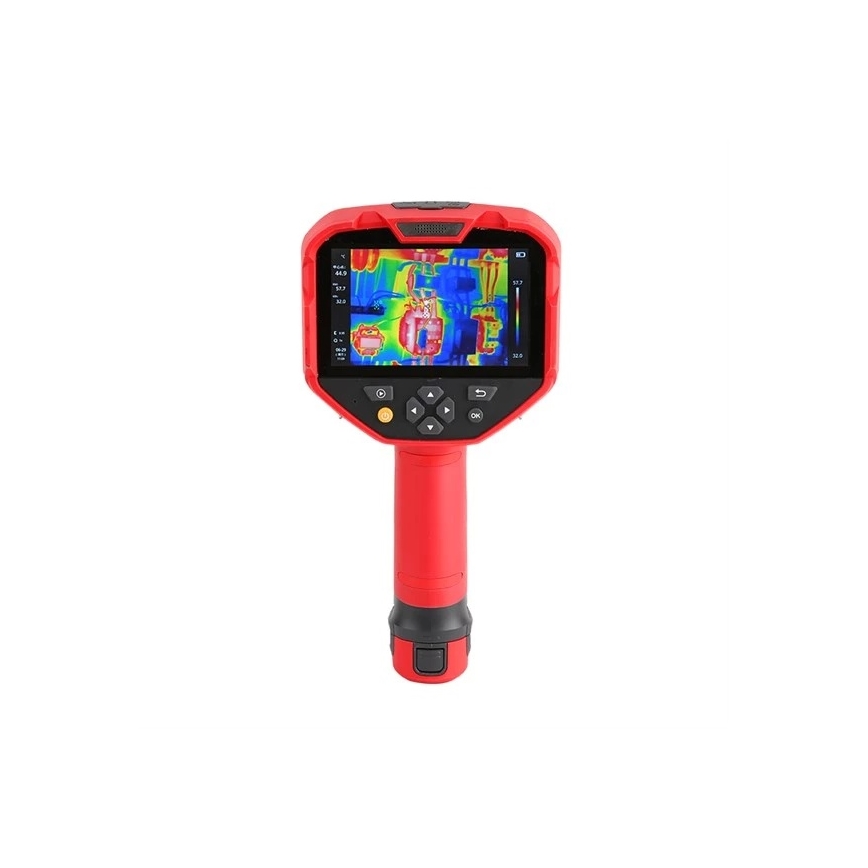

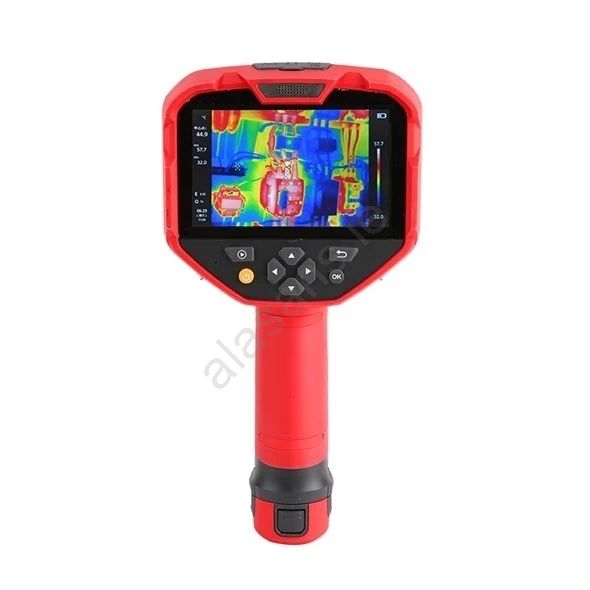

  • It has a 4,3" IPS display (800 × 480 px) and an IR resolution of 384 × 288.

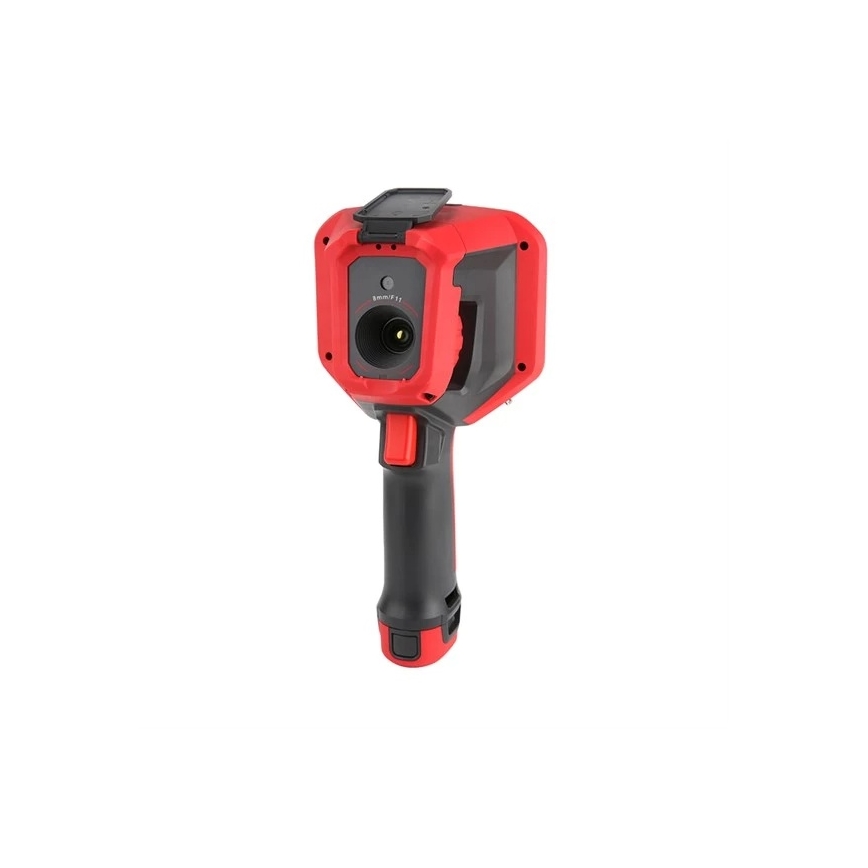

  • Equipped with a 5 MP digital camera and manual focus for high-quality imaging.
  • Offers 2× and 4× digital zoom and image modes: thermal, visual, fusion, PIP.
  • Supports multi-object analysis: 5 points, 1 line, 5 rectangles, 5 circles.
  • Enables automatic tracking of the highest and lowest temperatures in the image.
  • Includes isotherm functions (2 modes), an adjustable temperature alarm and an alarm icon on the display.
  • Thermal image can be overlaid with the visible image and displayed in 7 color palettes.
  • Features Wi-Fi connectivity and a mobile app, plus PC software for analysis and real-time projection.
  • Allows saving images to a 32 GB microSD card and output via USB-C.

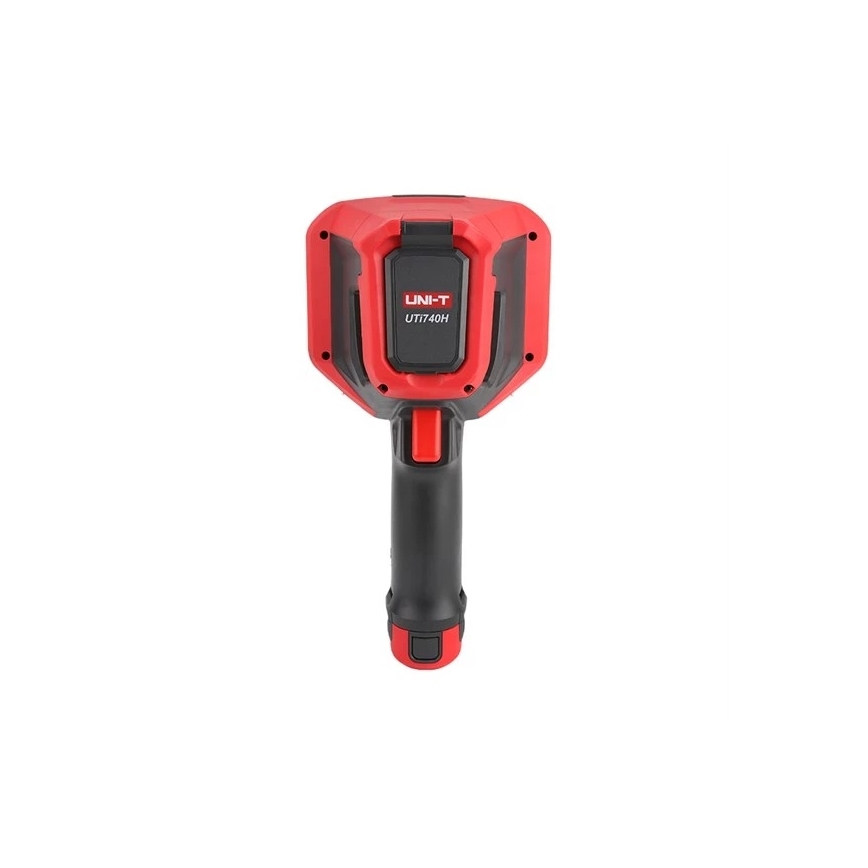

  • Powered by a removable Li-ion battery 5200 mAh with up to 5 hours runtime.

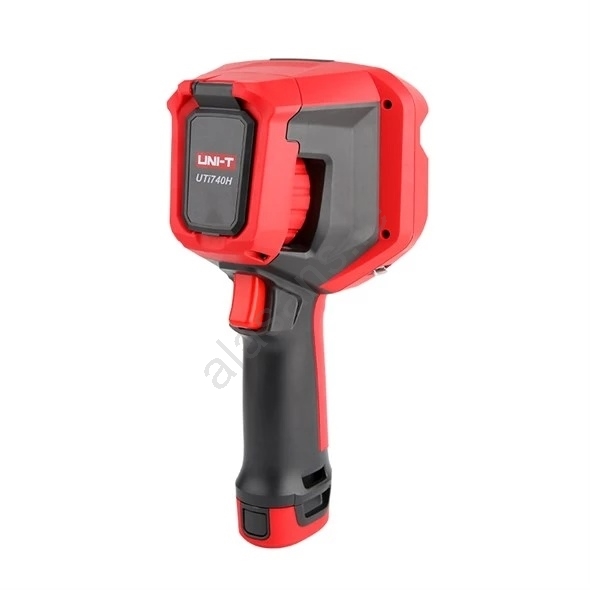

  • The housing has IP54 protection, drop resistance from 2 m and a ¼" mounting thread for a tripod.
  • Technical specifications IR resolution: 384 × 288 px.
  • Measurement range: -30 °C to +650 °C (-22 °F to +1202 °F).
  • Accuracy: ±2 °C or ±2 % (-10 °C to 650 °C at 25 °C).
  • Units: °C, °F, K.
  • Spectral range: 8–14 μm.
  • NETD: < 60 mK. IFOV: 1,3 mrad.
  • FOV: 28° × 21°.
  • Sensor pixel size: 17 μm (uncooled vanadium oxide).
  • Frame rate: ≤ 25 Hz.
  • Emissivity: 0,01–1,00 (default 0,95).
  • Storage: BMP format.
  • Power: Li-ion battery 5200 mAh, 3,7 V.
  • Operating time: approx. 5 h (with Wi-Fi off).
  • Certifications: CE, FCC, UKCA, RoHS.
  • Package contents: Thermal camera, Li-ion battery 5200 mAh, 32 GB microSD card, USB-C cable, wrist strap.
