• Product description

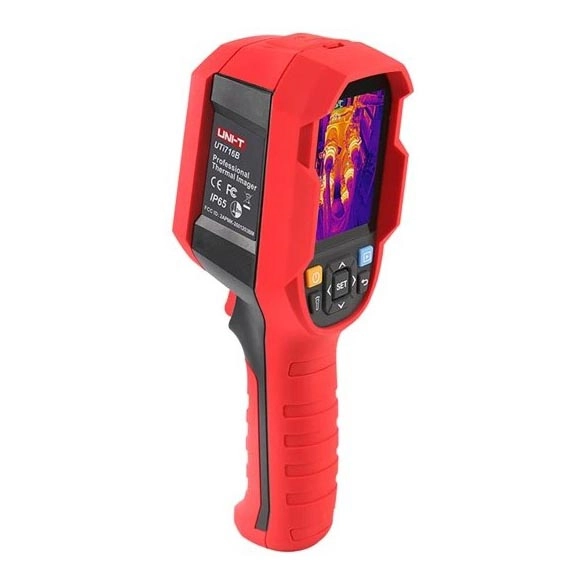

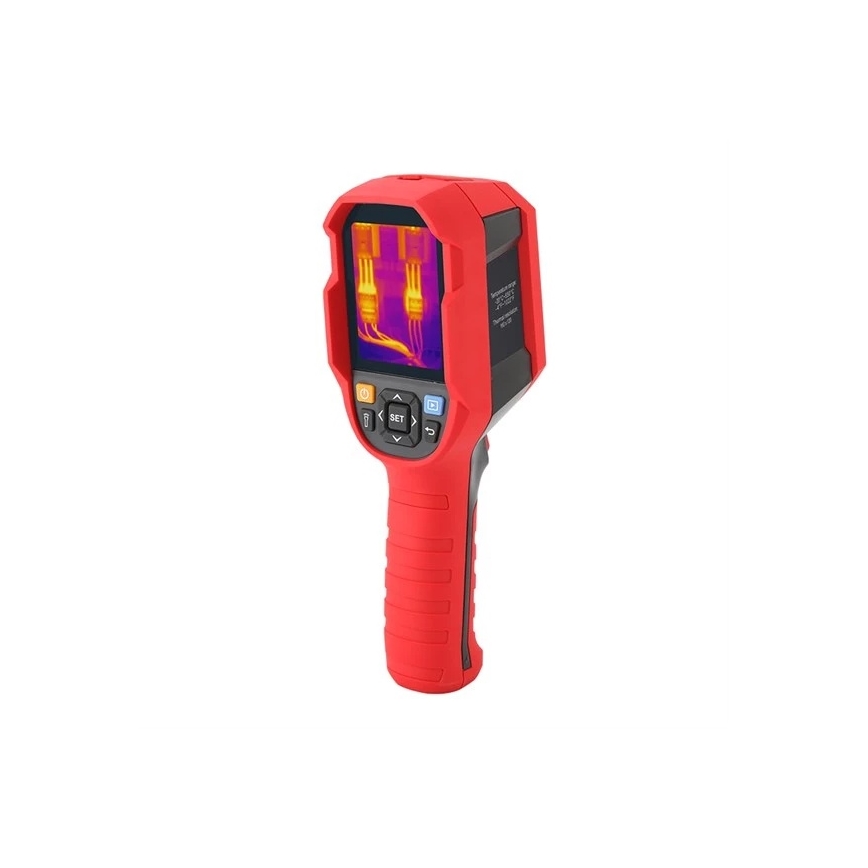

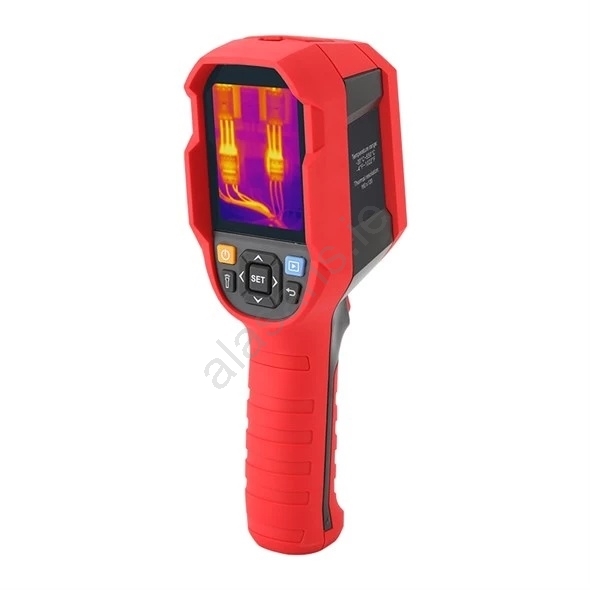

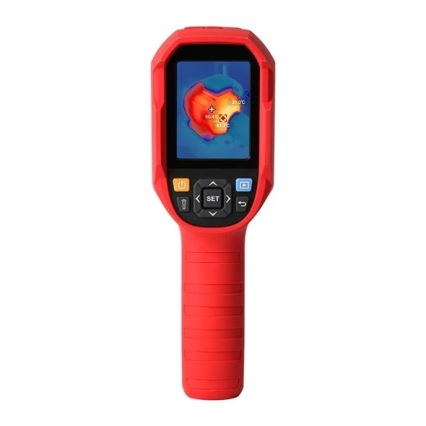

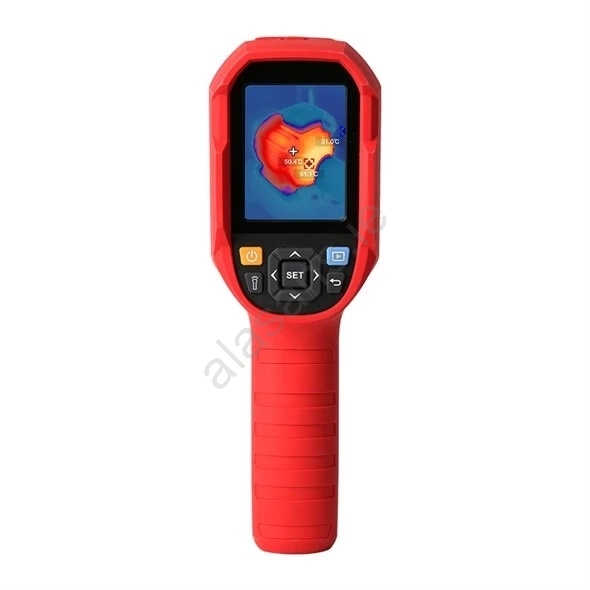

  • Highly durable thermal camera features a wide temperature measurement range from -20°C to 550°C.
  • The device offers multiple imaging modes for different display requirements, including thermal, visual and PIP modes.
  • To achieve maximum detail, the camera uses the T-Mix image fusion algorithm and a 320 x 240 pixel super-resolution function.
  • Included in the package are PC software and a mobile app designed for in-depth image analysis and report generation.
  • Integrated Wi-Fi module enables real-time image transfer and full camera control from a mobile phone.
  • The MP4 video recording function is used to monitor temperature change trends directly in the field.

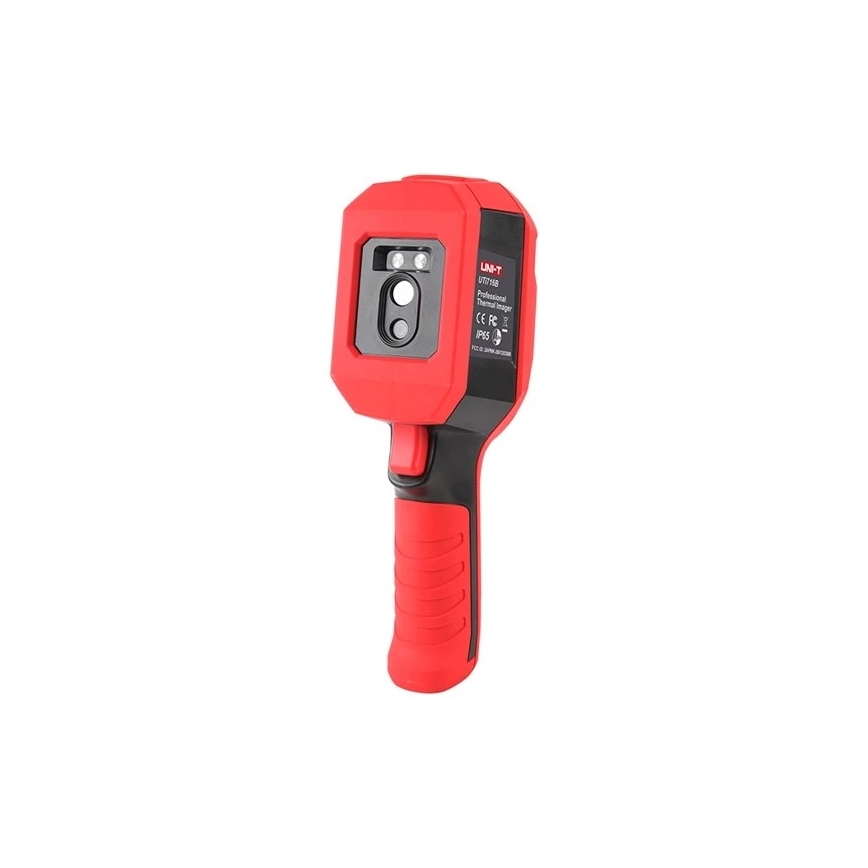

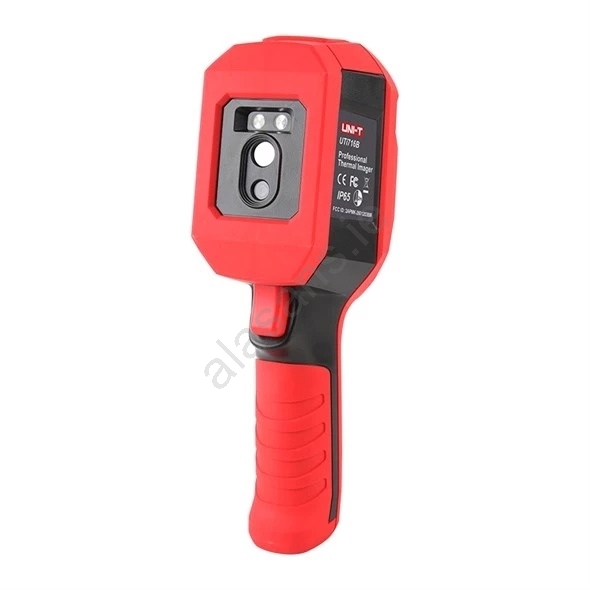

  • The device is equipped with a 2MP digital camera for capturing accompanying visual documentation.

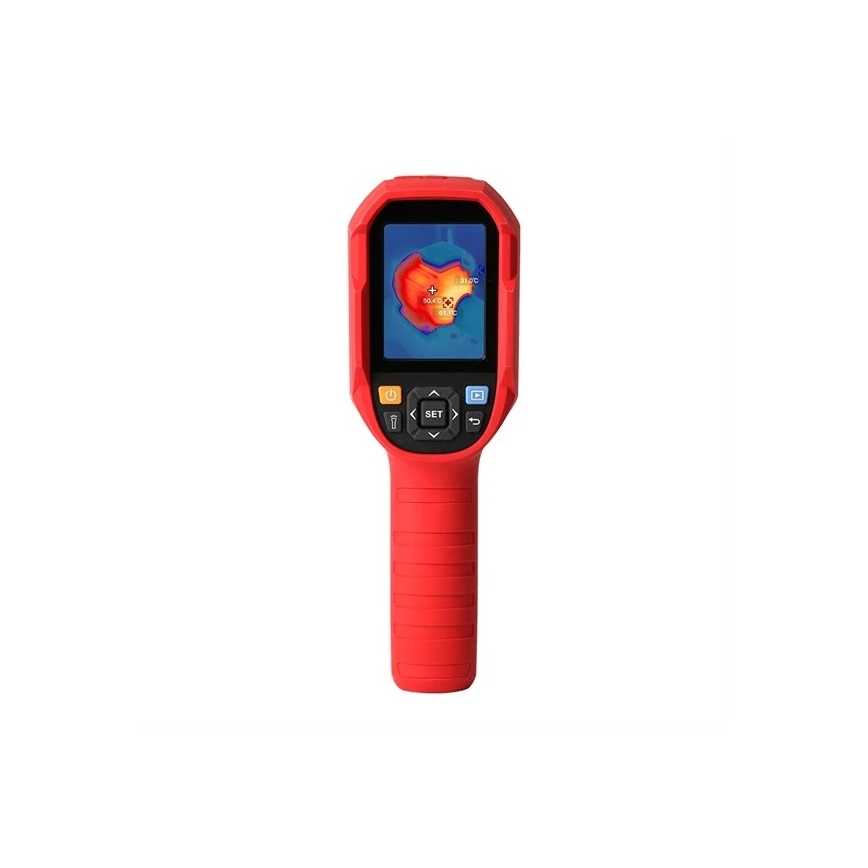

  • Clear data display is provided by a 2,8″ TFT screen with 320 x 240 pixel resolution and a 25 Hz refresh rate.
  • Users have seven color palettes available for optimal thermal image rendering as needed.
  • The system includes high and low temperature alarms with visual animation on the LCD, an LED flashlight and a buzzer.
  • A rugged housing with IP65 rating ensures protection against dust and water and withstands drops from up to 2 meters.
  • Rechargeable Li-ion battery with a capacity of 5000 mAh provides power for more than 8 hours of continuous operation.
  • Powered via a USB-C cable, which is included in the package.
  • Internal memory of 16 GB offers ample space for storing large amounts of data via the USB-C interface.
  • The multilingual operating system simplifies device setup and operation in an international environment.
  • It is an ideal tool for diagnostics and troubleshooting across a wide range of industrial applications.
  • Measurement in the infrared spectral band: 8 μm až 14 μm.
  • Pixel size of the thermal sensor: 12 μm.
  • Thermal sensitivity (NETD): ≤ 50mK.
  • Field of view (FOV): 40°(H) x 30°(V).
  • Object temperature analysis: 5 points/ 3 rectangles.
  • Image/video storage format: JPG / MP4.
