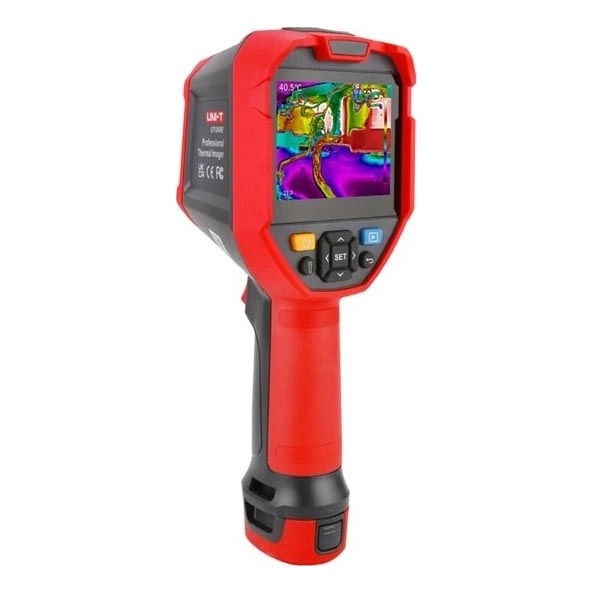

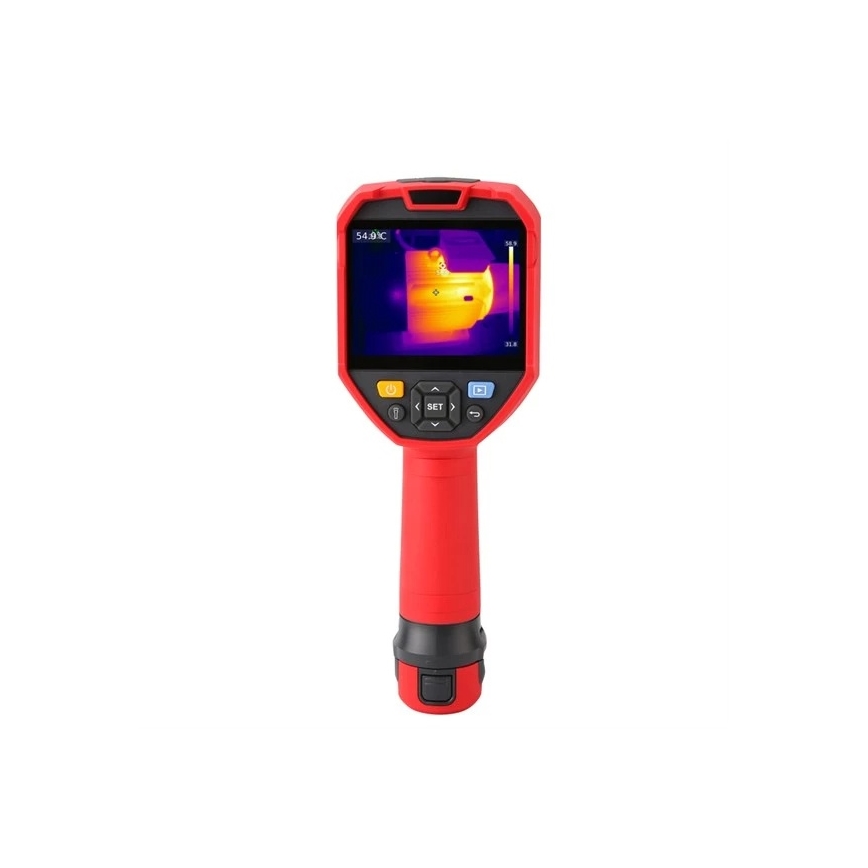

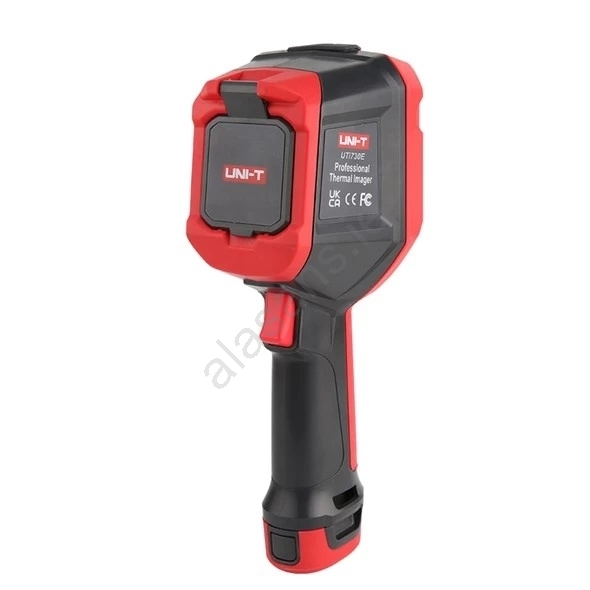

• Product description

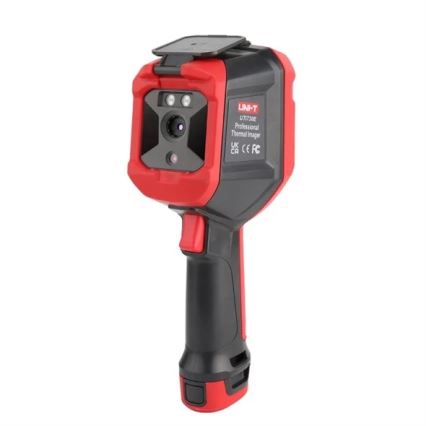

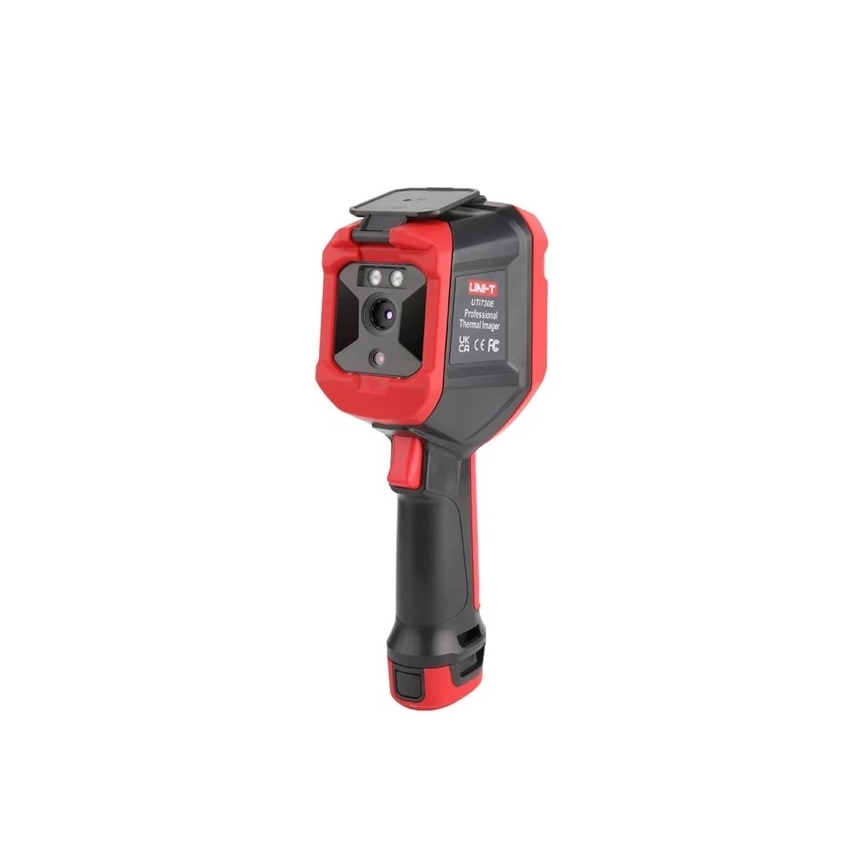

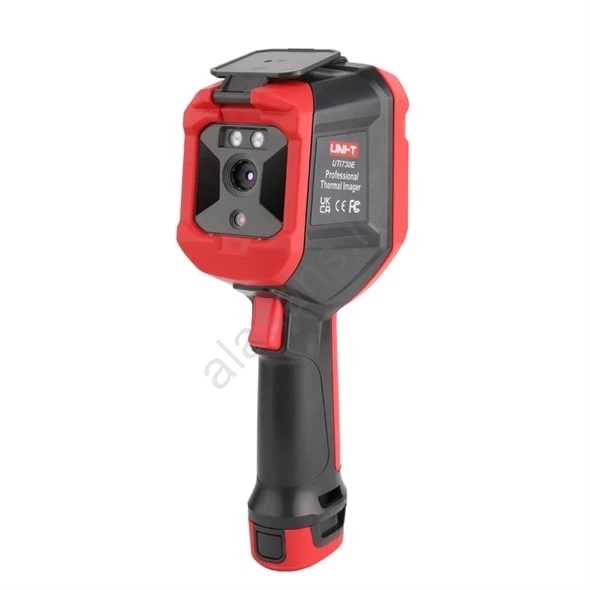

  • The thermal camera operates in the infrared spectrum to measure surface temperatures from -40 °C to +400 °C.
  • It contains 76 800 pixels from an uncooled vanadium oxide (12 μm) detector and a 2 Mpx sensor for visible light.
  • Thermal images can be displayed in 7 color palettes and blended with the visible image.
  • System date and time settings, generation of QR codes for easier photo classification.
  • Manual and automatic camera triggering at intervals of 1–1000 s.
  • Save images to a microSD card (max. 32 GB) or transfer via Wi-Fi Hotspot to PC/mobile.
  • Real-time output via USB-C to a laptop or TV.
  • Switch between units °C, °F, K.
  • Automatic tracking of the hottest and coldest points in the image.
  • Multi-object temperature analysis: point, line, circle, rectangle (up to 6 simultaneously).
  • Adjustable high and low temperature alarms (LED + animations on the LCD).
  • Photo analysis on PC and mobile using Vitta software and APP.
  • Removable 5200 mAh Li-ion battery, chargeable inside the device or externally.

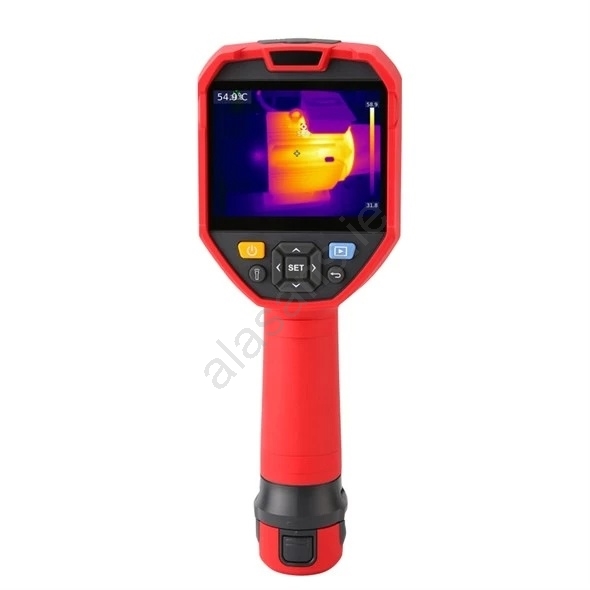

  • LCD IPS display 3,5" (640 × 480 px), digital zoom 2×, 4×, manually focusable lens.

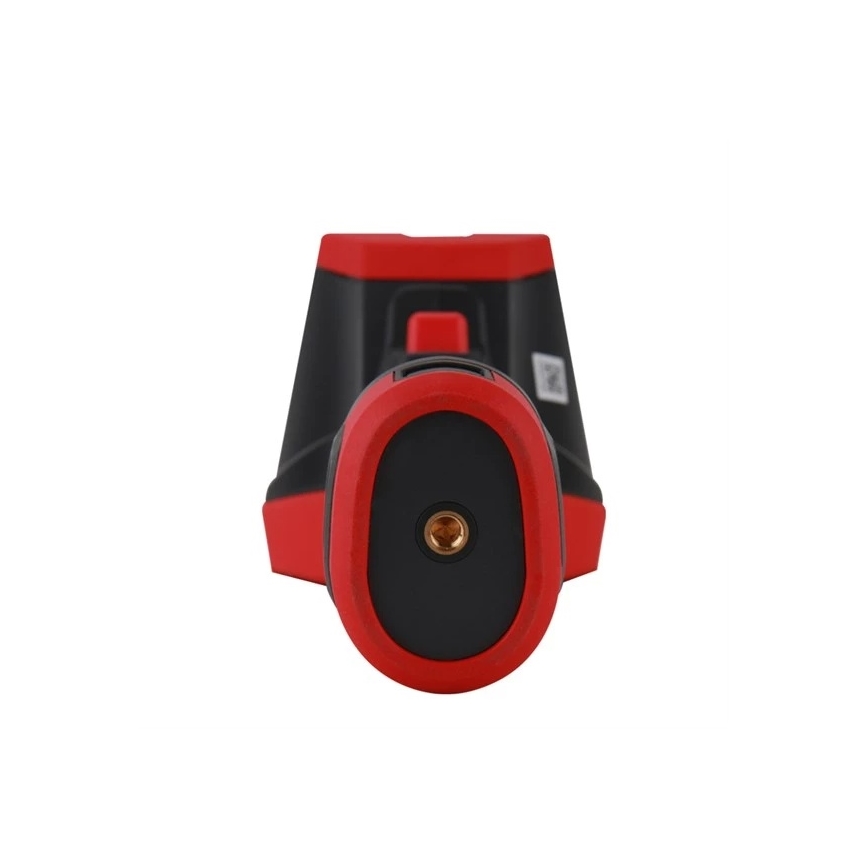

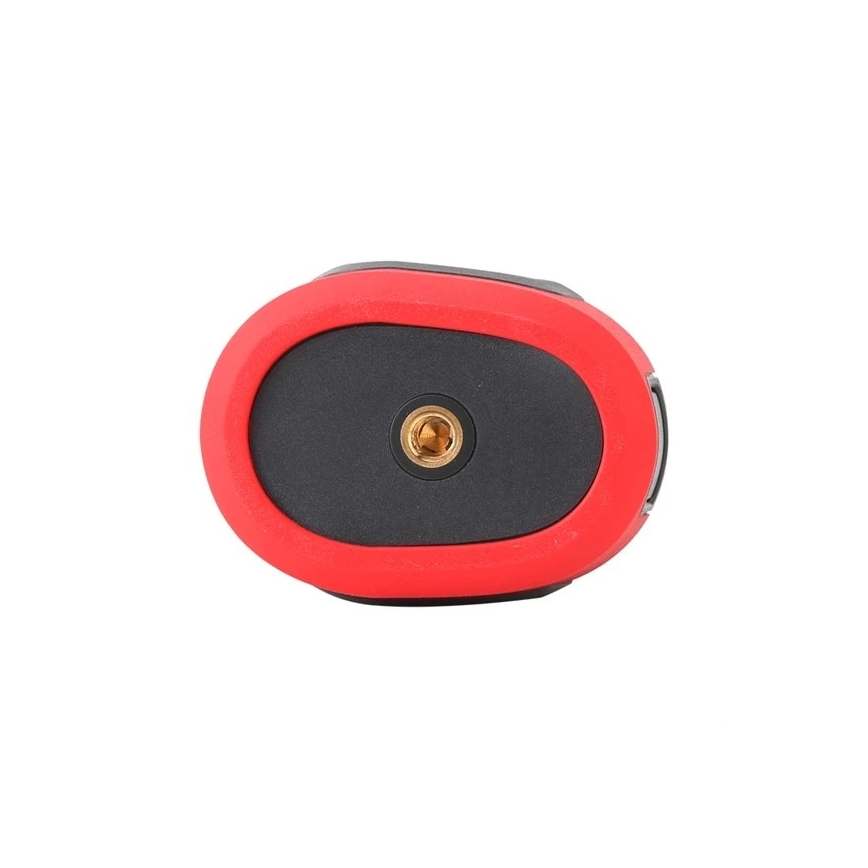

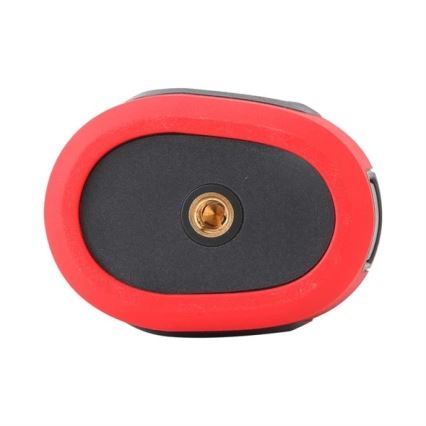

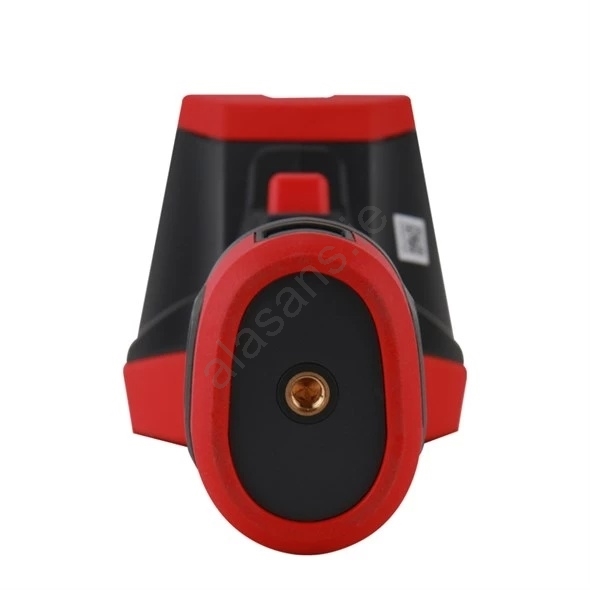

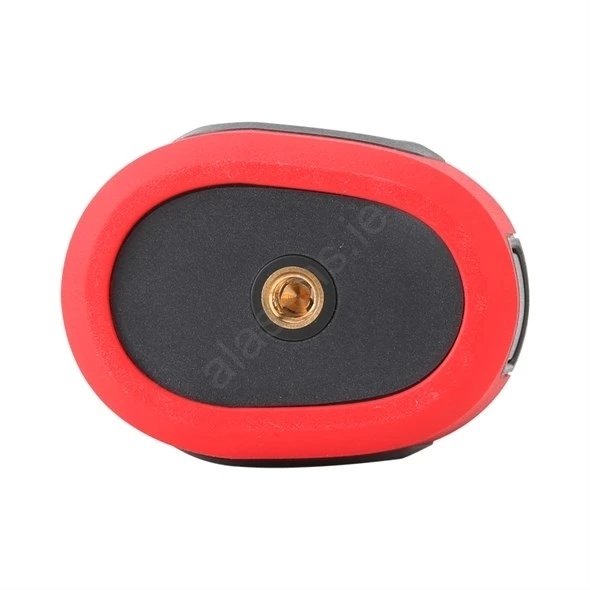

  • Built-in LED light, Wi-Fi, mounting thread ¼" for tripod.

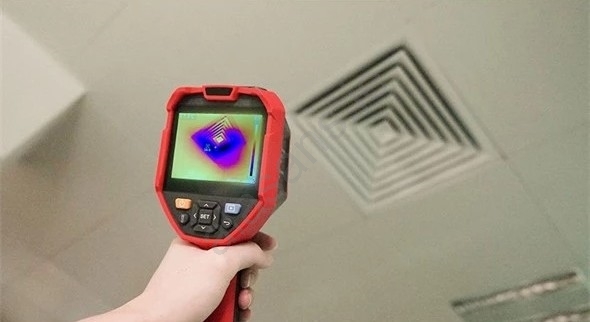

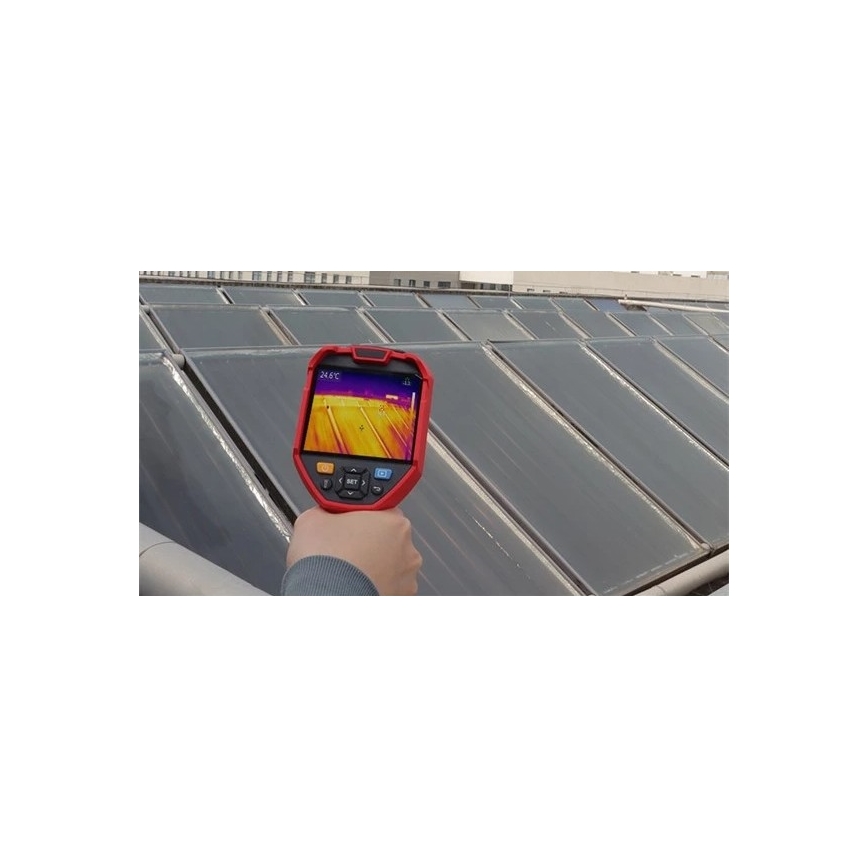

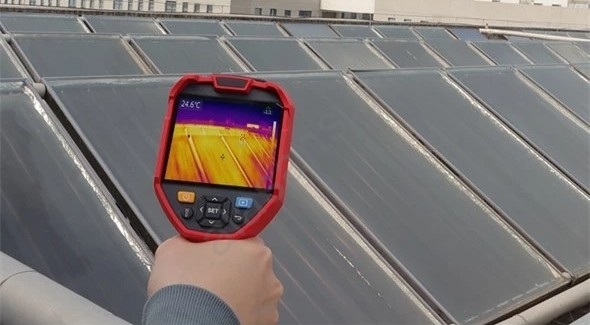

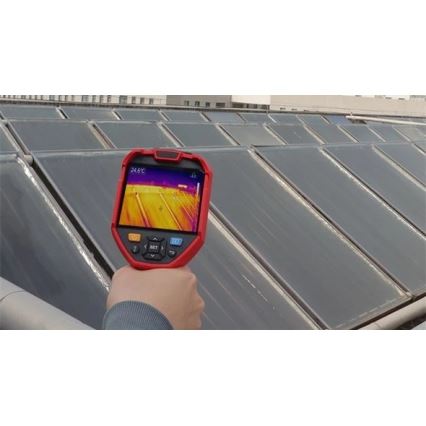

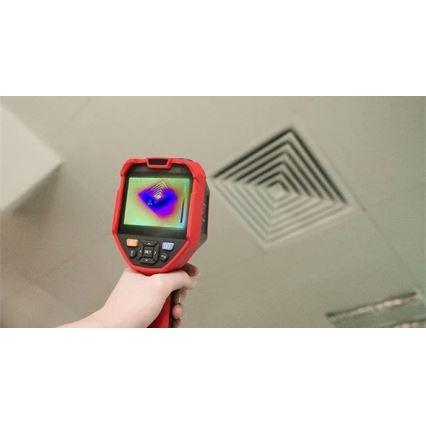

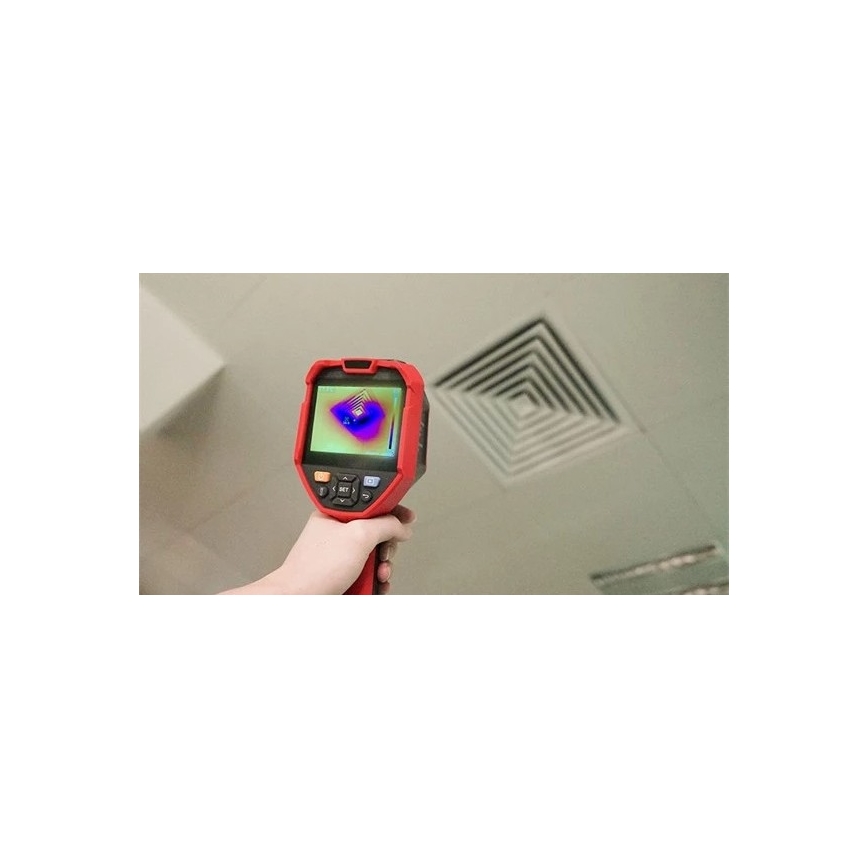

  • Applications in construction, energy, cold storage warehouses, servicing, and research.
  • Technical specifications:
  • IR resolution: 320 × 240 px (total 76 800).
  • Visible light sensor: 2 Mpx.
  • Measurement range: -40 °C až +400 °C (-40 °F až 752 °F).
  • Units: °C (default), °F, K.
  • Temperature resolution: 0,1 °C.
  • Spectrum: 8–14 μm.
  • NETD: < 65 mK @25 °C.
  • IFOV: 3 mrad.
  • Focal length: 4,0 mm.
  • Image modes: thermal, visible light, fusion (0–100 %), picture-in-picture.
  • Emissivity: 0,01–1,0 (default 0,95).
  • Palettes: Iron Red, Rainbow, Black Hot, White Hot, Red Hot, Lava, High-contrast Rainbow.
  • Frame rate: 9 Hz.
  • Accuracy: -10 °C až 400 °C při 25 °C, ±2 °C / ±2 %.
  • Image storage: JPG.

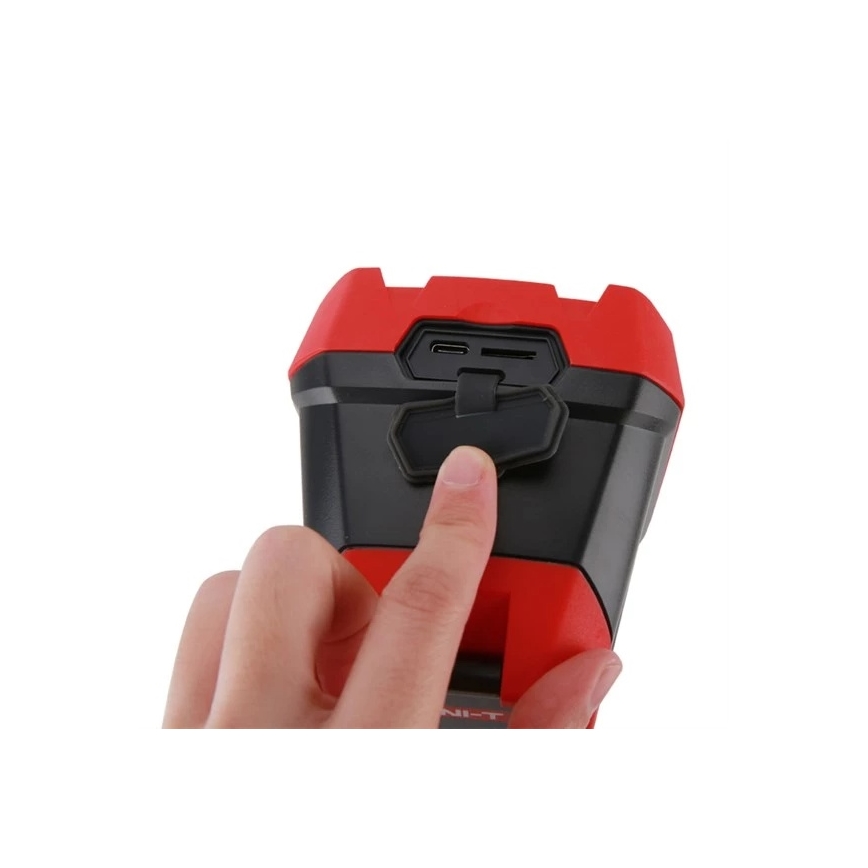

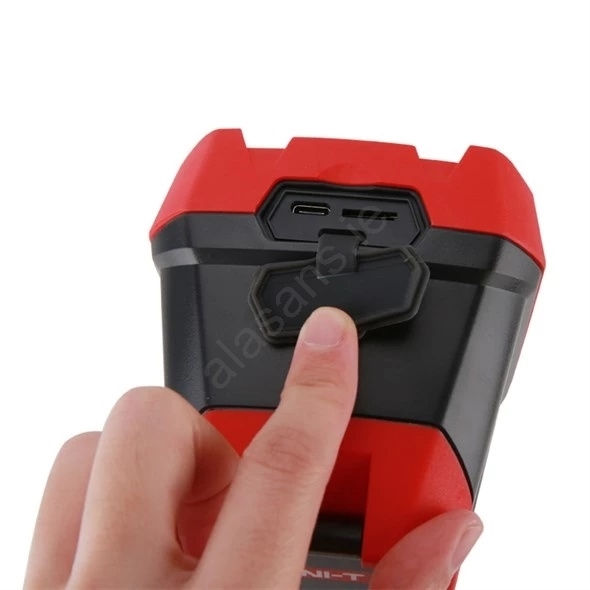

  • Connectivity: microSD, USB-C (charging, live image, storage), Wi-Fi Hotspot.
  • Software: Vitta, APP.
  • Menu language: EN, FR, DE, ES, RU.
  • Certifications: CE, FCC, UKCA, RoHS.
  • Power: battery 5200 mAh, runtime > 3 h (without Wi-Fi), charging < 4 h.
  • Auto power-off: off/5–90 min.
  • Durability: IP54, drop from 2 m.

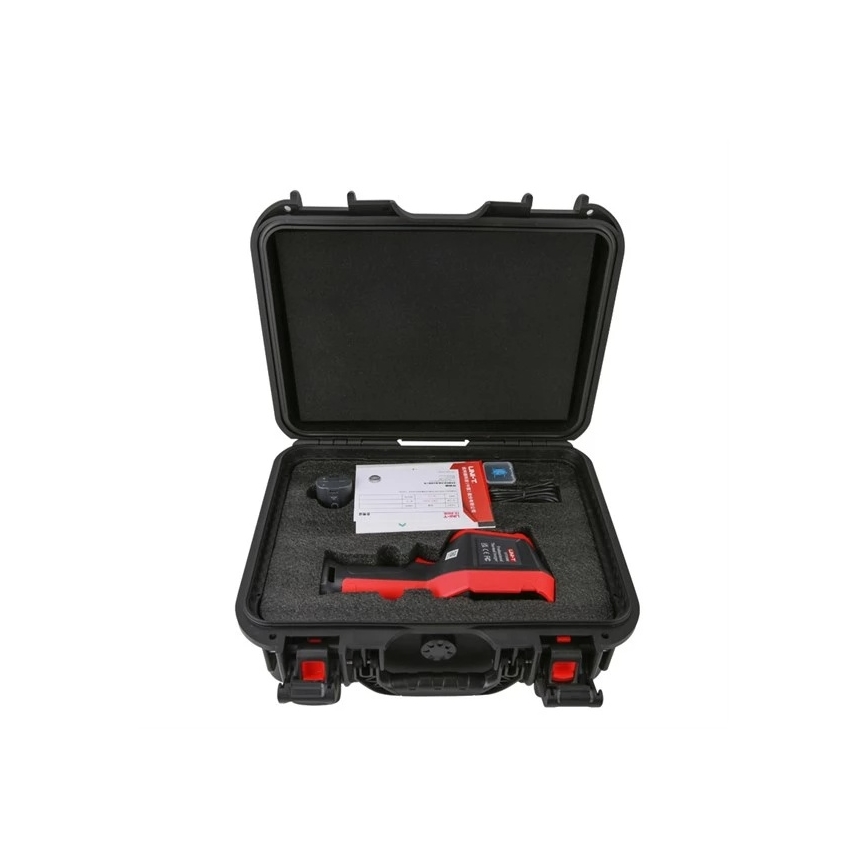

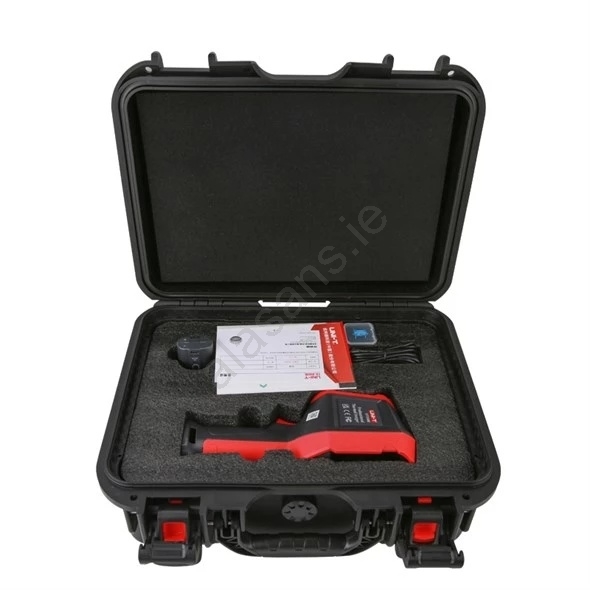

  • Contents of the package:  Thermal camera, battery 5200 mAh, USB-C cable, microSD card 16 GB.
