• Product description

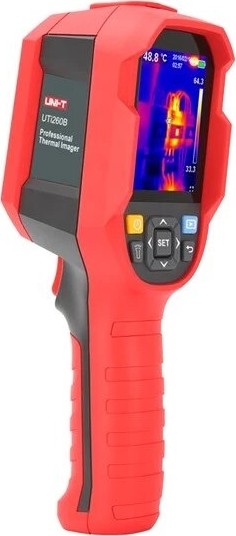

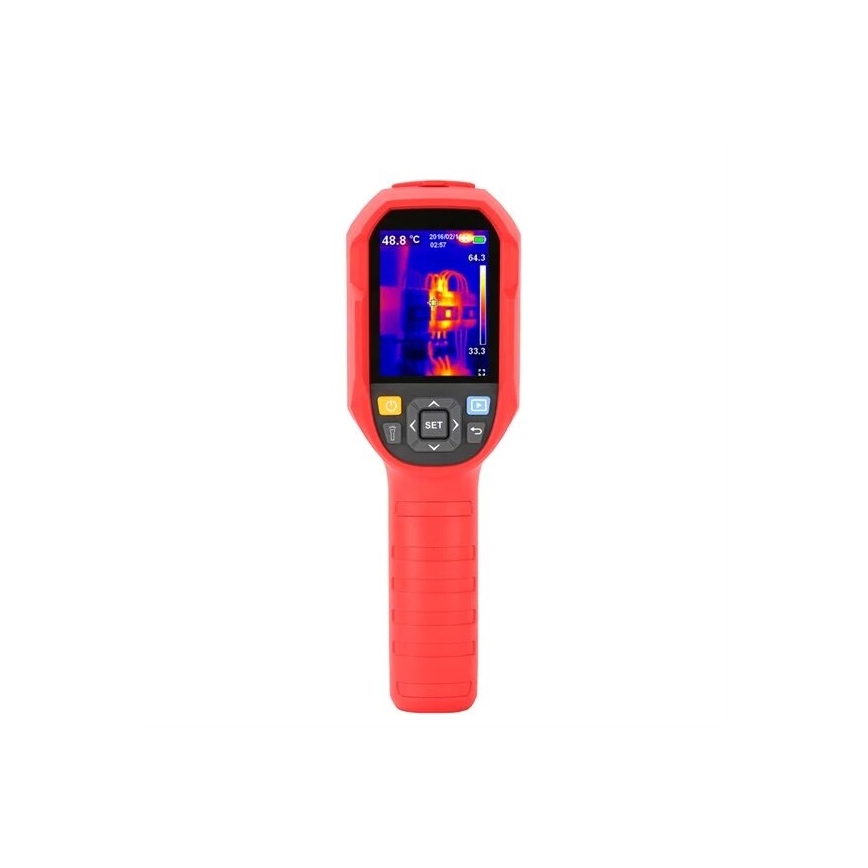

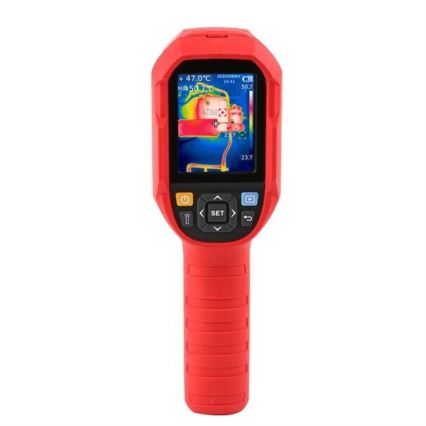

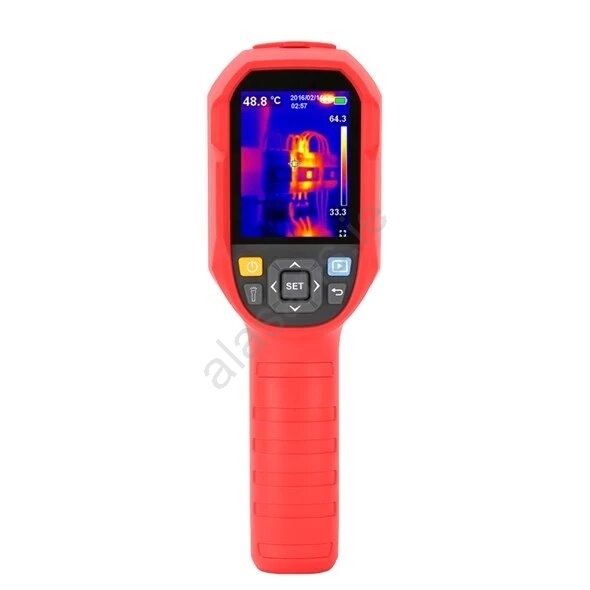

  • The thermal camera from UNI-T is designed for high operational loads.

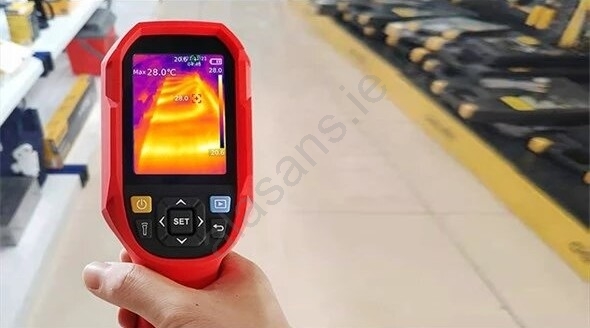

  • A high-quality construction thermal camera operating in the infrared spectrum, intended for measuring the surface temperature of objects.

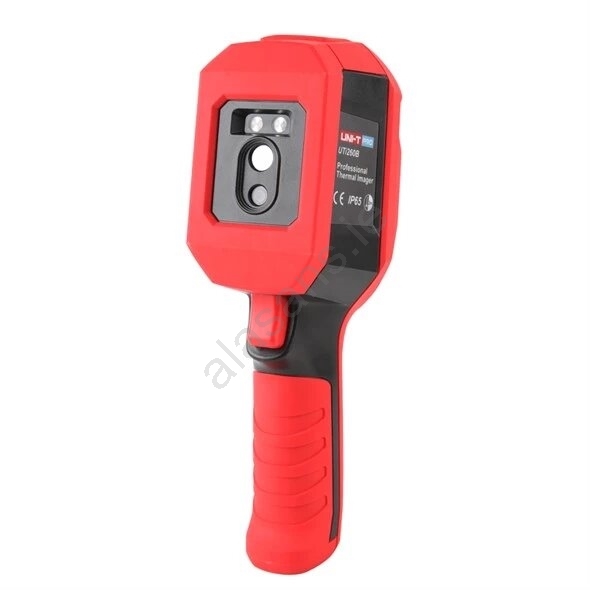

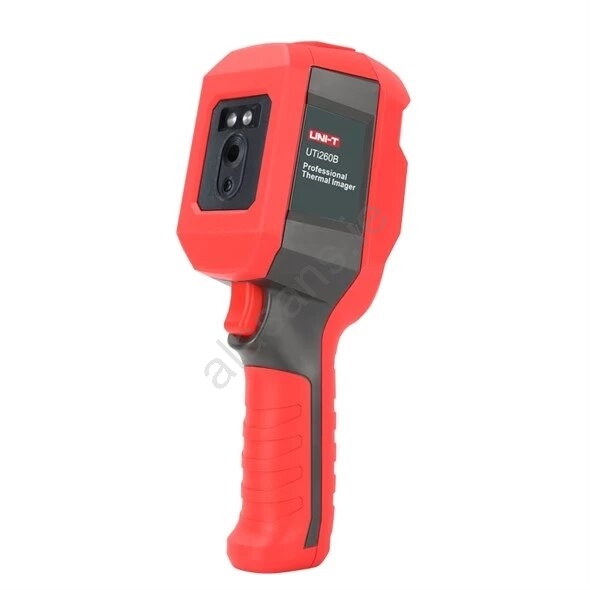

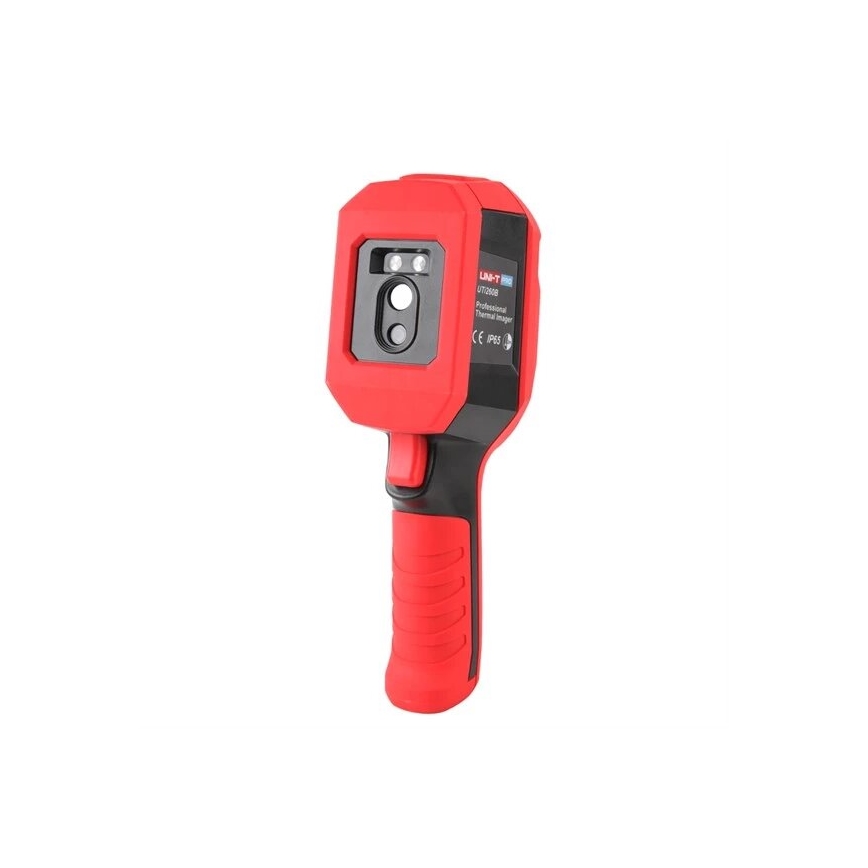

  • The camera is designed as a robust and ergonomic product with high resistance to external influences, featuring an IP65 rating and drop resistance from heights of up to 2m.

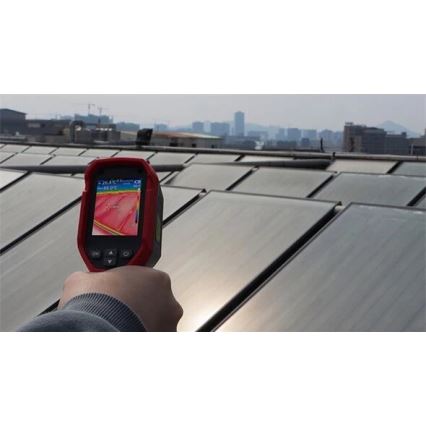

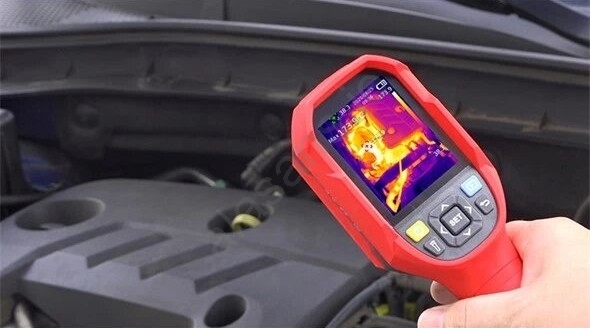

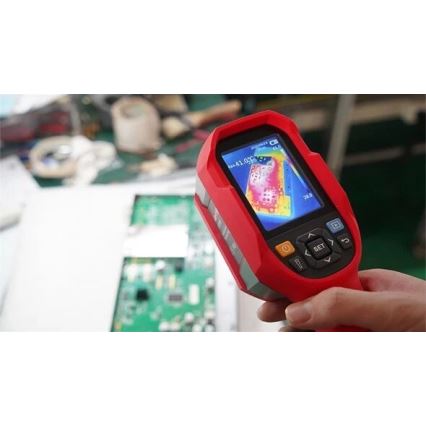

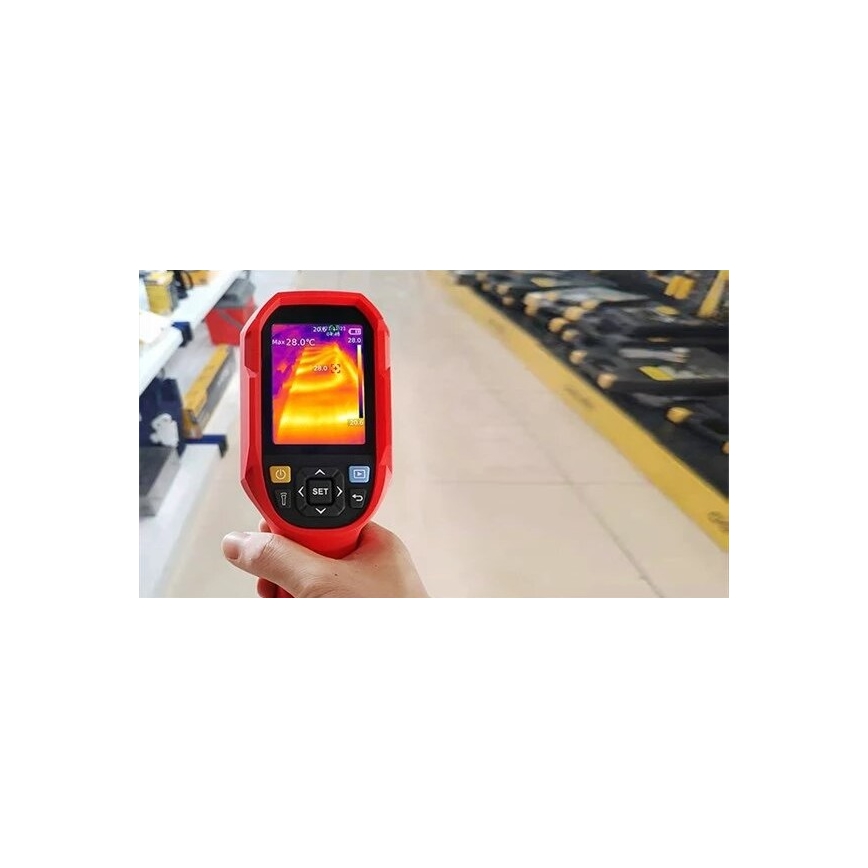

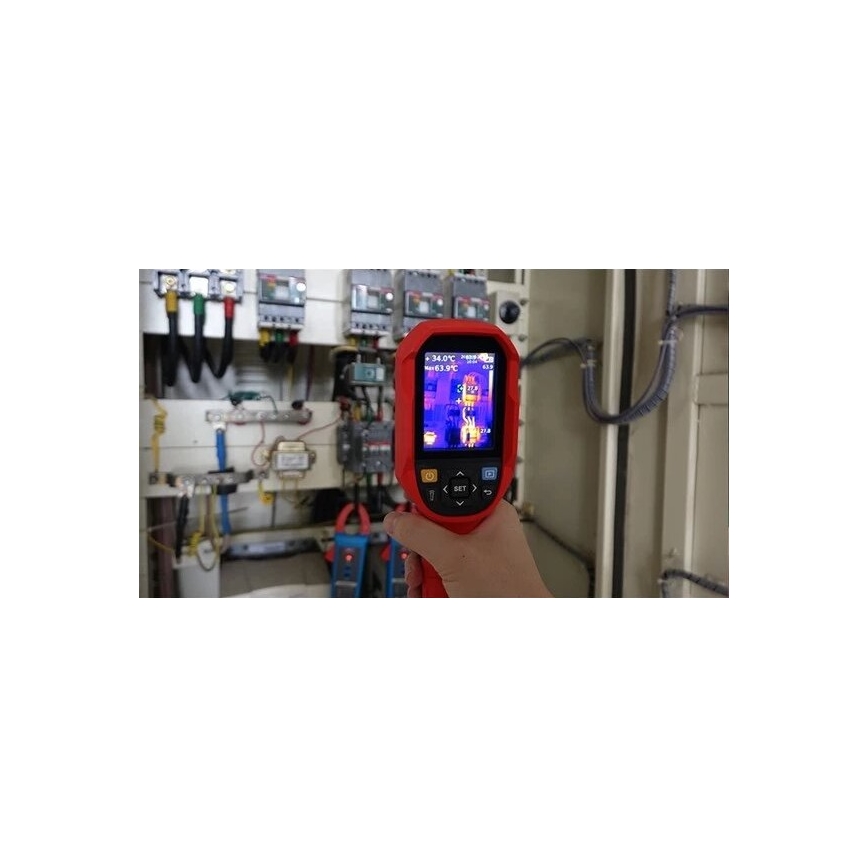

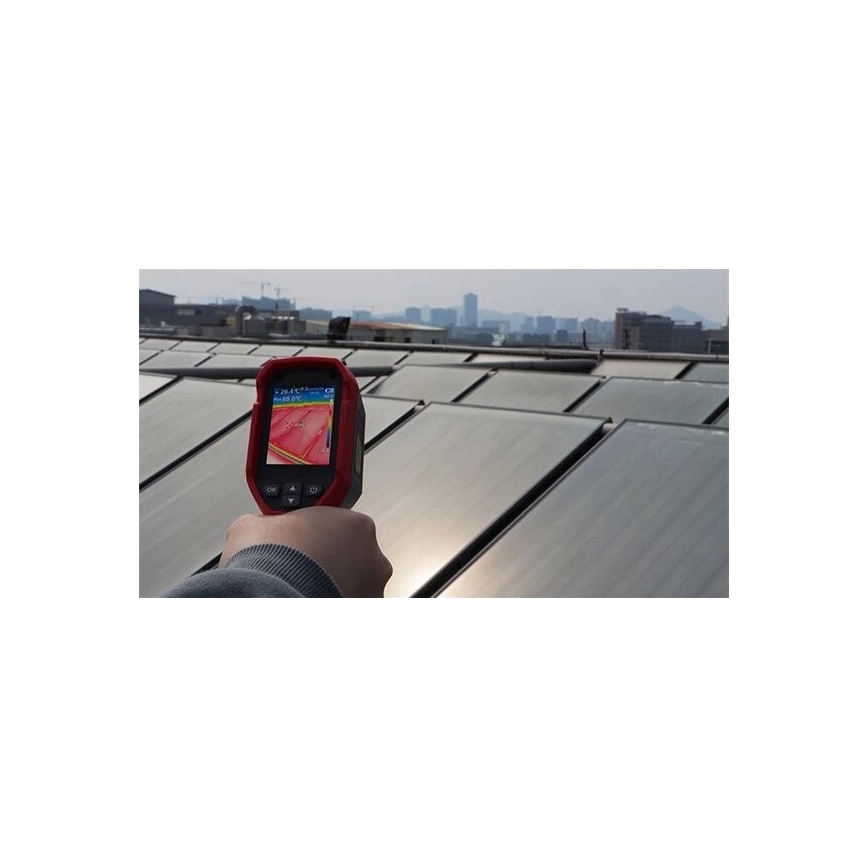

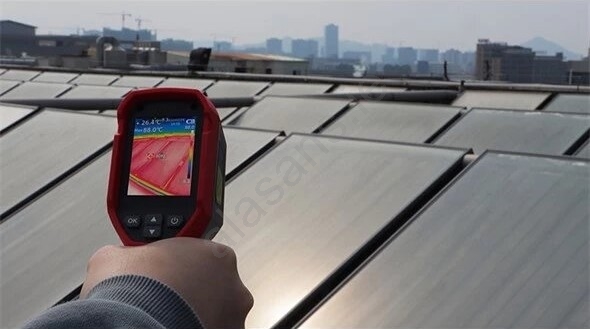

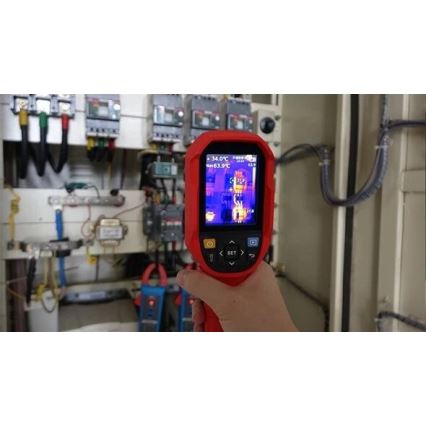

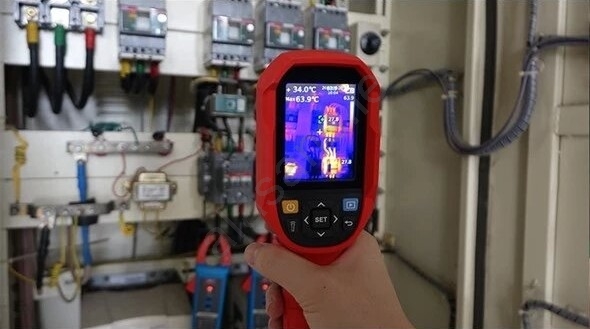

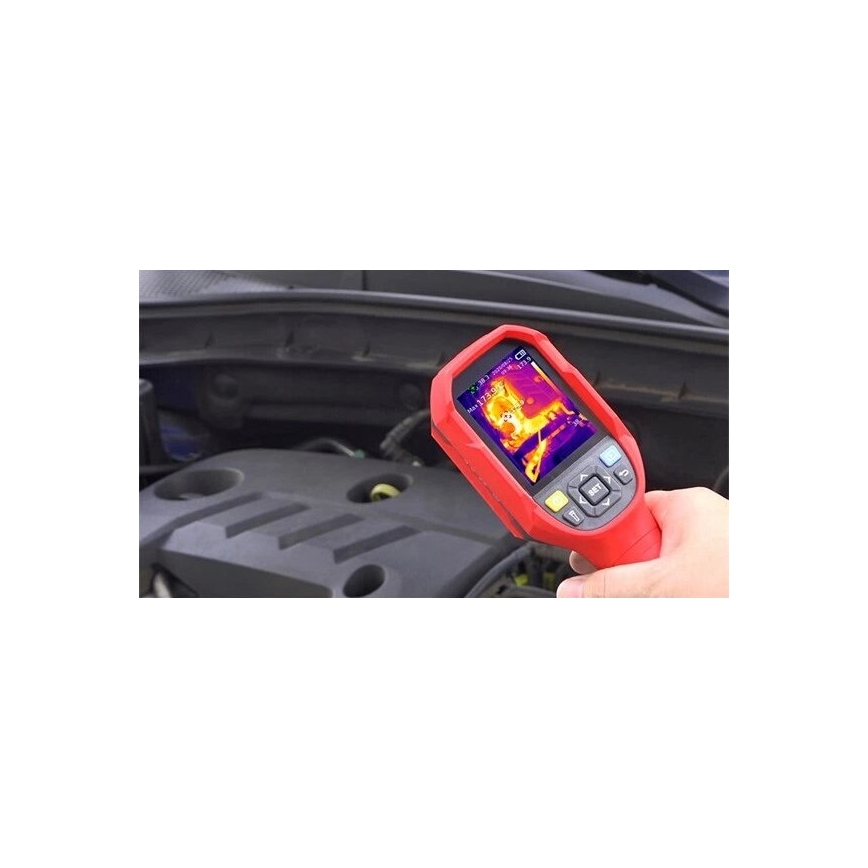

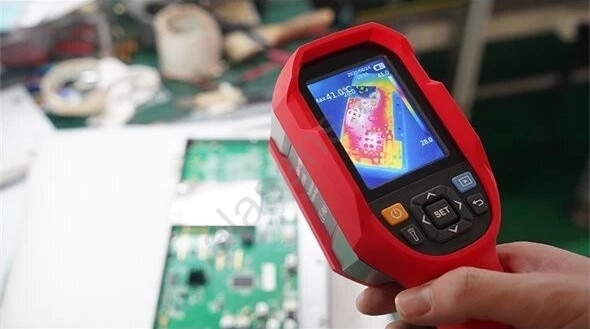

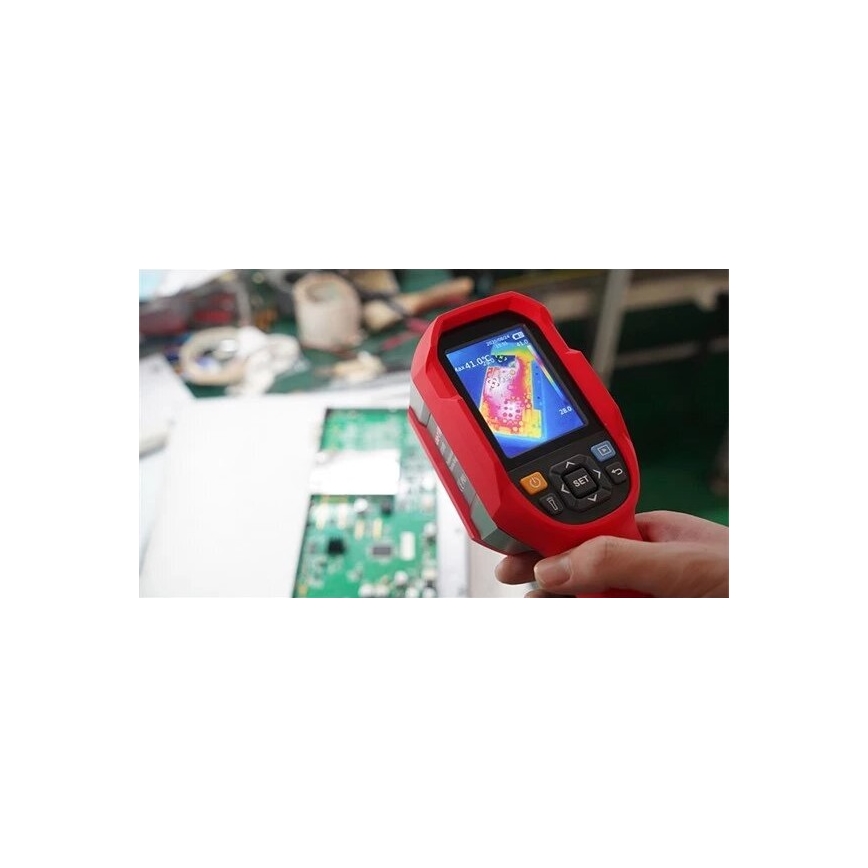

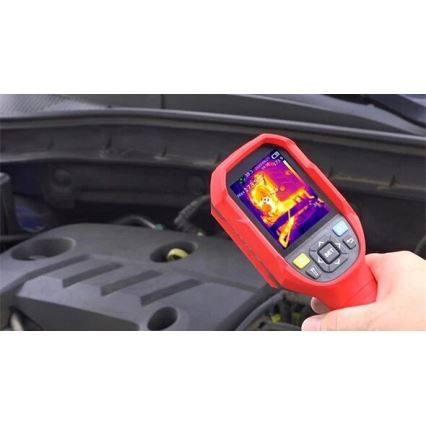

  • Usage of the camera is anticipated for automotive maintenance, inspection of gasoline and electric motors, solar panel checks, inspection of distribution cabinets and electrical devices, mechanical equipment checks, heating systems, building inspections, etc.
  • The camera has a higher IR resolution than most other camera models (256 x 192 thermal imaging pixels).

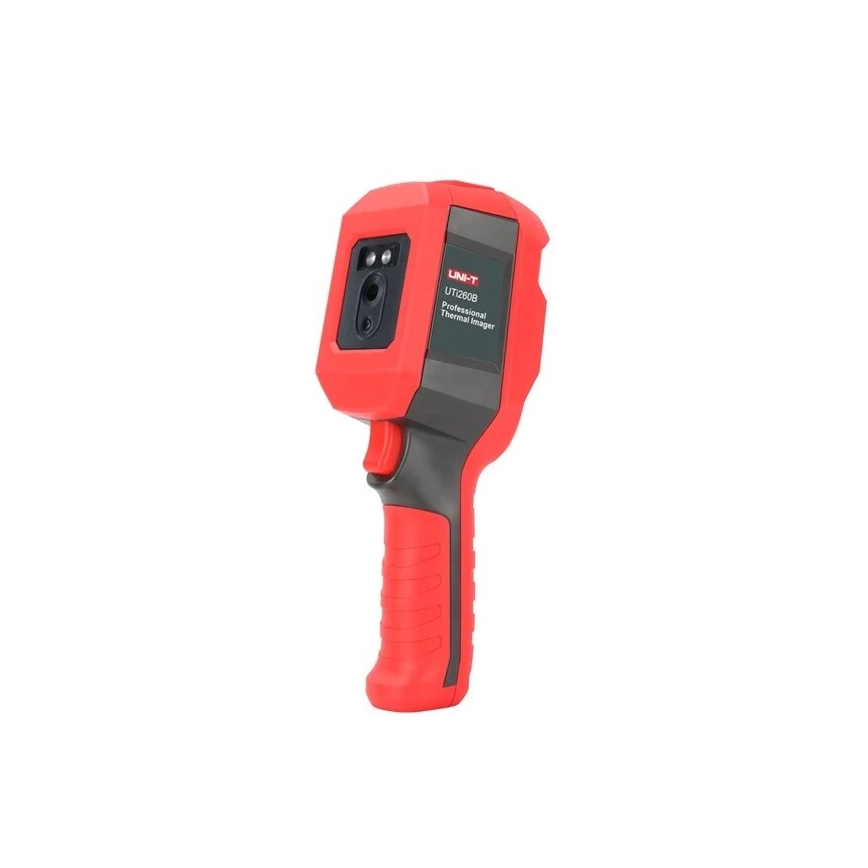

  • The camera also includes a visible light sensor: in 4 modes, it can blend the thermal image in real-time with the visible light image.
  • Images are stored on the included 32GB microSD card, or via the USB-C connector, it can transmit real-time images to a laptop and television using software downloaded from the manufacturer's website.
  • The camera features many special functions such as temperature alarm settings for minimum and maximum temperatures with a buzzer, image color palette settings in seven options, system date and time settings that are saved with each photo, automatic tracking of the hottest and coldest points in the image with temperature indication, and temperature analysis of up to three objects simultaneously.

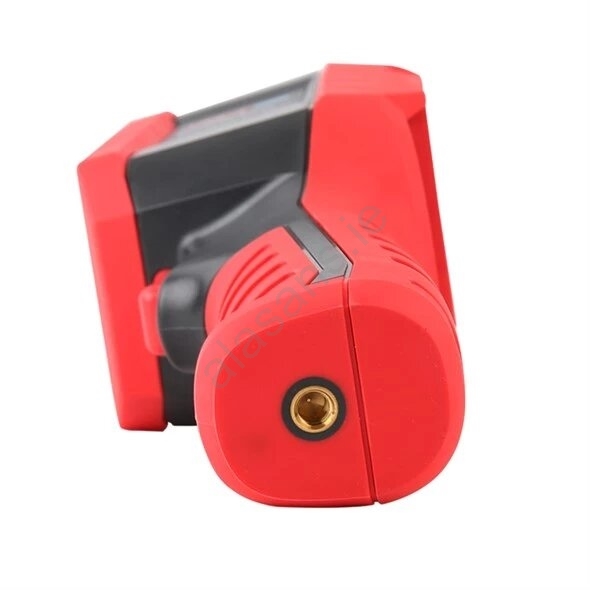

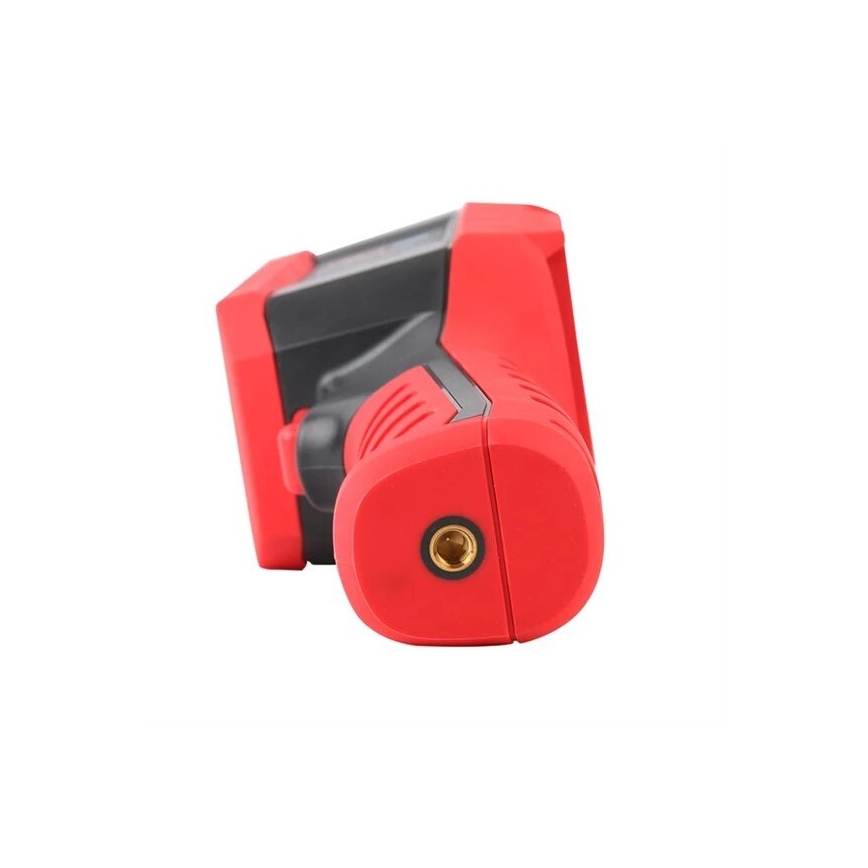

  • The camera can be mounted on a tripod using the threaded hole at the bottom of the camera.
  • Switching between temperature units in Celsius and Fahrenheit.
  • The camera operates over a wide temperature range: -20℃ to 550℃ (in the menu, there is a manual option to change between two ranges -20°C to +150°C and 0°C to +550°C).
  • Temperature resolution of 0.1 °C.
  • Image storage format: BMP.
  • Thermal imaging pixels: 12μm.
  • Adjustable emissivity of measured objects.

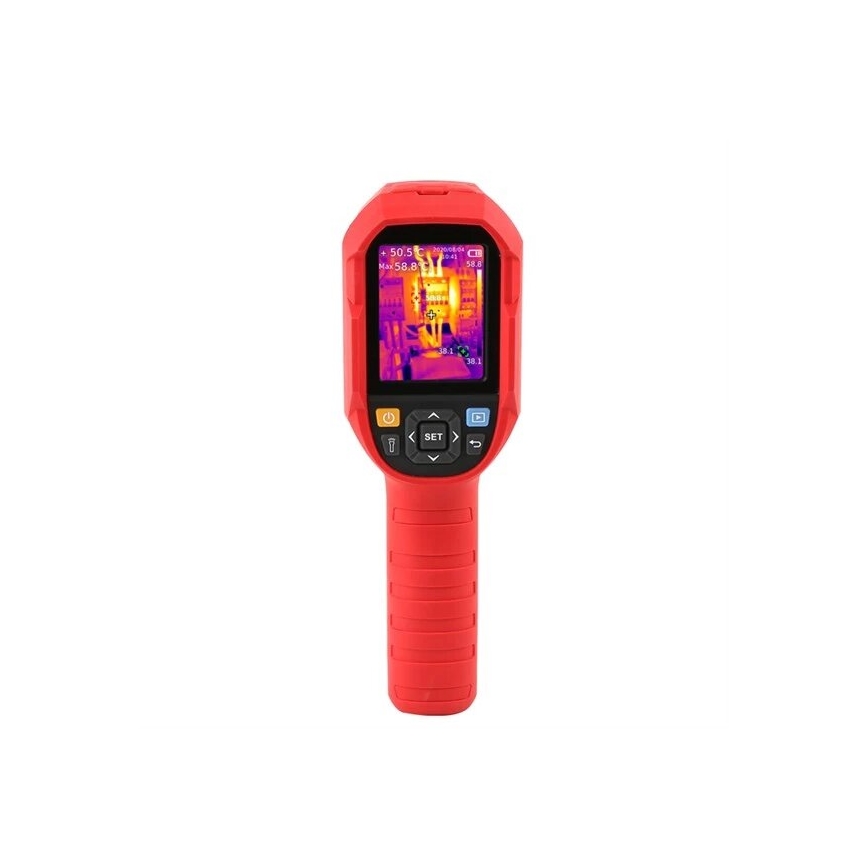

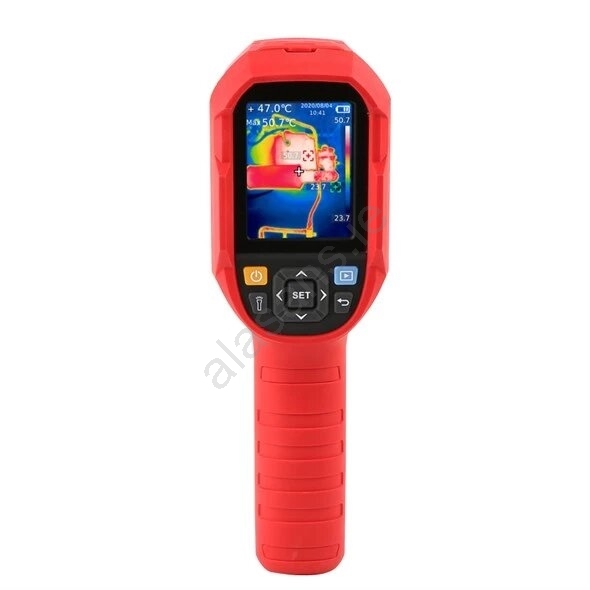

  • 2.8" LCD TFT display with a resolution of 320(V) x 240(H)px.
  • Display brightness adjustable in three levels.
  • Built-in LED flashlight.
  • 1/4" mounting thread for tripod.
  • Field of view (HFOV): 56°(H) x 42°(V).
  • Visible light sensor resolution: 640 x 480 pixels.
  • Frame rate: ≤25Hz.
  • Image modes: thermal imaging, visible light, fusion (0 %, 25 %, 50 %, 75 %, and 100 %), and picture-in-picture.
  • Adjustable emissivity: 0.01 to 1.0 (default 0.95).
  • Thermal image transposition into color palettes: iron red, rainbow, black heat, white heat, red heat, lava, high-contrast rainbow.
  • Menu language: English/Chinese.
  • Analytical software for PC (must be downloaded from the manufacturer's website).
  • Certification: CE, FCC, RoHS.
  • Auto power-off: yes, optional off/5/10/30 minutes (default 30min).
  • Power supply: built-in 5000mAh Li-ion battery, which can be charged in the device.
  • Power supply via USB-C (included).
  • Charging time: less than 5 hours.
  • Operating time on a single charge: more than 6 hours.
