• Product description

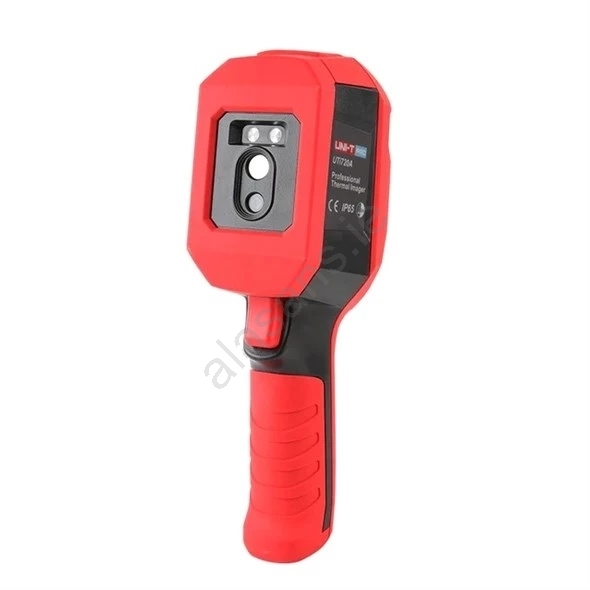

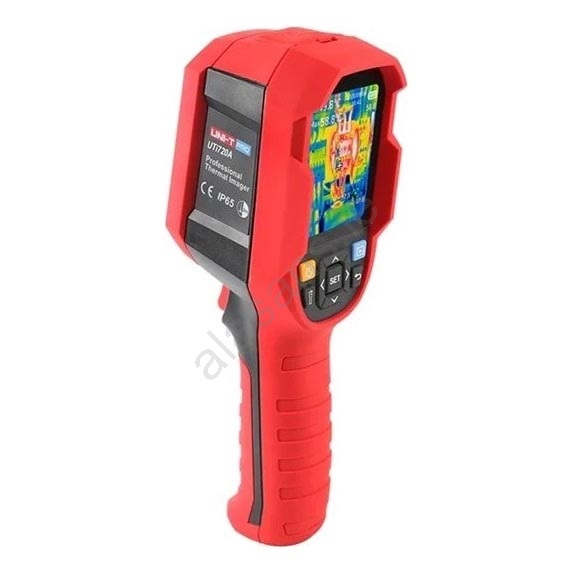

  • The highly durable thermal camera is a high-end camera with high-quality construction, working in the infrared range.
  • Designed to measure the surface temperature of objects from -20°C to +400°C.

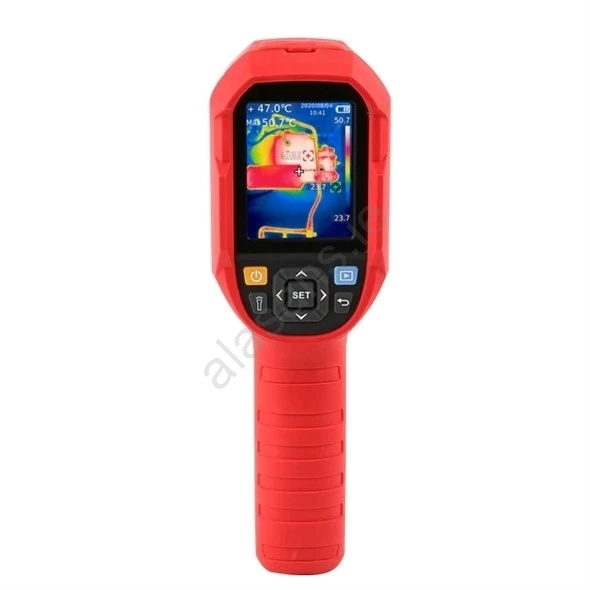

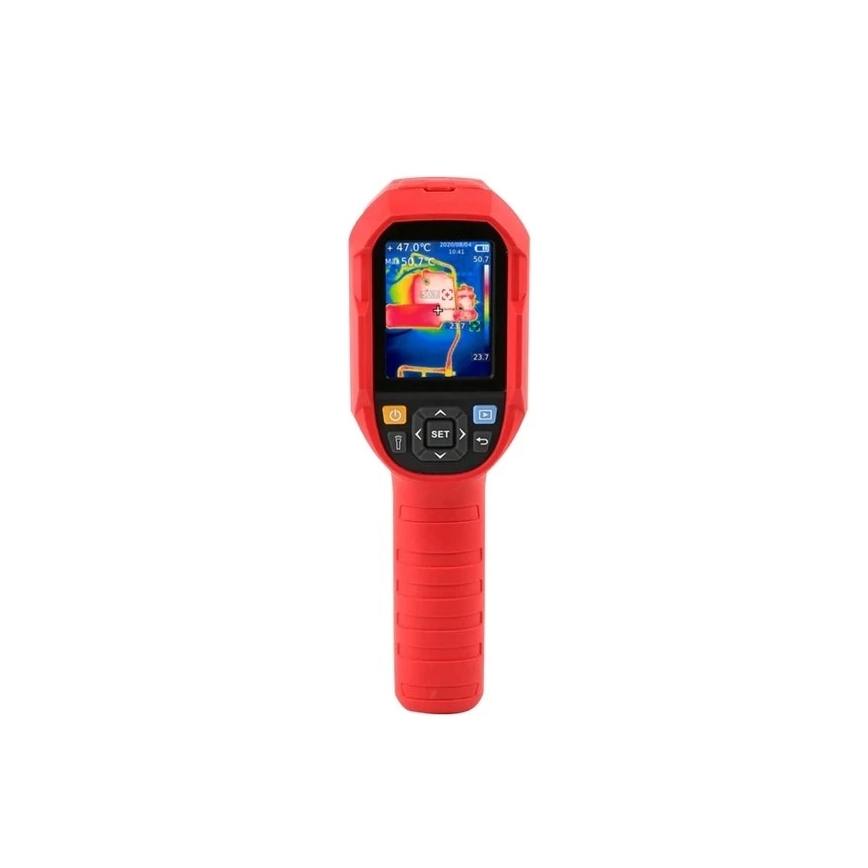

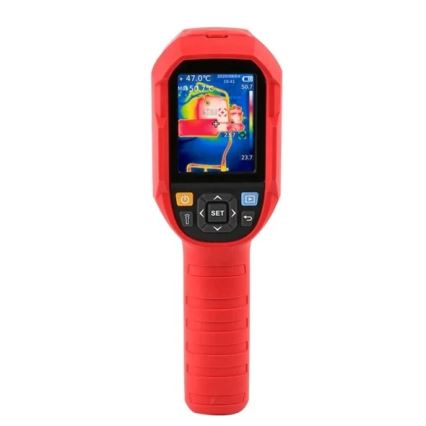

  • With a 2.8″ display, the high-resolution infrared light helps users easily detect temperature anomalies.

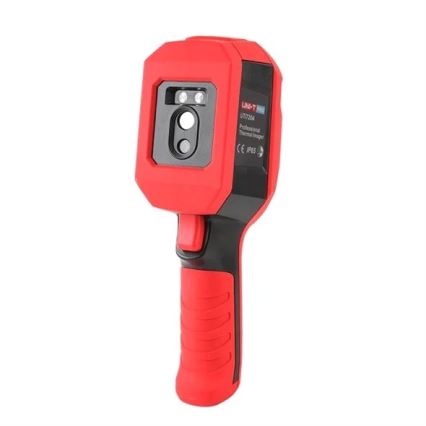

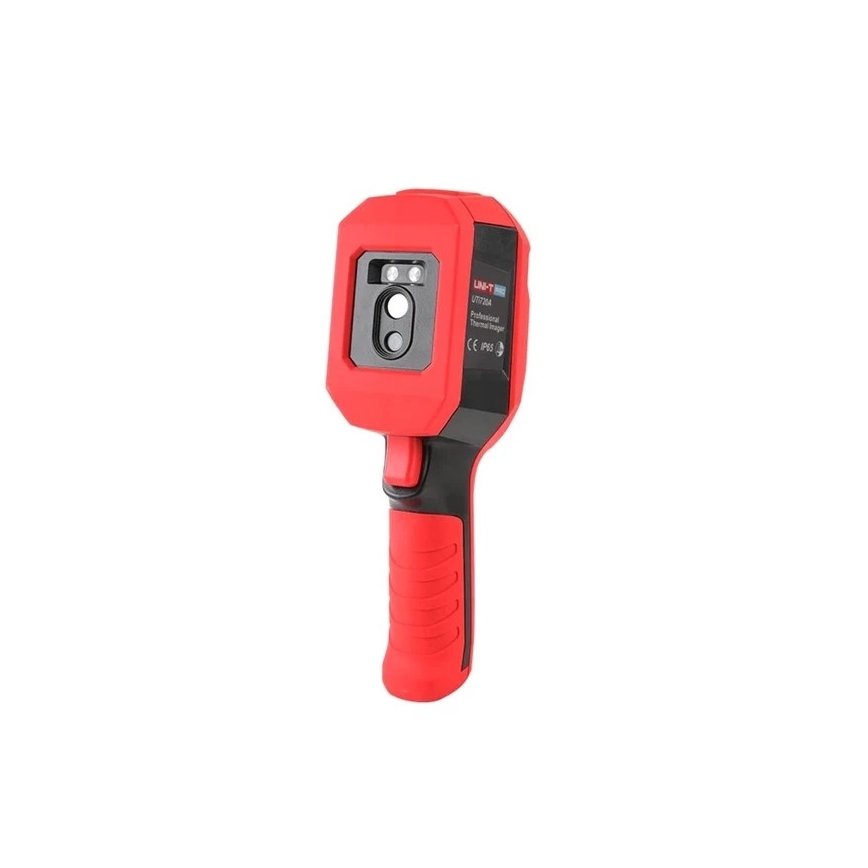

  • It also features a high-brightness LED light, is IP65 certified, and resists drops from a height of 2 meters.

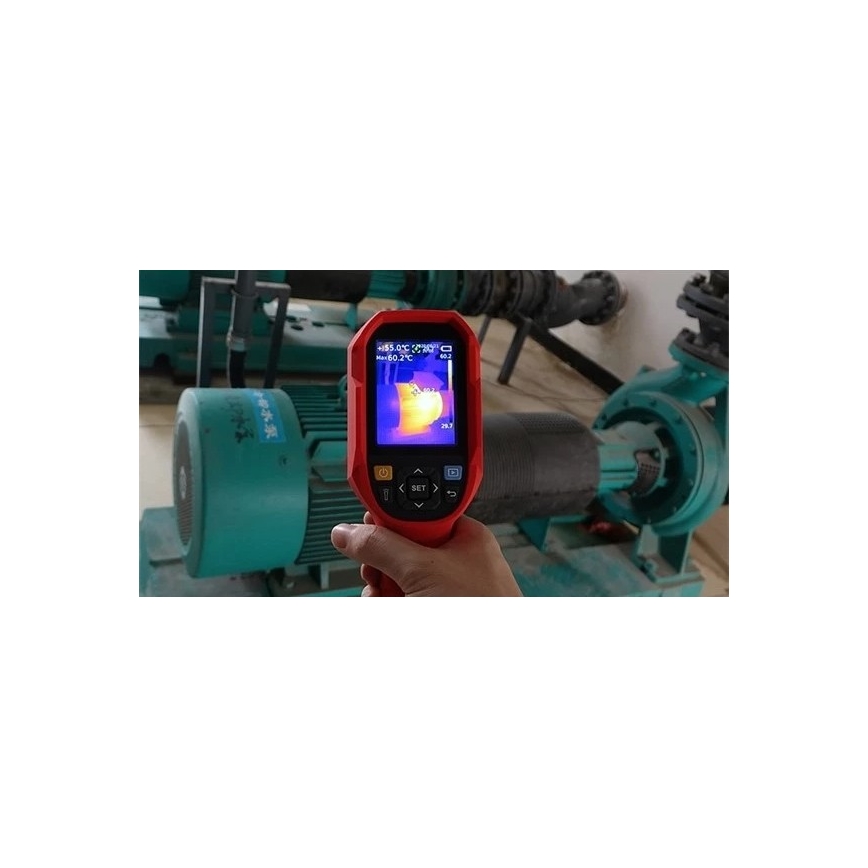

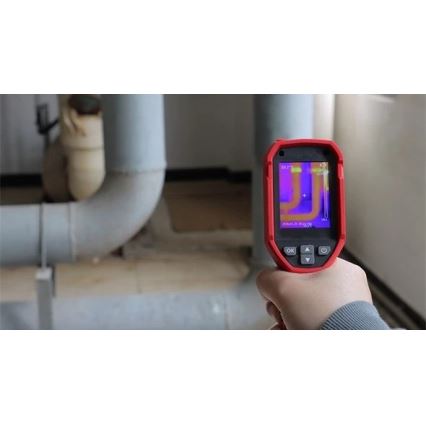

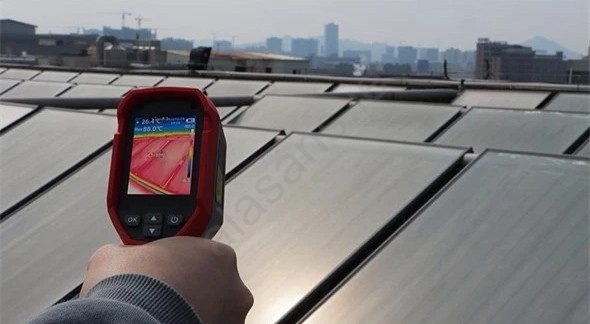

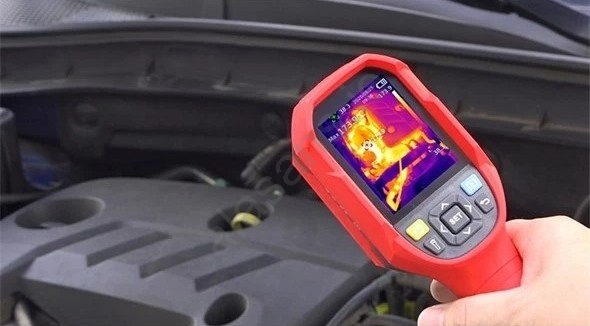

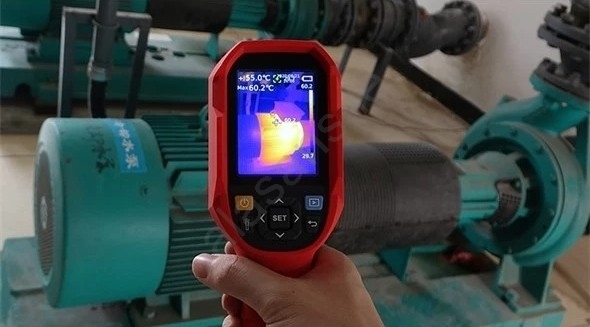

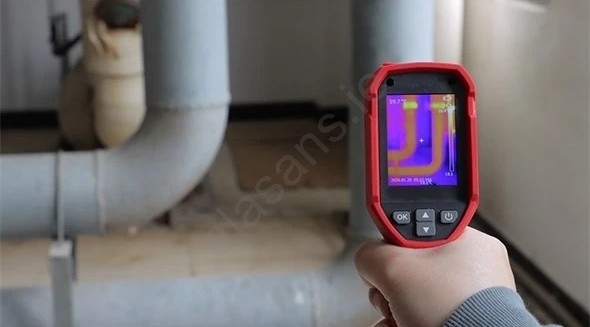

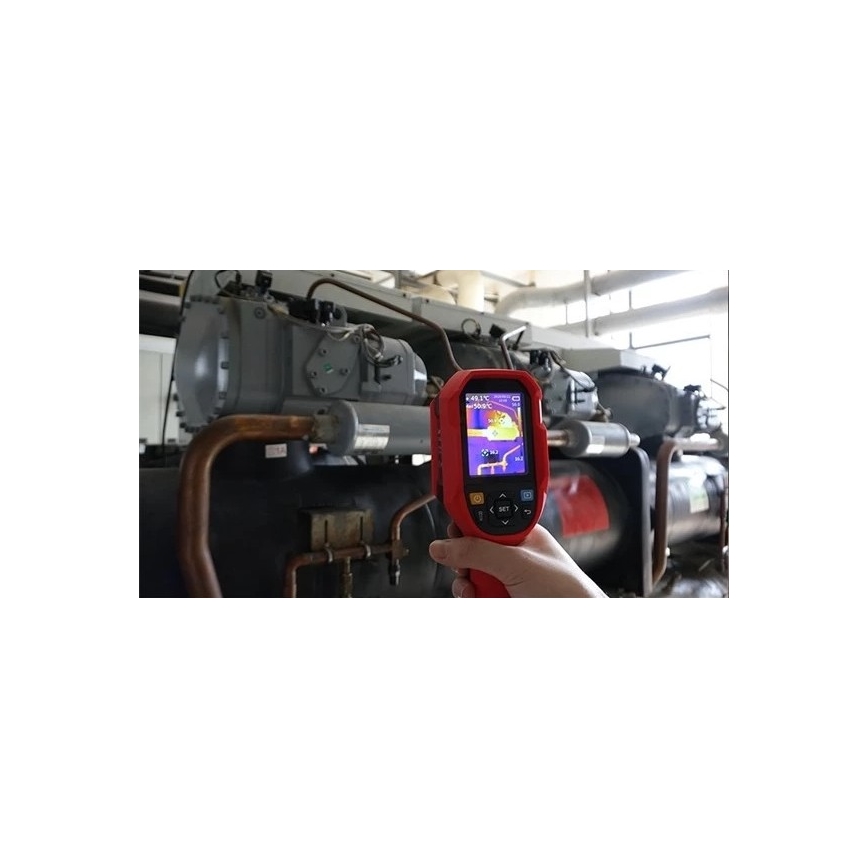

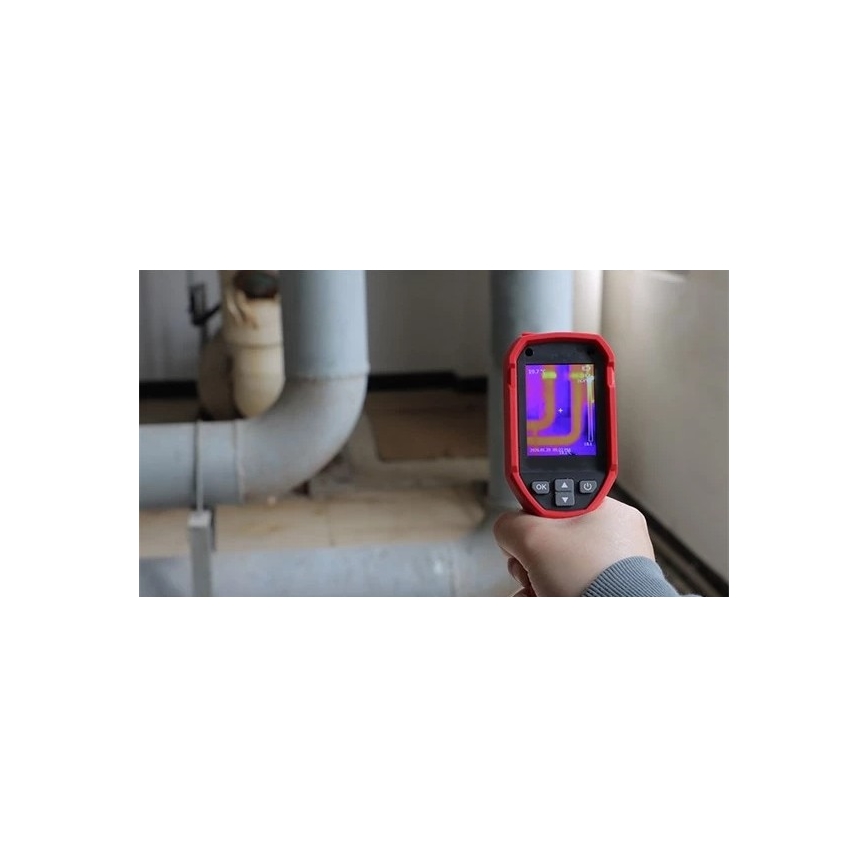

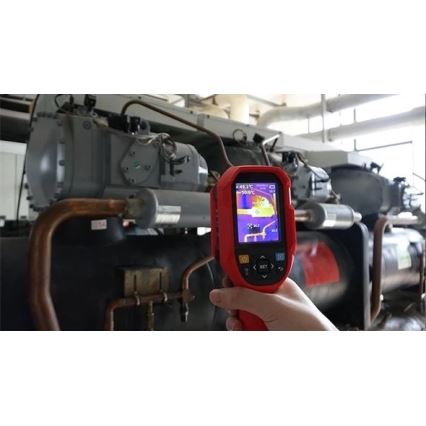

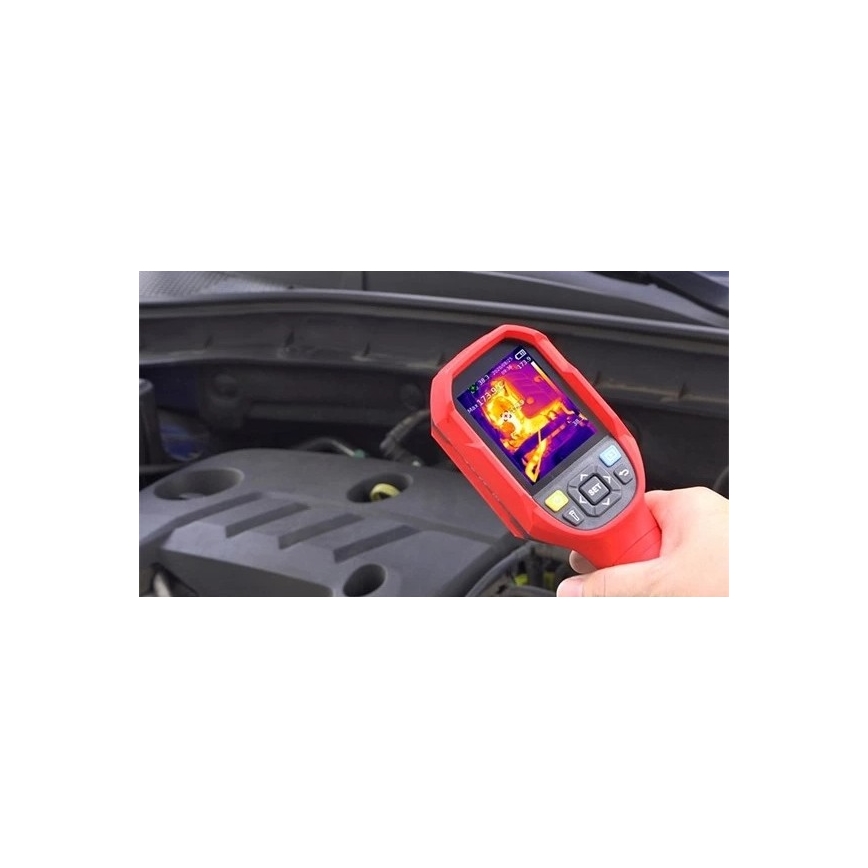

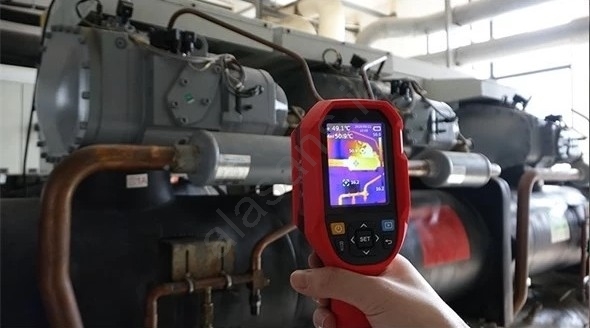

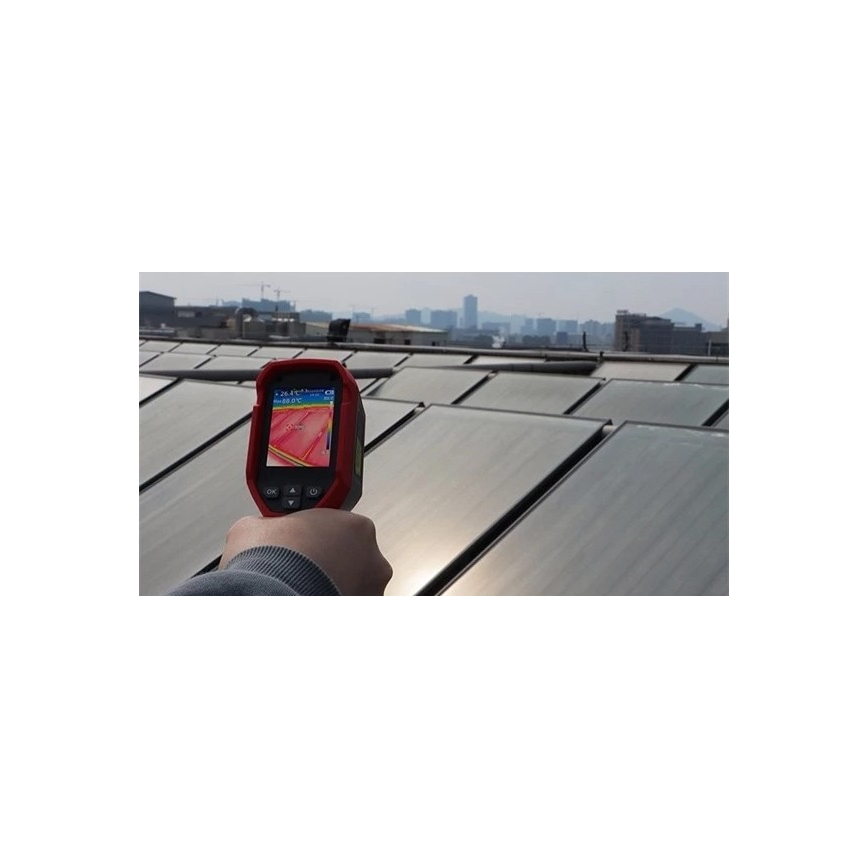

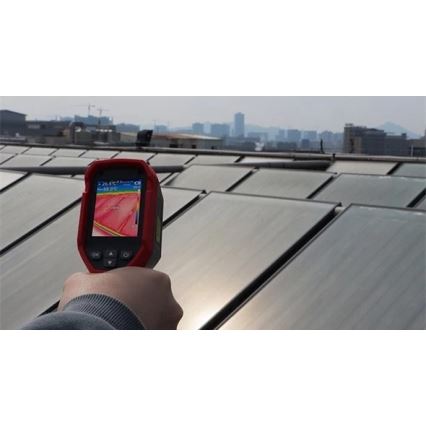

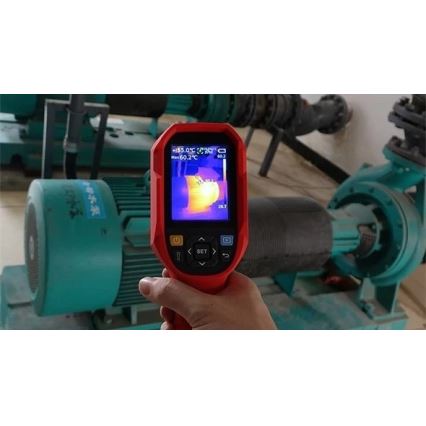

  • The thermal camera finds wide application in the construction industry when looking for heat leaks in masonry, roofs, or pipes, in the energy industry when identifying faults in electrical power systems, and in the heating industry when looking for heat leaks. In the field of electrical power lines, in refrigerated warehouses, in service stations, when searching for overloaded equipment, and in scientific research.
  • IR resolution: 256x192.
  • Automatic high/low temperature alarm.
  • Automatic monitoring of hot/cold spots.
  • PC software analysis and real-time image projection.
  • Rechargeable lithium-ion battery.

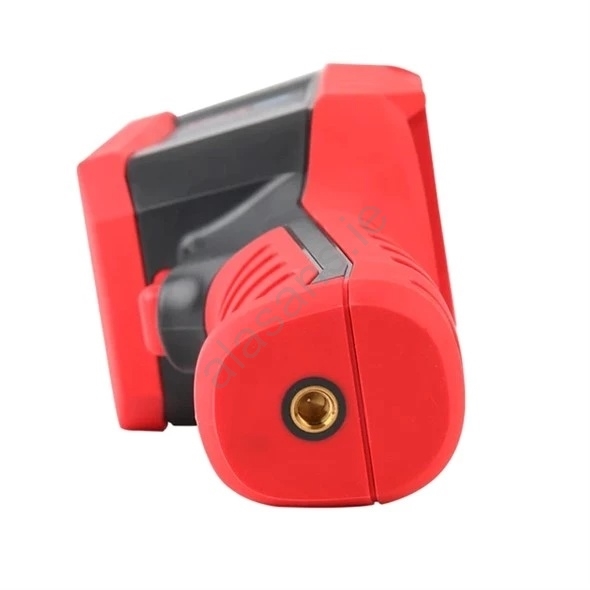

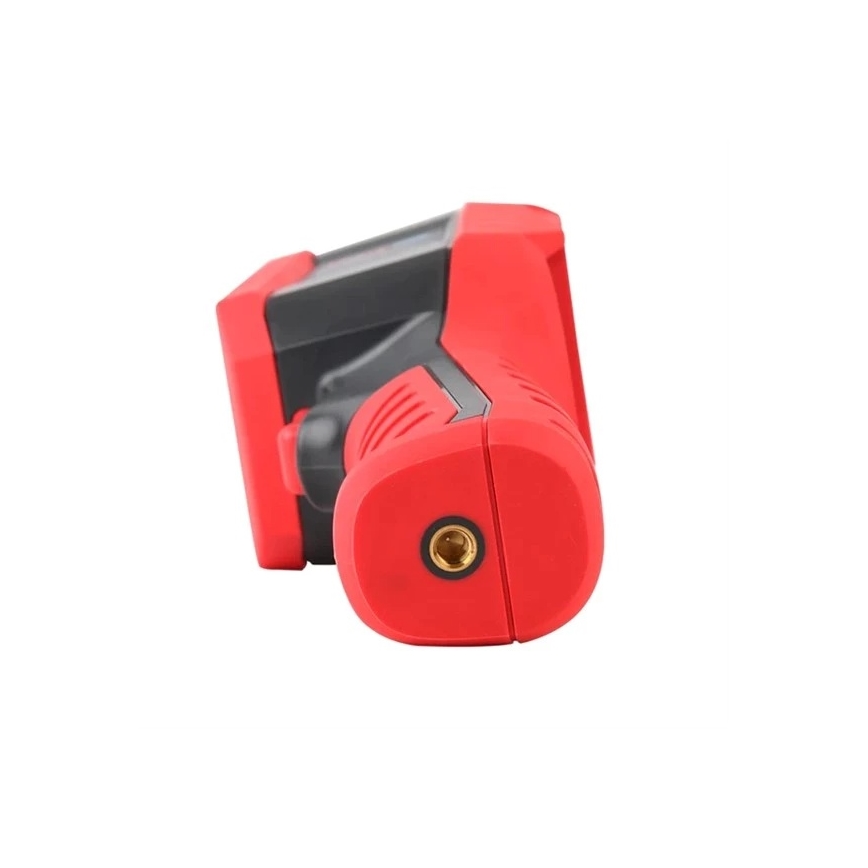

  • 1/4" hole for tripod mounting.
  • Field of view (FOV): 56°(H) x 42.2°(V).
  • Thermal sensitivity (NETD): ≤ 50mK.
  • Spatial resolution (IFOV): 3.8 mrad.
  • Frame rate: ≤ 25 Hz.
  • Infrared spectral band measurement: 8 μm to 14 μm.
  • Focus mode: Focus Free.
  • Colour palette for thermal image transposition: 7 (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC).
  • Object Temperature Analysis: 3 points
  • LCD high/low temperature alarm animation.
  • Analysis by PC software.
  • Power: Li-ion battery 3.6V, 5000 mAh.
  • Operating time ≥7 hours.
  • USB type - C.
  • Storage: Micro SD card up to 32 GB.
  • Image/video storage format: BMP.


  Special coupon offer applies to this product.
