• Product description

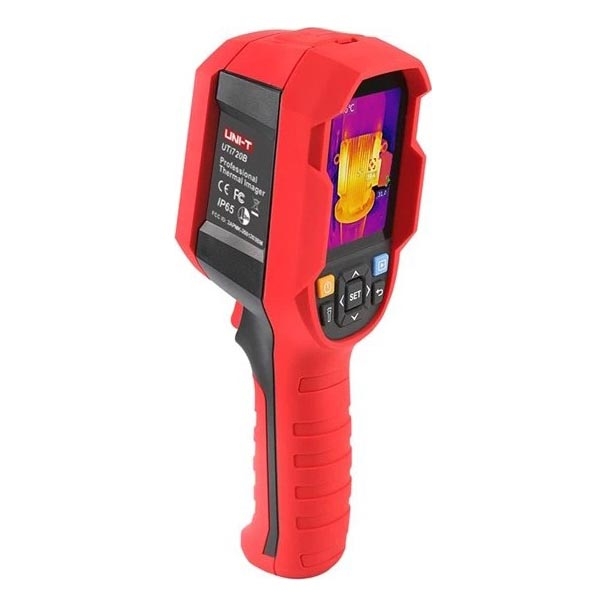

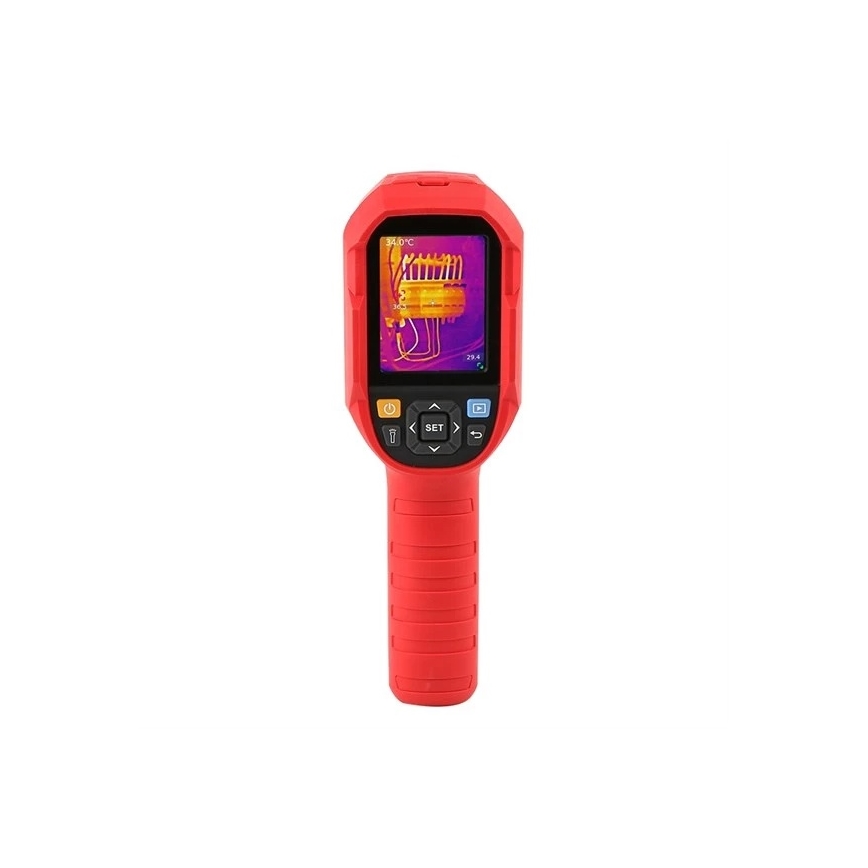

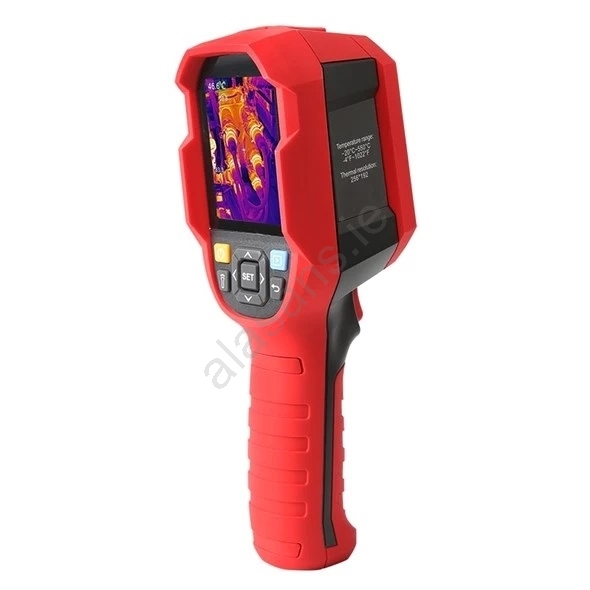

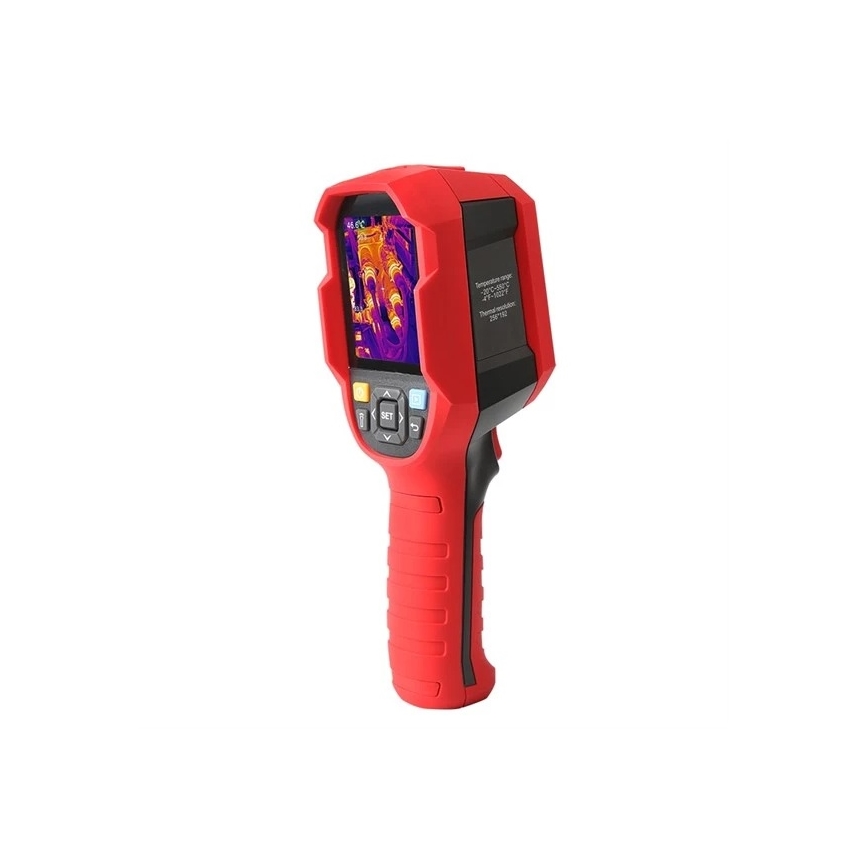

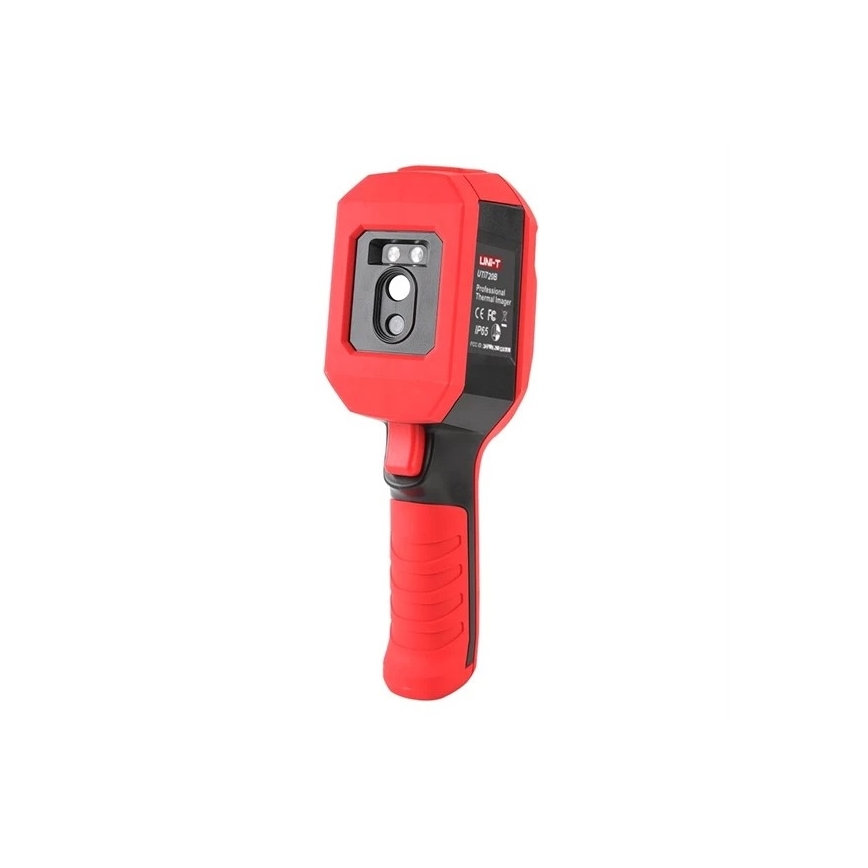

  • Rugged thermal camera features an infrared resolution of 256 x 192 pixels, which can be increased up to 512 x 384 pixels using Super Resolution technology.
  • Equipped with an advanced T-Mix image fusion algorithm and five image modes for optimal display of temperature differences.
  • The device enables precise temperature measurement across a wide range from -20 °C to 550 °C with high thermal sensitivity.
  • Video recording and Wi-Fi connectivity allow real-time trend monitoring and full control via the mobile app.
  • Includes a 2MP digital camera, LED flashlight and an alarm system to indicate high or low temperatures.
  • Robust construction with IP65 certification ensures resistance to dust, water and drops from up to 2 meters.
  • Integrated Li-ion battery with 5000 mAh capacity delivers extended runtime of more than 7 hours.
  • Powered via the included USB-C cable.
  • Data is stored on 32 GB internal memory, and results can be analyzed using the supplied PC and mobile software.
  • Infrared spectral band: 8 μm to 14 μm.
  • Thermal sensor pixel size: 12 μm.
  • Frame rate: ≤ 25 Hz.
  • Thermal sensitivity (NETD): ≤ 50 mK.
  • Focus mode: Focus Free - field of view (FOV): 56°(H) x 42°(V).
  • Spatial resolution (IFOV): 3.75 mrad.
  • Temperature measurement range: -20℃ to 550℃.
  • Object temperature analysis: 5 points / 3 rectangles.
