• Product description

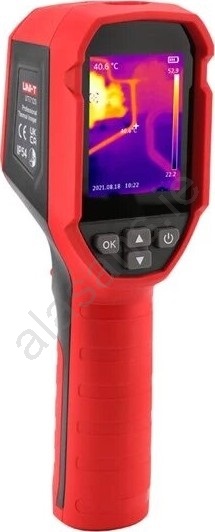

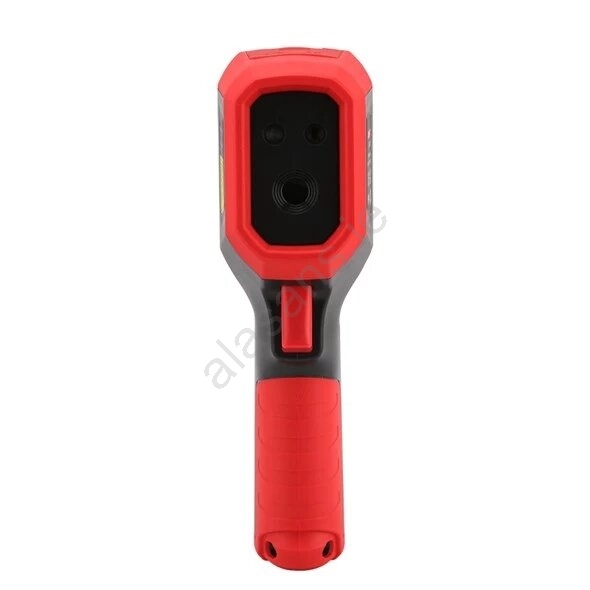

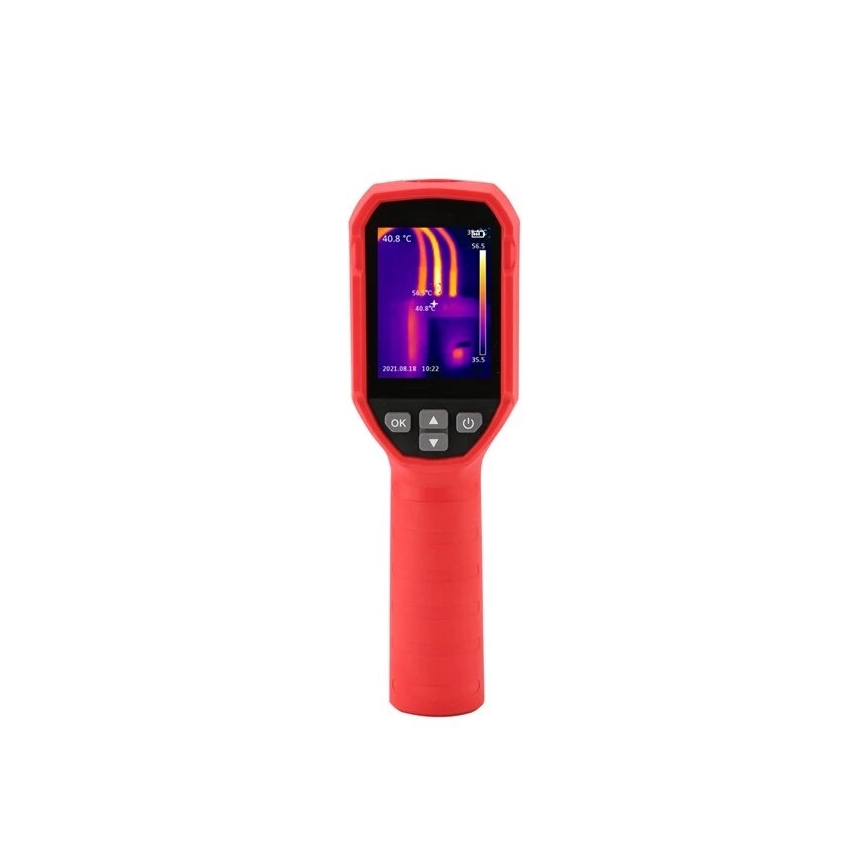

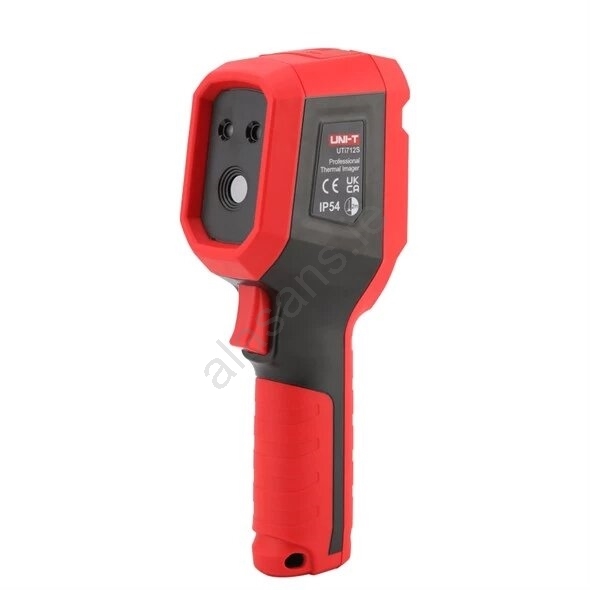

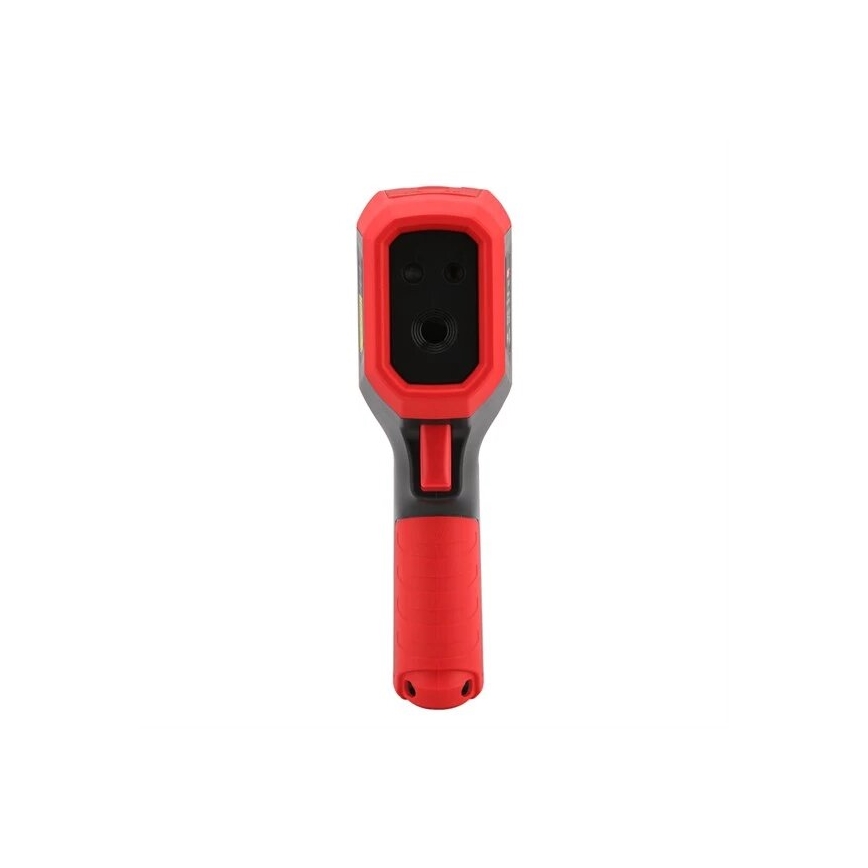

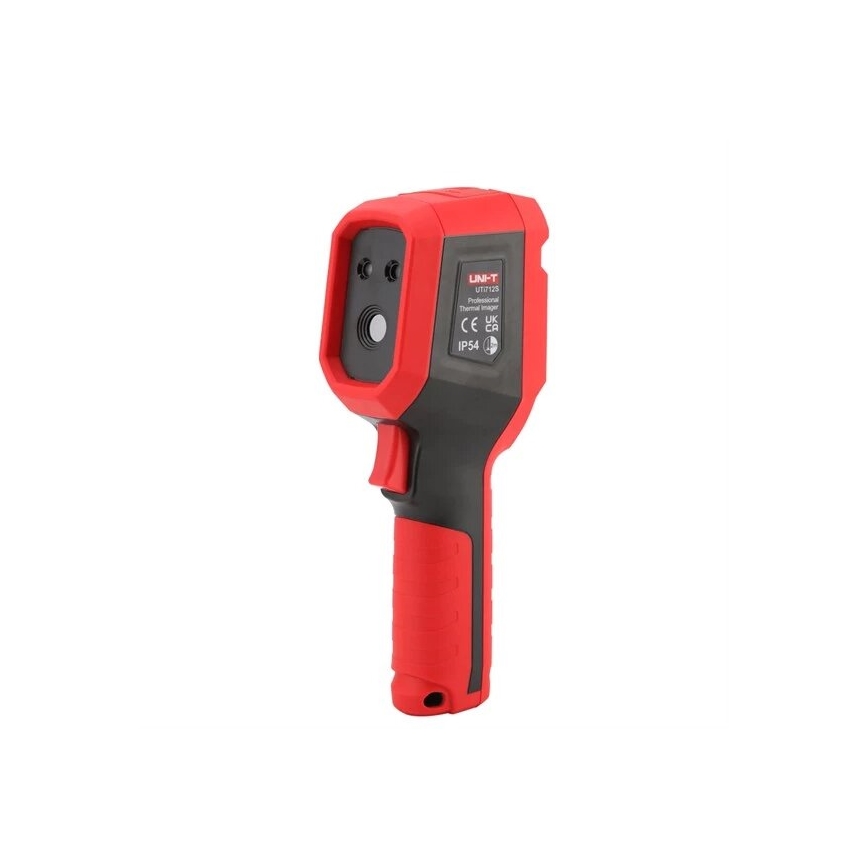

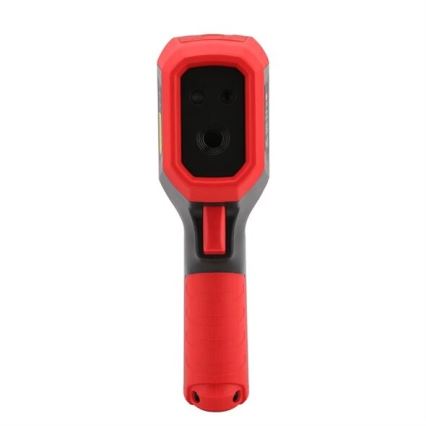

  • High-quality thermal camera designed for measuring the surface temperature of objects, operating in the infrared spectrum.

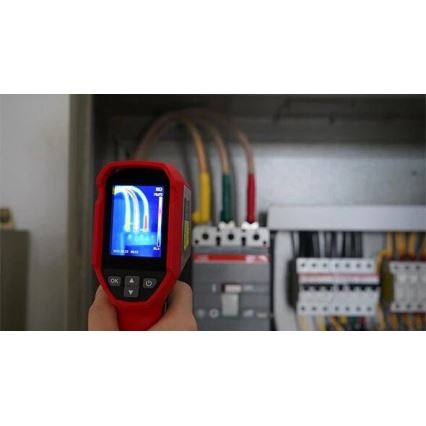

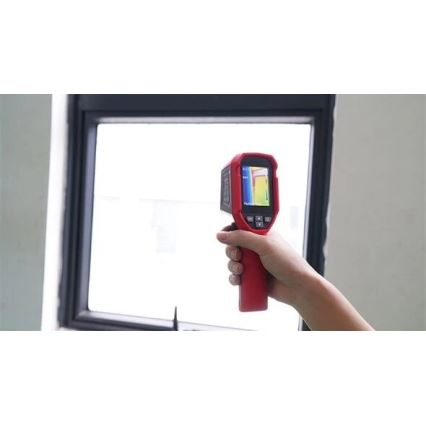

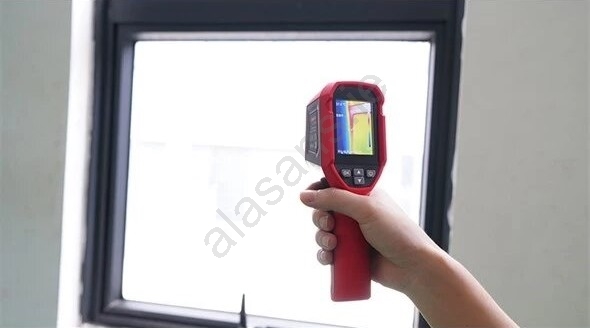

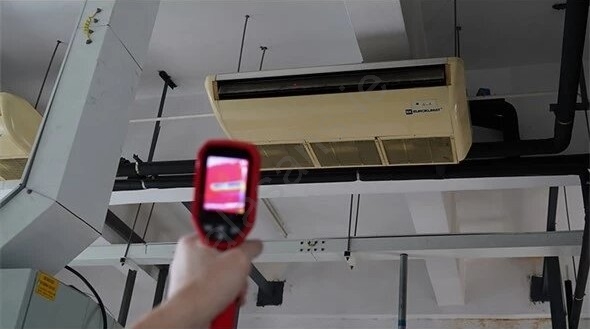

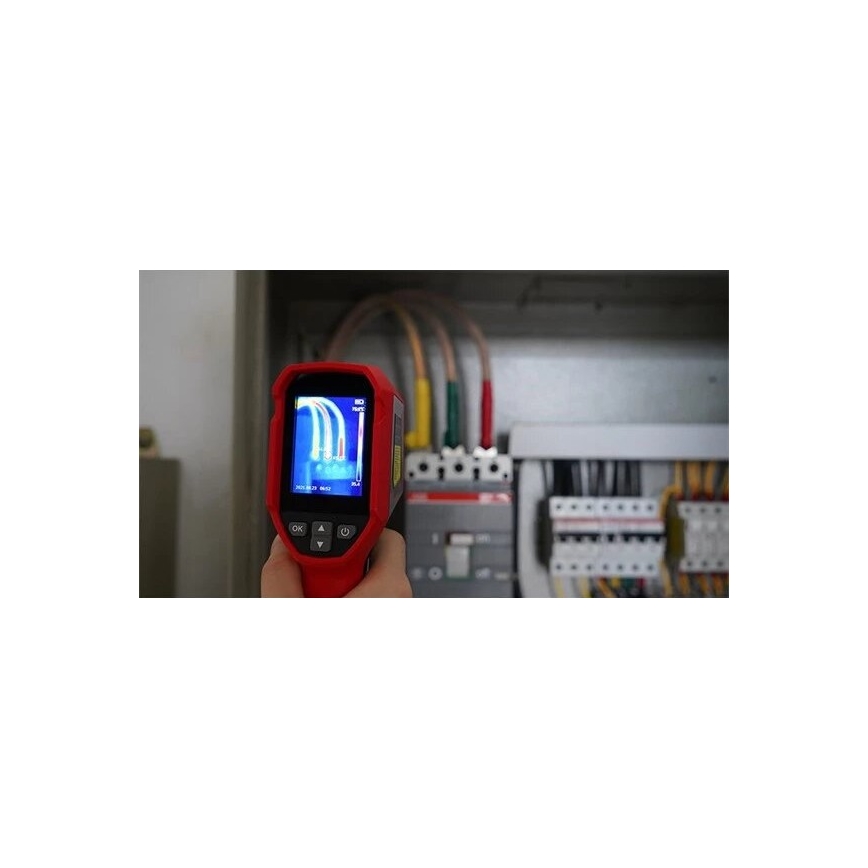

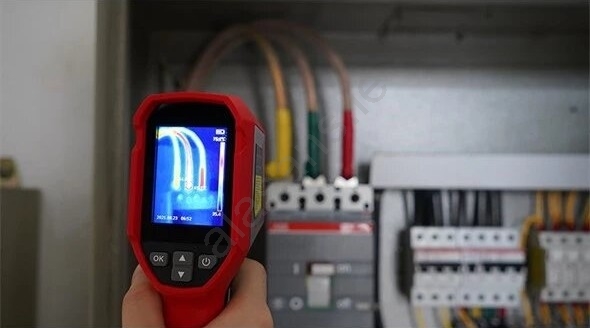

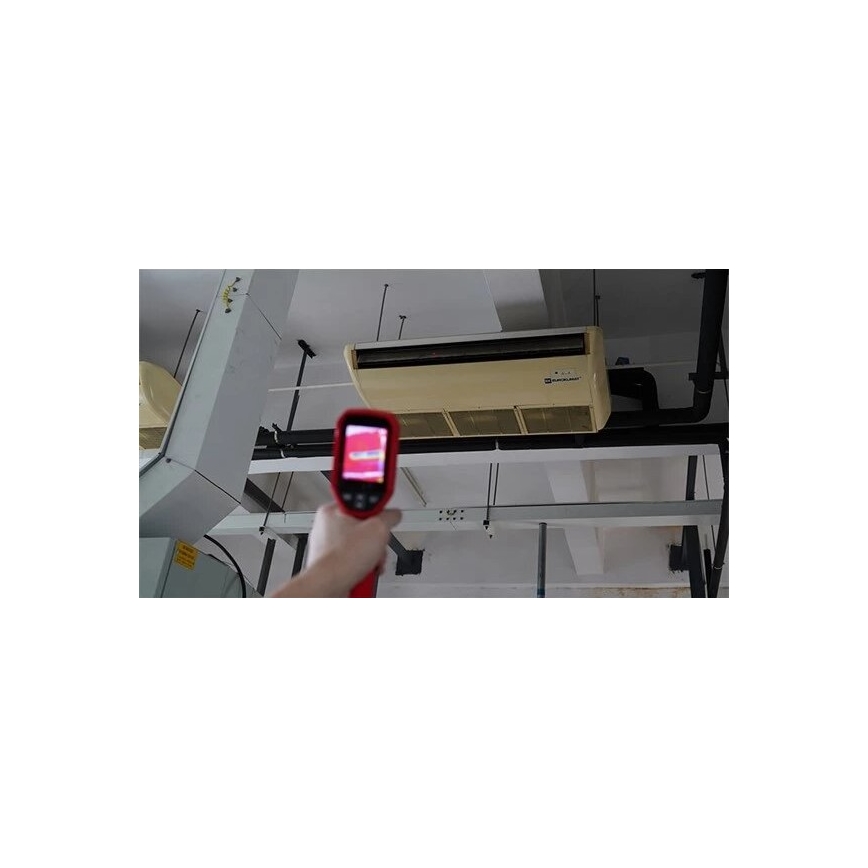

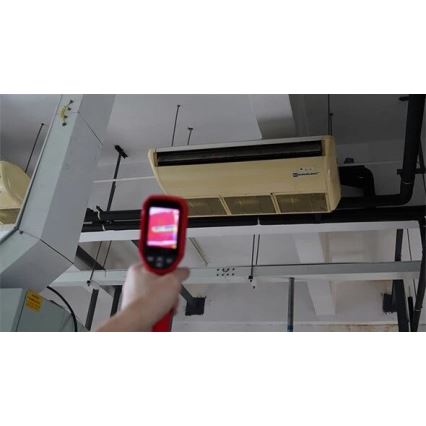

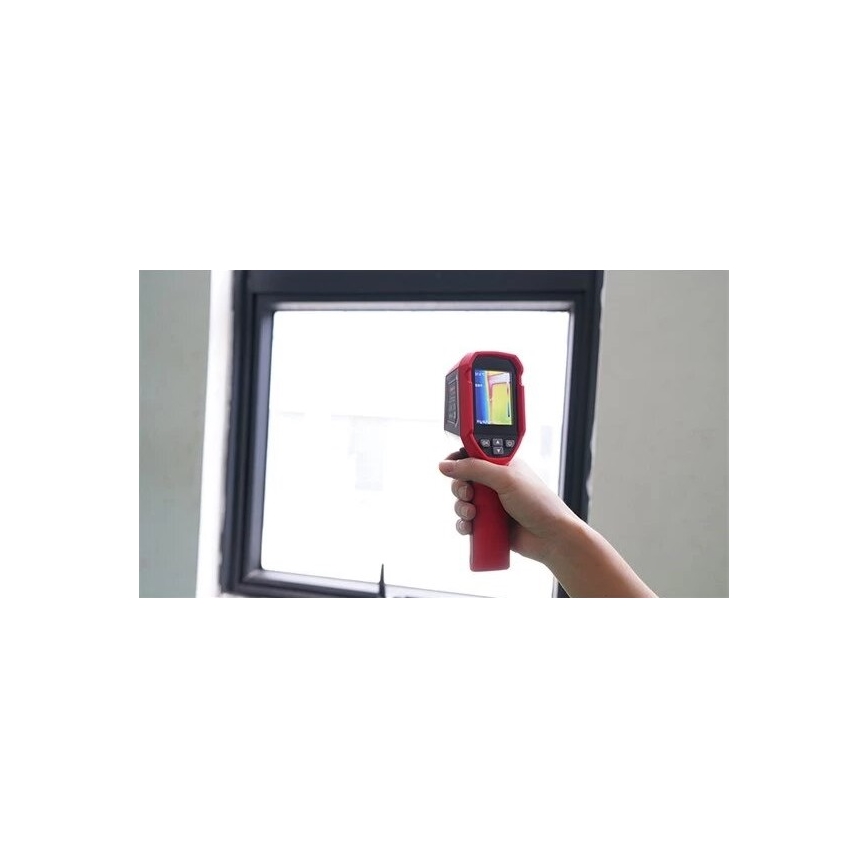

  • The thermal camera finds wide applications in construction for detecting heat leaks from walls, roofs, or pipes, in energy for identifying faults in electrical wiring, in cold storage facilities, in service centers for locating overloaded equipment, and in scientific research.
  • The thermal camera offers special features such as: temperature compensation (enables more accurate measurements in varying temperature environments), laser pointer, long battery life, and drop resistance from a height of 2 meters, LED flashlight.

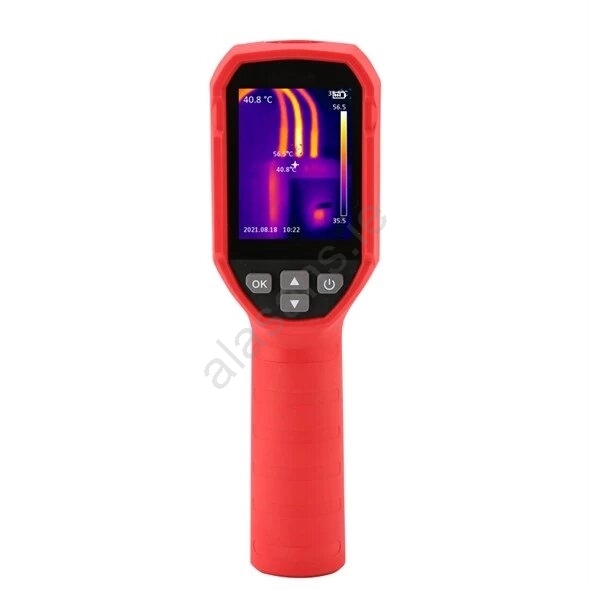

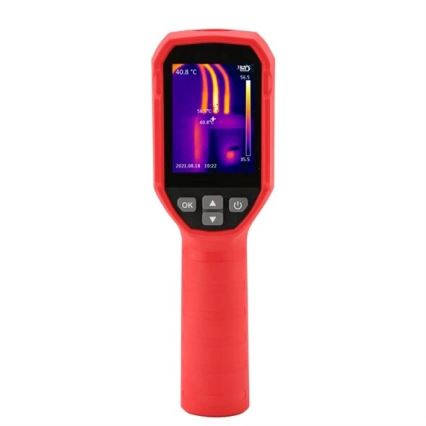

  • Display: 2.4" LCD with a resolution of 320 x 240px.
  • Temperature measurement range: -20 °C to 400 °C (4 °F to 752 °F).
  • IR resolution: 120 x 90.
  • Automatic alarm for high/low temperature.
  • Automatic hot/cold spot tracking.
  • Color palettes: 6 (white hot, black hot, Ironbow, Rainbow HC, Rainbow, Lava).

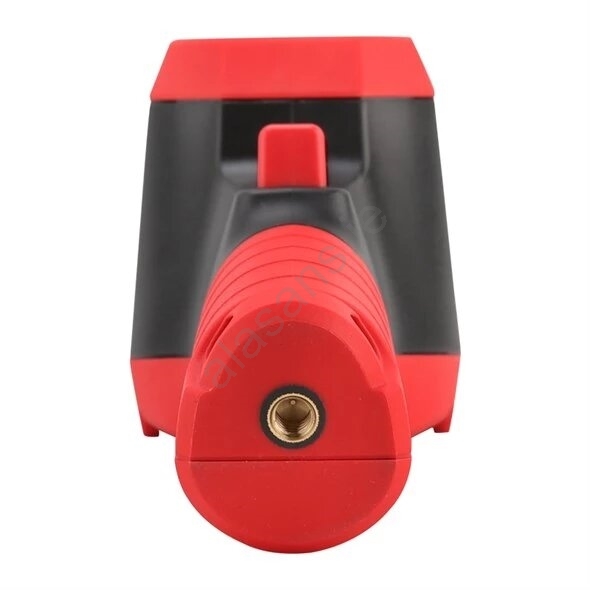

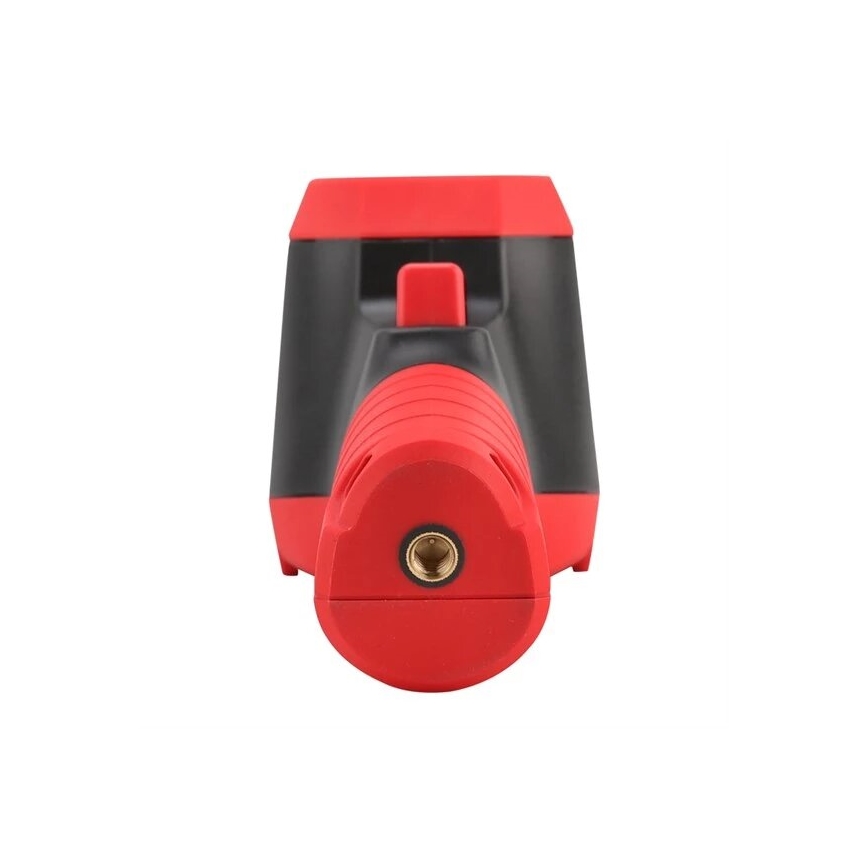

  • Rechargeable Li-ion battery. 1/4" mounting hole for tripod.
  • Automatic shutdown: 5 min, 10 min, 30 min.
  • Field of view (FOV): 50 ° x 38 °.
  • Thermal sensitivity (NETD): < 60mK.
  • Instantaneous field of view (IFOV): 7.3 mrad.
  • Frame rate: ≤25 Hz.
  • Spectral range: 8~14µm.
  • Accuracy: ± 2°C / ± 2 % depending on which value is greater.
  • Focusing mode: fixed focus.
  • Adjustable emissivity: 0.01 to 1.0 (default 0.95).
  • Memory interface: microSD card with a max capacity of 16GB.
  • Analytical software for PC (must be downloaded from the manufacturer's website).
  • Menu languages: English, French, German, Spanish, Russian.
  • Power supply: rechargeable Li-ion battery (3.7V, 2600 mAh).
  • Operating time on a single charge: 8 hours.
  • USB: type-C. Protection rating: IP54.
