• Product description

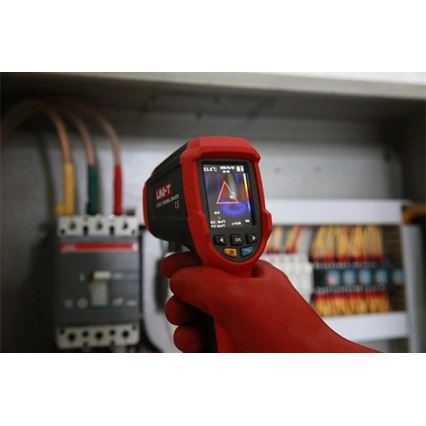

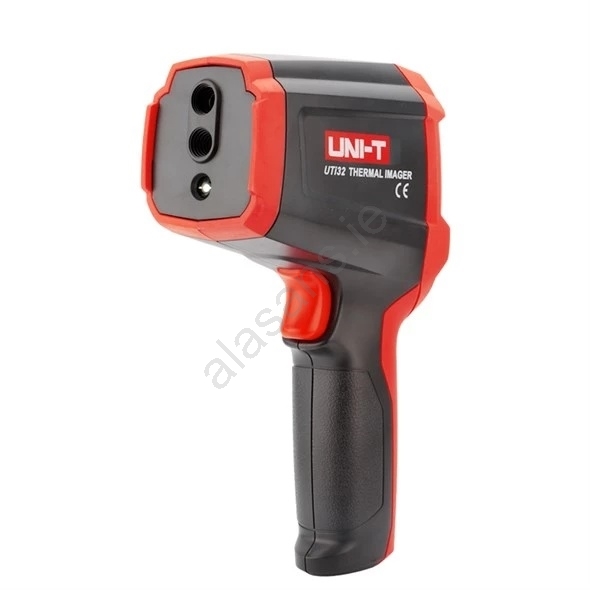

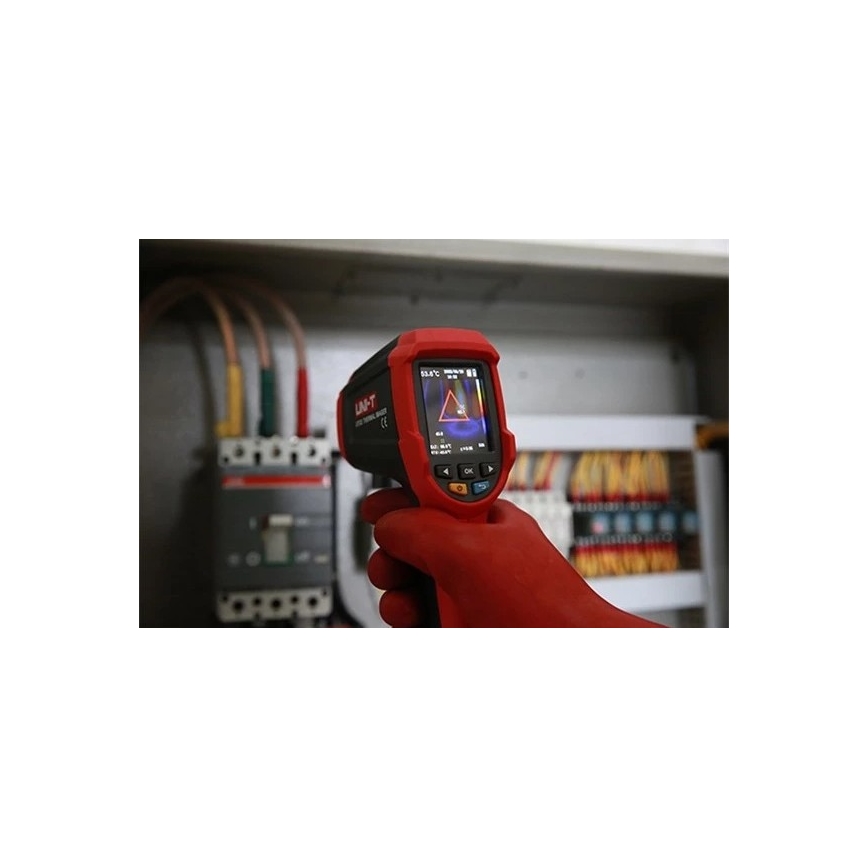

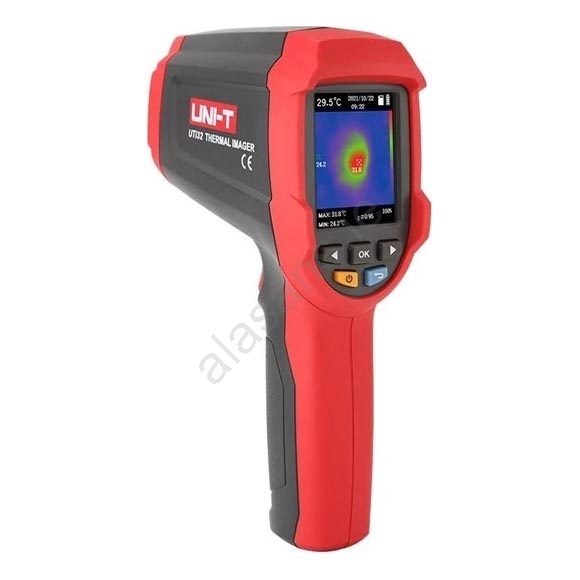

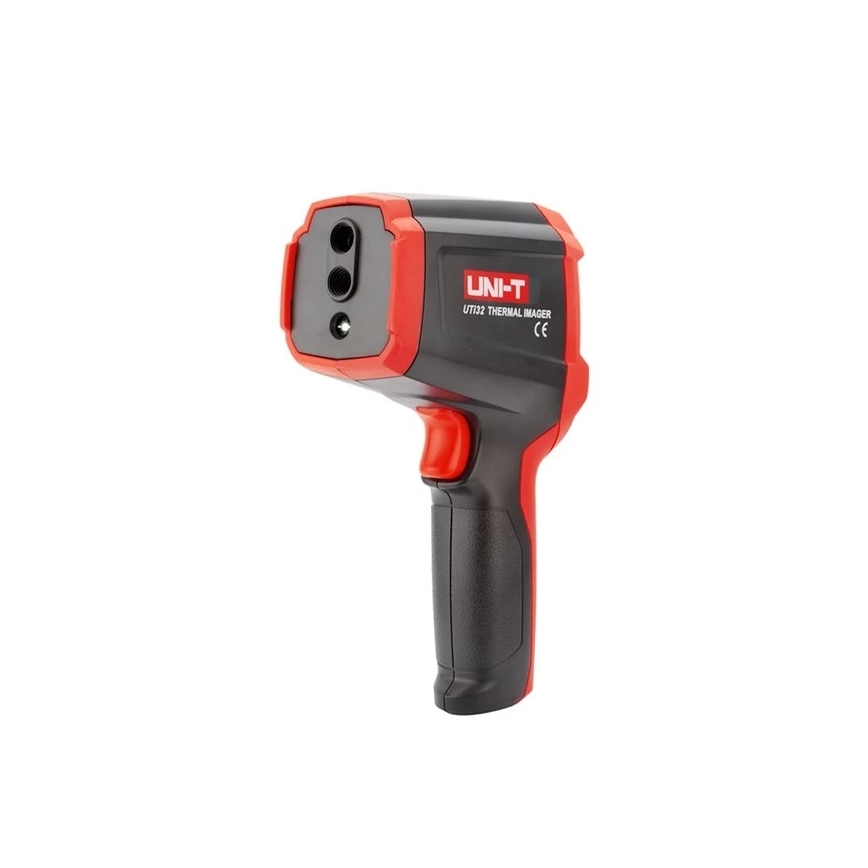

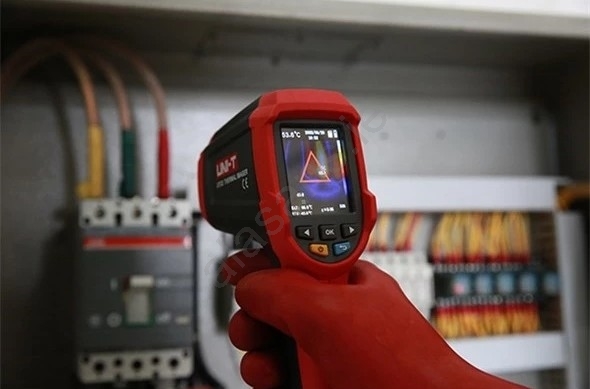

  • A thermal camera is a portable thermometer that is used to measure temperature in real time.
  • This model is equipped with a highly sensitive sensor for detecting infrared radiation, which allows you to easily and quickly determine the temperature of objects without the need for physical contact.

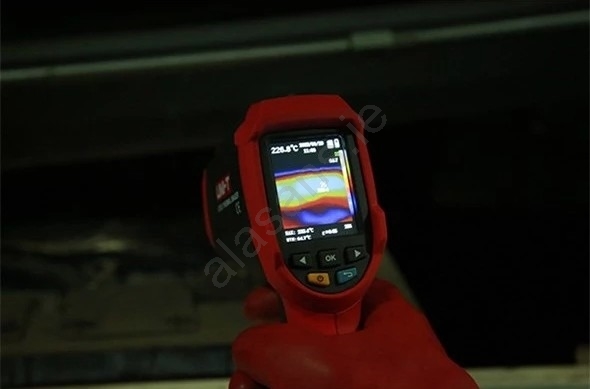

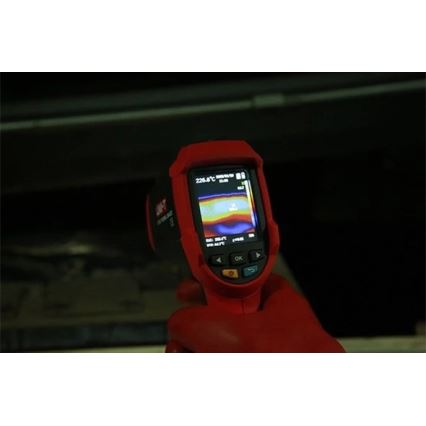

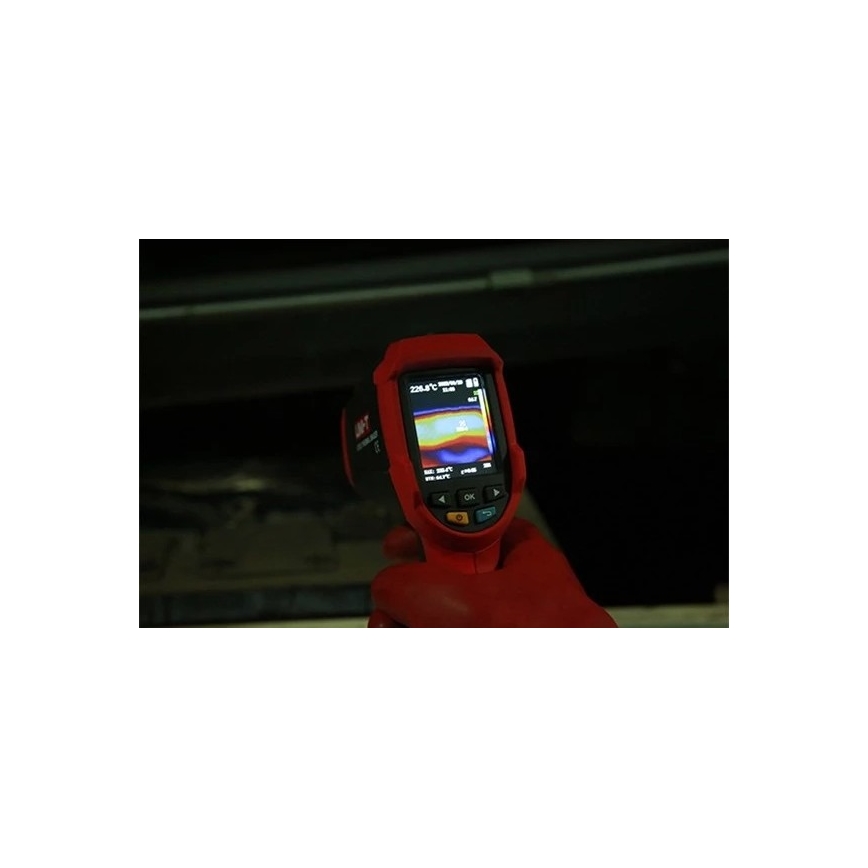

  • A high temperature thermal camera that is specifically designed for higher temperature applications such as: iron forging, glass and porcelain manufacturing, petrochemical, metallurgy, etc.
  • It can quickly detect temperature from -20 °C to 1000 °C and perform automatic monitoring.
  • It is a portable and lightweight thermal camera with 300,000 pixels digital camera, three image modes, also supports PC software analysis and more than 7 hours of battery life.
  • IR resolution: 32x32.
  • Display: 2.4″ IPS (480*320).
  • Digital camera resolution: 640x480.
  • Image modes: thermal, visual image, fusion.
  • Automatic tracking and alarm for high/low points.
  • Support PC software analysis.
  • Portable and lightweight.
  • More than 7 hours of battery life.
  • With LED light.
  • Display: 2.4" LCD with 480 x 320px resolution.
  • Field of view (FOV): 30°(H) x 30°(E).
  • Thermal sensitivity (NETD): 0.15℃.
  • Frame rate: ≤9Hz.
  • Infrared spectral band measurement: 8μm to 14μm.
  • Temperature measurement accuracy: ±2°C or 2%, whichever is greater.
  • Adjustable emissivity: 0.01 to 1.0 (default 0.95).
  • Color palettes: 3 (Ironbow, Rainbow, Black hot).
  • Visible light sensor resolution: 640 x 480pxt.
  • Unit of temperature measurement: °C (default), °F.
  • Power: Li-ion battery 3.7V / 2600mAh (18650).
  • Operating time per charge: more than 7 hours.
  • Automatic shutdown: yes, optional off/5/10/30 minutes.
  • Temperature resolution: 0.1°C.
  • Interface: microSD card with max. 16GB capacity; USB-C (charging, real-time image via PC software, and storage on USB drive).
