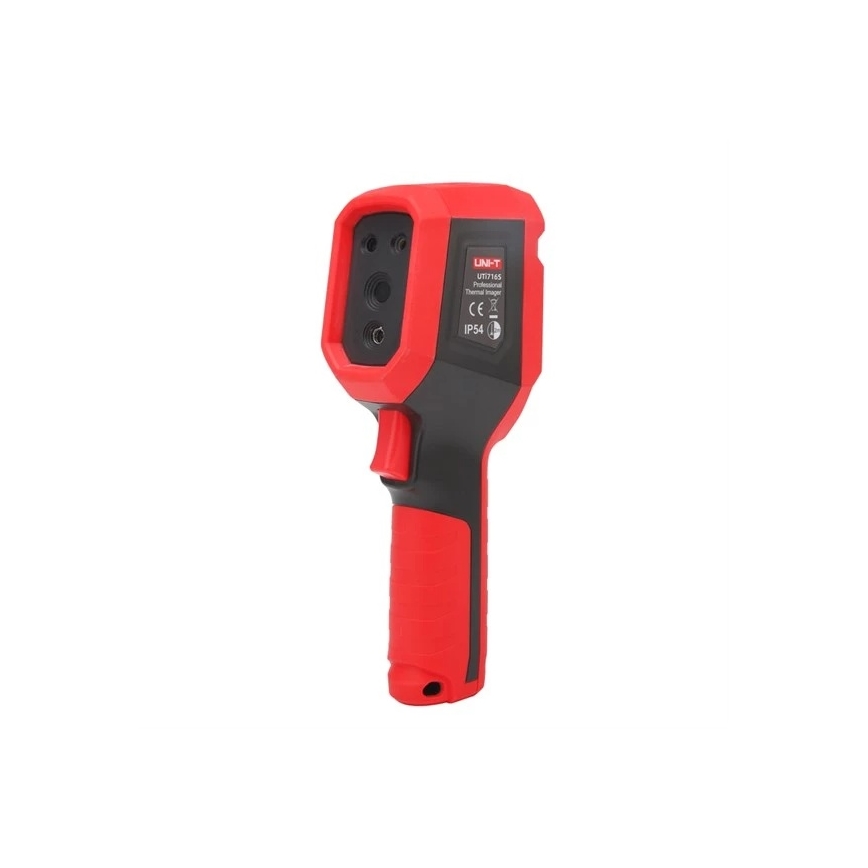

• Product description

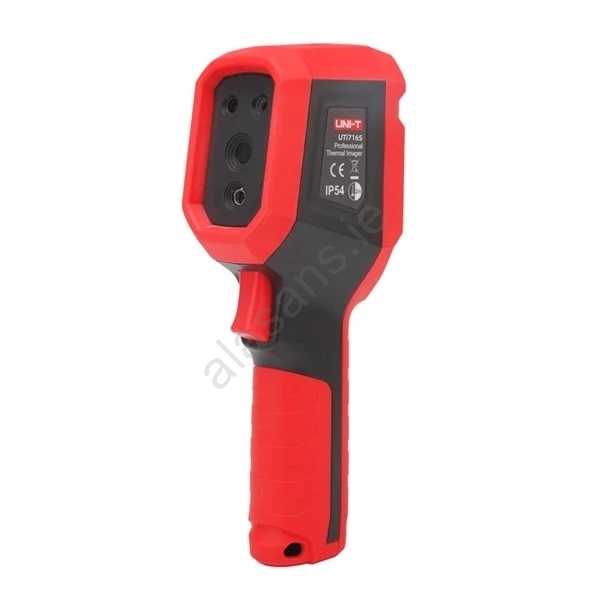

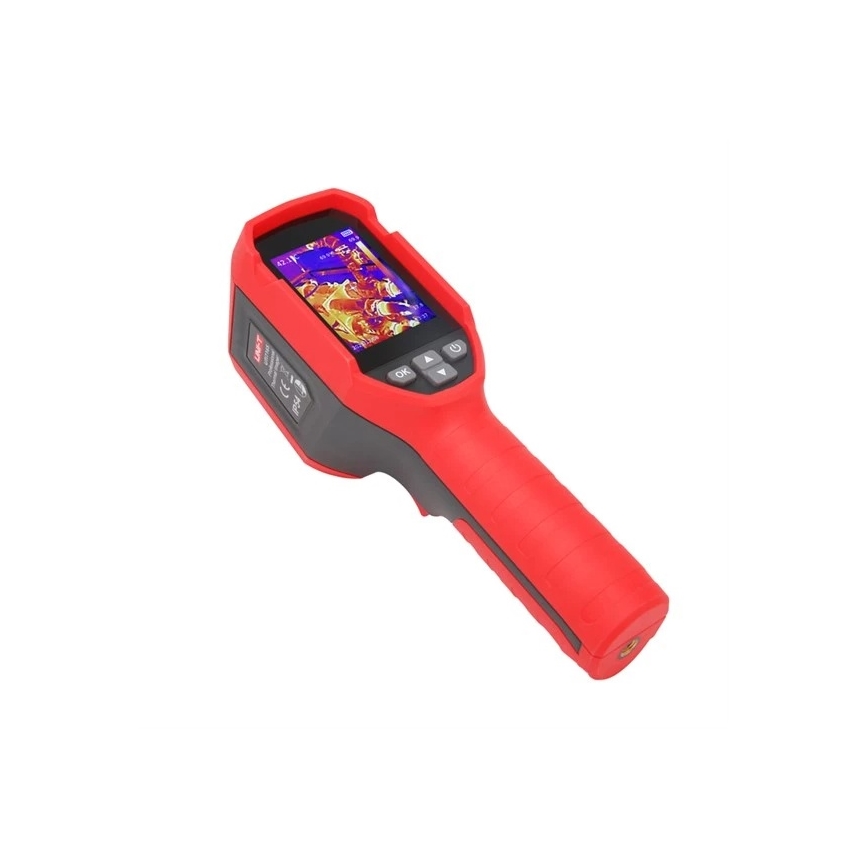

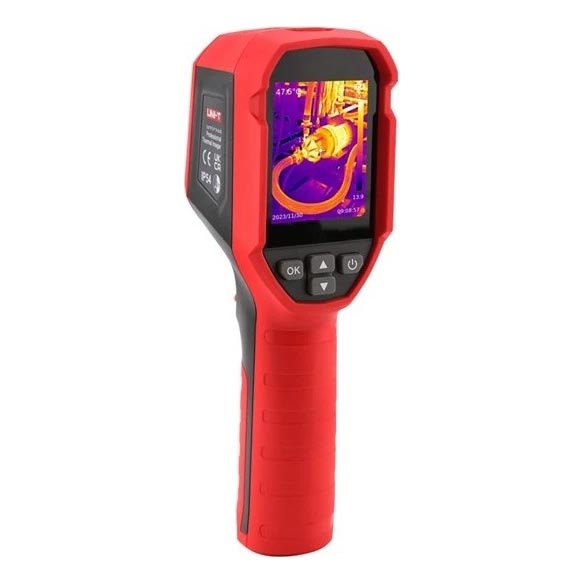

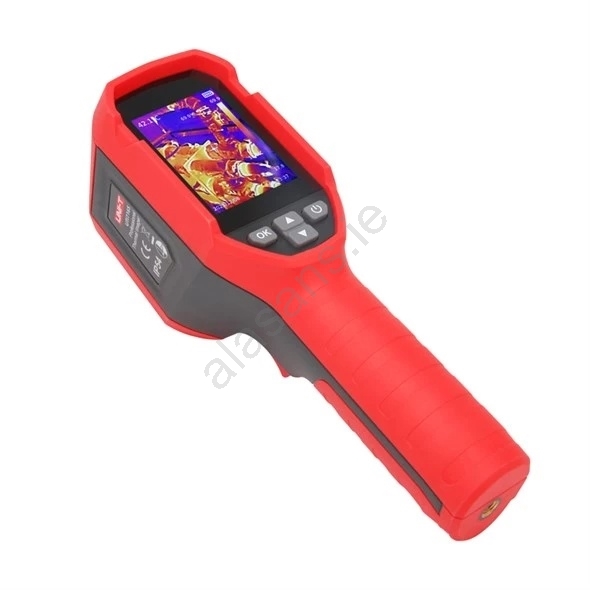

  • Thermal camera equipped with 12μm infrared detector.
  • T-Mix technology with an automatic adaptive dual fusion algorithm to generate infrared images with high resolution and visible details.
  • Its extended temperature measurement range, built-in LED light, and laser pointer meet the requirements for multiple application scenarios.
  • The four-button and lightweight design makes inspection easy.

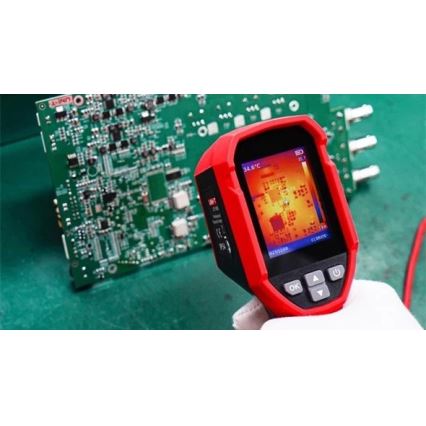

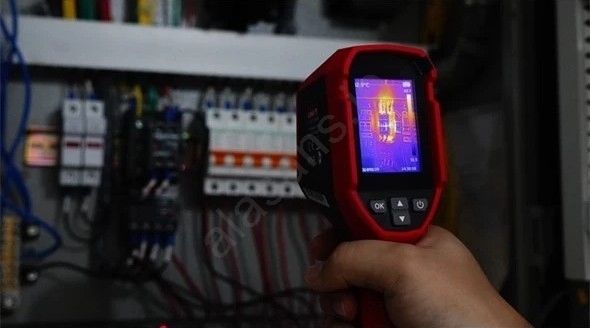

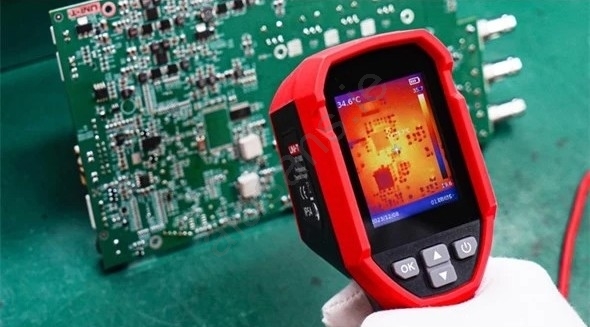

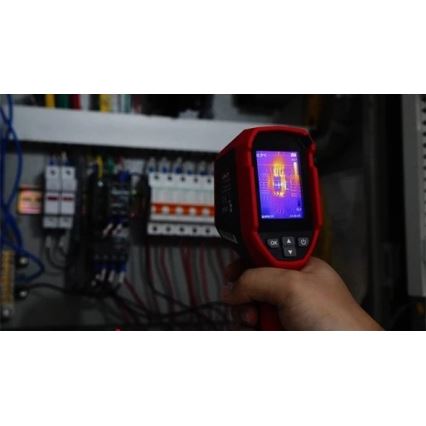

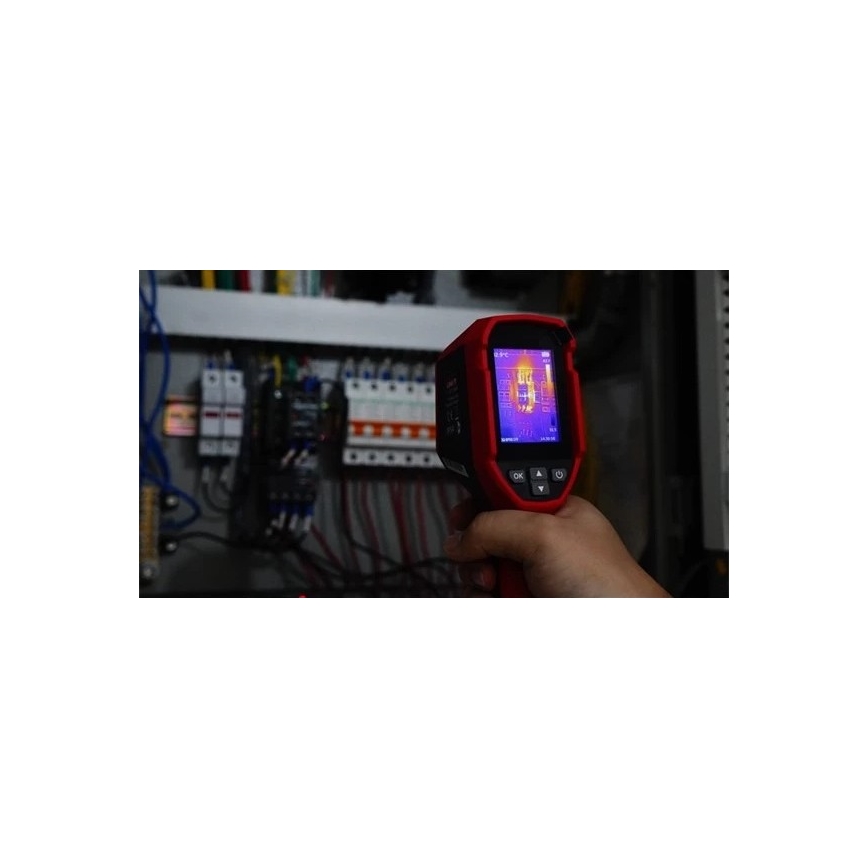

  • It is widely used in heating, ventilation, and air conditioning systems, automotive inspections, and power plants.
  • Infrared resolution 160×120 pixels / 12 μm).
  • Temperature measurement range from -20°C to 550°C.
  • 2MP digital camera multilingual operating system.
  • Degree of protection IP54.
  • Drop resistance from 2 m height.

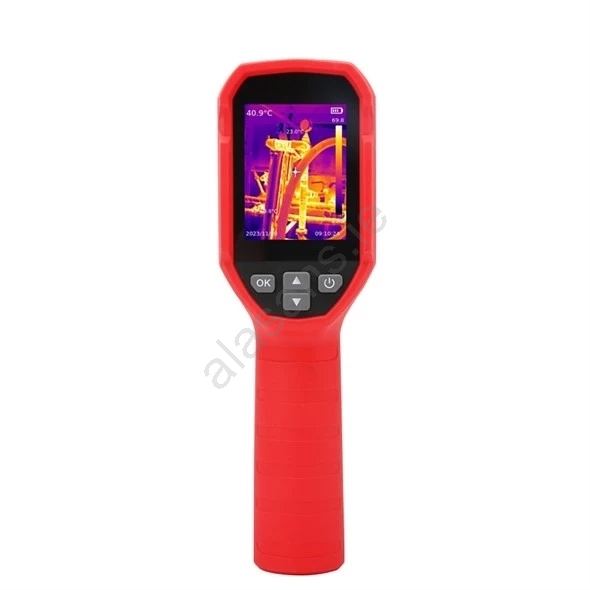

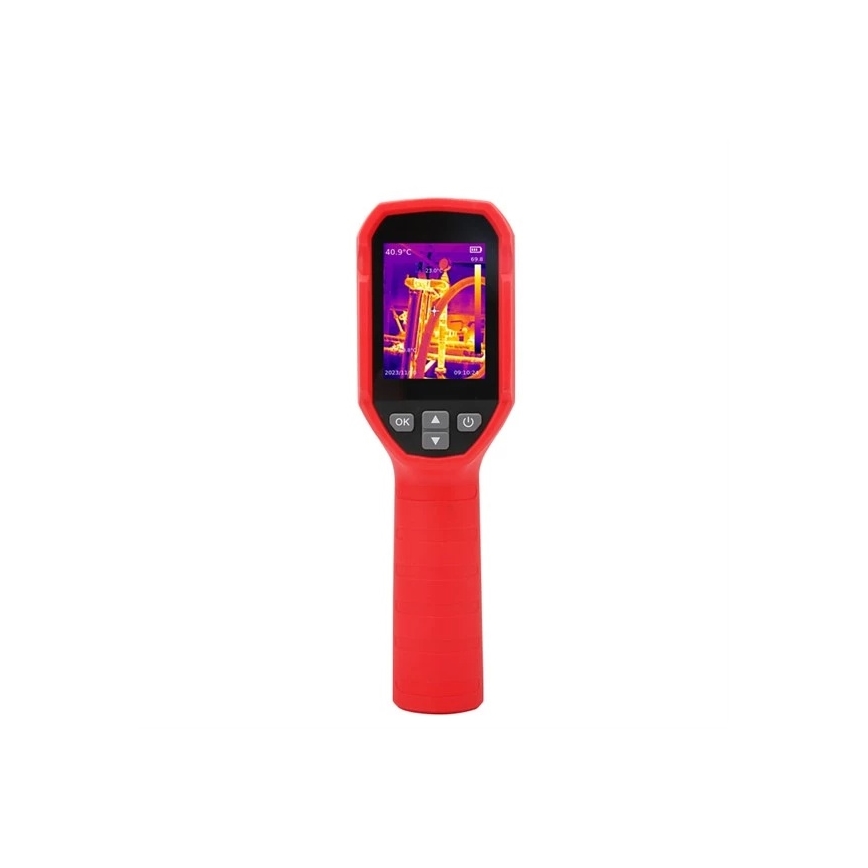

  • 2.4″ TFT display (320 x 240).
  • Infrared resolution: 160 x 120 pixels.
  • Infrared spectral band measurement: 8 μm to 14 μm.
  • Frame rate: ≤ 25 Hz.
  • Thermal sensitivity (NETD): ≤ 50mK.
  • Focus mode: Focus Free - Field of view (FOV): 40°(H) x 30°(E).
  • (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC).
  • Image modes: Thermal, Visual Image, T-Mix, Fusion, PIP.
  • LCD high/low temperature alarm animation, buzzer.
  • High and low temperature tracking in an image.
  • Power: Li-ion battery 2600 mAh rechargeable.
  • Operating time ≥6 hours.
  • USB Type-C.
  • Memory: built-in, 32 GB - JPG image storage format.
