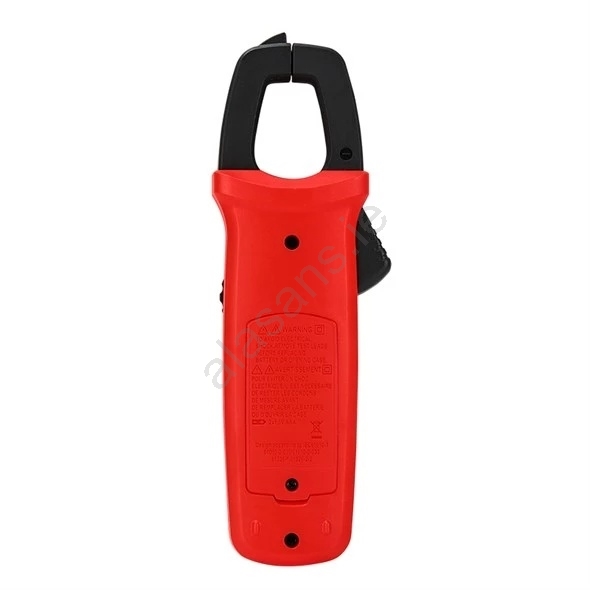

• Product description

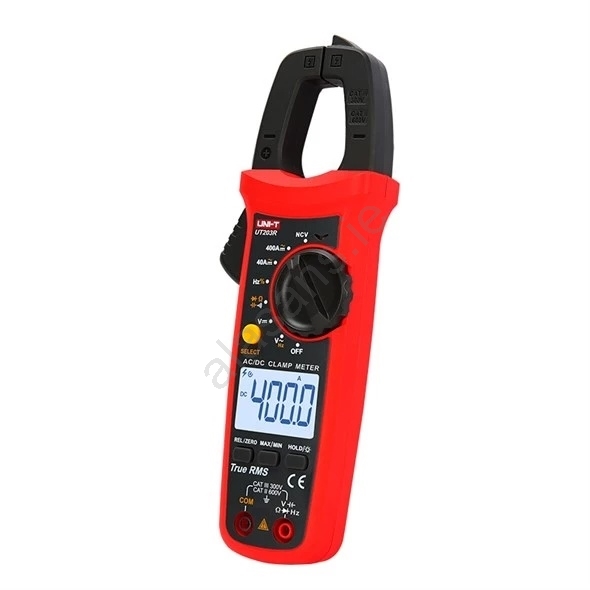

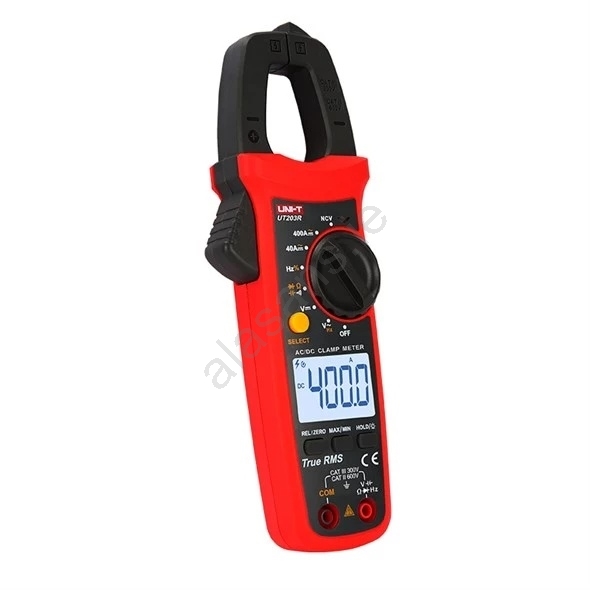

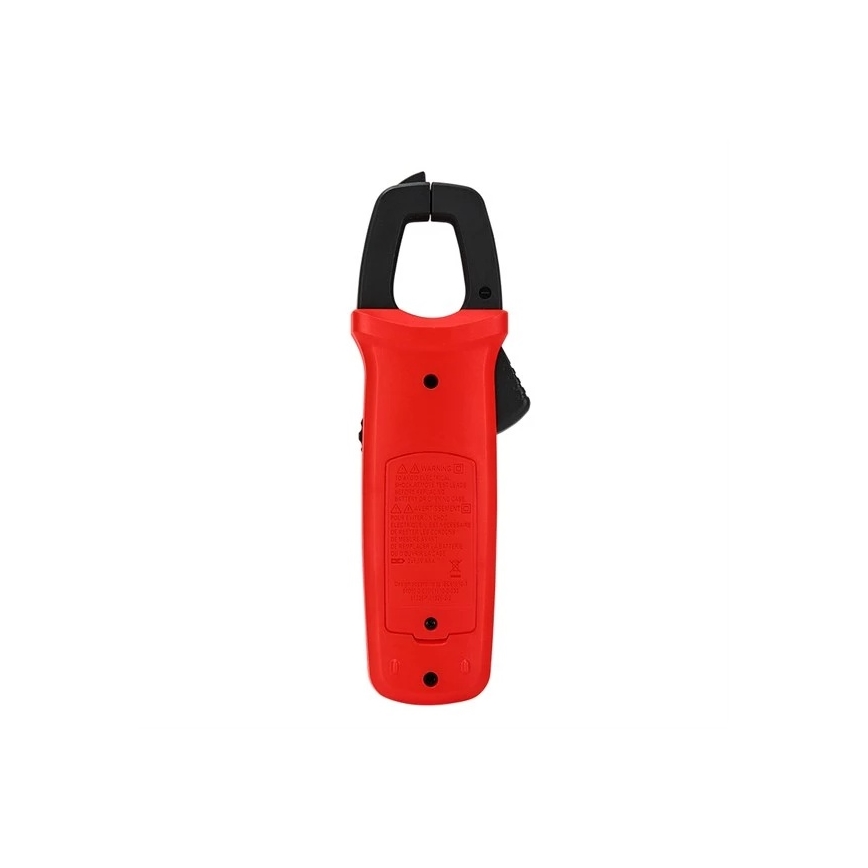

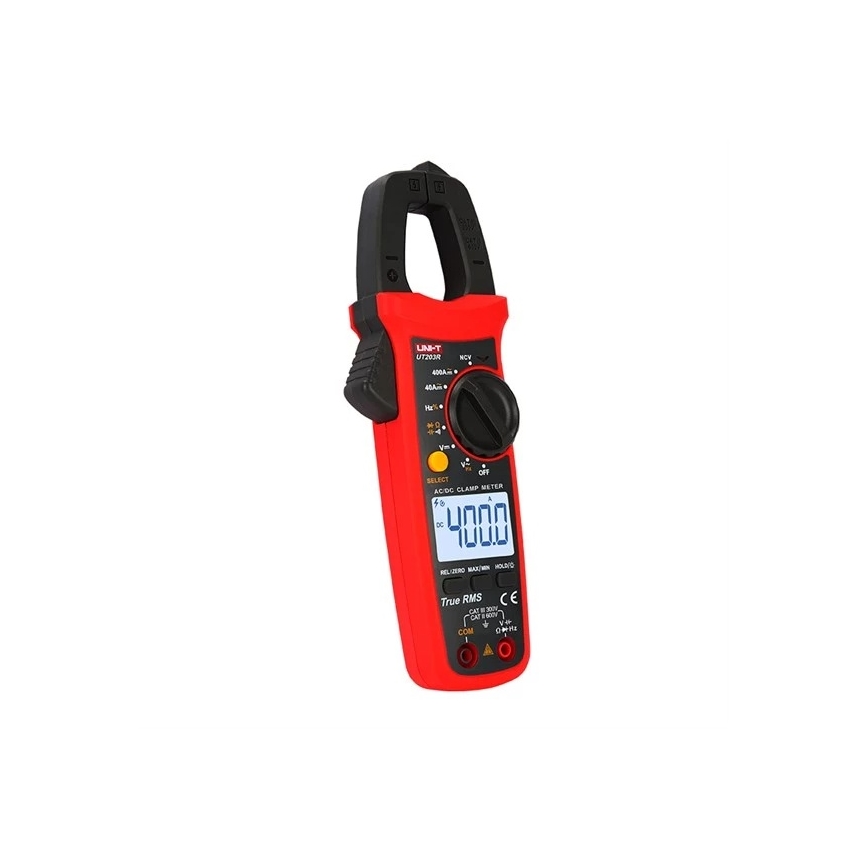

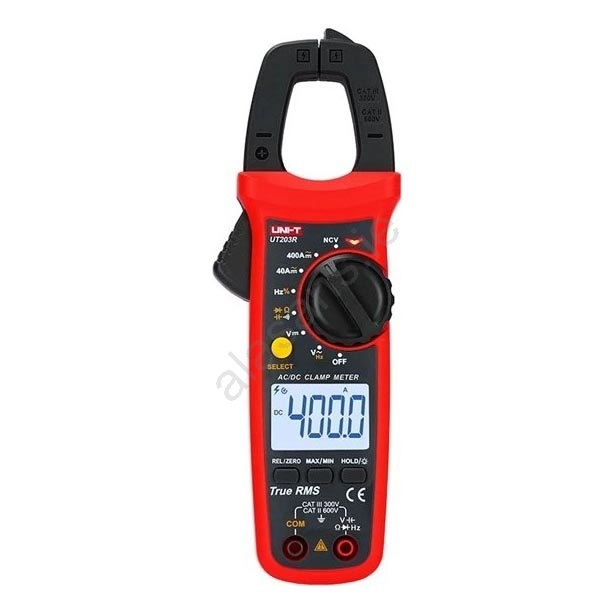

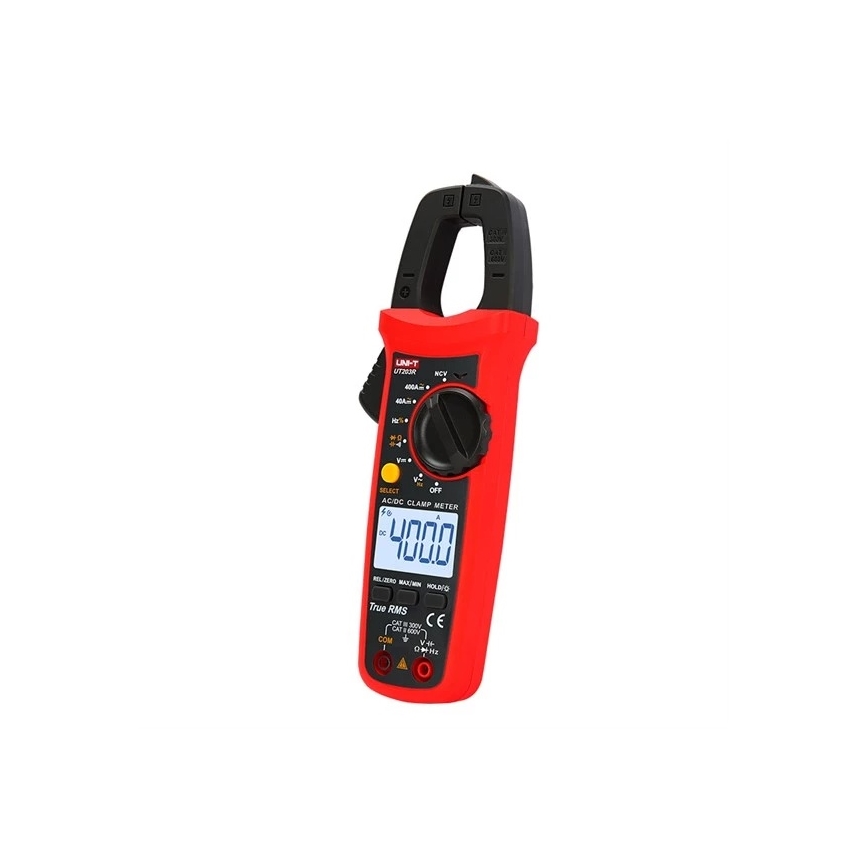

  • The digital clamp meter is used for measuring AC and DC voltages up to 600V.
  • Four-digit multi-segment display 37 x 25 mm with backlight and fast refresh rate (3 times/s).

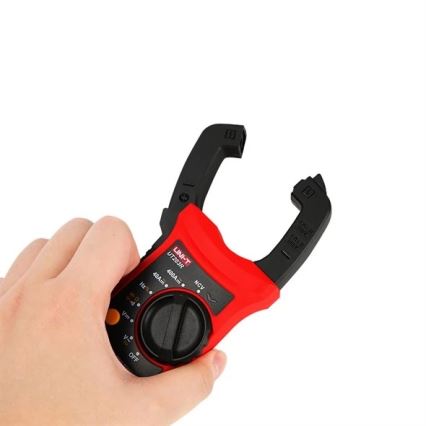

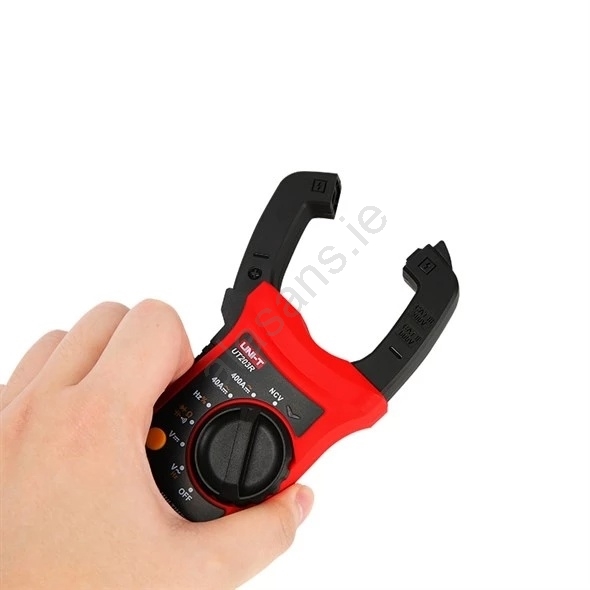

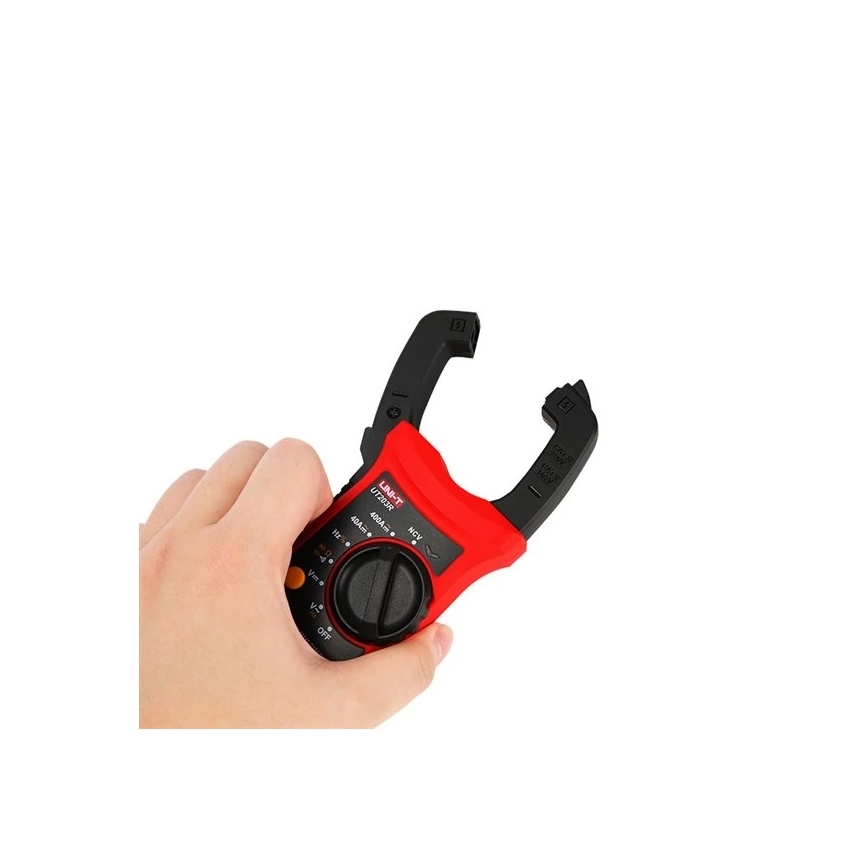

  • The jaw opening allows measurements on cables up to 28mm in diameter.
  • The non-contact electric field sensing (NCV) allows the detection of live conductors in two sensitivities -EFLo and - EFHi for LV 110V/50/60Hz and 230V/50/60Hz.
  • The included probe - probe tip cover on the test cables allows measurements on CAT III LV distribution lines without arcing hazard.
  • Without the spike covers, the test cables can only be measured on CAT II LV distribution lines.
  • Power supply battery 2pcs 1.5V R03 (included).
  • Power consumption of the meter is approximately 1.8 mA.
  • The circuit has an automatic power-saving function.
  • Measuring frequencies 10Hz to 10MHz.
  • Capacitance measurement 6nF to 60mF.
  • Temperature measurement -40 to +1000°C.
  • Proportional (relative) voltage and capacitance measurements.
  • Multi-segment display and audible/visual alarm.
  • Protection against voltages greater than 600V across ranges.
  • Non-contact detection of live conductors.
  • Automatic range switching.
  • Accuracy of current and voltage measurement is guaranteed between 1% and 100% of the ranges.
  • Measurement of maximum and minimum values.
  • Measurement in relative (ratio) mode for voltage and capacitance measurements.
  • Data hold ( HOLD).
  • Low battery indication.
  • Automatic power off.
  • Size of the backlit display: 37 mm x 25 mm.
  • Product dimensions: 215 mm x 63 mm x 36 mm.
