• Product description

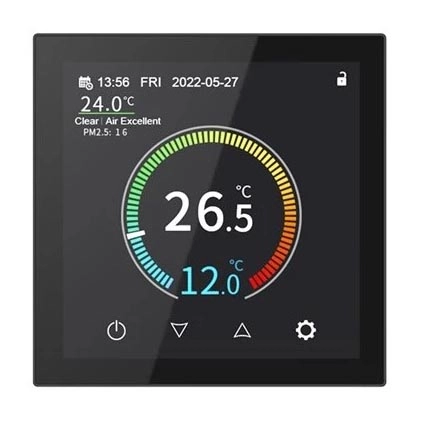

  • Smart touch thermostat designed for precise temperature control in homes, offices and holiday properties.

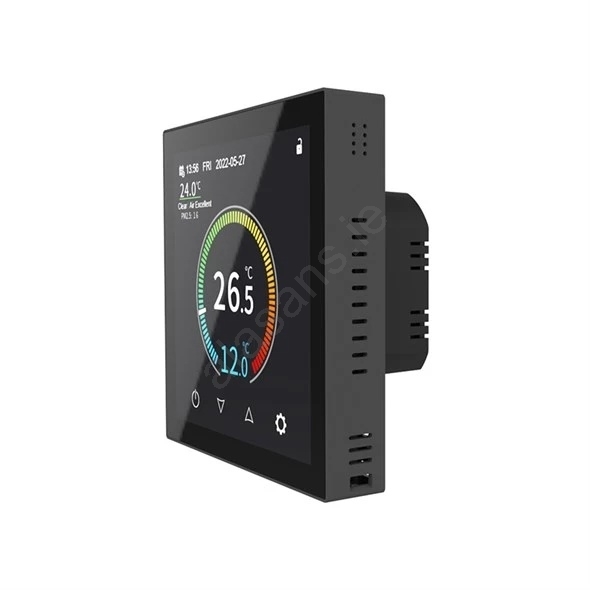

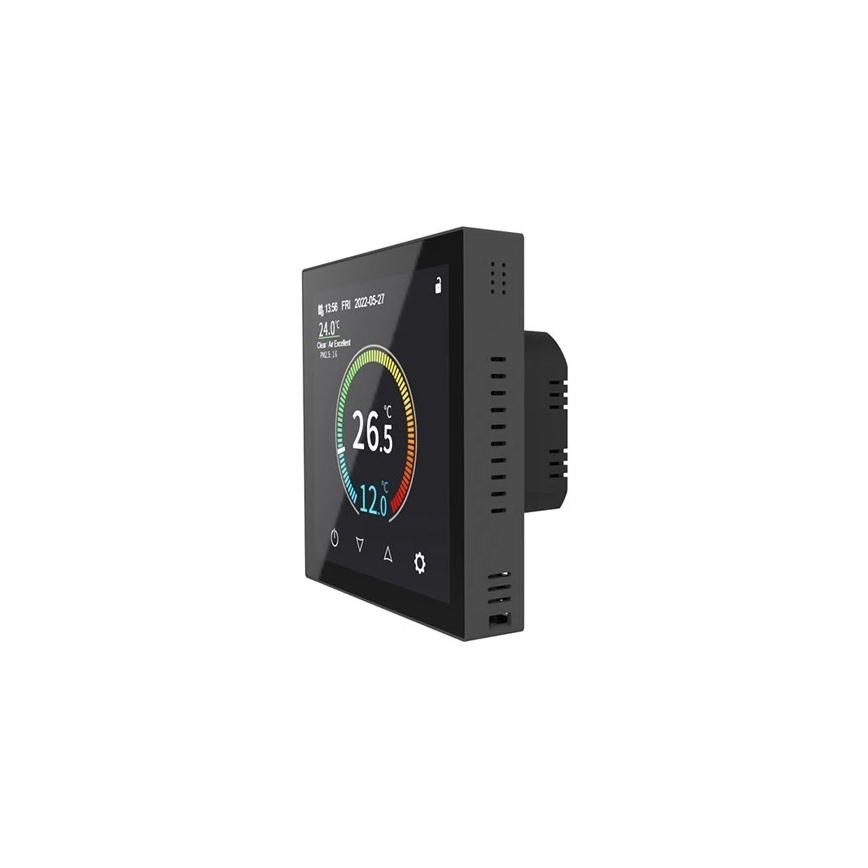

  • Allows recessed installation under plaster, enabling it to blend seamlessly with the interior.
  • Offers modern touch control via a clear backlit TFT IPS display with a 480 x 480 px resolution.
  • Also enables smart remote control via mobile Smart Life app and Tuya (Android/iOS) thanks to integrated Wi-Fi connectivity.
  • Supports weekly programming with 5+2, 6+1 or 7-day modes for energy-efficient temperature control.
  • Includes manual, program, holiday and temporary manual modes.
  • Child lock function prevents accidental changes to settings.
  • Memory preserves settings even after the device is turned off.
  • High and low temperature protection ensures safe operation.
  • Can connect an external temperature sensor for more accurate temperature measurement.
  • Offers the „ventilation“ function and holiday mode to save energy.
  • Display shows current and external temperature, humidity, time, heating mode and Wi-Fi connection status.
  • User can adjust display brightness, set a timer and choose the interface language (EN, DE, ES, PL, IT).
  • Thermostat is suitable for resistive loads (e.g. direct electric heaters) up to 16 A and inductive loads up to 3 A.
  • Technical specifications:
  • Thermostat type: wired (recessed).
  • Control type: touch, programmable.
  • Connectivity: Wi-Fi (Smart Life, Tuya).
  • Power supply: 90–240 V AC, 50/60 Hz.
  • Max. switching current: resistive loads up to 16 A, inductive loads up to 3 A.
  • Adjustable temperature range: 5–35 °C.
  • Temperature sensor limit: 1–70 °C.
  • Display accuracy: ±0.5 °C.
  • Hysteresis: 0.5–2.5 °C.
  • Sensors: 1x internal NTC (10 kΩ) + 1x external sensor.
  • Consumption: <0.3 W.
  • Output: switching relay.
