• Product description

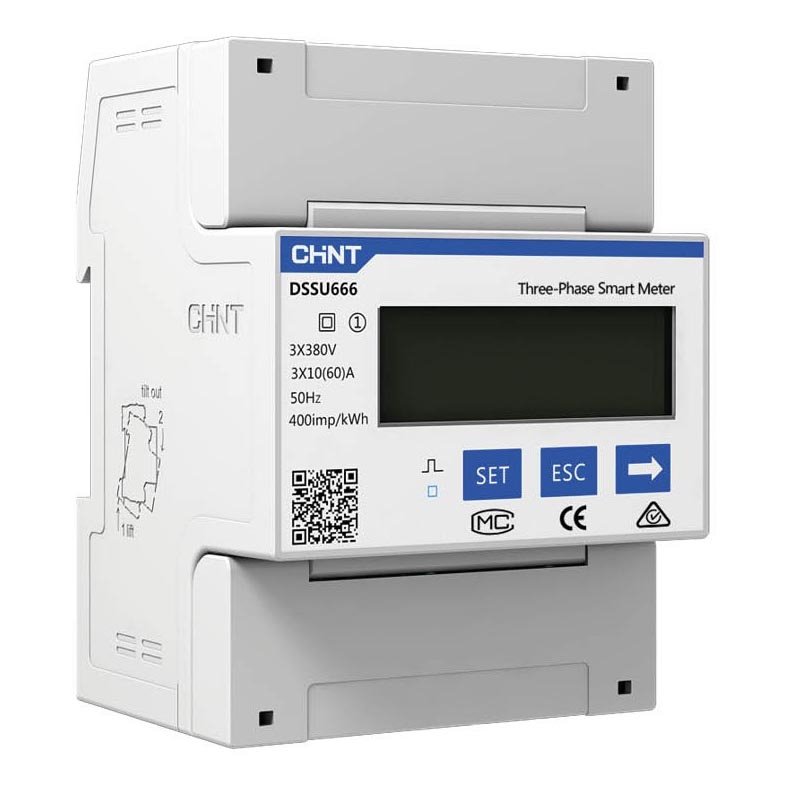

  • The DTSU666 series three-phase digital electrometer is designed for power monitoring and power metering of the power system.
  • The new generation of smart meters combines metering and communication functions.
  • It is mainly used to measure and display electrical parameters in an electric circuit, including voltage, current, active power, reactive power, frequency, positive and negative energy, four-quadrant energy, etc.
  • With standard DIN35mm rail mounting and modular design, it features easy installation and easy connection to the network.
  • Operating voltage: 3x 230/400 V.
  • Rated voltage (Un): 3x 220~240/380~415V.
  • Operating range: 0.85 Un - 1.15 Un.
  • Communication interface: RS485.
  • Communication protocol: MODBUS-RTU.
  • Connection type: 3P4W.
  • Measurement accuracy: class 1.0 for active, class 2.0 for reactive measurement.
  • Transmission speed: 1200/2400/4800/9600 bps.

  • Operating temperature: -10 °C to +45 °C.
  • Relative humidity: ≤ 75%.
  • Power consumption: ≤ 1W, 8VA.

  The catalog sheet and operating instructions can be found in the downloadable documents below.


  Please note that installation and dismantling of solar panels and solar accessories must be carried out by a qualified person.
