• Product description

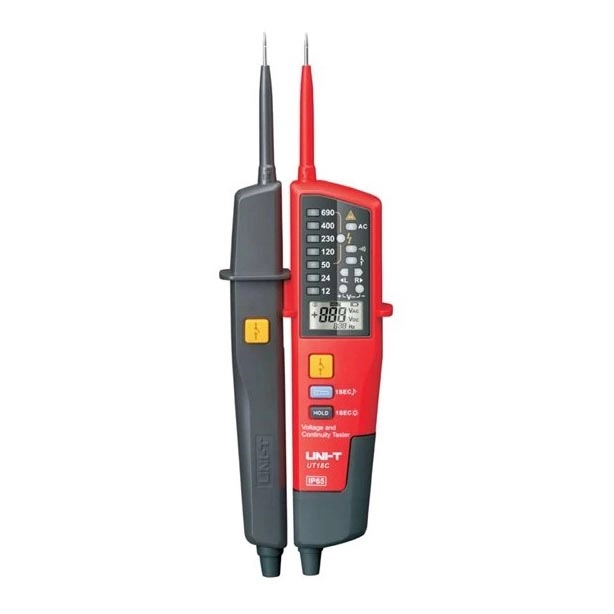

  • The tester is designed to test AC/DC voltage, three-phase voltage, phase sequence, continuity, and more.
  • It is rated CAT IV 600V and meets the IP65 standard.
  • It has an unpowered measurement function and it ranges from 100 - 690V.
  • These voltage testers are the perfect tool for electricians to quickly measure voltage levels in all environments.
  • LCD display + LEDs.
  • Current Protector Test.
  • Extremely durable design.
  • Dustproof, splashproof (IP65).
  • LED voltage indication.
  • Integrated LED flashlight.
  • Phase rotation test.
  • Sounding device.
  • Polarity detection.
  • Power supply 2x 1,5V batteries R03 (included),
  • LCD dimensions: 31 x 20 mm.

  • Specifications:
  • Voltage:
  • 12V from 8V±1V.
  • 24V from 18V±2V.
  • 50V from 38V±4V.
  • 120V from 94V±8V.
  • 230V from 180V±14V.
  • 400V from 325V±15V.
  • 690V from 562V±24V.
  • Phase rotation test: 100V~690V, 50Hz~60Hz.
  • Conductance test.
  • 230V (50-400Hz) current protector test.
  • Polarity detection.
  • Self-test.
  • No Power test 100V~690V.
  • Functions:
  • Voltage indication.
  • LED diodes.
  • Automatic range adjustment.
  • Integrated LED flashlight.
  • Low battery indication.
  • Overvoltage 713V~788V.
  • Silent mode.
  • LCD display (Voltage) 6V-690V ±(1.5%+5).
  • LCD display (Frequency) 40Hz-400Hz ±(3%+5).
