• Product description

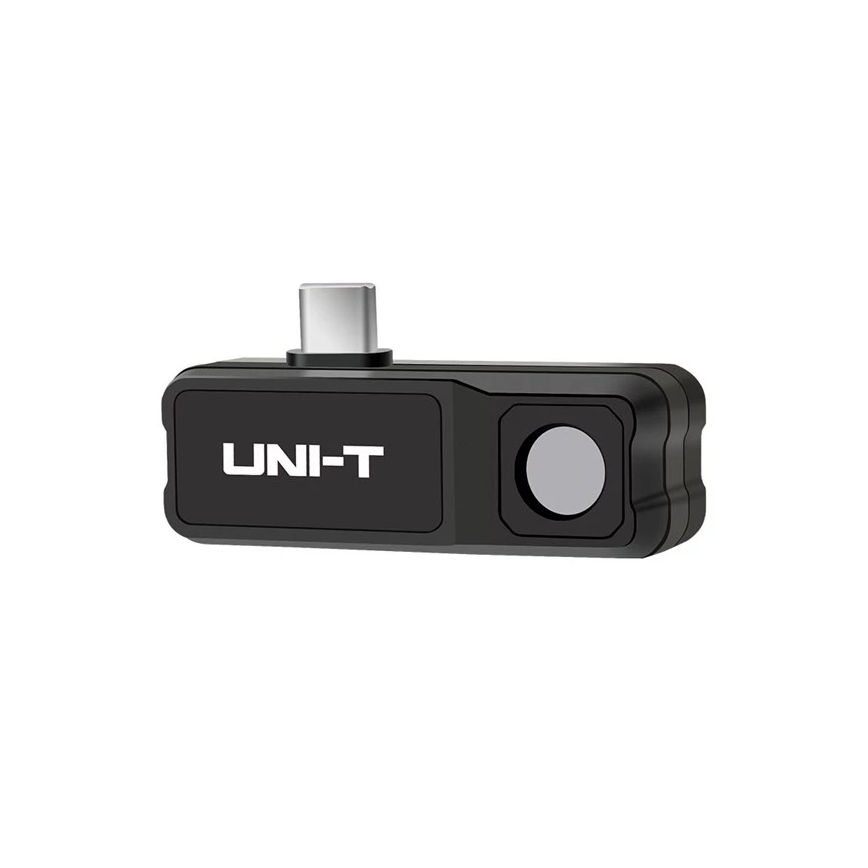

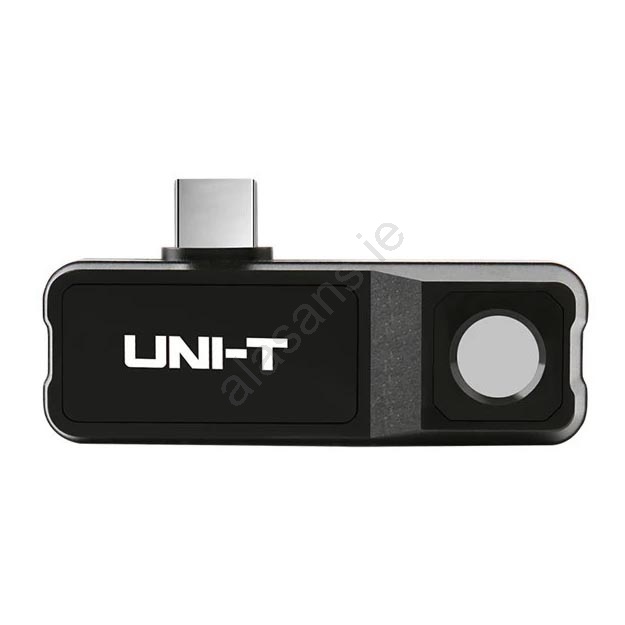

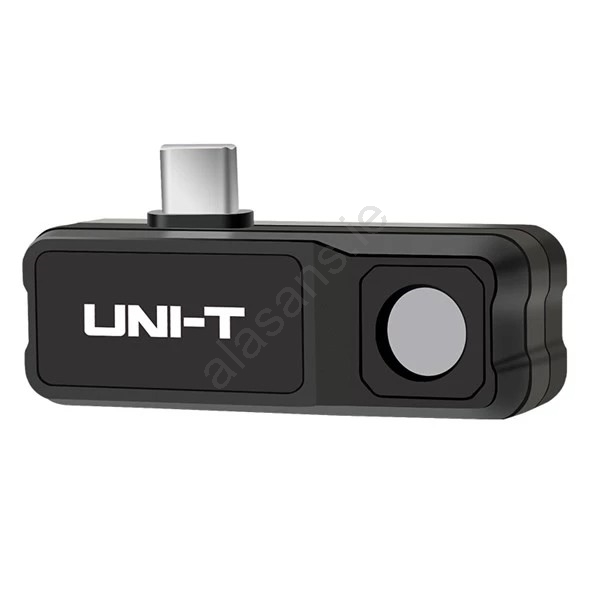

  • The UTi120 Mobile thermal camera is a camera working in the field of infrared radiation, designed to measure the surface temperature of objects from -20°C to 200°C.
  • The camera is designed to be connected to a standard smartphone, preferably equipped with a socket for a USB-C connector.

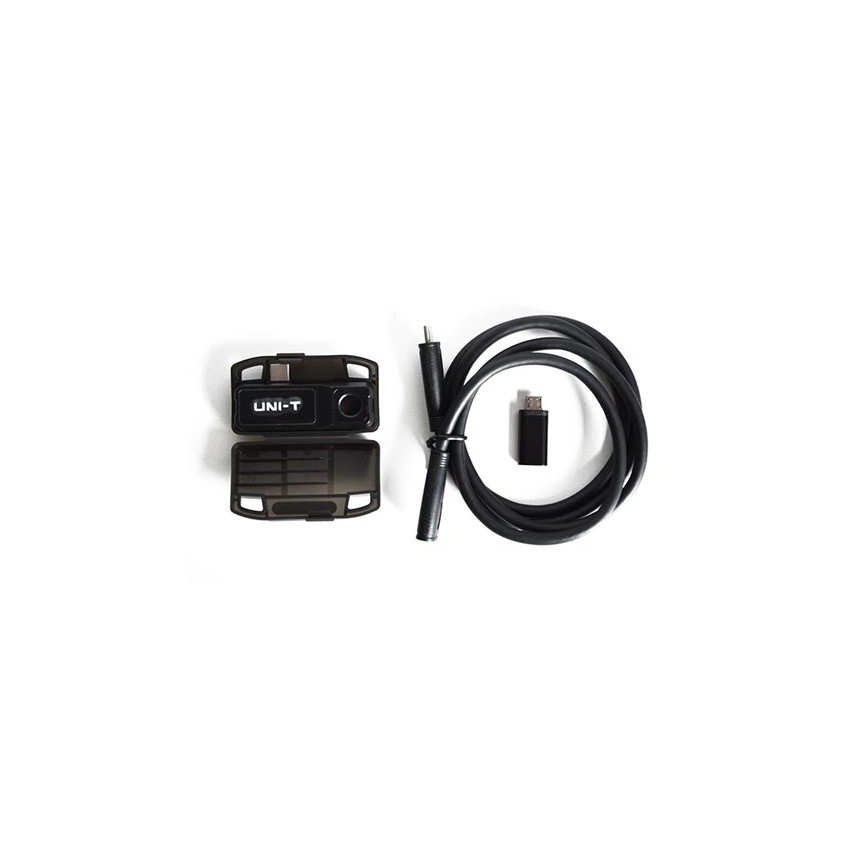

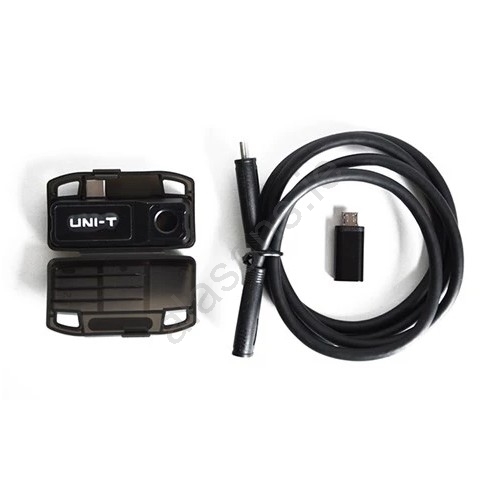

  • However, it is also possible to connect the camera to the phone with the included USB-C/USB-C or Micro USB/USB-C extension cables.
  • On the mobile phone display, you can view the thermal image of objects, converted into a visible image with a selected color palette: iron red, rainbow, grayscale, hot red, black and white, lava, and high-contrast rainbow.
  • In real-time, it is possible to have locations with minimum and maximum temperatures marked in the image with an indication in degrees Celsius or Fahrenheit.
  • Alarms can be set when a certain temperature is exceeded.
  • The image from this camera can be blended (PIP) with the image of the front or rear camera of a mobile phone, while at the same time, the infrared image can be mirrored.
  • It is possible to analyze the temperature at a point or marked area (rectangle, circle, line, etc.) of the measured object.
  • Automatic or manual triggering of the camera shutter, saving photos or videos.
  • Saving pictures and videos to the memory of the mobile phone.
  • Adjustable emissivity according to object type.

  • Possibility to edit photos in the UTi120 Mobile App.
  • Benefits of thermal imaging camera detection:
  • 1. Intuitive, efficient, and convenient, allowing users to directly "see" the temperature fluctuations of the measured object.
  • 2. Thermal status of different sites for comprehensive analysis, providing more information for assessing failure points.
  • Technical parameters:

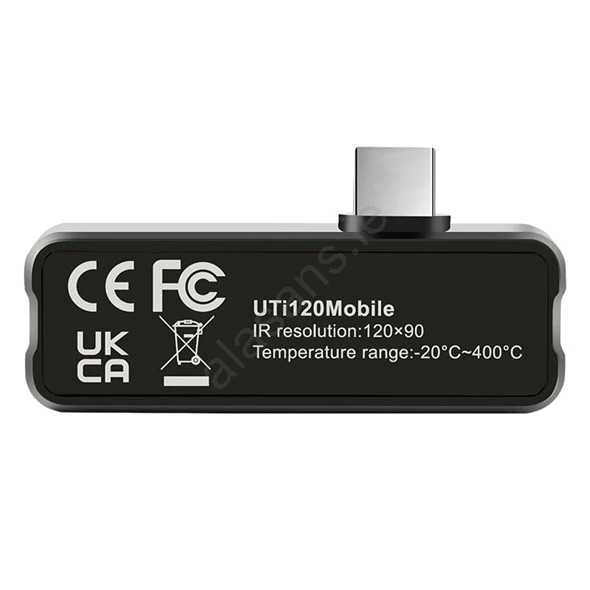

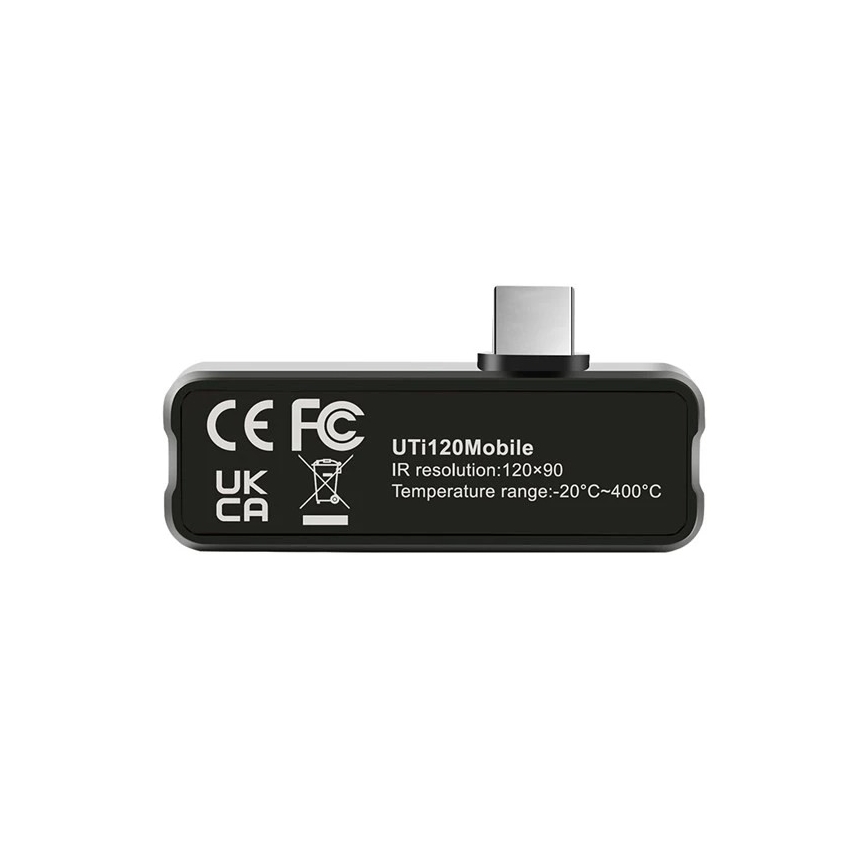

  • Total infrared resolution: 120 x 90 pixels.
  • Sensor pixel size: 17μm.
  • Infrared spectral band measurement: 8μm - 14μm.
  • Field of view (FOV): 50° (H) x 38° (W).
  • Thermal sensitivity (NETD): < 60mK.
  • Spatial resolution (IFOV): 7.6 mrad.
  • Temperature range: -20°C to 200°C.
  • Temperature resolution: 0.1°C.
  • Temperature measurement accuracy >-10°C: ±2% or ±2°C (whichever is greater, at an ambient temperature of 25°C).
  • Sensing frequency: ≤25Hz.
  • Lens: fixed setting.
  • Adjustable emissivity: 0.01 to 1.0.
  • Temperature analysis area: point, line, rectangle, circle.
  • Transposition of the thermal image into color palette: iron red, rainbow, grayscale, hot red, black and white, lava, high contrast rainbow.
  • The blending of the thermal image from the infrared camera with visible spectrum image from the front or rear camera of a mobile phone including image mirroring.
  • Monitoring the highest and lowest temperature in the image, setting temperature alarms.
  • Current language support in the app: English, Chinese (default).
  • Protection against falling from a height of 2 m.
  • Certificates: CE, RoHS, FCC.
