• Product description

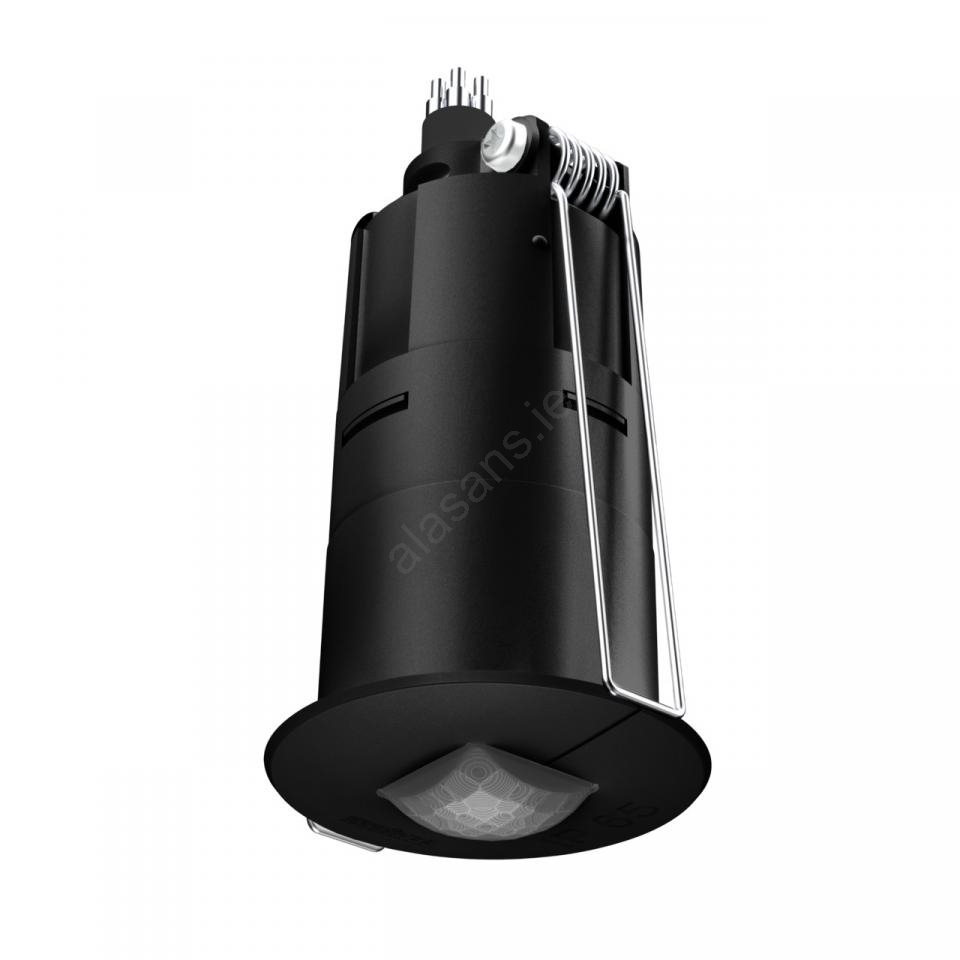

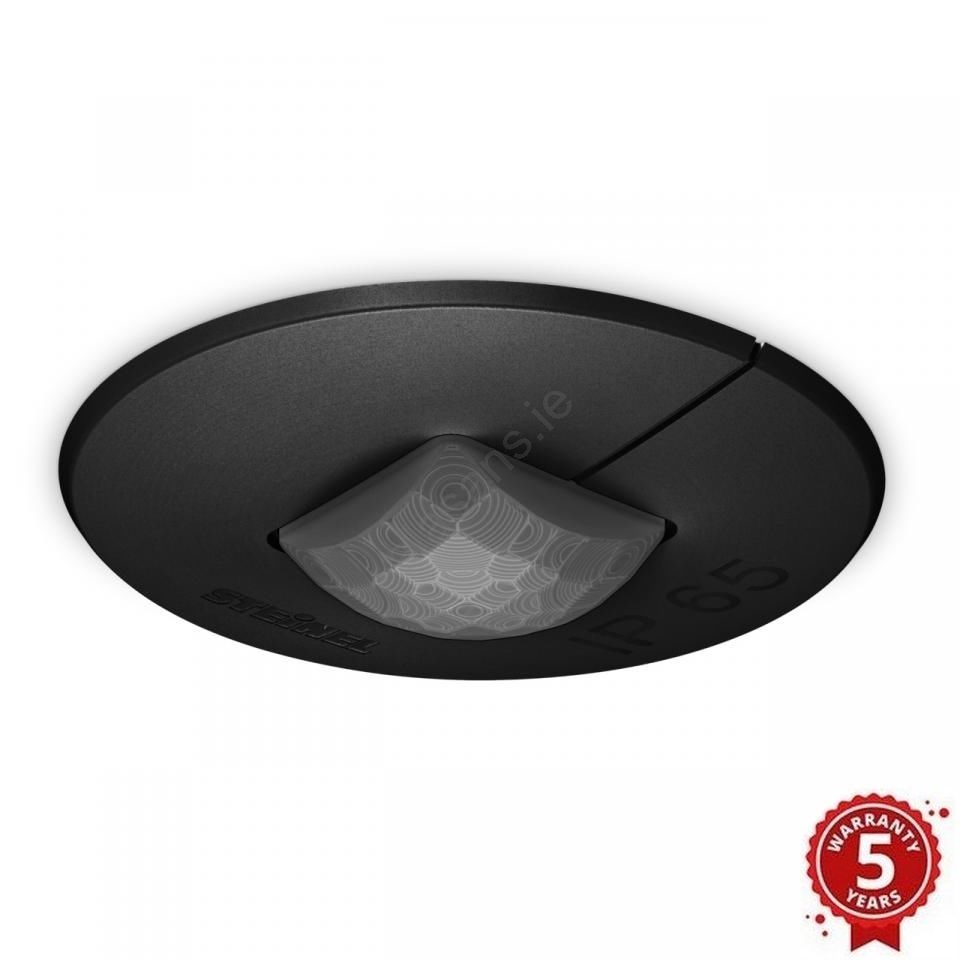

  • Very inconspicuous presence detector R Quattro HD 24m KNX in black color, suitable for ceiling installation.
  • Its small installation dimensions and low installation height make it ideal for locations where no obtrusive installations are required.
  • Infrared presence detector for indoor and outdoor use.
  • Thanks to the IP65 certifications, it can also be used in wet rooms or outdoors.
  • Ideal for monitoring lecture halls, conference rooms, warehouses or offices.

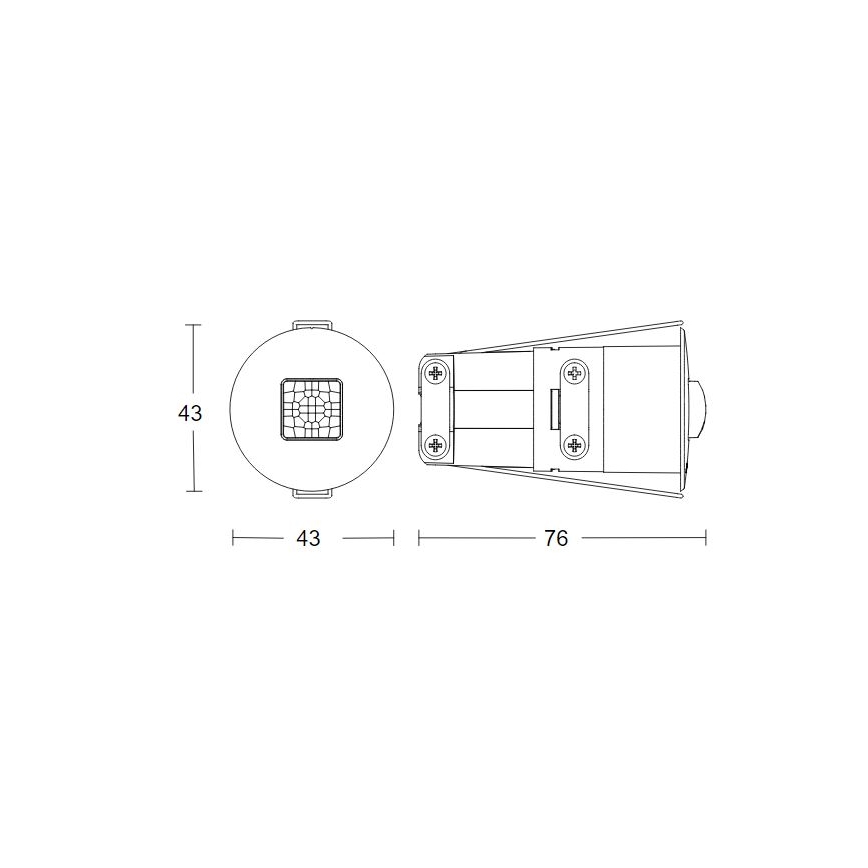

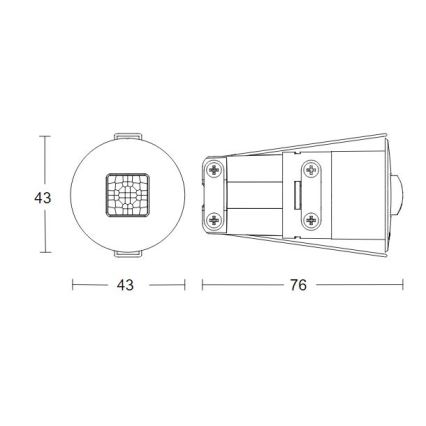

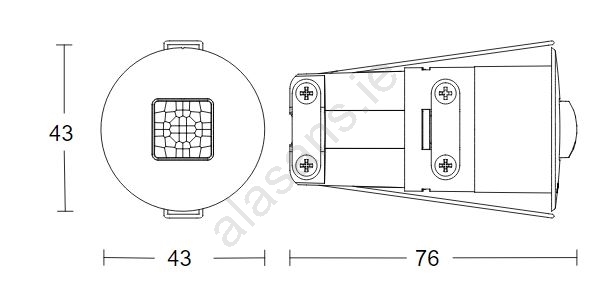

  • The micro-precision lens measures just 15 x 15 mm.
  • The presence detector has a higher sensitivity compared to a motion sensor, so the detector better monitors even slight movement under the sensor, e.g. a seated person, and therefore it is not necessary to move all the time as with a conventional motion sensor.
  • The presence detector is designed for all light sources including LED.
  • Functions: presence reporting; lighting control with brightness control; heating, ventilation, and air conditioning control.

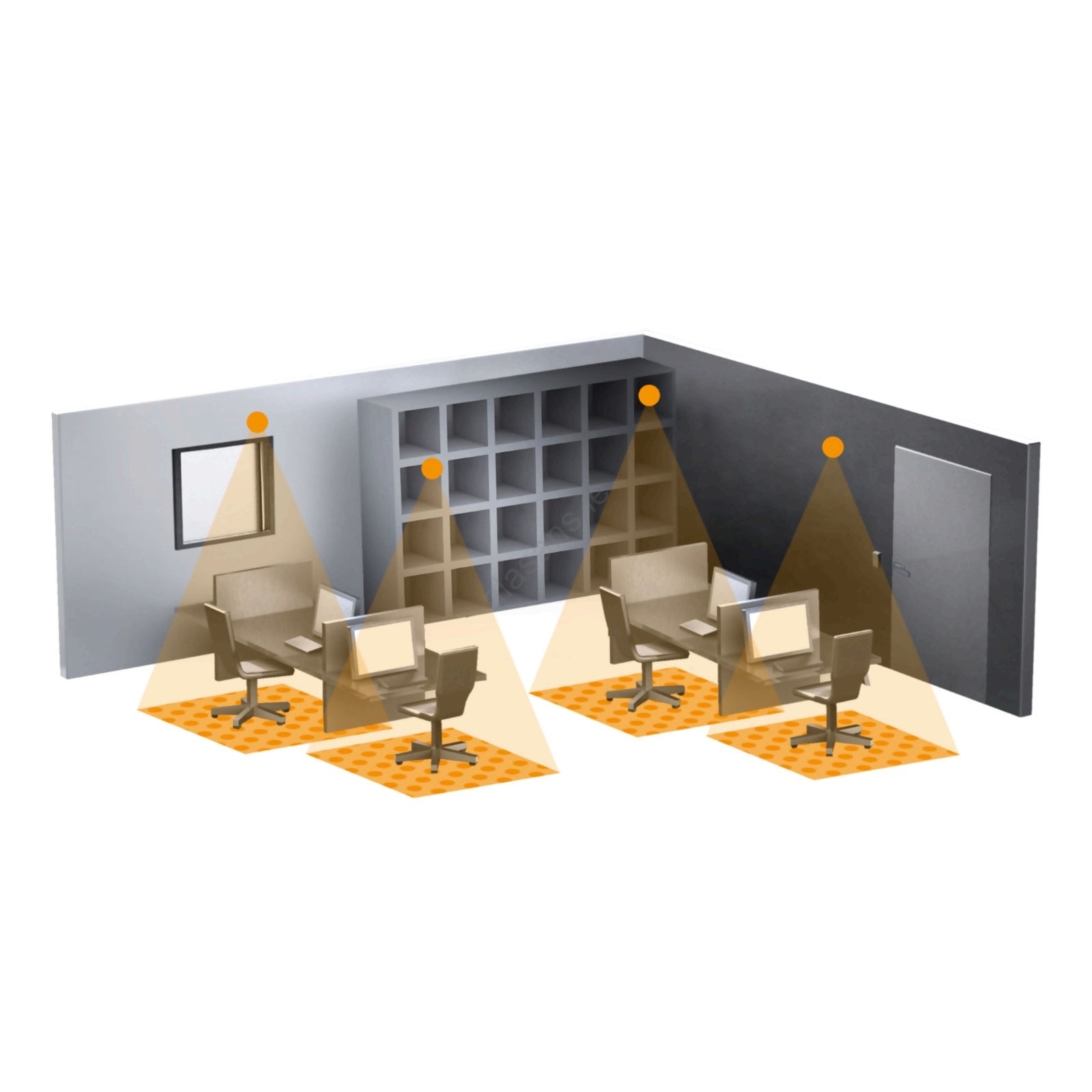

  • Highly accurate infrared detector with a 6 x 6 m (36 m²) occupancy detection zone.
  • This sensor has a special 90° opening angle and a total sensing range of 360°.
  • Recommended installation height: 2.5 m - 5 m (optimum installation height: 2.8 m).
  • Dusk setting: 2 - 1000 lx.
  • Time setting: 60 s. - 255 min.
  • 168 switching zones for the finest detection.
  • The detector is made of UV-resistant plastic and can withstand temperatures from -25 °C to 55 °C without limiting function.
  • Warranty period: 5 years.

  The KNX range is used for building automation and is the "sense organ" of sophisticated home systems, with which you can turn an ordinary home into an incredibly smart one.

  Brand:

  Steinel



  This product is listed in the following categories

  Brands, Detectors, Interior lighting, Lights, Motion sensors and detectors, Sensors and detectors, Smart lighting, Smart Steinel, Steinel

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: ST068646
