• Product description

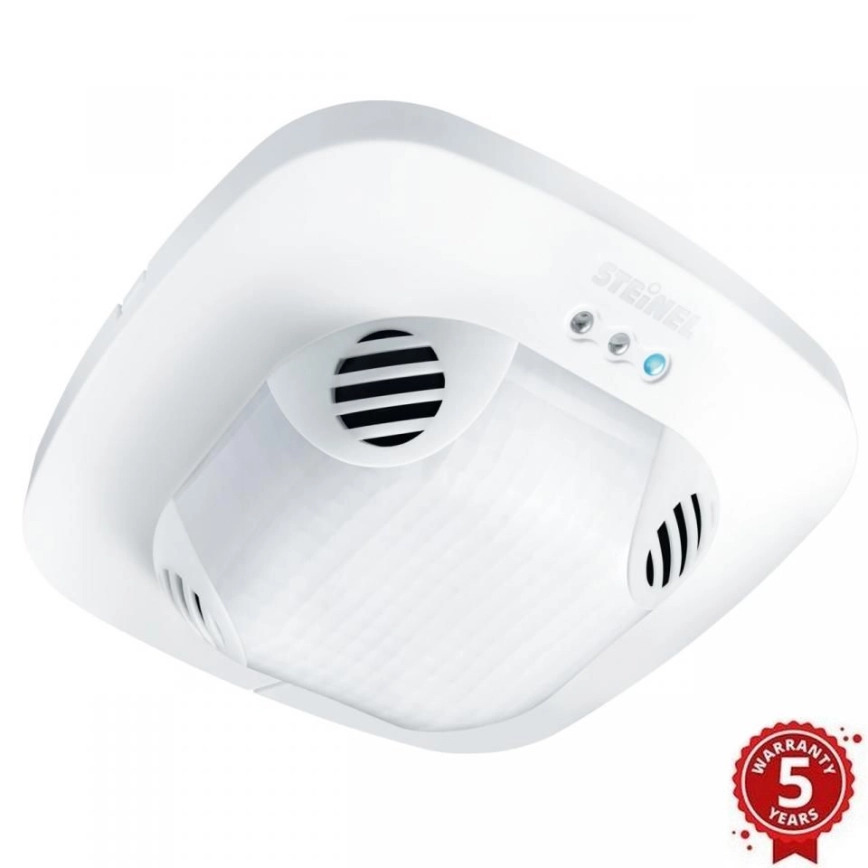

  • A very unobtrusive presence detector DualTech KNX in white color, suitable for ceiling installation.
  • Ultrasonic presence detector for indoor use.
  • With IP20 certification, we recommend not using it in wet rooms or outdoors.
  • Ideal for monitoring offices, conference rooms, and classrooms.
  • The presence detector has a higher sensitivity compared to a motion sensor, under the sensor the detector better monitors even slight movement e.g. a sitting person and therefore it is not necessary to move all the time as with a classic motion sensor.
  • The detector is designed for all light sources including LED.
  • It senses movement through glass, wood, and column walls and switches on the light almost immediately.

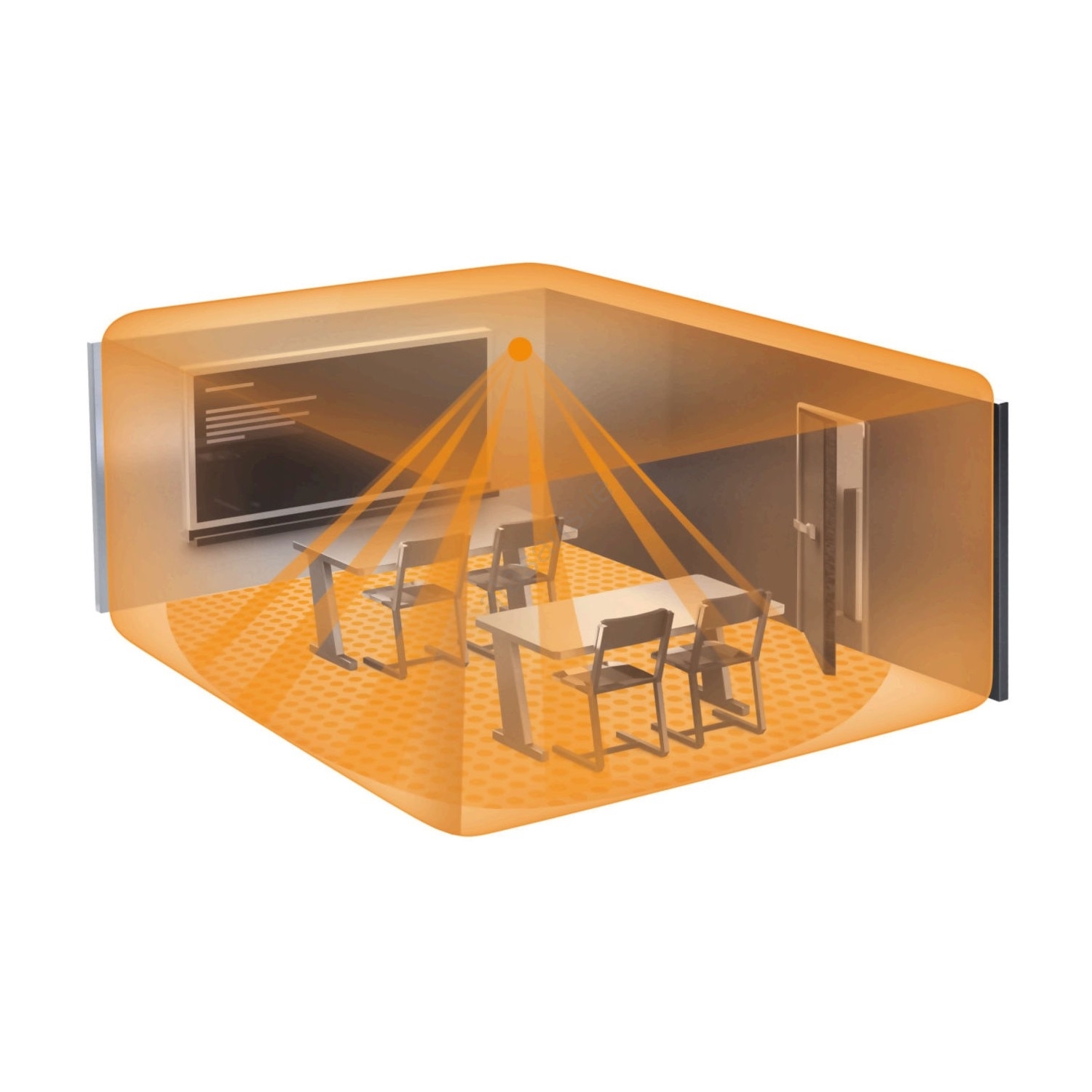

  • Highly accurate ultrasonic detector with an occupancy detection zone of Ø 6 m (28 m²).
  • Special 180° opening angle and 360° total sensing range.
  • Functions: presence reporting; lighting control with brightness control; heating, ventilation, and air conditioning control.
  • Recommended installation height: 2.5 m - 3.5 m ( optimum installation height: 2.8 m).
  • Dusk setting: 10 - 1000 lx.
  • Time setting: 10 s. - 1092 min.
  • The detector is made of UV-resistant plastic and can withstand temperatures from -25 °C to 55 °C without limiting function.
  • Warranty period: 5 years.

  The KNX range is used for building automation and is the "sensory organ" of sophisticated home systems, with which you can make an ordinary home incredibly smart. Expertise is required for wiring.

  Brand:

  Steinel
