• Product description

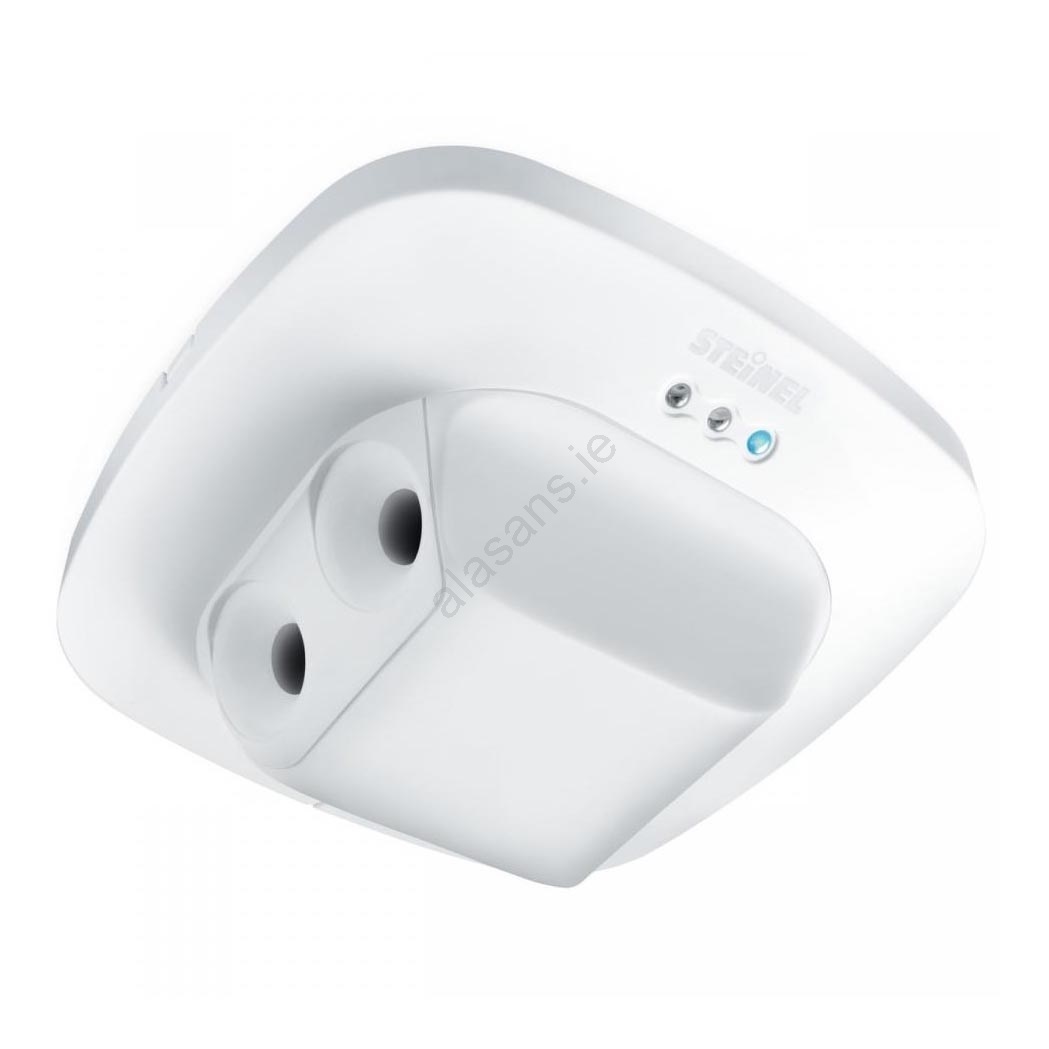

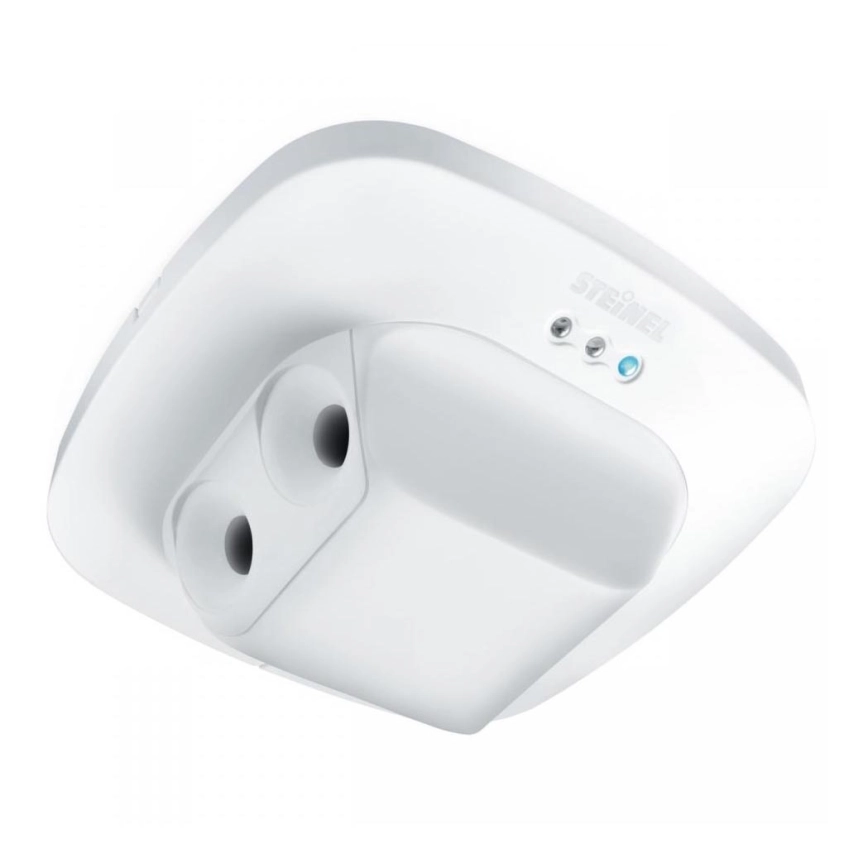

  • Very inconspicuous presence detector Single US KNX in white color, suitable for ceiling installation.
  • Ultrasonic presence detector for indoor use.
  • With IP20 certification, we recommend not using it in wet rooms or outdoors.

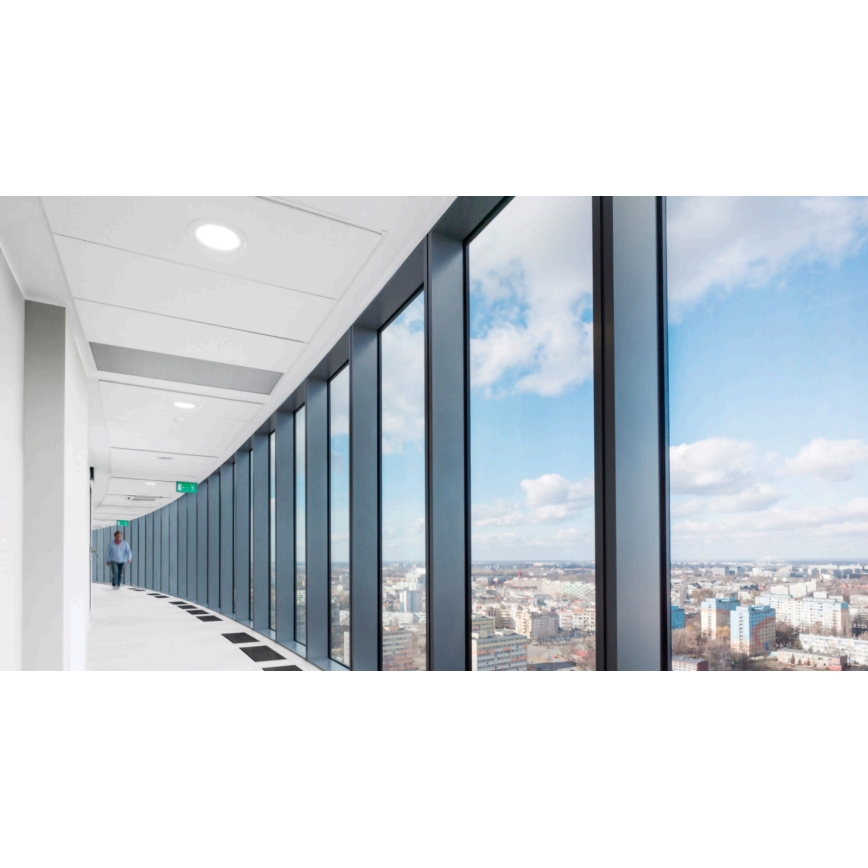

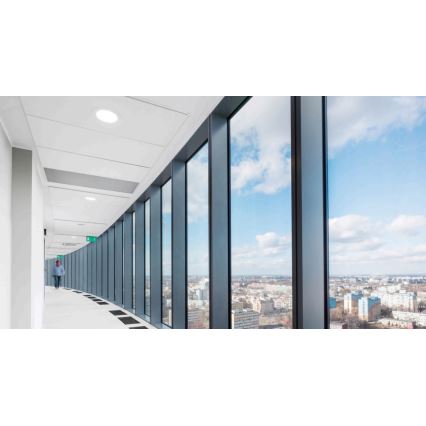

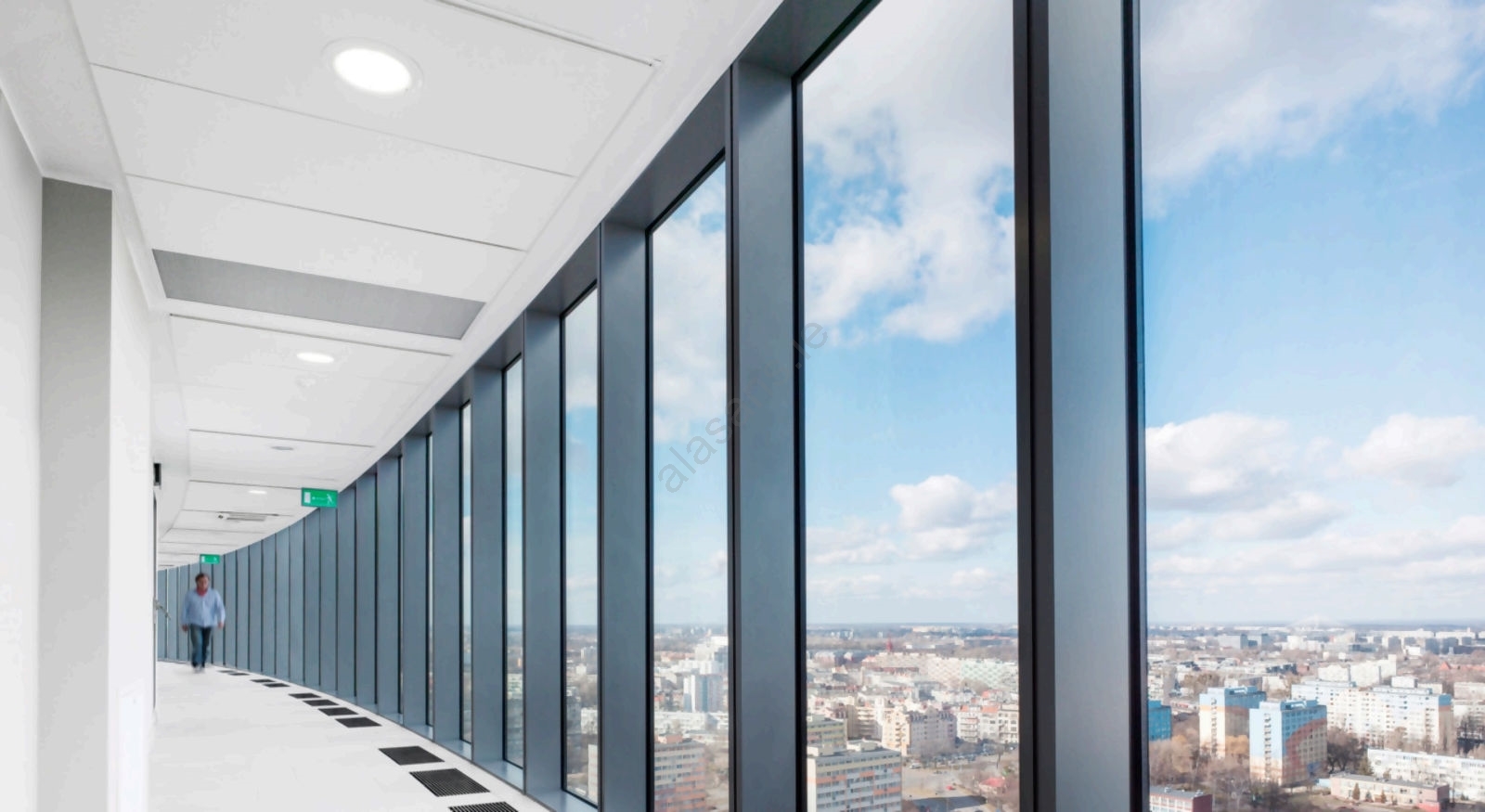

  • Ideal for monitoring smaller corridors, staircases, and passageways.
  • With a digital BUS interface for controlling 4 light channels and HVAC.
  • The presence detector has a higher sensitivity compared to the motion sensor, under the sensor the detector better monitors even a slight movement e.g. of a seated person and therefore it is not necessary to move all the time as with a classic motion sensor.
  • The presence detector is designed for all light sources including LED.
  • It senses movement through glass, wood, and column walls and switches on the light almost immediately.

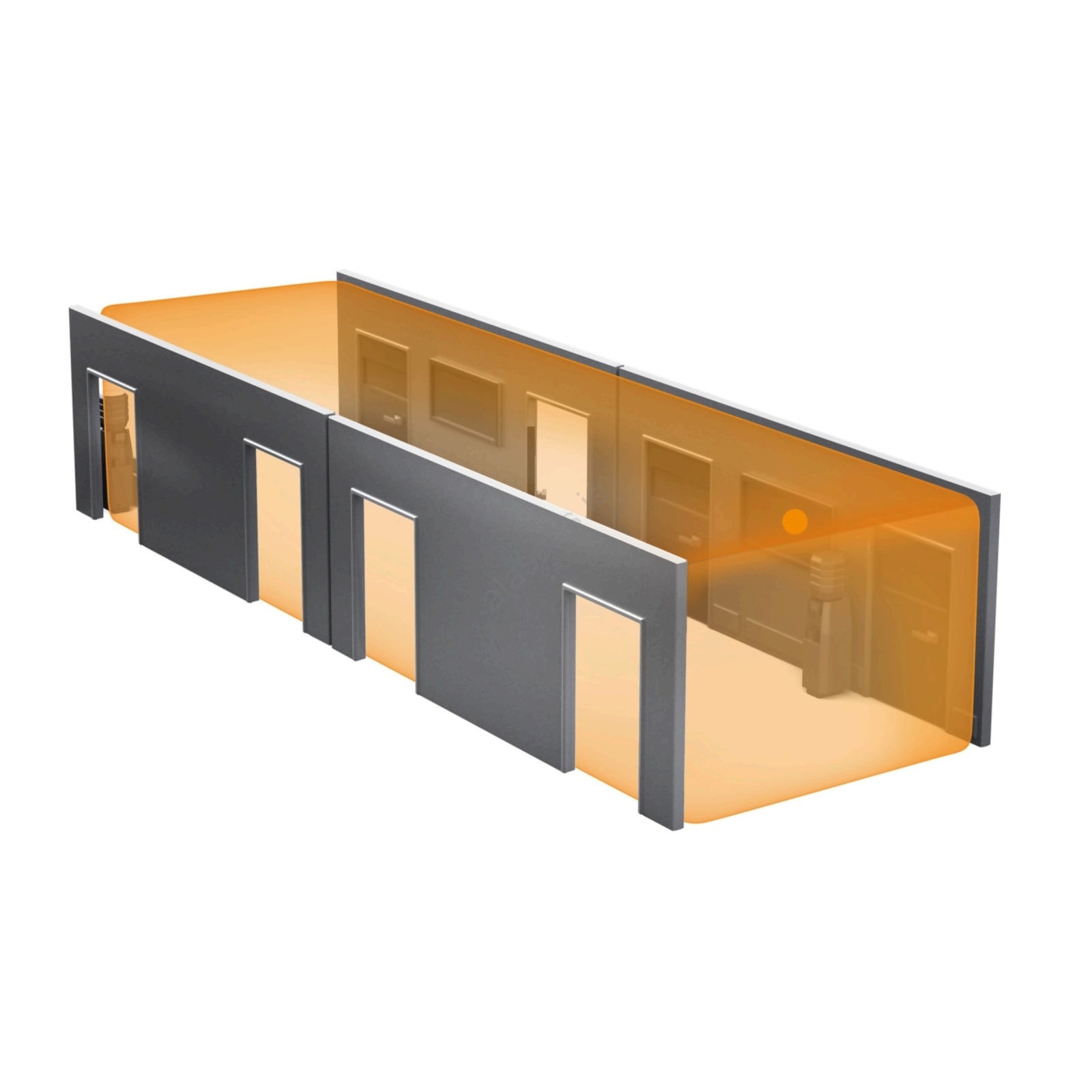

  • Highly accurate ultrasonic detector with a 10 x 3 m (30 m²) presence detection zone.
  • Special 180° opening angle and 360° total sensing range.
  • Functions: presence reporting, lighting control with brightness control, heating, ventilation, and air conditioning control.
  • Recommended installation height: 2.5 m - 3.5 m (optimum installation height: 2.8 m).
  • Dusk setting: 10 - 1000 lx.
  • Time setting: 1 - 30 min., all day.
  • The detector is made of UV-resistant plastic and can withstand temperatures from -25 °C to 55 °C without limiting function.
  • Warranty period: 5 years.

  The KNX range is used for building automation and is the "sensory organ" of sophisticated home systems, with which you can make an ordinary home incredibly smart. Expertise is required for wiring.

  Brand:

  Steinel



  This product is listed in the following categories

  Brands, Detectors, Interior lighting, Lights, Motion sensors and detectors, Sensors and detectors, Smart lighting, Smart Steinel, Steinel

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: ST059507
