• Product description

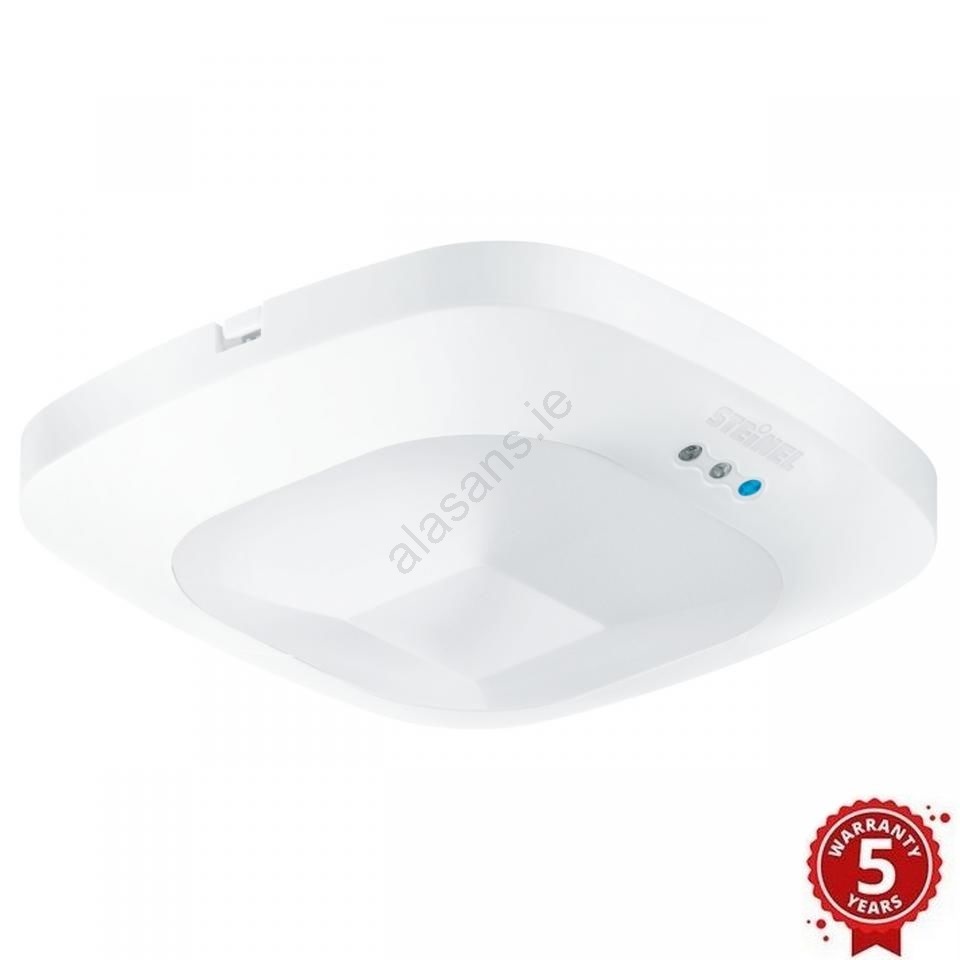

  • Very inconspicuous presence detector KNX HF 360 V3 in white color, suitable for ceiling installation.
  • High-frequency presence detector for indoor use.
  • Due to its IP20 certification, we recommend not using it in wet rooms or outdoors.
  • Ideal for monitoring cloakrooms, toilets, technical rooms and stairwells.
  • The presence detector has a higher sensitivity compared to a motion sensor, so the detector better monitors even slight movement under the sensor, e.g. a seated person, and therefore it is not necessary to move all the time as with a classic motion sensor.
  • The presence detector is designed for all light sources including LED.
  • It senses movement through glass, wood, and column walls and switches on the light almost immediately.

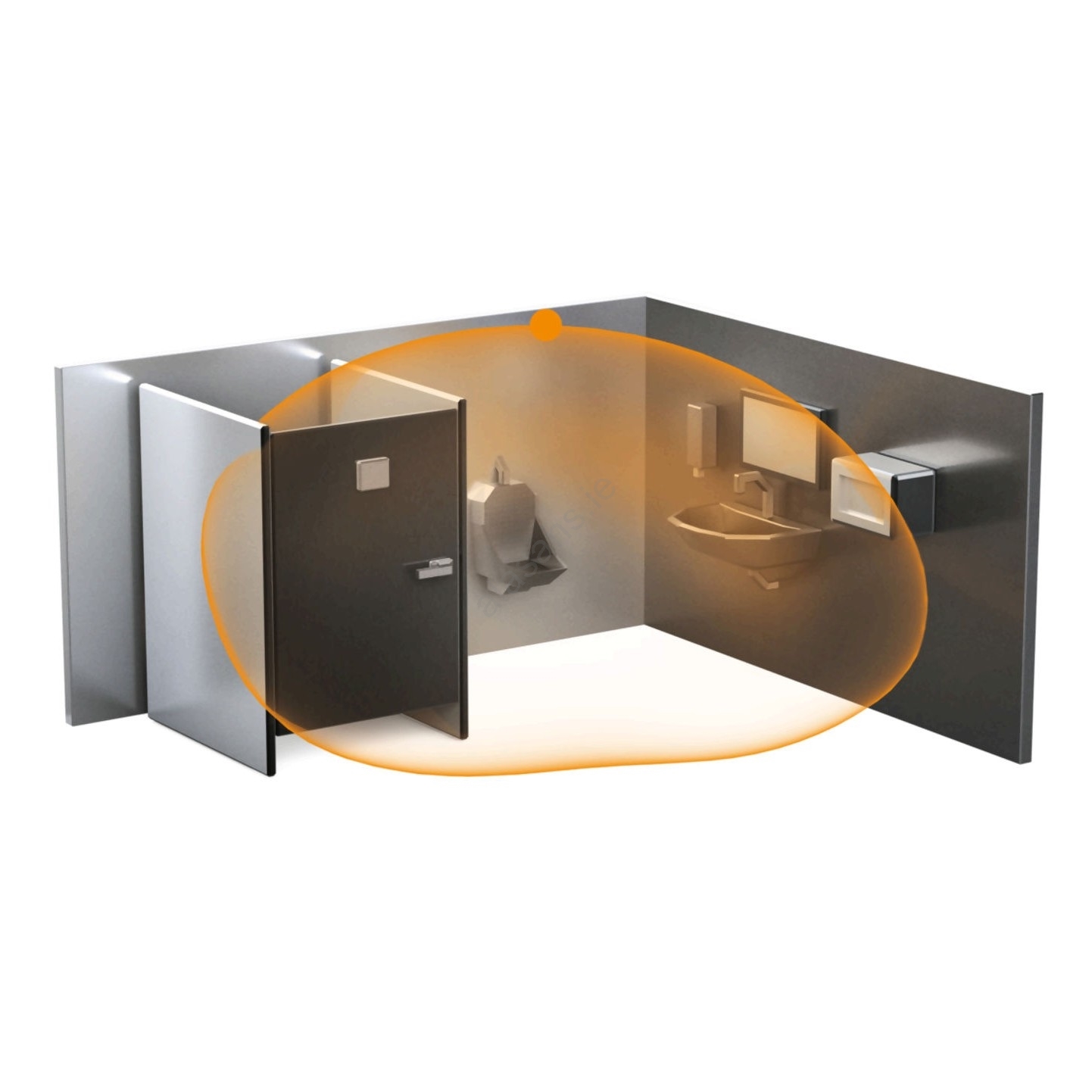

  • Highly accurate high-frequency detector with a presence detection zone of Ø 12 m (113 m²).
  • The special opening angle of 140° and total sensing range of 360°.
  • Functions: presence reporting; lighting control with brightness control; heating, ventilation, and air conditioning control.
  • Recommended installation height: 2.5 m - 3.5 m (optimum installation height: 2.8 m).
  • Dusk setting: 10 - 1000 lx.
  • Time setting: 10 s. - 1092 min.
  • The detector is made of UV-resistant plastic and can withstand temperatures from -25 °C to 55 °C without limiting function.
  • Warranty period: 5 years.

  The KNX range is used for building automation and is the "sensory organ" of sophisticated home systems, with which you can make an ordinary home incredibly smart. Expertise is required for wiring.
