• Product description

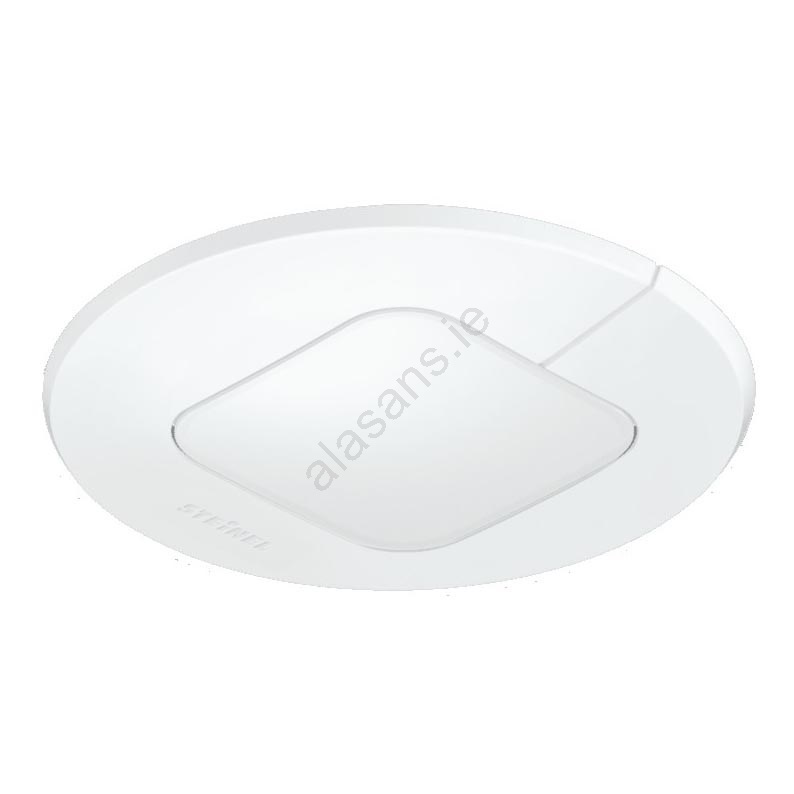

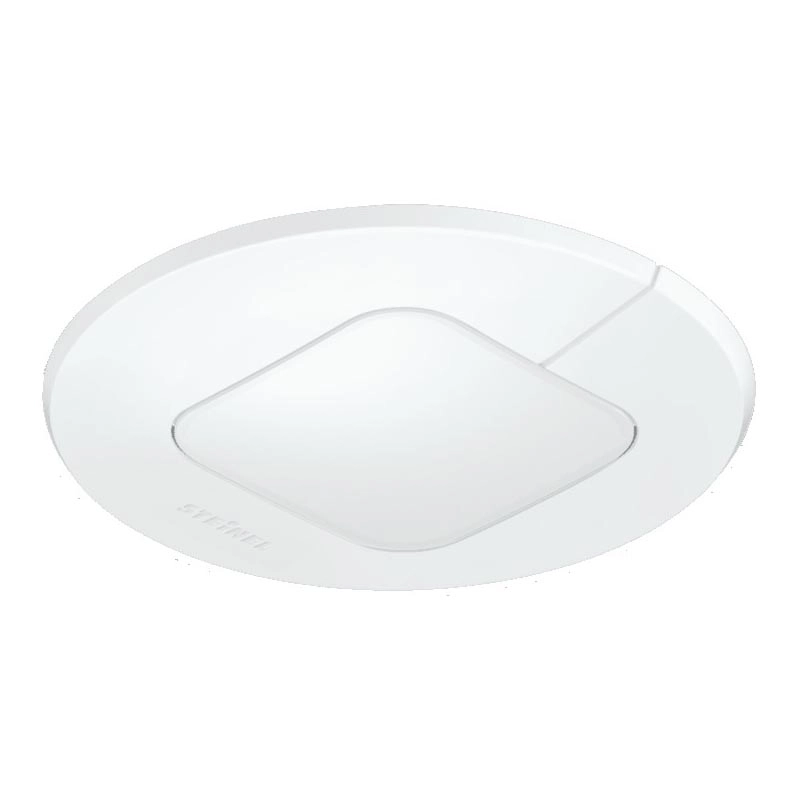

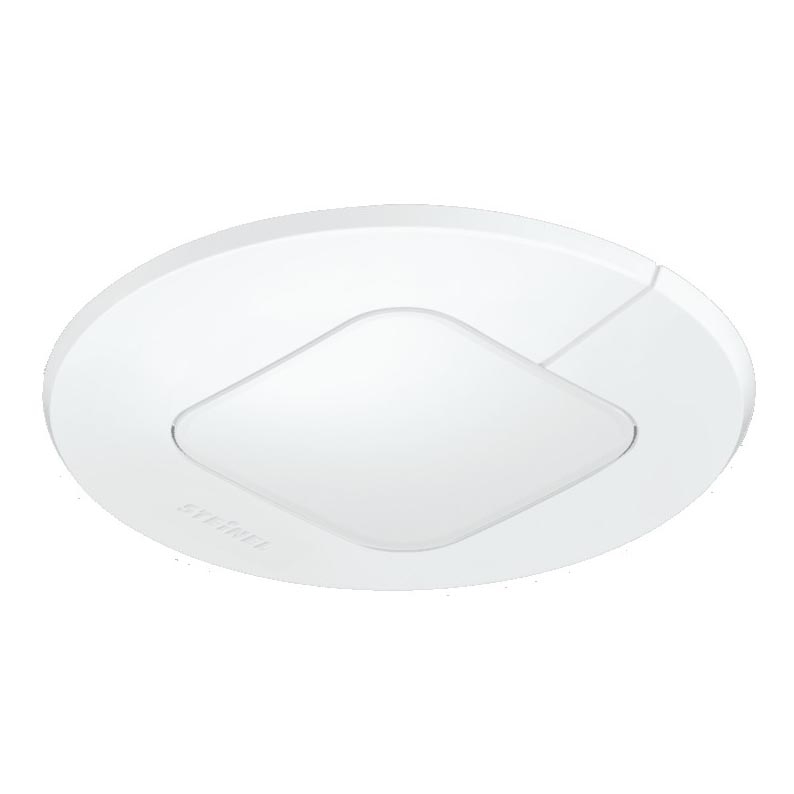

  • Very inconspicuous presence detector IR Quattro SLIM in white color, suitable for ceiling installation.
  • Extremely slim presence detector designed for recessed mounting.
  • The presence detector has a higher sensitivity compared to the motion sensor, so the detector better monitors even a slight movement under the sensor, e.g. a sitting person, and therefore it is not necessary to move all the time as with a classic motion sensor.
  • The presence detector is designed for all light sources including LED.

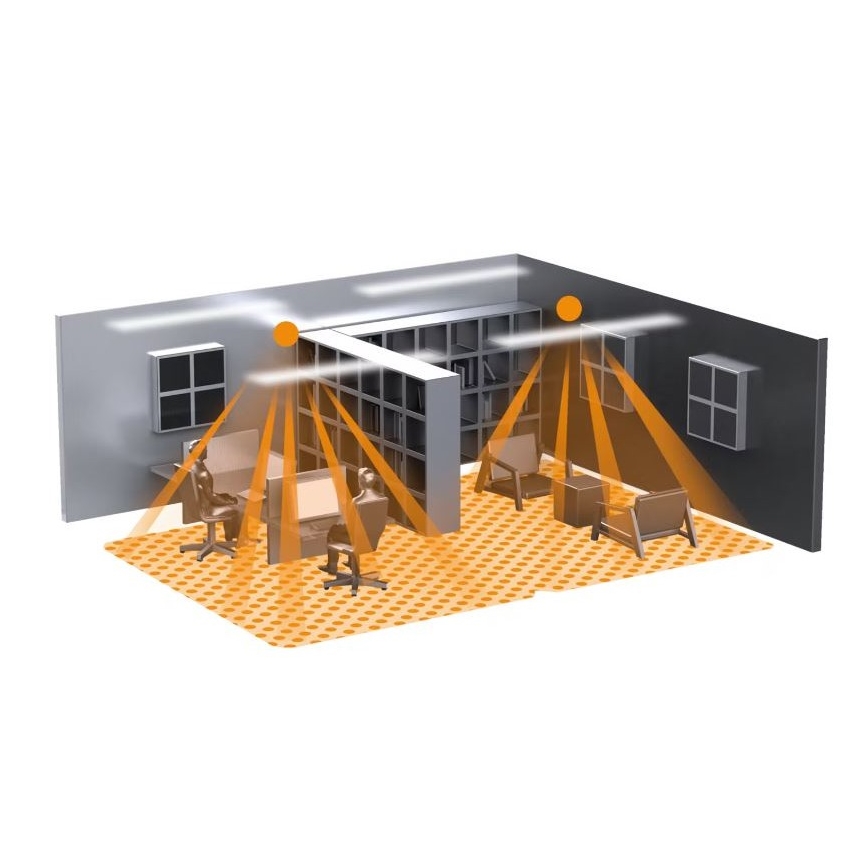

  • Highly accurate infrared sensor with a presence detection zone of 16 m² (4 x 4 m).
  • Infrared presence detector for indoor use, ideal for offices, hotel rooms, or technical rooms.
  • With IP20 certification, we recommend not using it in wet rooms or outdoors.
  • This sensor has a special opening angle of 71° and a total sensing range of 360°.
  • Recommended installation height: 2.5 m - 4 m (optimum installation height: 2.8 m).

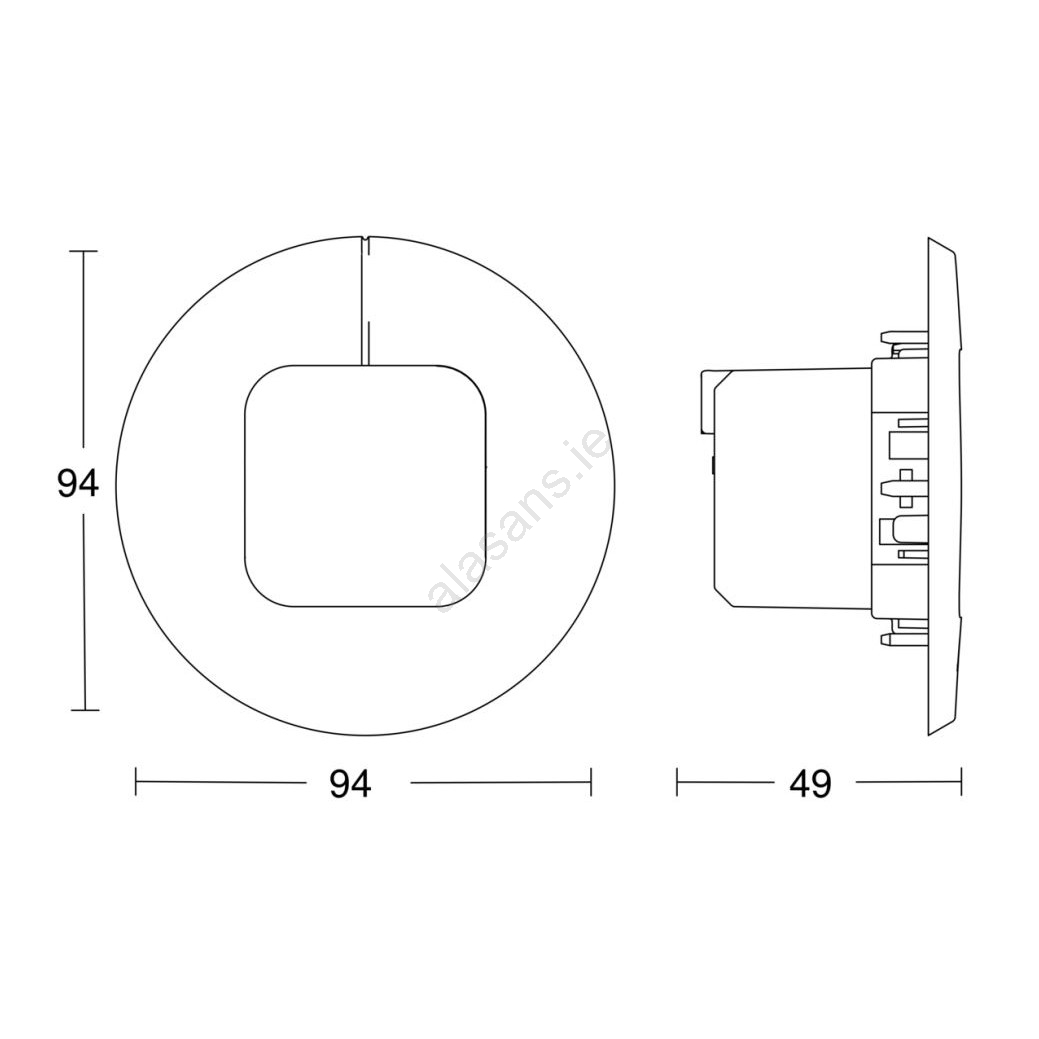

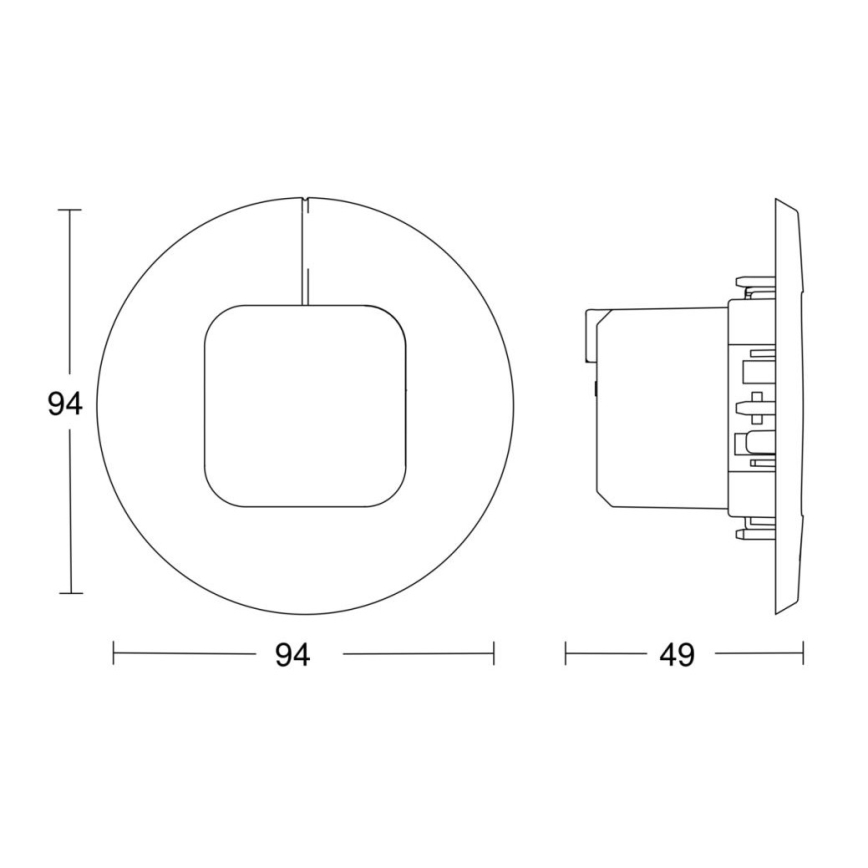

  • Height after recessing into the ceiling is only 6 mm.
  • Dusk setting: 10 - 1000 lx.
  • Time setting: 1 - 30 min.
  • The detector is made of UV-resistant plastic and can withstand temperatures from 0 °C to 40 °C without any limitation of function.
  • With 408 switching zones, it sets new standards in terms of detection quality.
  • Warranty period: 5 years.

  The KNX range is used for building automation and is the "sensory organ" of sophisticated home systems, with which you can make an ordinary home incredibly smart. Expertise is required for wiring.

  Brand:

  Steinel
