• Product description

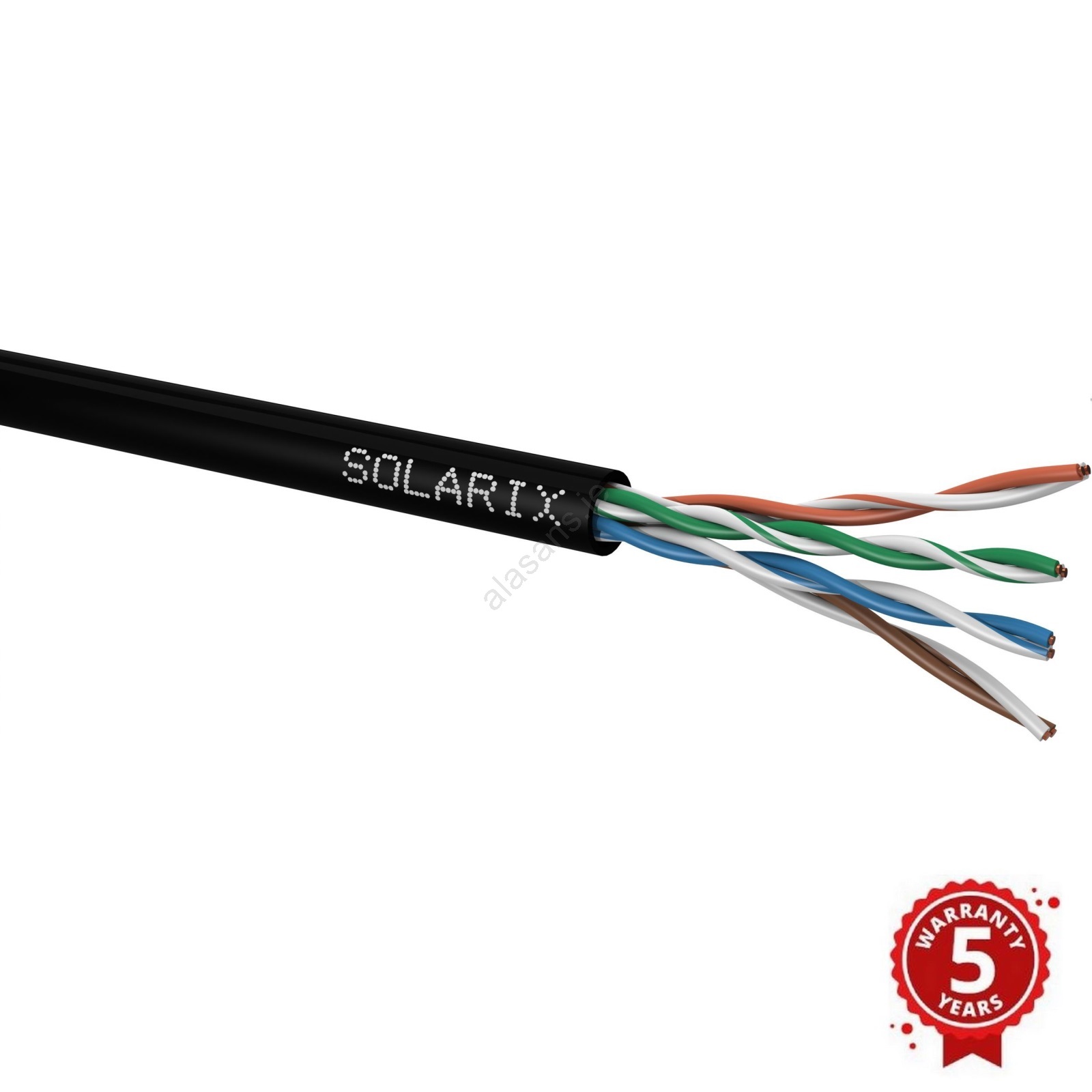

  • High-quality outdoor unshielded installation cable category 5E/Class D.
  • Designed for the operation of Ethernet protocols 2.5GBASE-T and 5GBASE-T.
  • The cable construction is U/UTP, with a UV-stable PE sheath, fire reaction class Fca, and an IP67 protection rating.
  • The cable conductors are made of high-quality copper wire with a copper purity of 99.97%.
  • The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D.
  • Practical meter marking every 1 m in the range from 0 to 100 m.
  • The cable is supplied in a highly durable three-layer polished cardboard box, which contains all necessary product information.
  • This cable is not intended for permanent storage in water or underground without appropriate proper protection.
  • Construction: U/UTP.
  • Number of pairs in the cable: 4.
  • Pair colors: orange, blue, green, brown.
  • Category: CAT5E.
  • Supported protocols: 2.5/5GBASE-T and lower.
  • Shielding: none.
  • Bandwidth: 100 MHz.
  • Type and size of conductor: copper wire 0.50 mm ± 0.005 mm.
  • Conductor insulation: HDPE.
  • Insulated conductor diameter: 0.88 mm ± 0.005 mm.
  • Cable diameter: 5 mm ± 0.005 mm.
  • NVP: 68%.
  • Signal delay on one pair: 535 ns/100 m.
  • Delay difference between the fastest and slowest pair: ≤45 ns/100 m.
  • Storage and operating temperature: -20 °C to 70 °C.
  • Installation temperature: 0 °C to 50 °C.
