  • Product description

    • Quality unshielded installation cable category 5E/Class D.
    • Designed for 2.5GBASE-T and 5GBASE-T Ethernet protocols.
    • The cable construction is U/UTP, PVC sheath type with Eca class reaction to fire.
    • The conductors of the cable are made of high-quality copper wire with 99.97% copper purity.
    • The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D.
    • In the case of CPR (EU Regulation 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 performance assessment system.
    • Practical marking of meter lengths in 1 m increments ranging from 0 to 100 m.
    • The cable is supplied in a highly durable three-layer polished cardboard box on which all necessary product information is provided.
    • Construction: U/UTP.
    • Number of pairs in the cable: 4.
    • Pair colors: orange, blue, green, brown.
    • Category: CAT5E.
    • Supported protocols: 2.5/5GBASE-T and below.
    • Shielding: no.
    • Bandwidth: 100 MHz.
    • Type and size of conductor: copper wire 0.50 mm ± 0.005 mm.
    • Conductor insulation: HDPE.
    • Conductor diameter with insulation: 0, 88 mm ± 0, 005 mm.
    • Cable diameter: 5 mm ± 0.005 mm.
    • NVP: 68 %.
    • Signal delay on one pair: 535 ns/100 m.
    • Signal delay difference between fastest and slowest pair: ≤45 ns/100 m.
    • Storage and operating temperature: -20 °C to 60 °C.
    • Installation temperature: 0 °C to 50 °C.
    Special coupon offer applies to this product.

    Brand:

    Solarix

    This product is listed in the following categories

    Brands, Electrical equipment, Electrical installation, Other, Solarix
  • Parameters

  • Documents for download

  • Ratings and reviews0

  • Questions about the product0

0.00

/ 0

Product ratings

0
0
0
0
0
Detailed rating

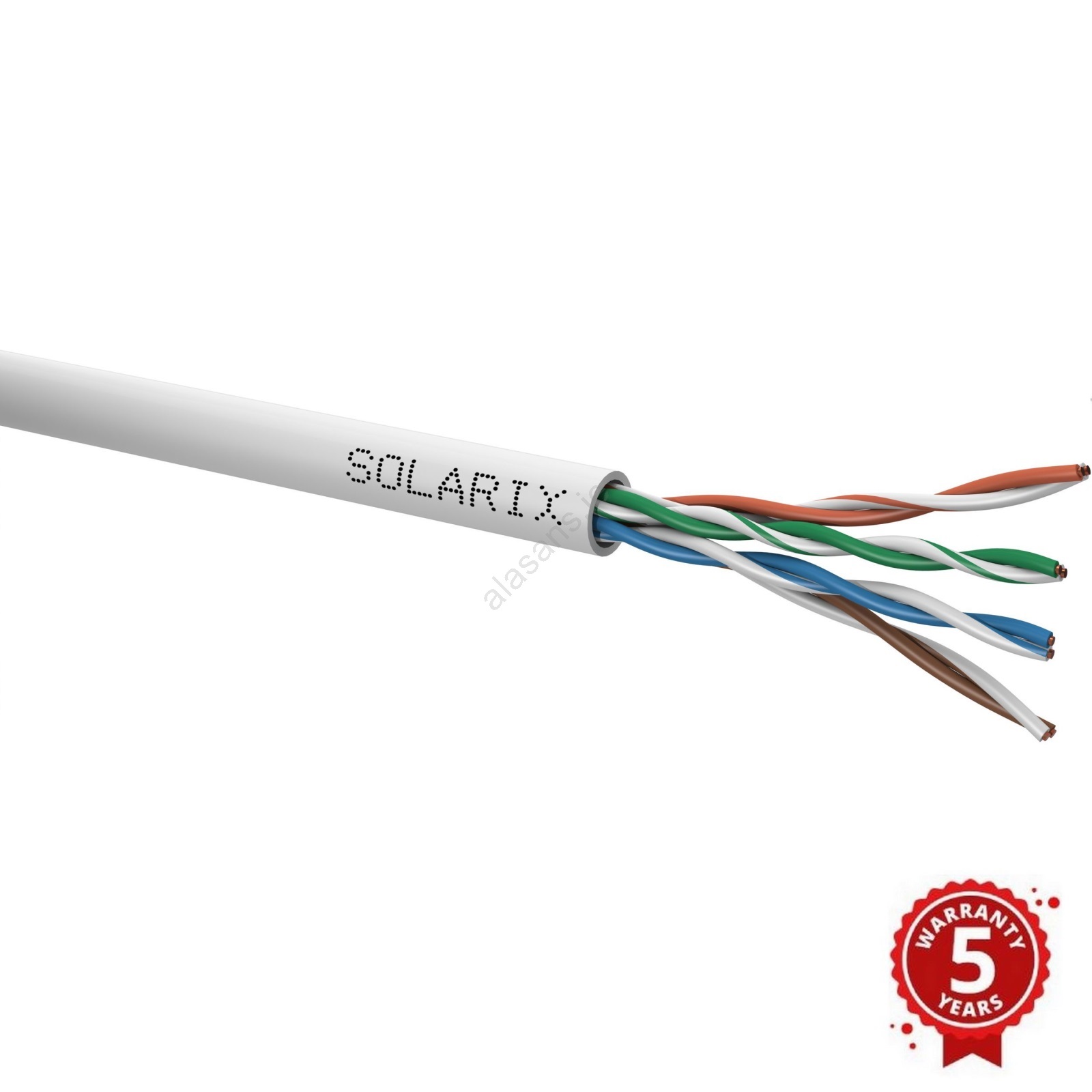

Solarix - Installation cable CAT5E UTP PVC Eca 100m
