• Product description

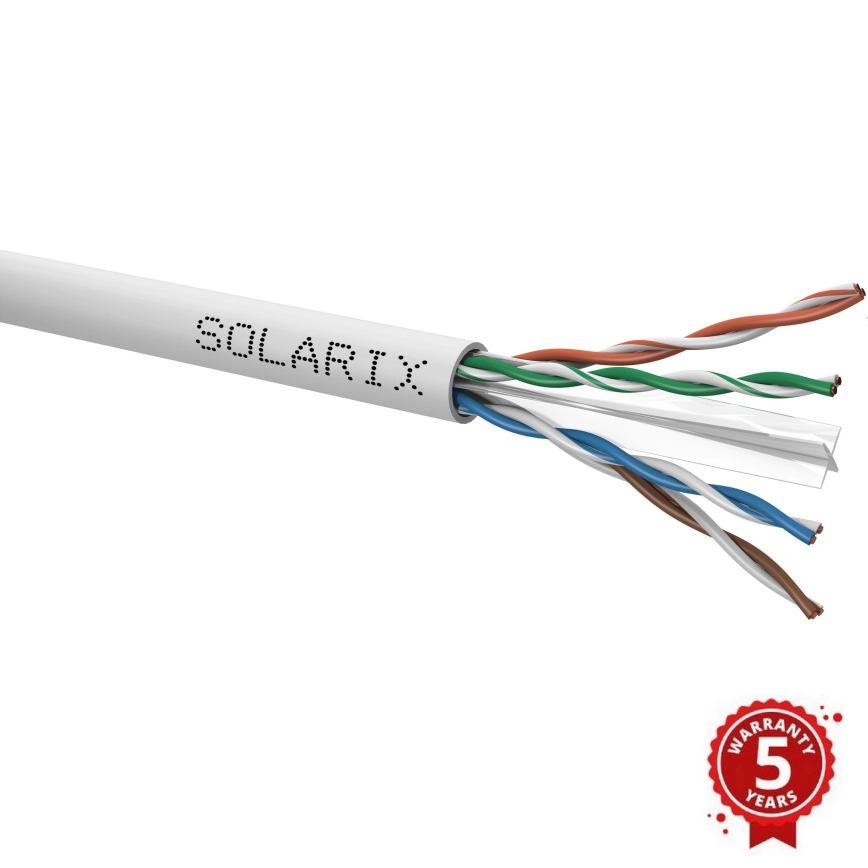

  • High-quality unshielded installation cable category 6/Class E.
  • Designed for 2.5GBASE-T and 5GBASE-T high-speed Ethernet protocols.
  • U/UTP cable design with plastic crossover to ensure maximum separation of pairs along the entire cable length.
  • The jacket type is PVC with Eca reaction to fire class.
  • Cable conductors are made of high-quality copper wire with 99.97% copper purity.
  • The cable easily meets the requirements of the international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D.
  • In the case of CPR (EU Regulation 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 performance assessment system.
  • Practical marking of meter lengths in 1 m increments ranging from 0 to 305 m.
  • The cable is supplied in a highly durable three-layer polished cardboard box on which all necessary product information is provided.
  • Construction: U/UTP.
  • Number of pairs in the cable: 4.
  • Pair colors: orange, blue, green, brown.
  • Category: CAT6.
  • Supported protocols: 2.5/5GBASE-T and below.
  • Shielding: no.
  • Bandwidth: 250 MHz.
  • Type and size of conductor: copper wire 0.55 mm ± 0.005 mm.
  • Conductor insulation: HDPE.
  • Conductor diameter with insulation: 0, 98 mm ± 0, 005 mm.
  • Cable diameter: 6, 1 mm ± 0, 005 mm.
  • NVP: 69 %.
  • Signal delay on one pair: 535 ns/100 m.
  • Signal delay difference between fastest and slowest pair: ≤45 ns/100 m.
  • Storage and operating temperature: -20 °C to 60 °C.
  • Installation temperature: 0 °C to 50 °C.
