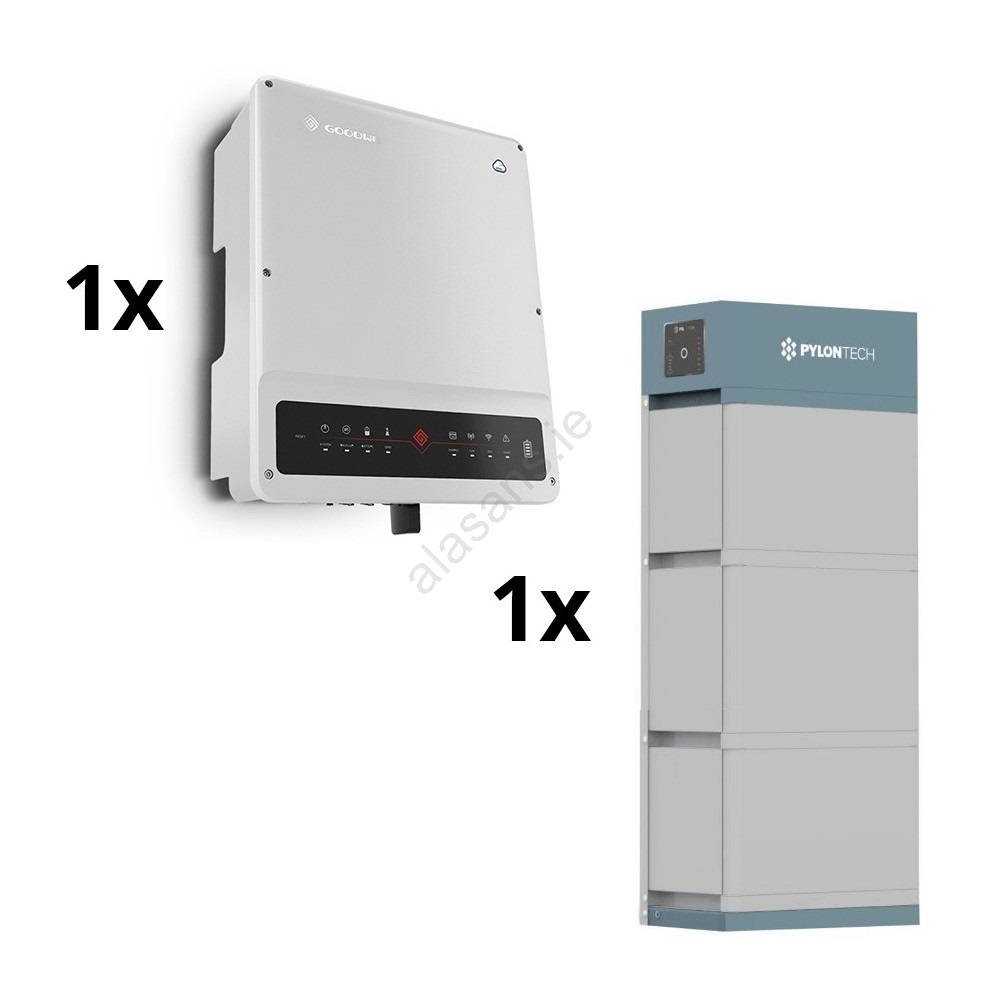

• The kit includes:
• GoodWE 10kW Hybrid Asymmetric inverter, GW10K-ET,

• 3x PYLONTECH FORCE H2 Battery, FH9637M HV 3.55 kWh,

• Pylontech BMS Force H2, FC0500M-40.

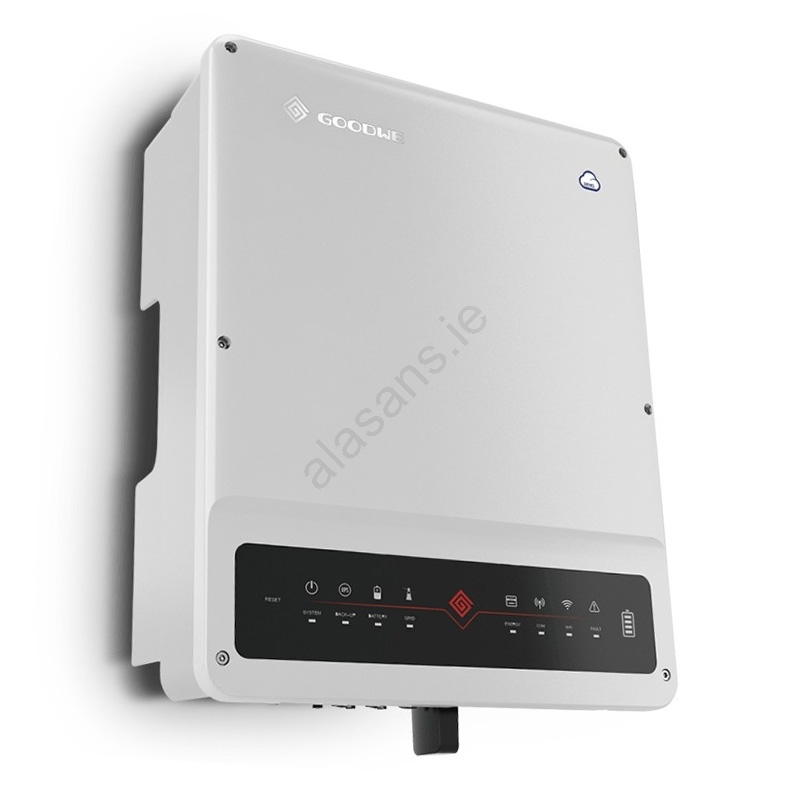

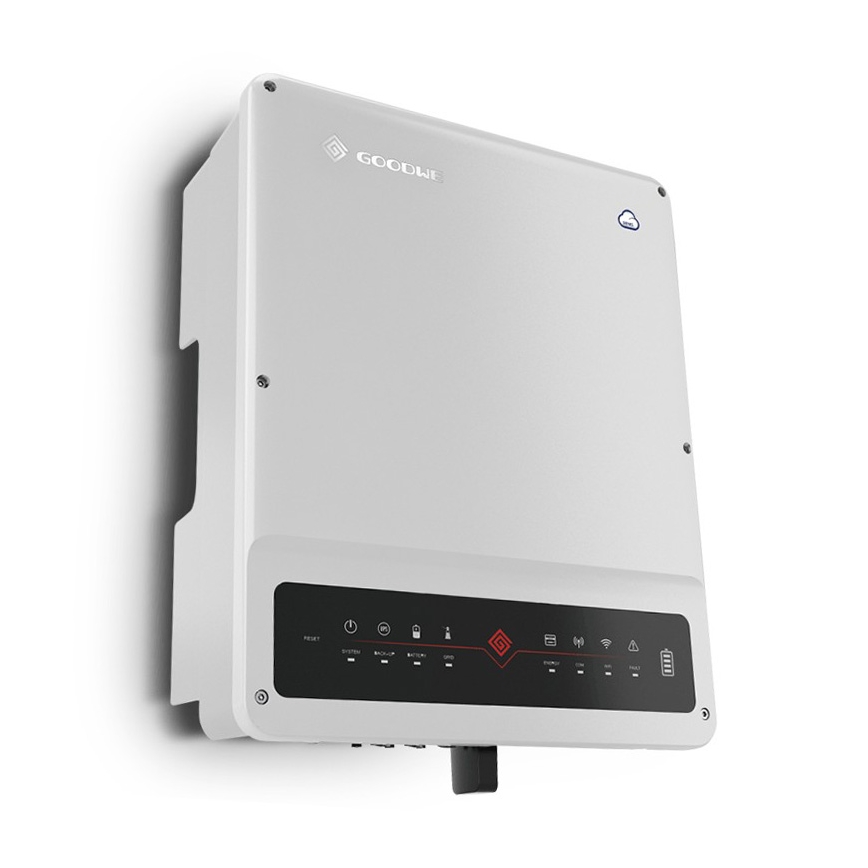

Inverter:

• The asymmetric hybrid inverter is a compact 3-phase inverter.
• It is also suitable for off-grid and on-grid installations.
• Max. efficiency: 98.3%.
• In the event of a power failure, the inverter automatically switches to uninterruptible power supply mode in less than 10 milliseconds.
• 2x MPP tracker.
• Can be configured and managed using the free GoodWe PV Master app.

• Fully digital control, higher control accuracy.
• Multiple parallel systems, more flexible system solutions.
• The device sends data via integrated Wi-Fi to the GoodWe SEMS portal, from which you can also manage your hybrid inverter.

• The status of the device is indicated by an LED on the front of the device.

• Rated output power: 10000W.
• Max. DC voltage (Voc): 1000V.
• Max. input power 13000W

• MPPT control range: 200 to 850V.
• MPPT full load range: 460 to 850V.
• Run-up (min) voltage: 180V.
• Battery type: Li-Ion.
• Max. current output AC to the distribution network: 16.5A.
• Max. AC current input from the distribution network: 22.7A.
• Standby power consumption: < 15W.
• Noise level: < 30 dB.
• Communication interface: RS485 / WIFI / CAN.

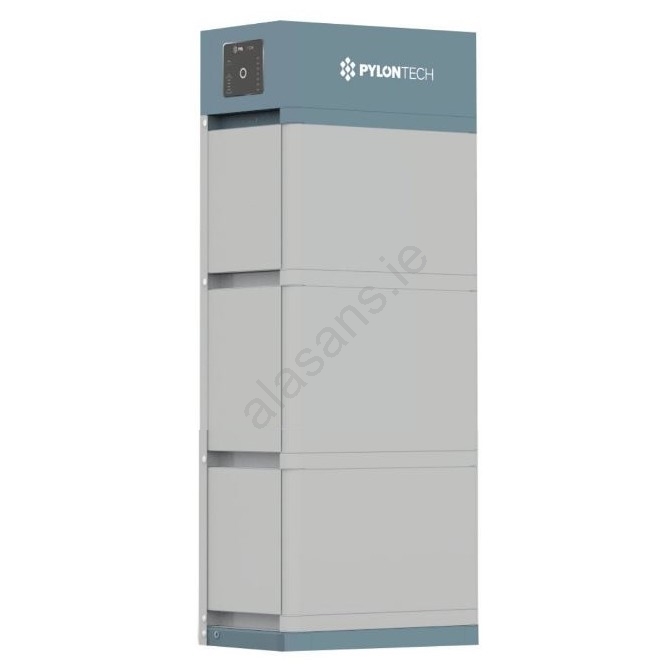

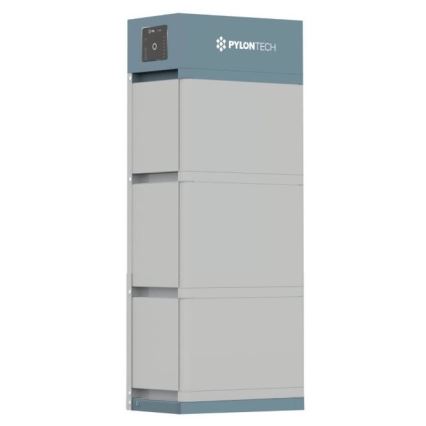

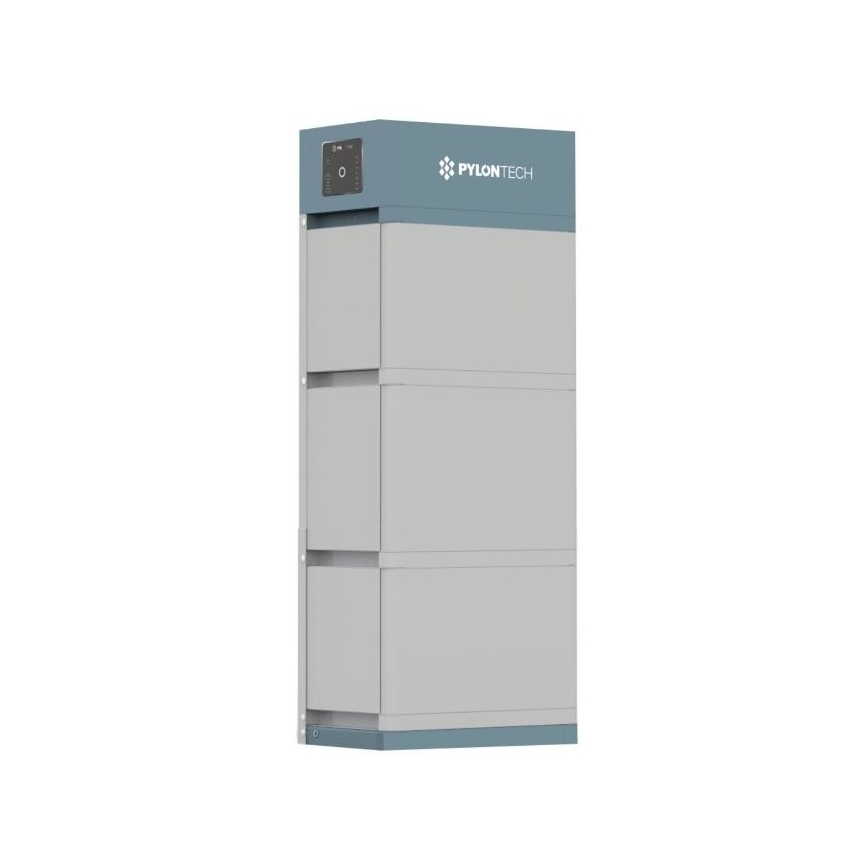

Battery:

• Pylontech high voltage lithium-ion battery.
• The latest version of the high voltage storage system.
• Battery for battery assemblies, a BMS battery monitoring system is required for operation.
• Lithium iron phosphate (LFP) technology.
• Interface: CAN, Modbus.

• The newly designed system provides easy interconnection of battery panels, saving installers time.
• Warranty period: 15 years.
• IP55 high protection.
• Battery capacity: 3.55 kWh.
• Voltage: 96V.
• Charging/discharging current: 37A.
• The number of cycles: 4000 (at 25°C).
• The maximum number of battery modules for Pylontech Force H2 batteries is 4.


Catalog sheets can be found in the downloadable documents.
