• Product description

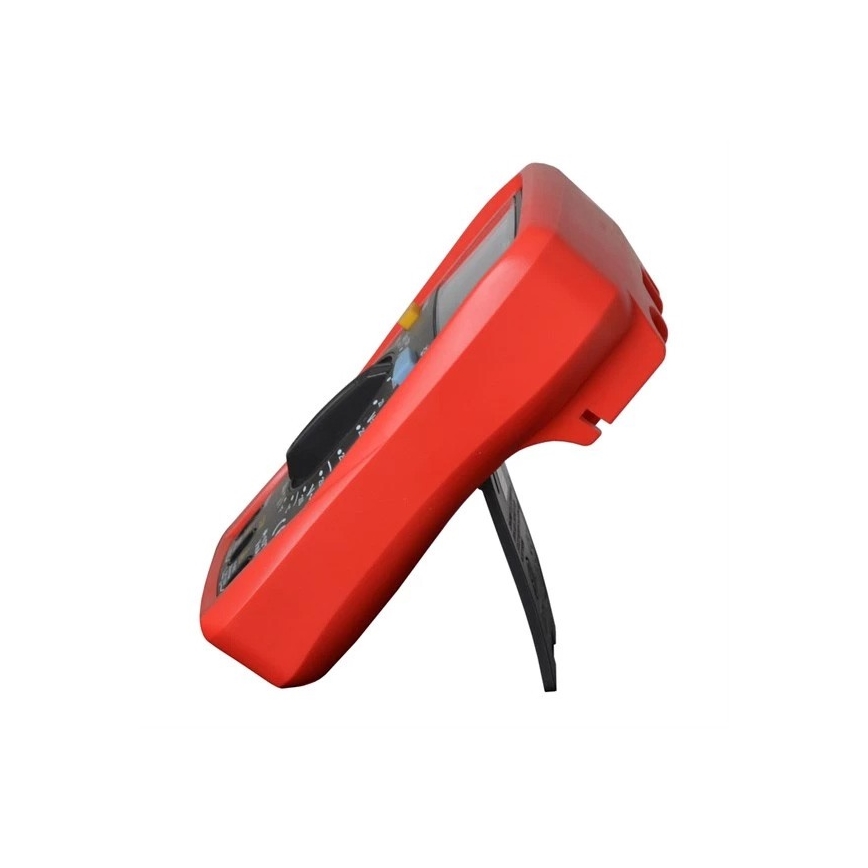

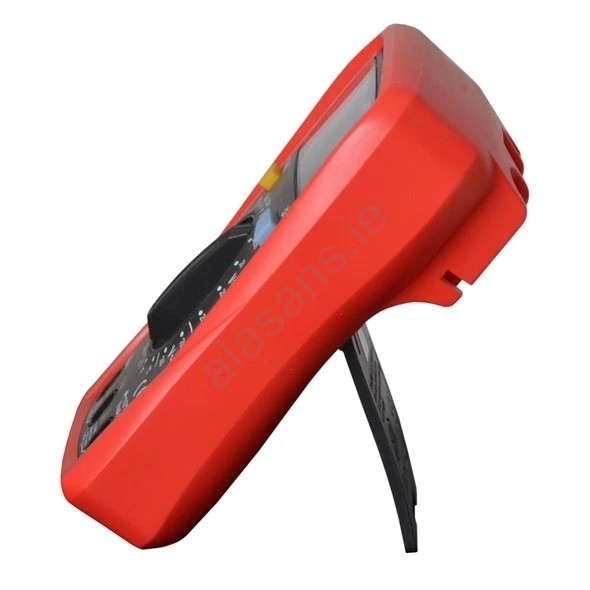

  • The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters.

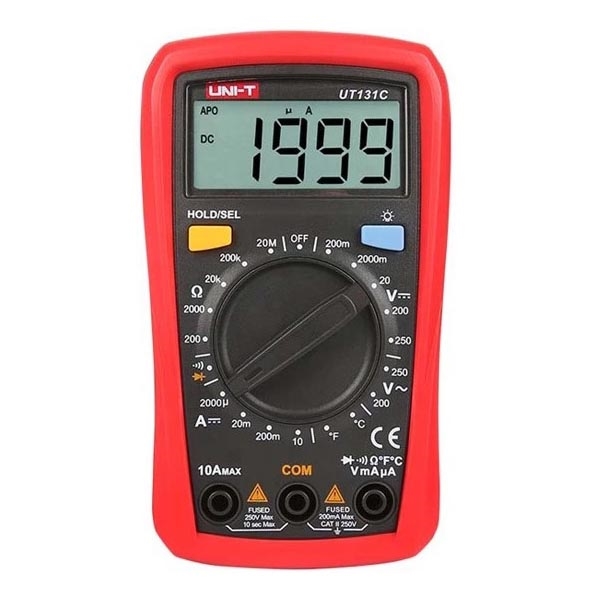

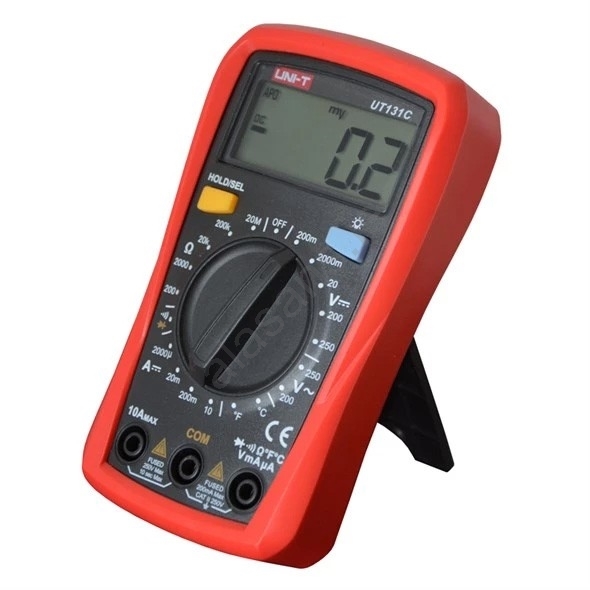

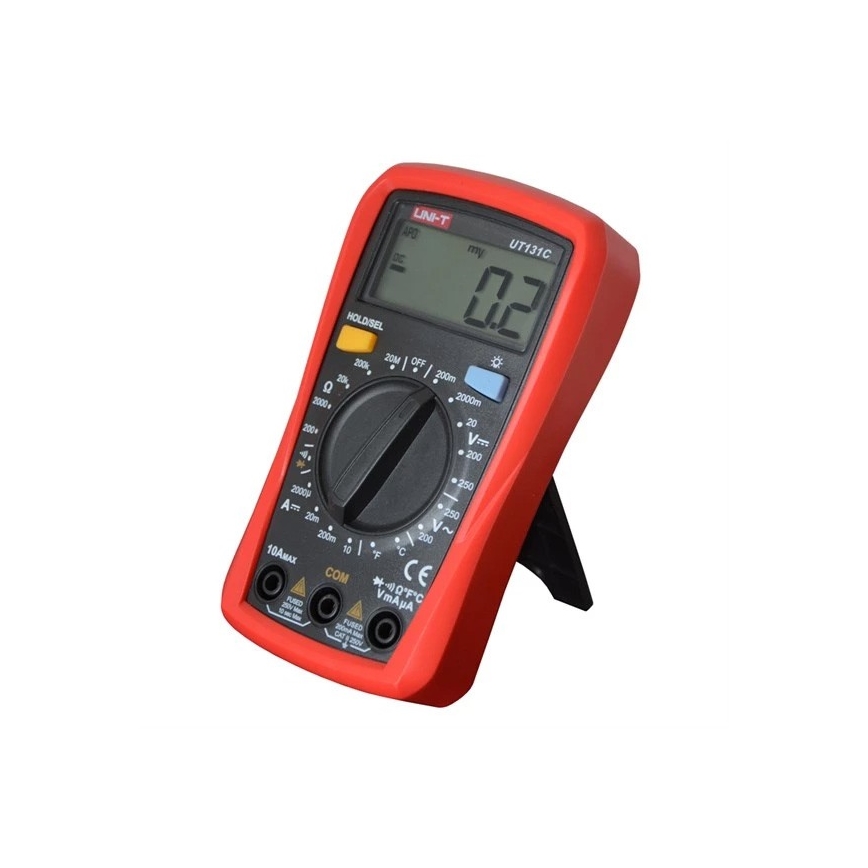

  • The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option.
  • The multimeter guarantees safe handling and measurement according to CAT II standard.
  • Multimeter functions:
  • AC voltage measurement (AC) - 200 V / 250 V.
  • DC voltage measurement (DC) - 200 mV / 250 V.
  • DC current measurement (DC) - 2000.0 μA / 10.00 A.
  • Resistance measurement - 200.0 Ω / 20.0 MΩ.

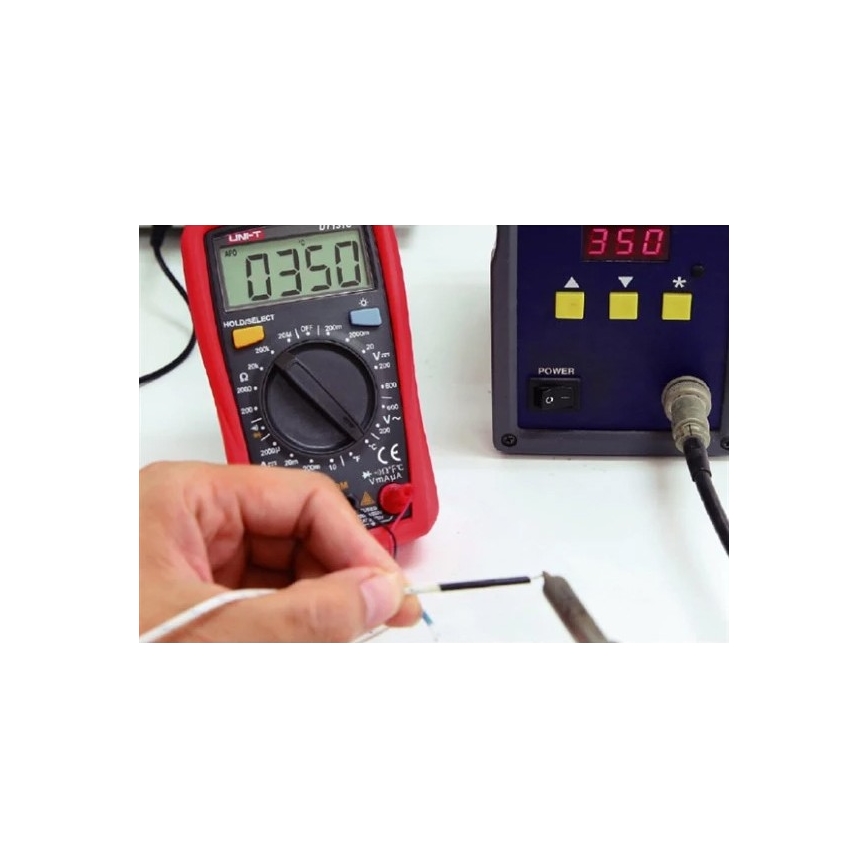

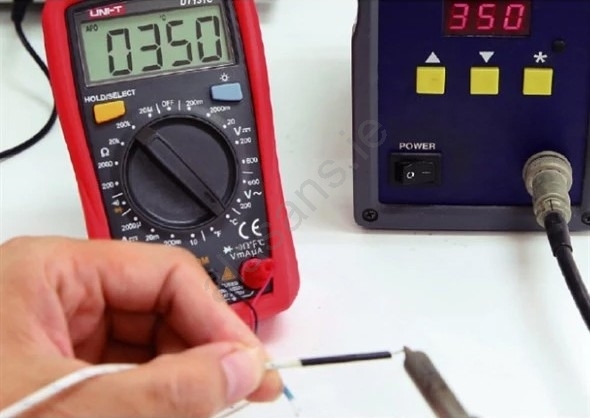

  • Temperature measurement: -40°C to +250°C.
  • Line continuity test (buzzer).
  • Diode test.
  • Manual range selection.
  • Reverse polarity detection.
  • Data hold function.
  • Backlit display.
  • Automatic shutdown after 15 minutes of inactivity.
  • Measuring cables and K-type thermocouple included.
  • Low battery indication.
  • Overload protection, fuse protection.
  • Power supply: 2x AAA 1.5 V (included).

  • Technical parameters:
  • AC voltage measurement (range, resolution, accuracy):
  • 200.00 V / 0.1 V / ± 1.2% + 3.
  • 250 V / 1 V / ± 1.2 % + 3.
  • DC voltage measurement (range, resolution, accuracy):
  • 200 mV / 0.1 mV / ± 0.7% + 3.
  • 2000 mV / 1 mV / ± 0.5 % + 2.
  • 20.00 V / 0.01 V / ± 0.7 % + 3.
  • 200.0 V / 0.1 V / ± 0.7 % + 3.
  • 250 V / 1 V / ± 0.7 % + 3.
  • DC current measurement (range, resolution, accuracy):
  • 2000.0 μA / 1 μA / ± 1.0% + 2.
  • 20.0 mA / 0.01 mA / ± 1.0 % + 2.
  • 200.0 mA / 0.1 mA / ± 1.0 % + 2.
  • 10.00 A / 0.01 A / ± 1.2 % + 5.
  • Resistance measurement (range, resolution, accuracy):
  • 200.0 Ω / 0.1 Ω / ± 1.0 % + 2.
  • 2000 Ω / 1 Ω / ± 0.8 % + 2.
  • 20.00 kΩ / 0.01 kΩ / ± 0.8 % + 2.
  • 200.0 kΩ / 0.1 kΩ / ± 0.8 % + 2.
  • 20.00 MΩ / 0.01 MΩ / ±1.2 % + 3.
  • The device complies with IEC 61010-1, IEC 61010-2-030, CAT II standards.
