• Product description

  • A multimeter that offers a high standard of measurement in an affordable category.
  • The innovative and industrial design with a protective case guarantees the multimeter's resistance to impact and drop from up to two meters.
  • The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option.
  • The multimeters of the series guarantee safe handling and measurements and are classified in the CAT II safety category ( double insulated appliances ) and are designed for measurements in circuits up to 250V/AC or DC.
  • The display range is ±1.999.
  • Protection of the current ranges is provided by fast tube fuses ( 10A range by 10A/250V fuse; mA/µA range by 200mA fuse ).
  • The power supply of the multimeter is made of two AAA 1,5V alkaline batteries.
  • Product parameters:
  • Display range ±1.999.
  • Measures parameters Vst, Vss, mVss/st, µAss/st, mAss/st, Ass/st, resistance, capacitance, throughput (buzzer), and semiconductor transitions (diodes).
  • DC voltage measurement: 200 mV to 250 V.
  • AC voltage measurement: 200 mV to 250 V.
  • DC current measurement: 200.0 μA to 10.00 A.
  • Resistance measurement: 200.0 Ω to 200.0 MΩ.

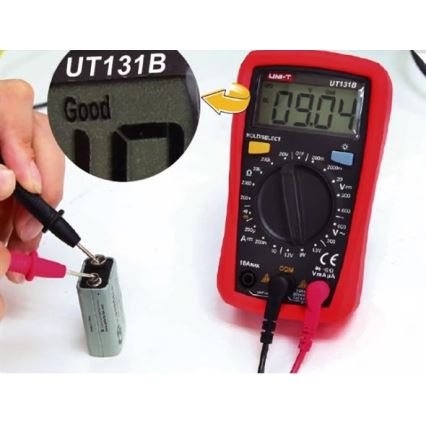

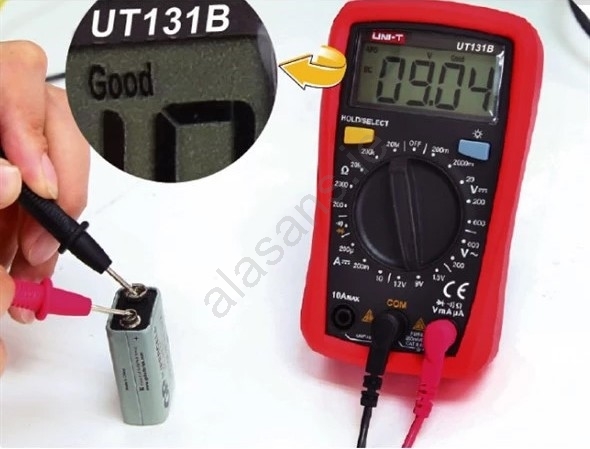

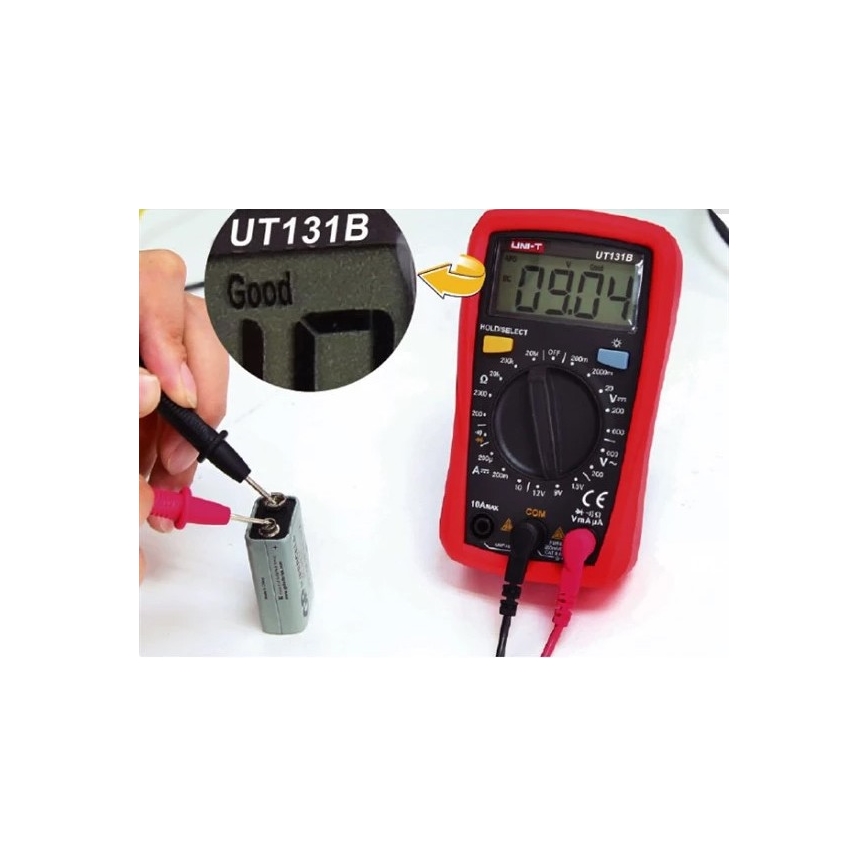

  • Battery test 1.5V; 9V; 12V on 30Ω load resistors; 900Ω; 60Ω.
  • CAT II safety category (double insulated) up to 250V AC/DC.
  • Powered by 2x AAA 1.5V alkaline batteries.
  • Backlit display.
  • Line continuity test (buzzer).
  • Diode test.
  • Reverse polarity detection.
  • Data hold function.
  • Low battery indication.
  • Automatic shutdown after 15 minutes of inactivity.
  • Measurement cables included.
  • Technical parameters:
  • DC voltage measurement ( input impedance approx. 10MΩ ): (range/resolution/accuracy):
  • 200 mV / 0.1 mV / ± 0.7% + 3.
  • 2000 mV / 1 mV / ± 0.5% + 2.
  • 20.00 V / 0.01 V / ± 0.7 % + 3.
  • 200.0 V / 0.1 V / ± 0.7 % + 3.
  • 250 V / 1 V / ± 0.7 % + 3.
  • AC voltage measurement (input impedance approx. 10MΩ, 40Hz to 400Hz sine): (range / resolution / accuracy):
  • 200.0 mV / 0.1 mV / ±1.0% + 2.
  • 2.000 V / 0.001 V / ± 0.7% + 3.
  • 20.00 V / 0.01 V / ± 1.0 % + 2.
  • 200.00 V / 0.1 V / ± 1.2 % + 3.
  • 250 V / 1 V / ± 1.2 % + 3.
  • DC current measurement: (range/resolution/accuracy):
  • 200.0 μA / 0.1 μA / ± 1.0% + 2.
  • 2000 μA / 1 μA / ± 1.0 % + 2.
  • 20.00 mA / 0.01 mA / ± 1.0 % + 2.
  • 200.0 mA / 0.1 mA / ± 1.0 % + 2.
  • 2.000 A / 0.001 A / ± 1.2 % + 5.
  • 10.00 A / 0.01 A / ± 1.2 % + 5.
  • Resistor resistance measurement: (range/resolution/accuracy):
  • 200.0 Ω / 0.1 Ω / ± 1.0 % + 2.
  • 2000 Ω / 1 Ω / ± 0.8 % + 2.
  • 20.00 kΩ / 0.01 kΩ / ± 0.8 % + 2.
  • 200.0 kΩ / 0.1 kΩ / ± 0.8 % + 2.
  • 20.00 MΩ / 0.01 MΩ / ±1.2 % + 3.
  • 200.0 MΩ / 0.1 MΩ / ± 5.0 % + 10.
  • The device complies with IEC 61010-1, IEC 61010-2-030, CAT II standards.
  • Power supply: 2x AAA 1.5 V (included).
