• Product description

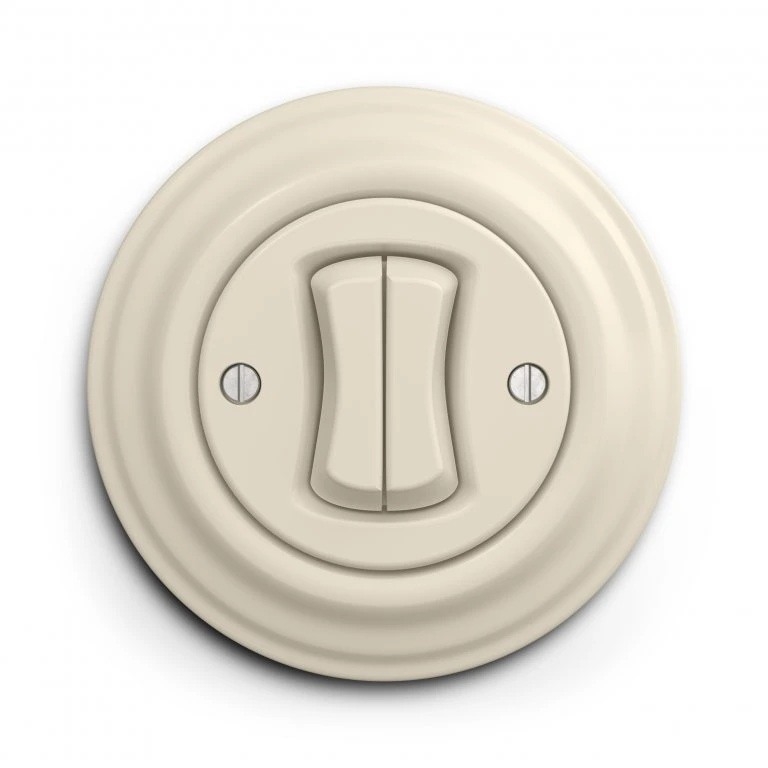

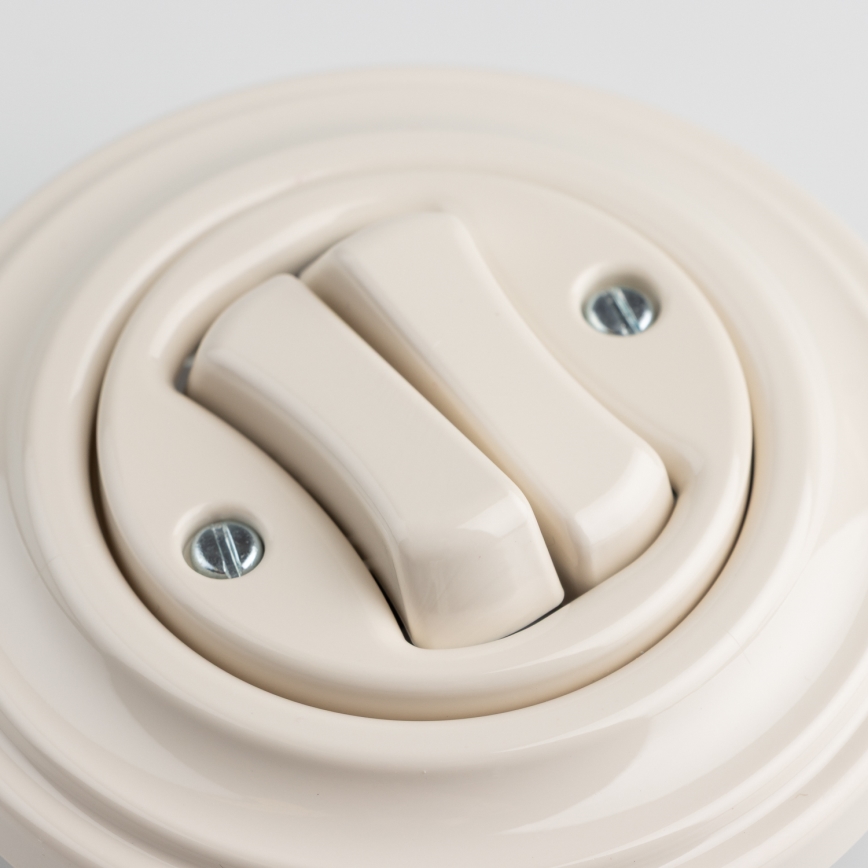

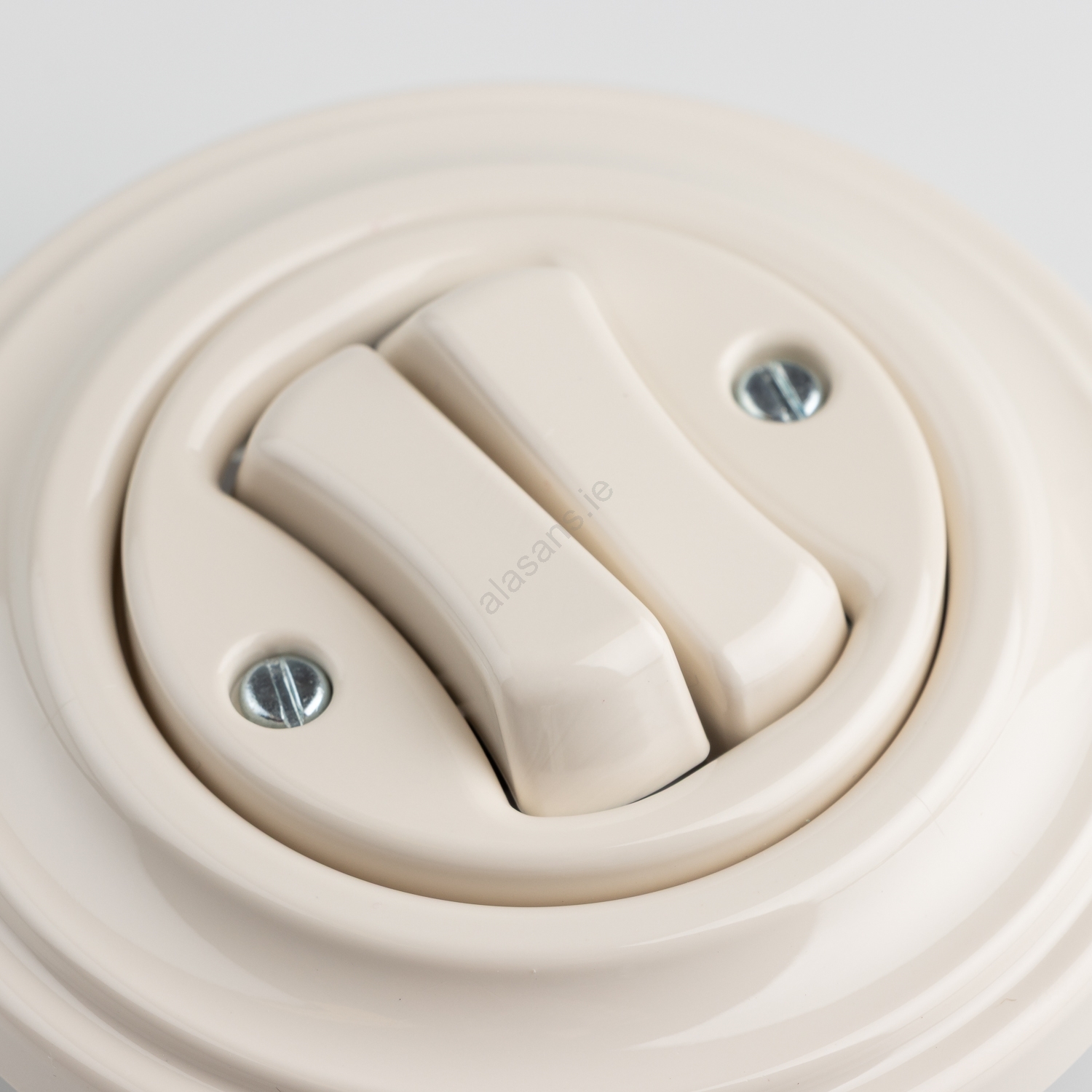

  • Double staircase switch = controls two lighting circuits from two separate locations (hallway, staircase).
  • For proper operation, always use two switches together.

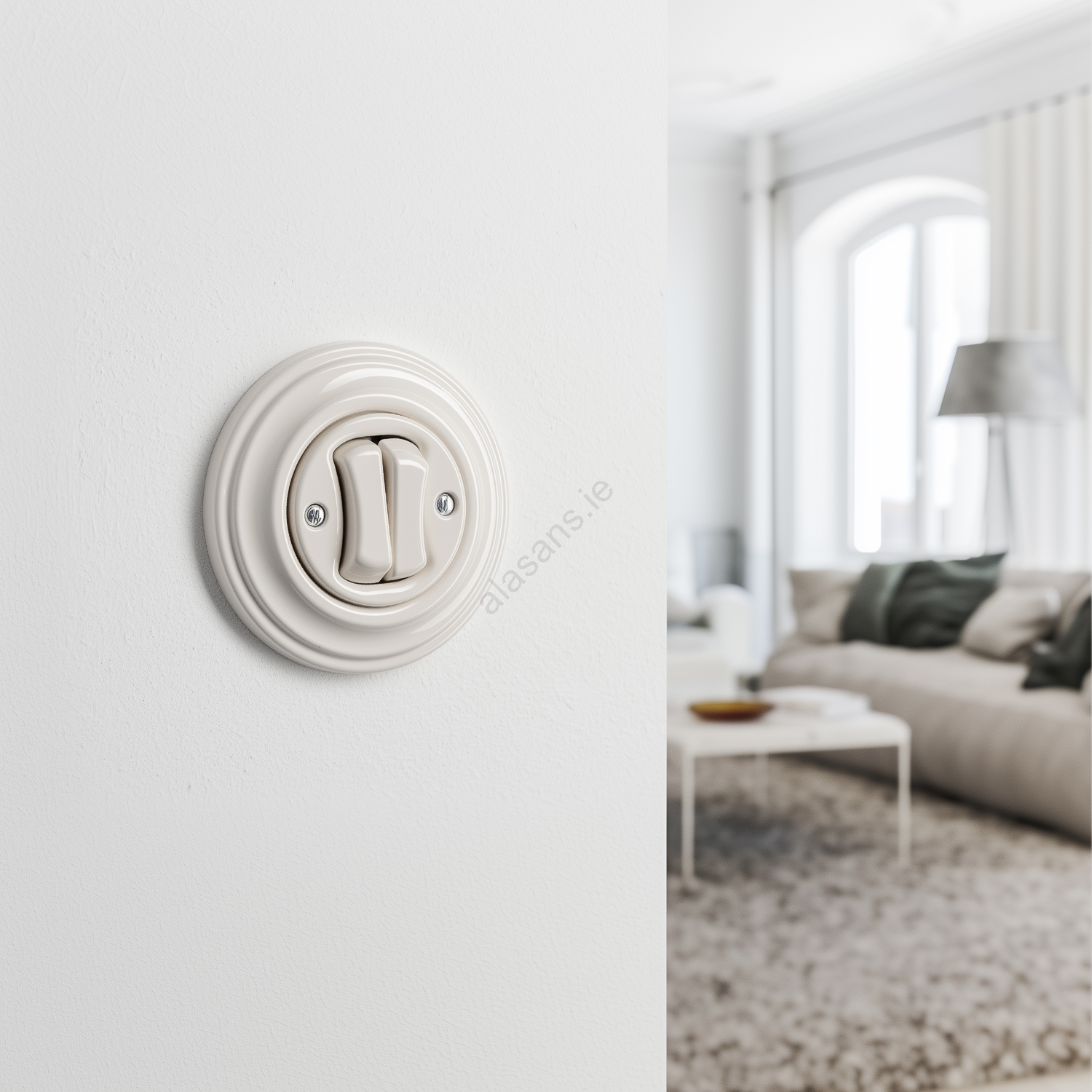

  • Its retro design makes an immediate impression.
  • Using rotatable frames, you can easily create double, triple, or multi-gang configurations.

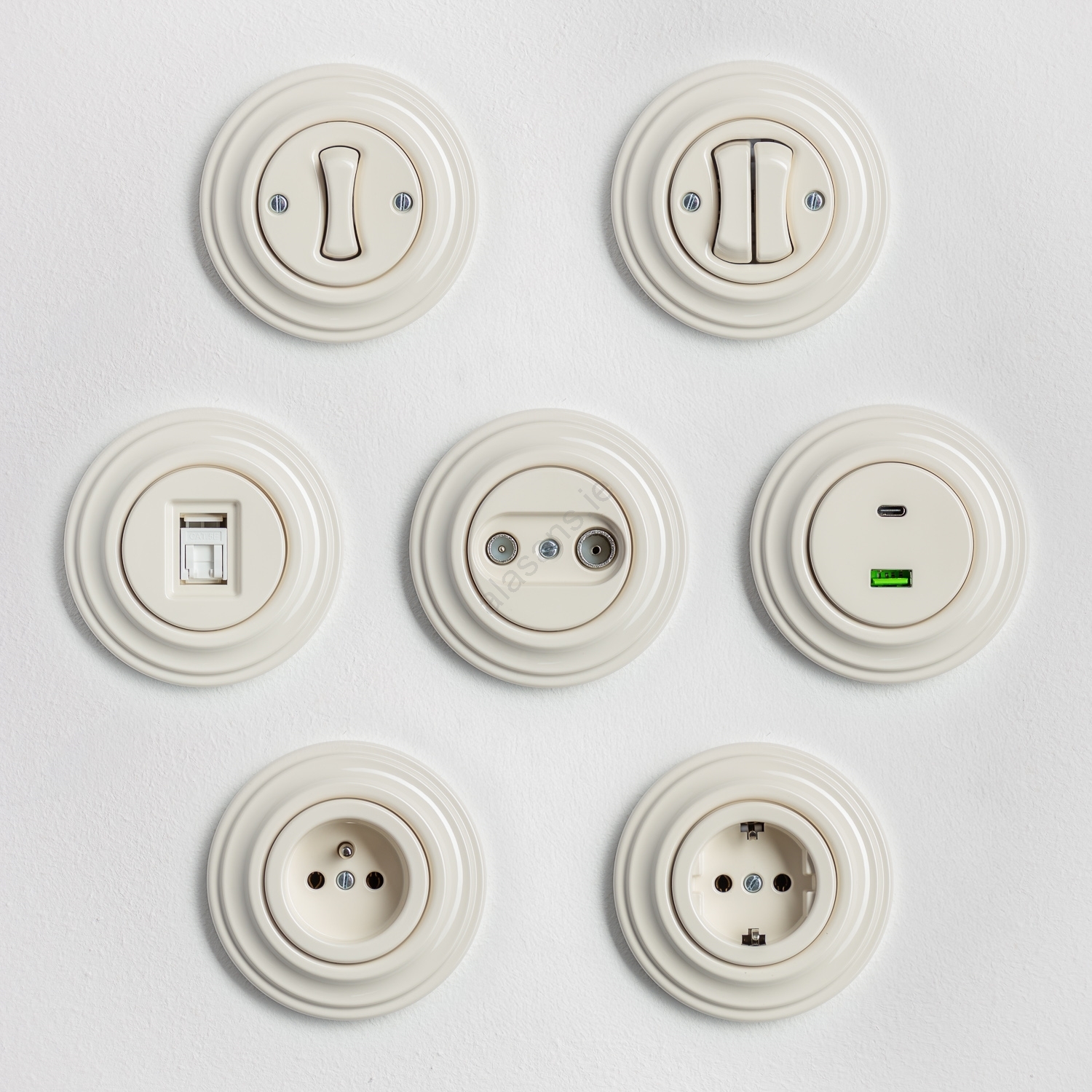

  • Mix sockets and switches, or use a row of identical modules.
  • Select the end frame with a one-sided cut that can be rotated to suit your needs, then the middle frame, which you attach on both sides to build a continuous series with an unlimited number of modules.
  • Install them horizontally or vertically to suit your layout.

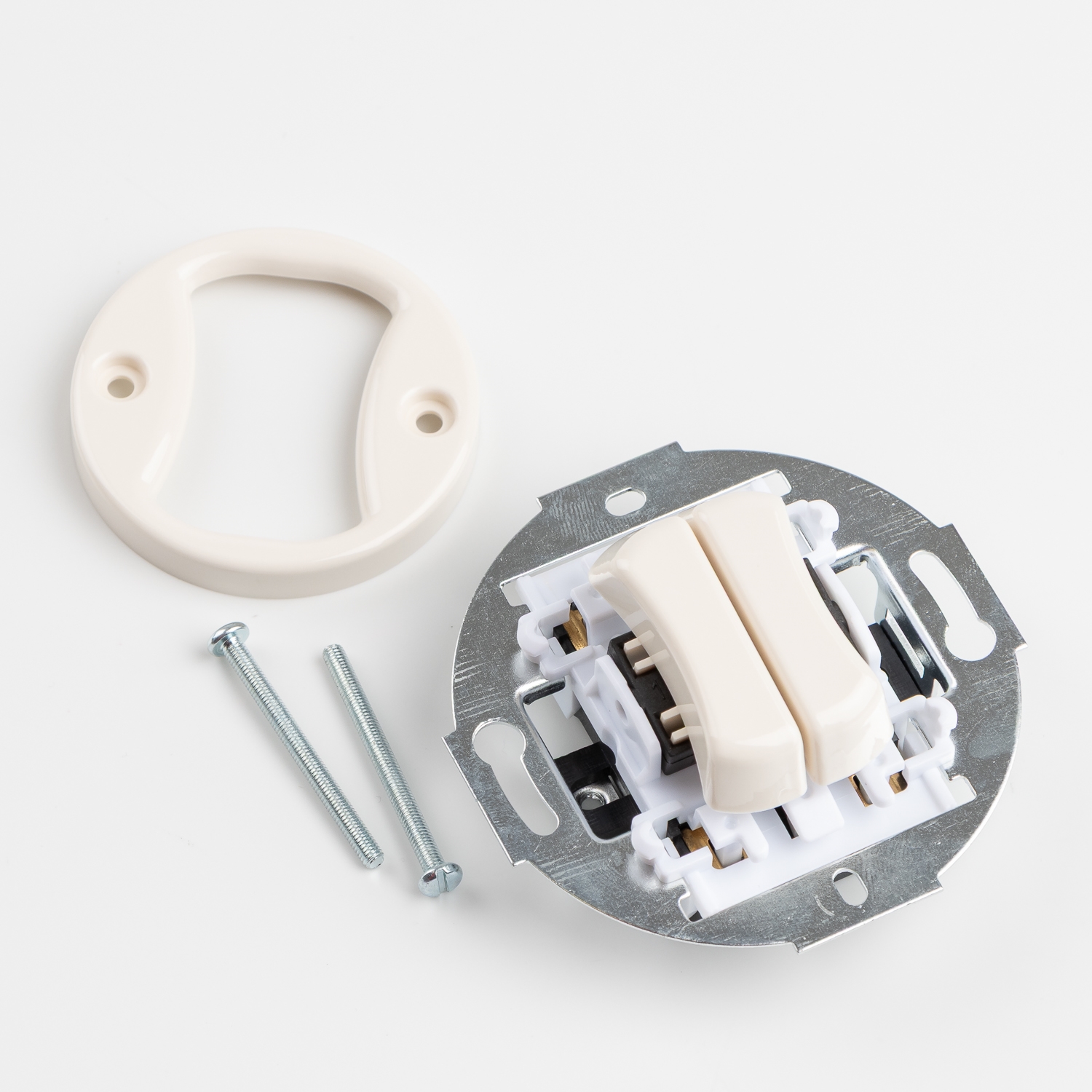

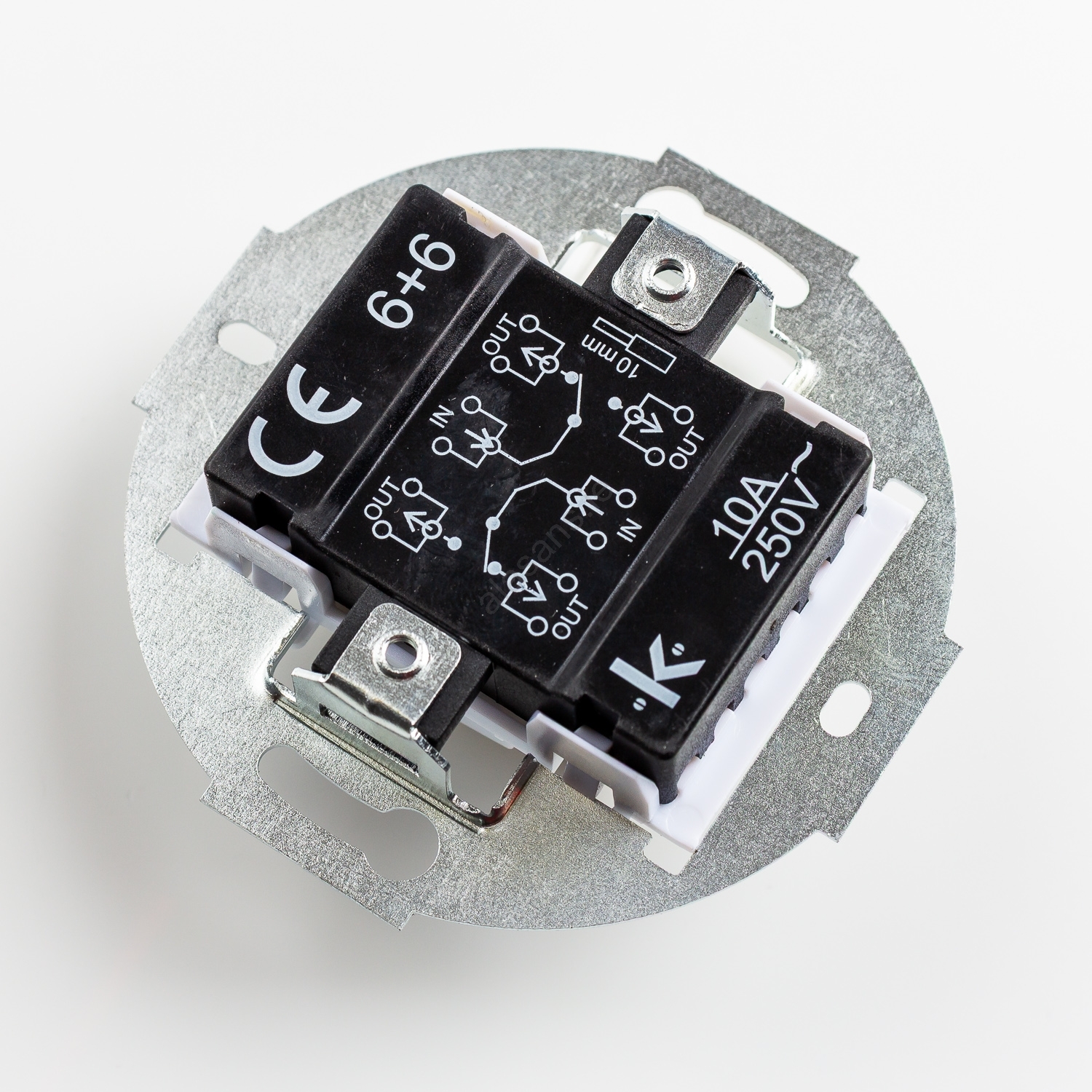

  • Connection type: screw terminal.
  • Control type: rocker switch.
  • Mounting method: flush wall mounting - suitable for electrical installation boxes with a spacing of 71 mm (e.g. KP68 or KU68).

  • Material type: heat-resistant plastic.
  • Rated current: 10 A.
  • Rated voltage: 230 V.
  • Frequency: 50 Hz.
  • Ingress protection (IP): IP20.
  • Device width: 70.5 mm.
  • Device height: 70.5 mm.
  • Device depth: 30 mm.
  • Always use only round electrical installation boxes.
  • Allow for round cut-outs in tiles.
  • Made in the EU.

  Brand:

  Kliklap



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Kliklap, Switches, dimmers and frames, Vintage switches and sockets

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: KA0134D
