• Product description

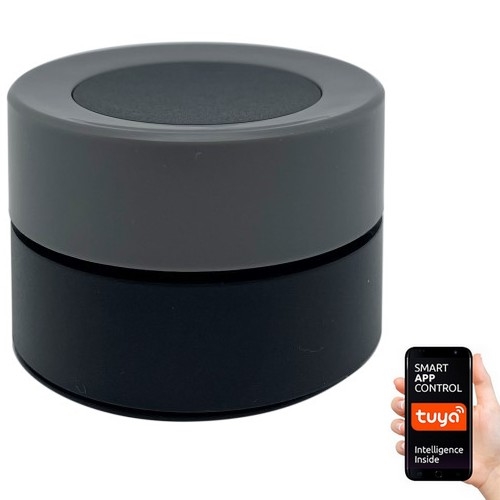

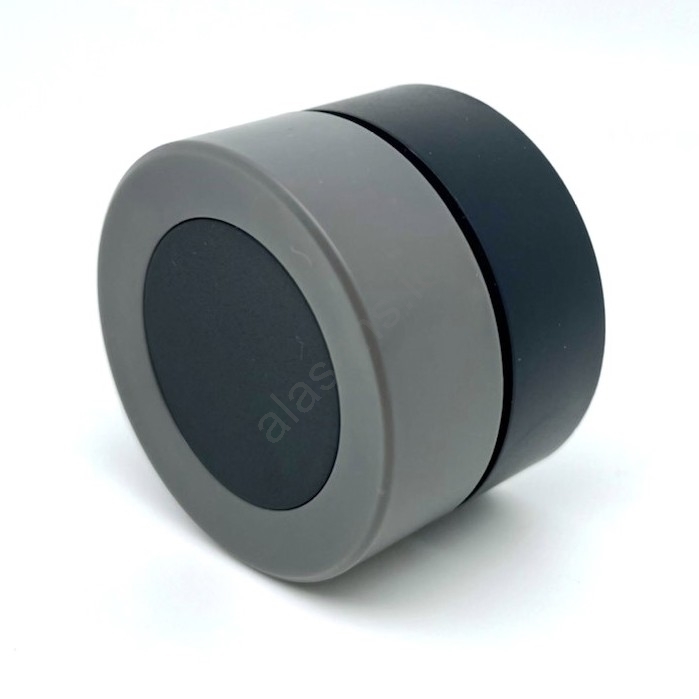

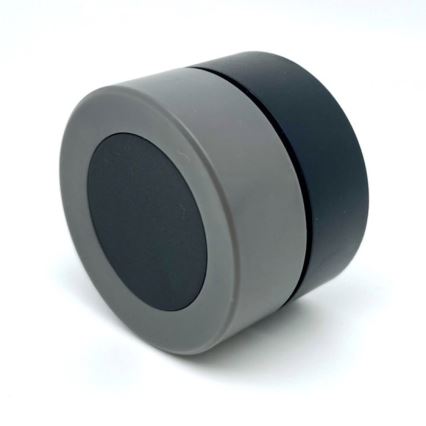

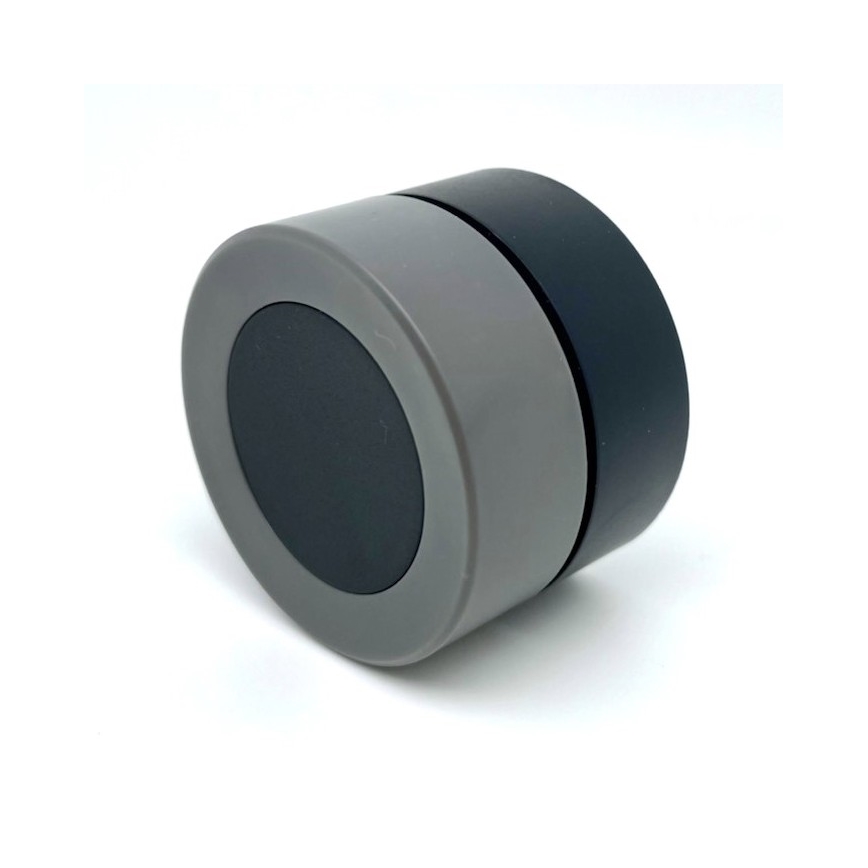

  • The Immax NEO switch is a special battery-operated programmable controller for managing light sources and other products in the Immax NEO system, communicating via the ZigBee 3.0 protocol.
  • In the IMMAX NEO PRO app or any other running on the TUYA platform, you can set up 3 different scenes or automations for a single press, double press, or long press of the micro switch button.
  • This allows you to have control over your lighting and other household products at any time, making you the "master of your smart home."
  • NOTE, this is not a switch; no wires are connected to it.
  • It is required that the switch is within range of the smart gateway.
  • WARNING - this is not a WiFi switch; it requires the Immax NEO BRIDGE PRO Smart Zigbee 3.0 v2 (available for separate purchase).
  • Compatible with iOS, Android, and voice assistants Apple Siri Shortcuts, as well as systems TUYA, LIDL.

  • Technical specifications:
  • Protocol: ZigBee 3.0.
  • Frequency: 2400MHz~2483.5MHz.
  • Maximum RF output power: ZigBee: 10dBm - max 19dBm.
  • Wireless range: 25 m in direct line of sight, 8 m in built-up areas.
  • Battery: 1x CR 2032 3V (not included).
  • Ingress protection rating: IP20.

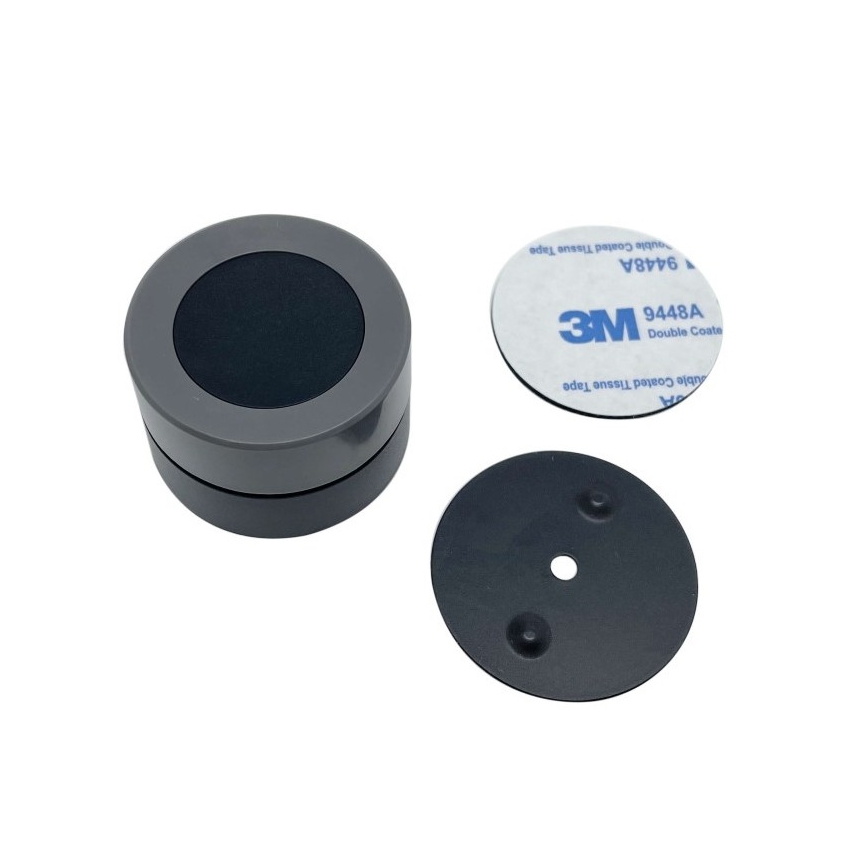

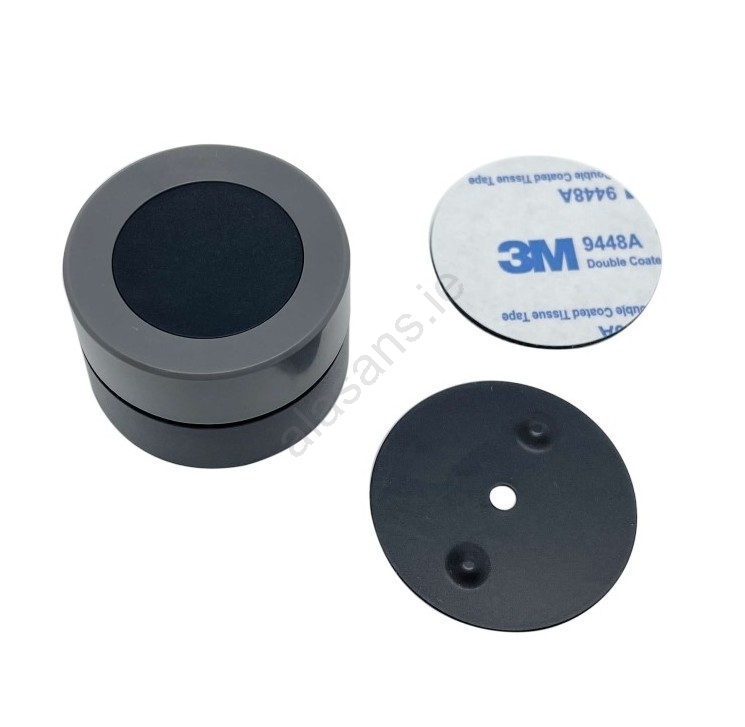

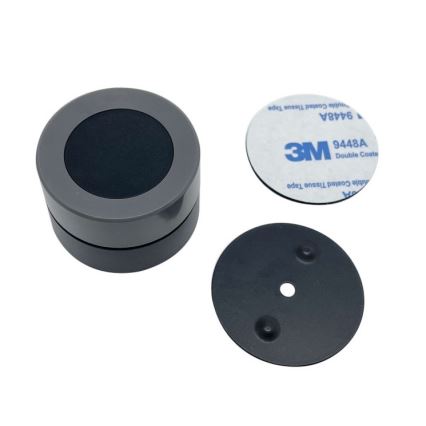

  • Package contents: Smart switch, base, user manual.

    The rotary button operates in two basic modes:

  1. Remote control for lighting:

  • Press to turn off/on.
  • Rotating adjusts the brightness of the lighting.
  • Long press + rotation changes the shades of white.
  • A long press of more than 5 seconds will smoothly change colors for RGB.

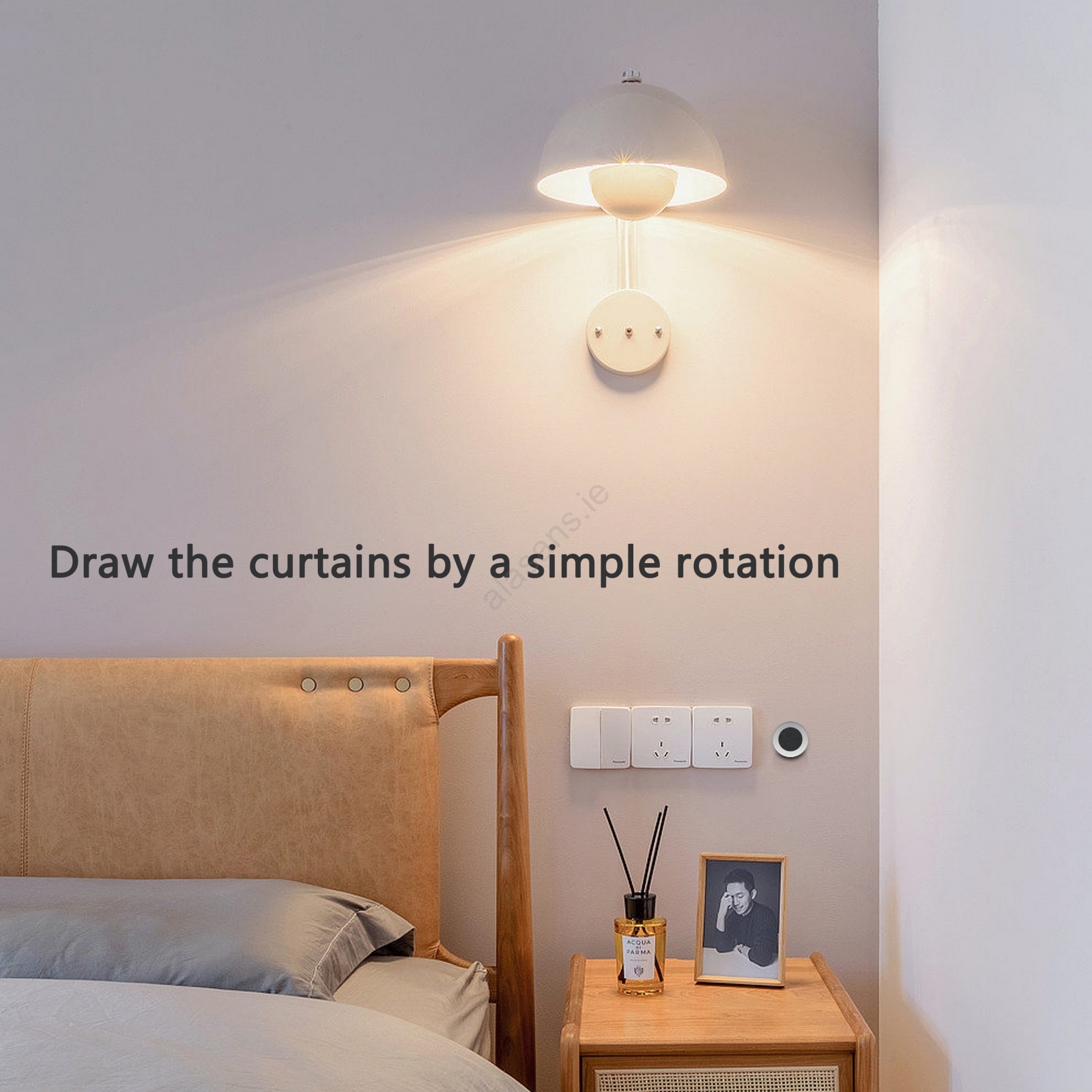

  2. Trigger button for preset scenes (for each type of click (single click, double click, long press, rotate left, rotate right), any action can be assigned based on what the user has set in the app) e.g.:

  • Start heating.
  • Start garden irrigation.
  • Open main doors, garage, gate.
  • Turn on TV, air conditioning, or other devices.
  • Turn on any lighting anywhere in the home.
  • Turn on the pool pump.
  • Turn on/off any socket.
  • And more.


  Brand:

  Immax Neo
