• Product description

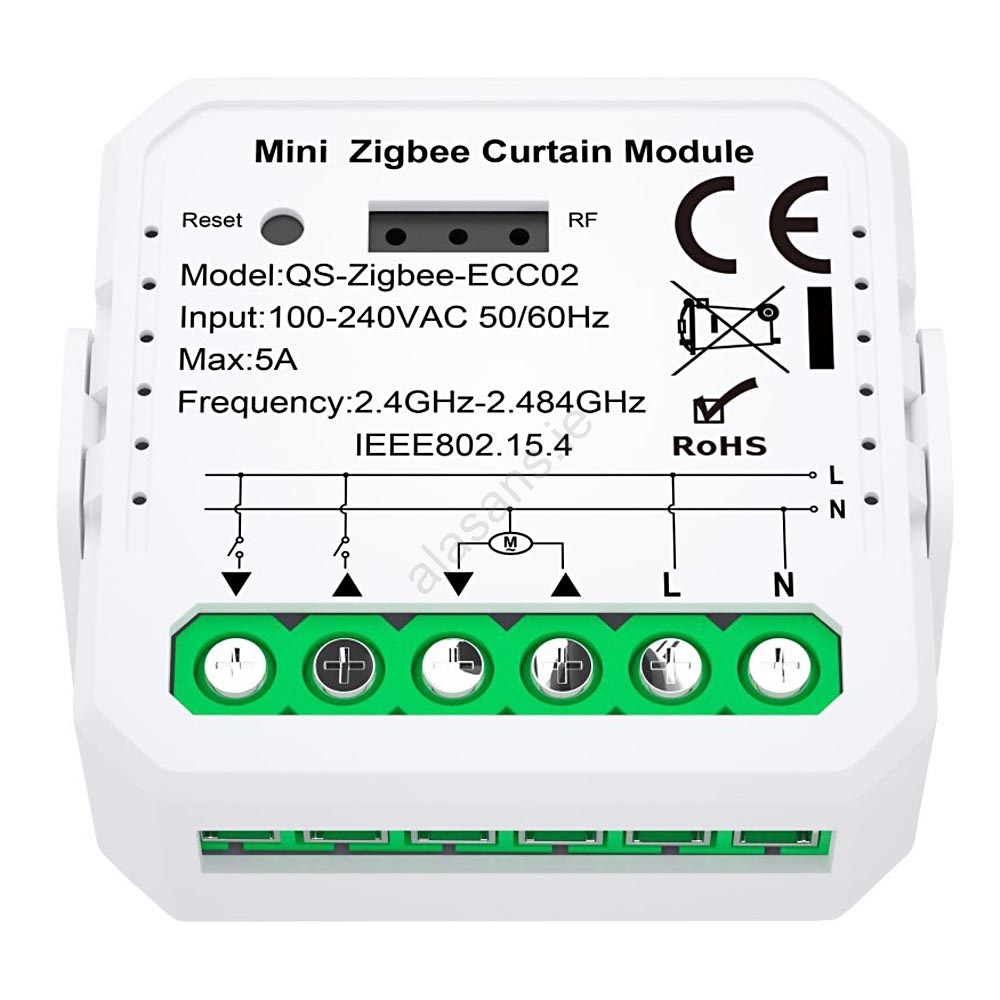

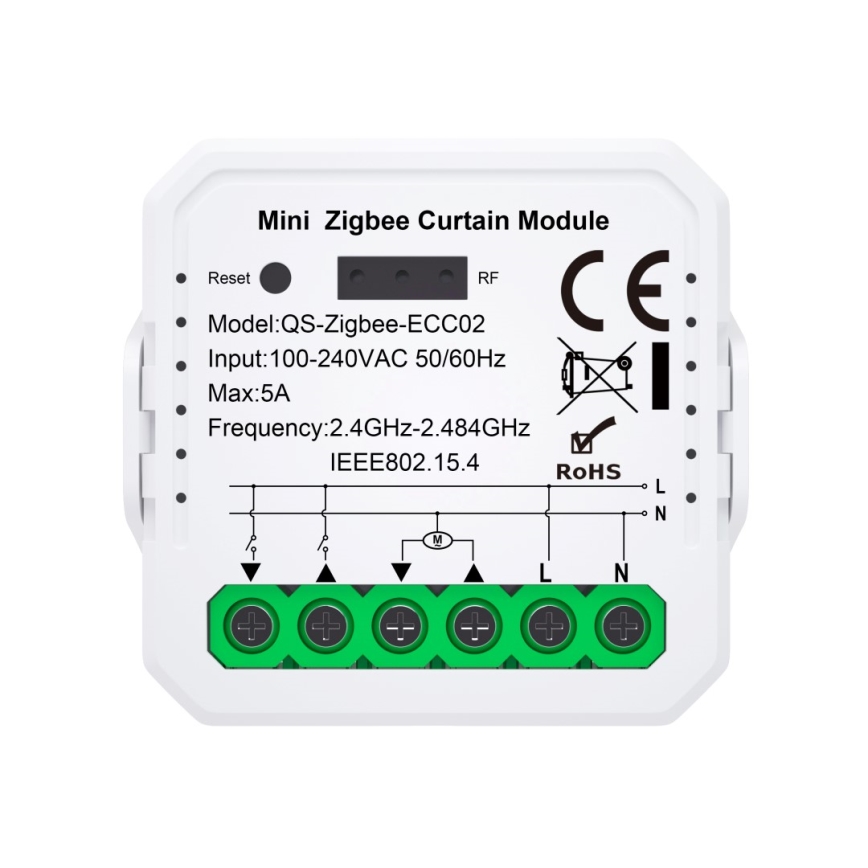

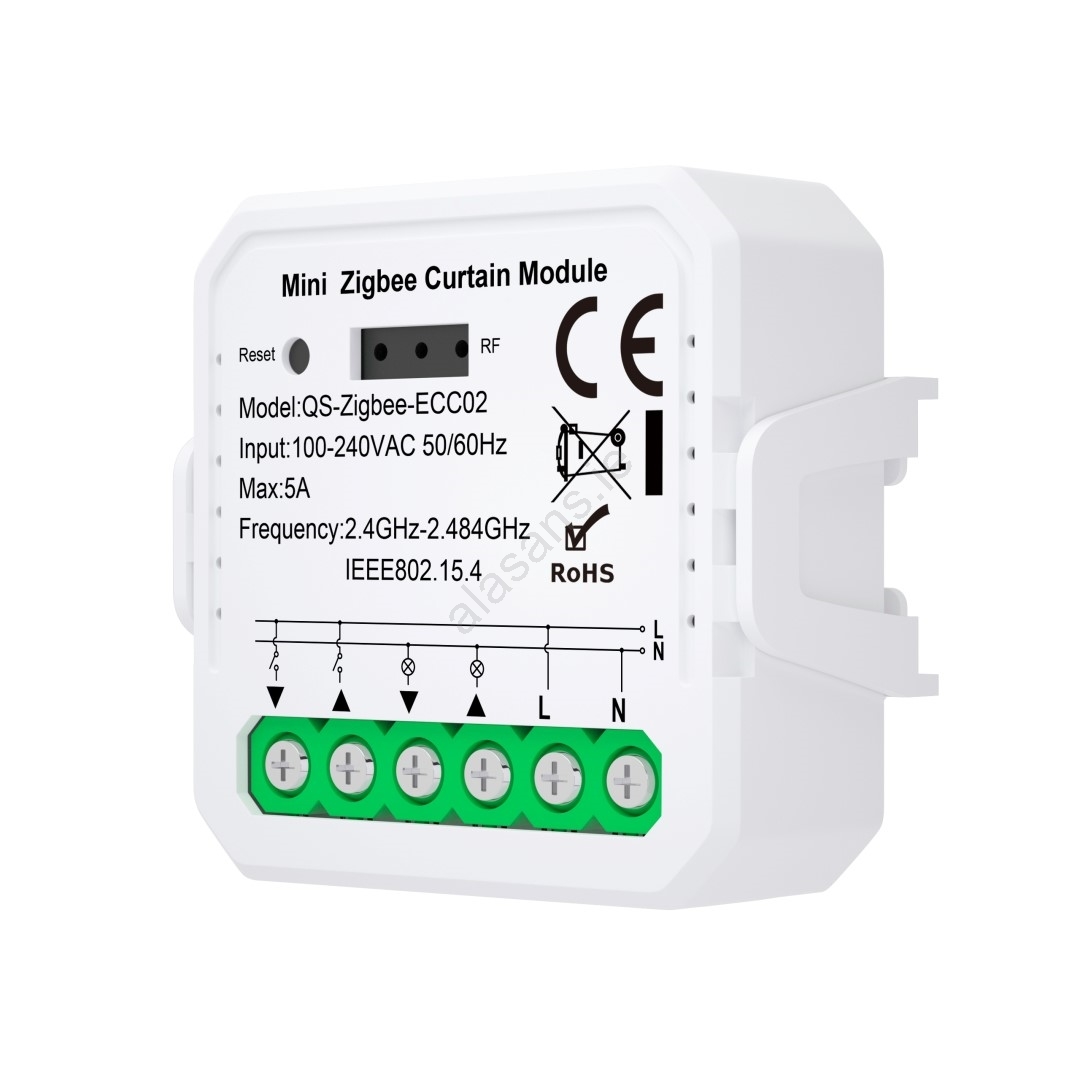

  • Special controller for controlling blinds and shutters communicating on the ZigBee 3.0 protocol.
  • This allows you to control the blinds and shutters in your home at any time.
  • It is conditional that the controller is within range of the smart gateway.
  • ATTENTION - this is not a Wi-Fi controller, it requires the Immax NEO BRIDGE PRO Smart Zigbee 3.0 (can be purchased separately) or another TUYA hub on the ZigBee 3.0 standard.
  • Control via the Immax NEO PRO app (for iOS and Android).
  • It is fully compatible with Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, and Lidl.
  • Technical parameters:
  • Protocol: ZigBee 3.0.
  • Frequency: 2400MHz~2483.5MHz.
  • Maximum RF output power: ZigBee: 10dBm - max 19dBm.
  • Mains standby power (Pnet): 0.4W.
  • Power consumption: AC 120 - 240 50Hz/60Hz.
  • Max. load current: 5A.
  • Communication protocol: Zigbee, Tuya support.
  • Wireless range: 30m in direct line of sight, 10m in built-up areas.

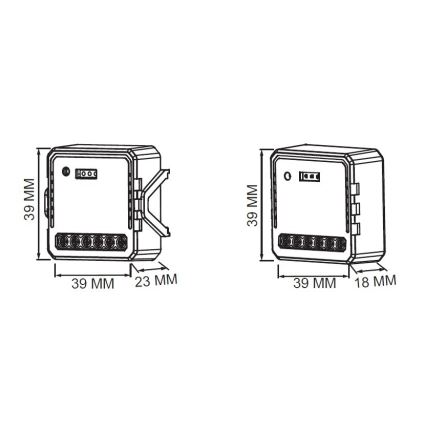

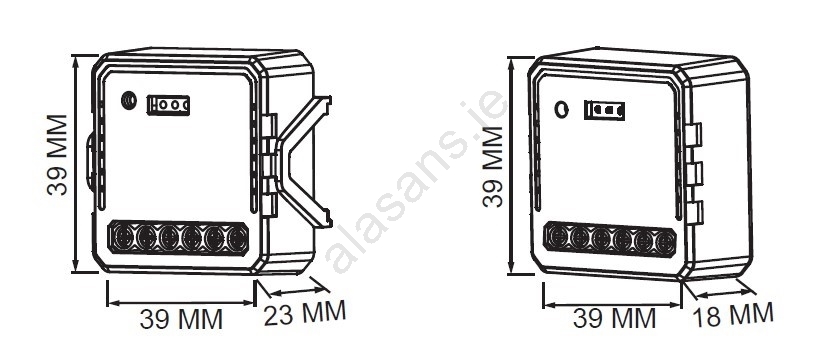

  • Dimensions: 3.9 x 3.9 x 1.8 cm (without holder).
  • Operating temperature: -10°C to 40°C.
  • Operating humidity: 20% to 80%.
