• Product description

  • It is conditional that the controller is within range of the smart gateway.
  • ATTENTION - this is not a Wi-Fi controller, it requires Immax NEO BRIDGE PRO Smart Zigbee 3.0 (can be purchased separately) or another TUYA hub on Zigbee 3.0 standard.
  • Control via the Immax NEO PRO app (for iOS, and Android).
  • It is fully compatible with Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, and Lidl.
  • Technical parameters:
  • Protocol: ZigBee 3.0.
  • Frequency: 2400MHz~2483.5MHz.
  • ZigBee: 10dBm - max 19dBm.
  • Input power: AC 100 - 260 50 Hz / 60 Hz.
  • Power consumption: AC 100 - 260 50Hz/60Hz.
  • Max. load: 26kW.
  • Current protection: 1-63A (adjustable in the app).
  • Overvoltage protection: 220-265V (adjustable in the app).
  • Undervoltage protection: 76-240V (adjustable in application).
  • Thermal fuse, overheat protection, current fuse, overvoltage, and overload protection.
  • Communication protocol: Zigbee, Tuya support.
  • Wireless range: 30 m direct visibility, 10 m in built-up area.
  • Material: PC V0 flame retardant.
  • Installation: on DIN rail.
  • Number of switched circuits: 1.

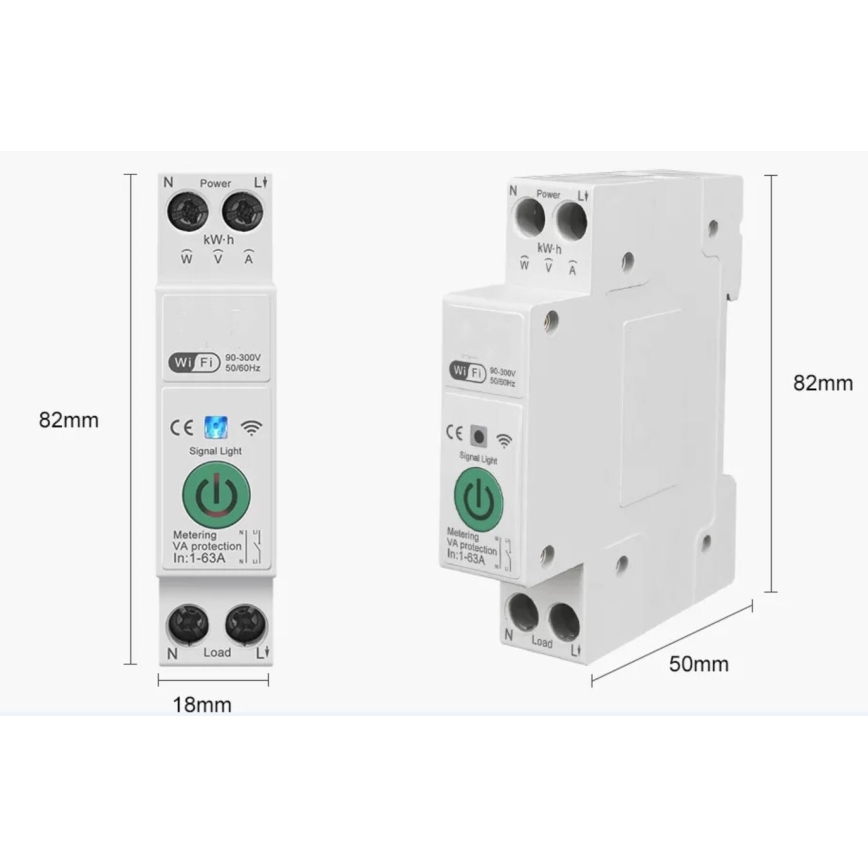

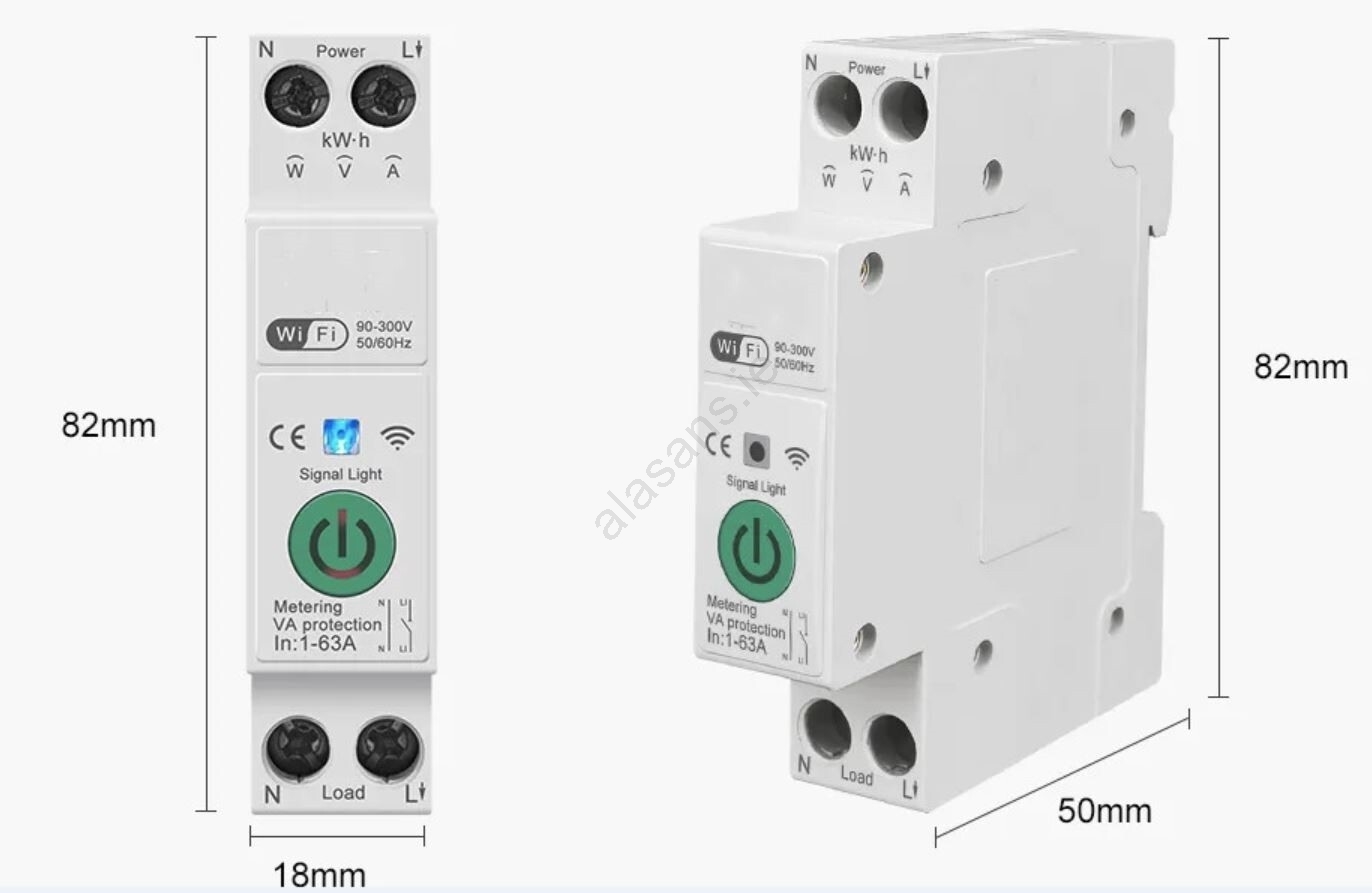

  • Dimensions: 82 x 18 x 66 mm.
  • Degree of protection: IP20.

  Brand:

  Immax Neo



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Immax Neo, Lights, Other, Other, Other, Smart electrical equipment, Smart lighting, Tuya Smart Home, ZigBee

• Parameters

• Documents for download

• Ratings and reviews3

• Questions about the product0

Buy

Add to favourites

Product code: IM1273
