• Product description

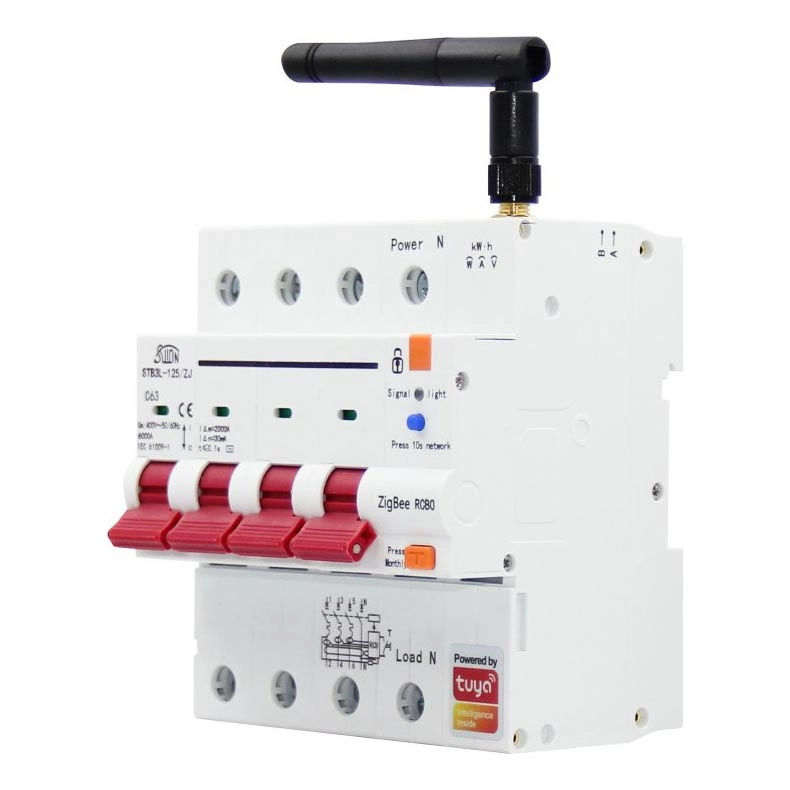

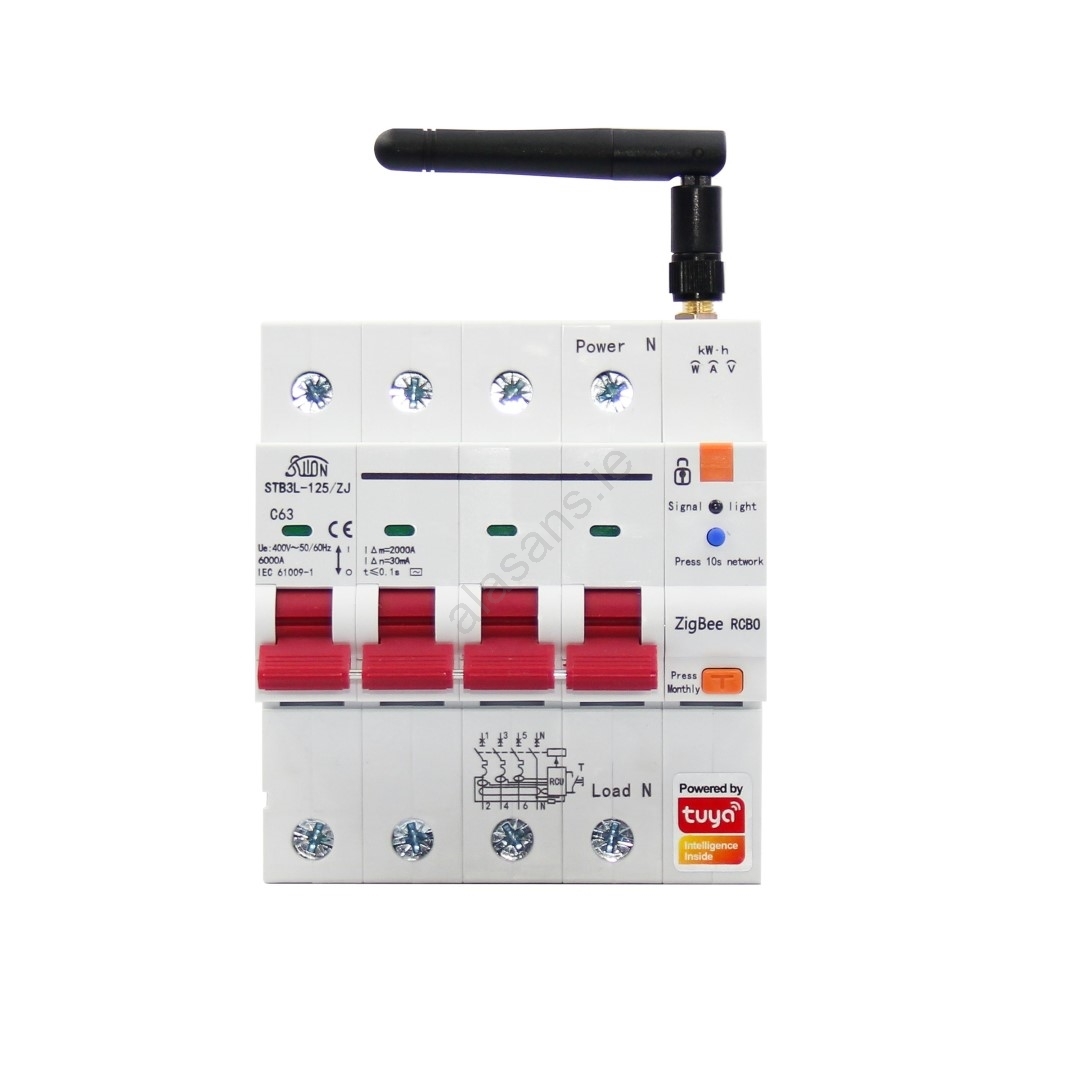

  • Three-phase circuit breaker 10- 63A with current protector, power metering, 3P+N, Zigbee 3.0 is designed for AC circuits 50/60 Hz with rated voltage 230 /400 V and switching current 10A, 32A, 40A, 50A, 63A.
  • It complies with ČNS EN 61009-1.
  • Tripping characteristics B, C, D, depending on the settings in Immax NEO PRO.
  • Provides disconnection, switching, and protection of electrical circuits against earth fault currents, thus also providing fire protection and at the same time the function of a circuit breaker - i.e., protection against short circuit and thermal overload.
  • This type of RCBO also disconnects the working conductor.
  • The control of the middle (working) conductor of the "neutral" is carried out in such a way that when switching on, the "N" is switched on first and then the phase, and when switching off, the phase is disconnected first and then the "N".
  • This is for higher safety reasons.
  • The "N" circuit thus protects from the first phase of switching on until the end of switching off.
  • The Immax NEO PRO app in English and 60 other languages is compatible with iOS, Android, and TUYA systems.
  • Technical parameters:
  • Protocol: ZigBee 3.0 Zigbee frequency: 2.405~2.480GHz.
  • Maximum output power: +10 dBm, output power dynamic > 35 dB.
  • Communication protocol: Support Zigbee, Tuya.
  • Wireless range: direct visibility 30m, in a built-up area 10m.
  • Zigbee repeater: yes.
  • Network standby power (Pnet): 0.4W.
  • Rated operating voltage: AC 230V/400V.
  • Power frequency: 50/60 Hz.
  • Maximum rated current: 63 A.
  • Short circuit breaking capacity (Ics): 6000 A.
  • Current protection: 10A, 32A, 40A, 50A, 63A (adjustable in the app).
  • Load characteristics: B, C, D (depending on app settings).
  • Operating position indicator: yes.
  • Overvoltage protection: 220 - 265 V (adjustable in the app).
  • Undervoltage protection: 150 - 250V (adjustable in the app).
  • Thermal fuse, over-temperature protection: yes.
  • Current fuse, overvoltage, and overload protection: yes.
  • Mechanical lifetime: 10,000 switchings.
  • Electrical lifetime: 3,000 switches.
  • Automatic reactivation after power failure.
  • In automatic mode: If no fault is detected, automatic switching occurs within 3 seconds.
  • In manual mode: The unit cannot be automatically switched on again.
  • Operating temperature: -25 °C to 70 °C.
  • Material: flame retardant PC V0.
  • Mounting: On standard DIN rail 35,5 × 7,5 mm.
  • Wire connection clamps.
  • Maximum conductor cross-section: 35 mm2.
  • Pollution degree: 2.
  • Package contents: circuit breaker, antenna, and user manual.
