• Product description

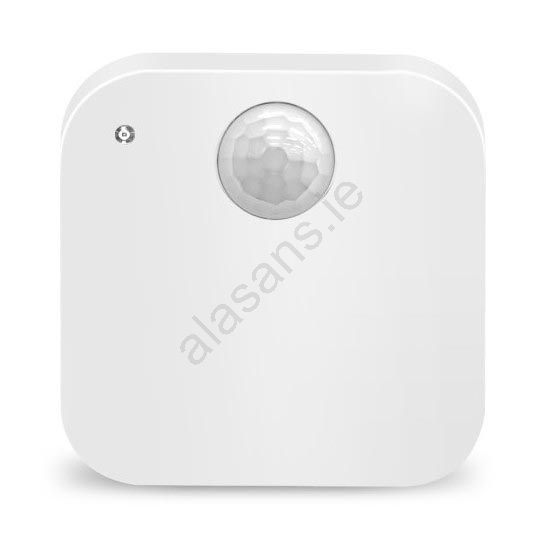

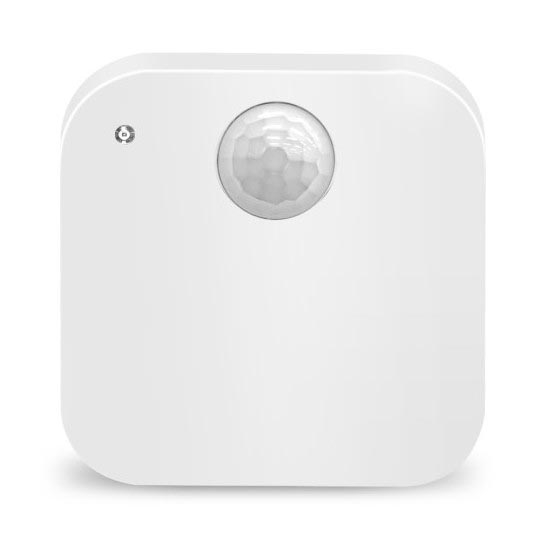

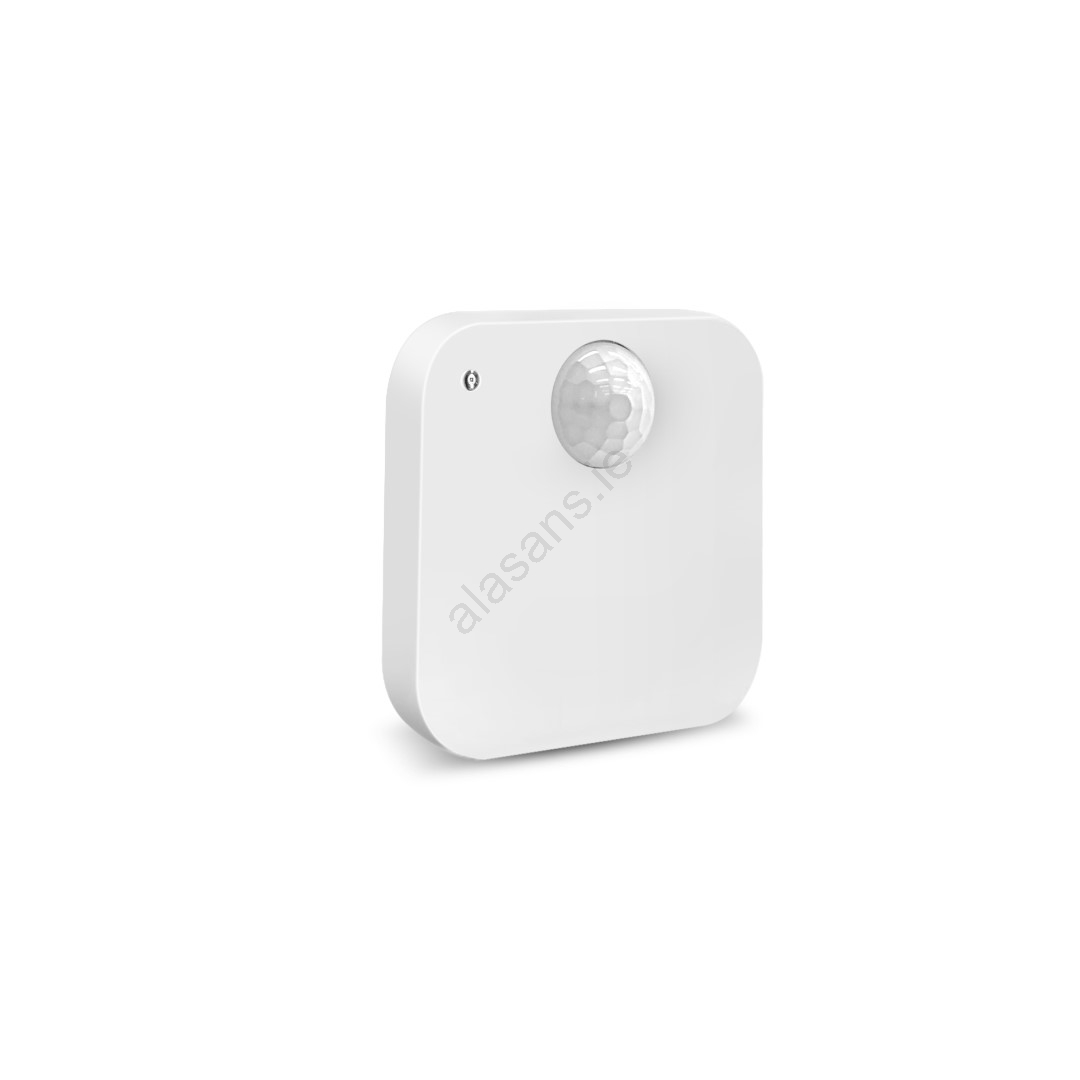

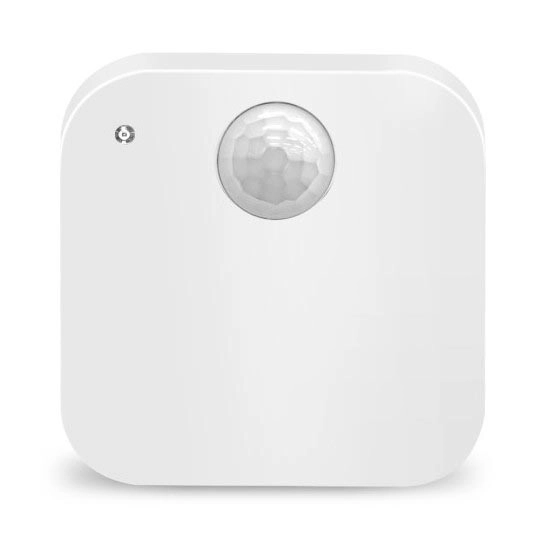

  • Immax NEO Smart 3in1 PIR, presence and lighting sensor, Zigbee 3.0 (Tuya) is a smart device that combines motion detection (PIR), occupancy monitoring, and light level measurement.

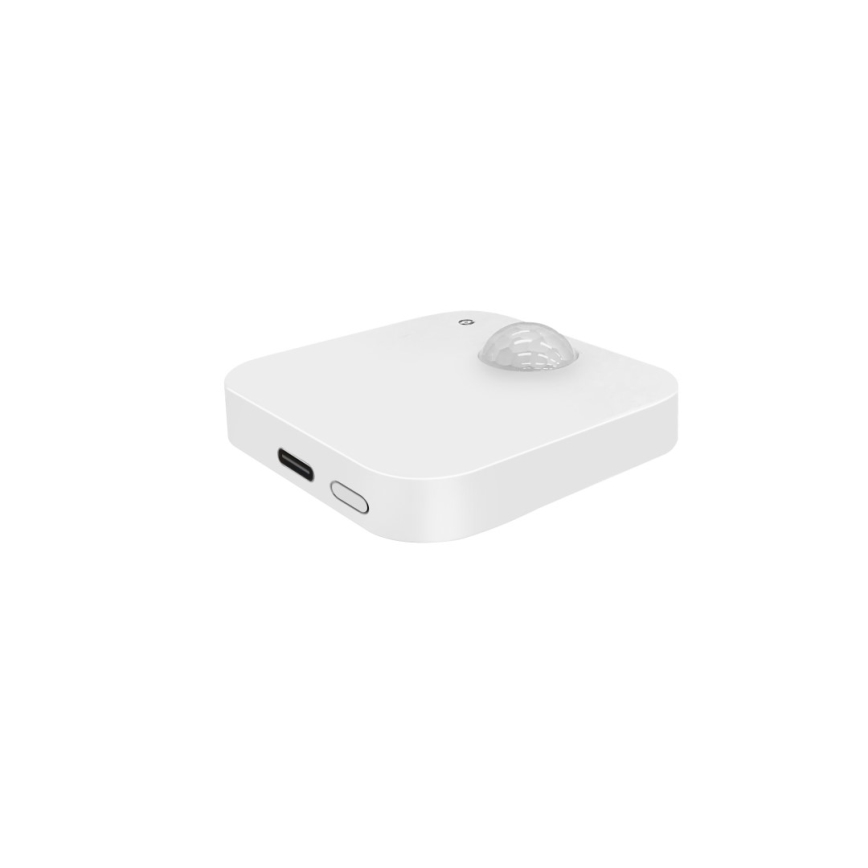

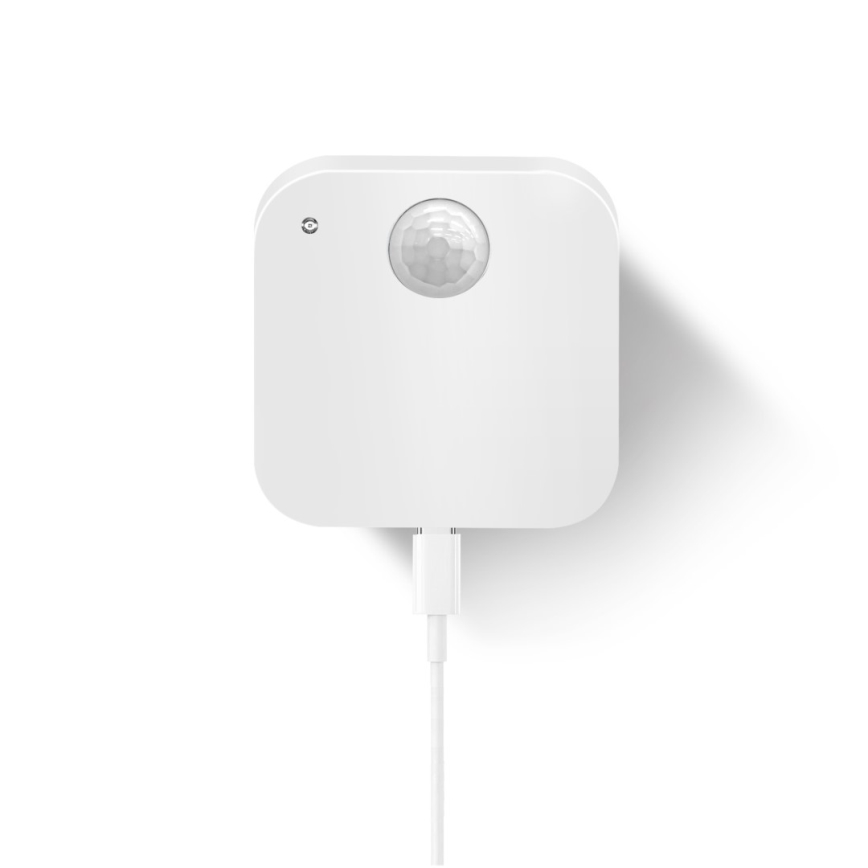

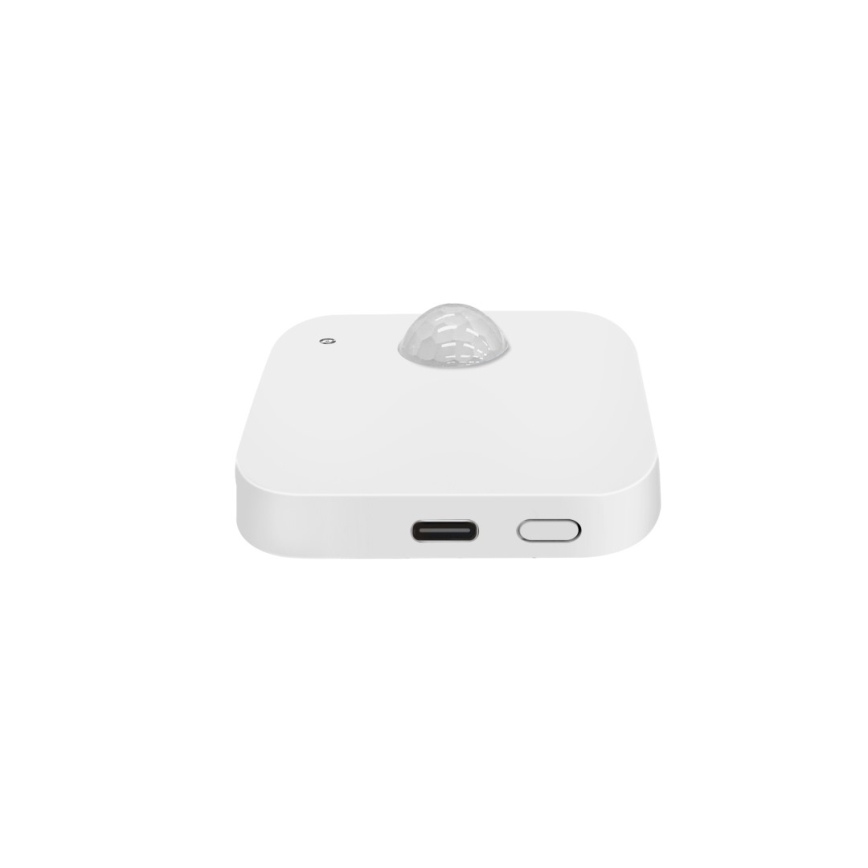

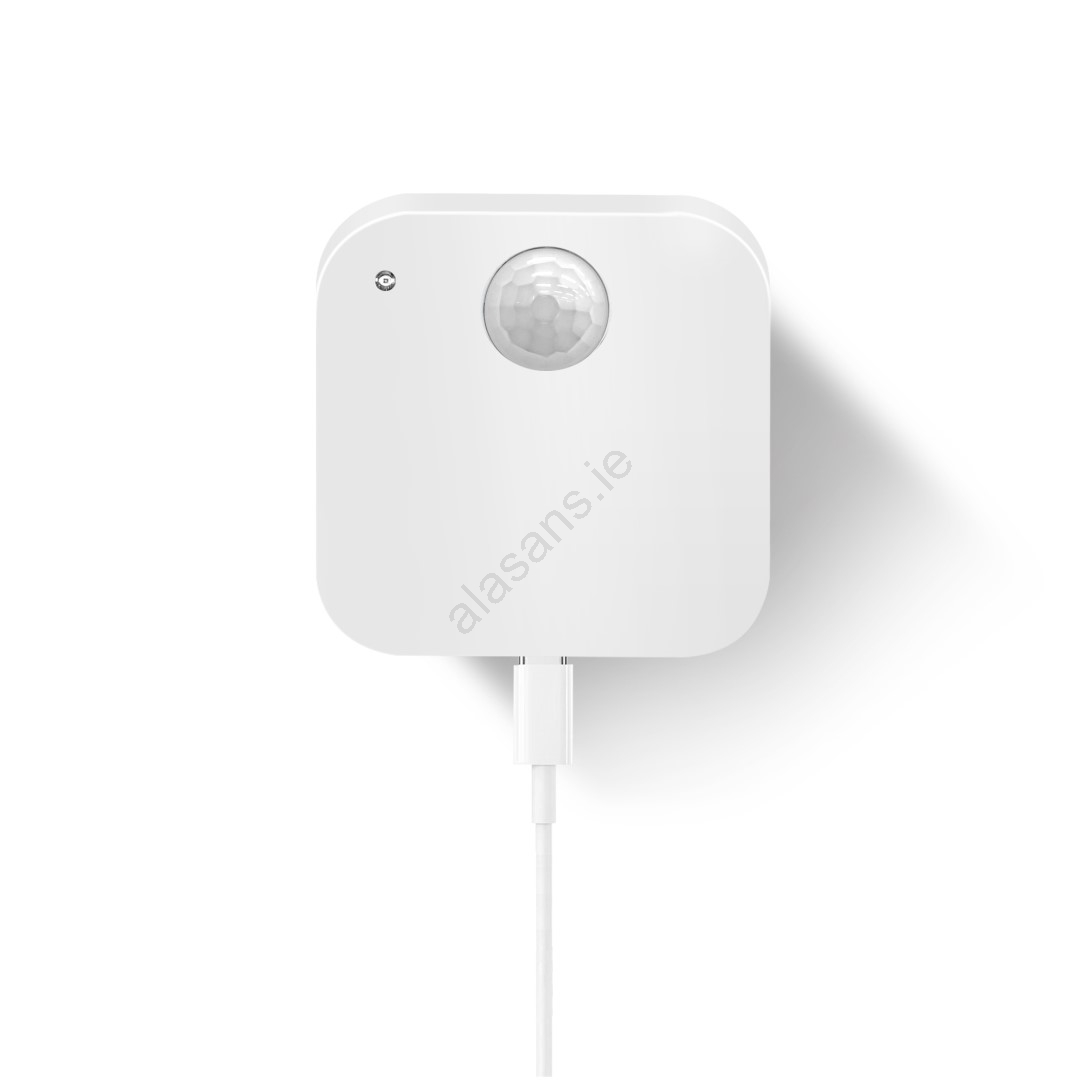

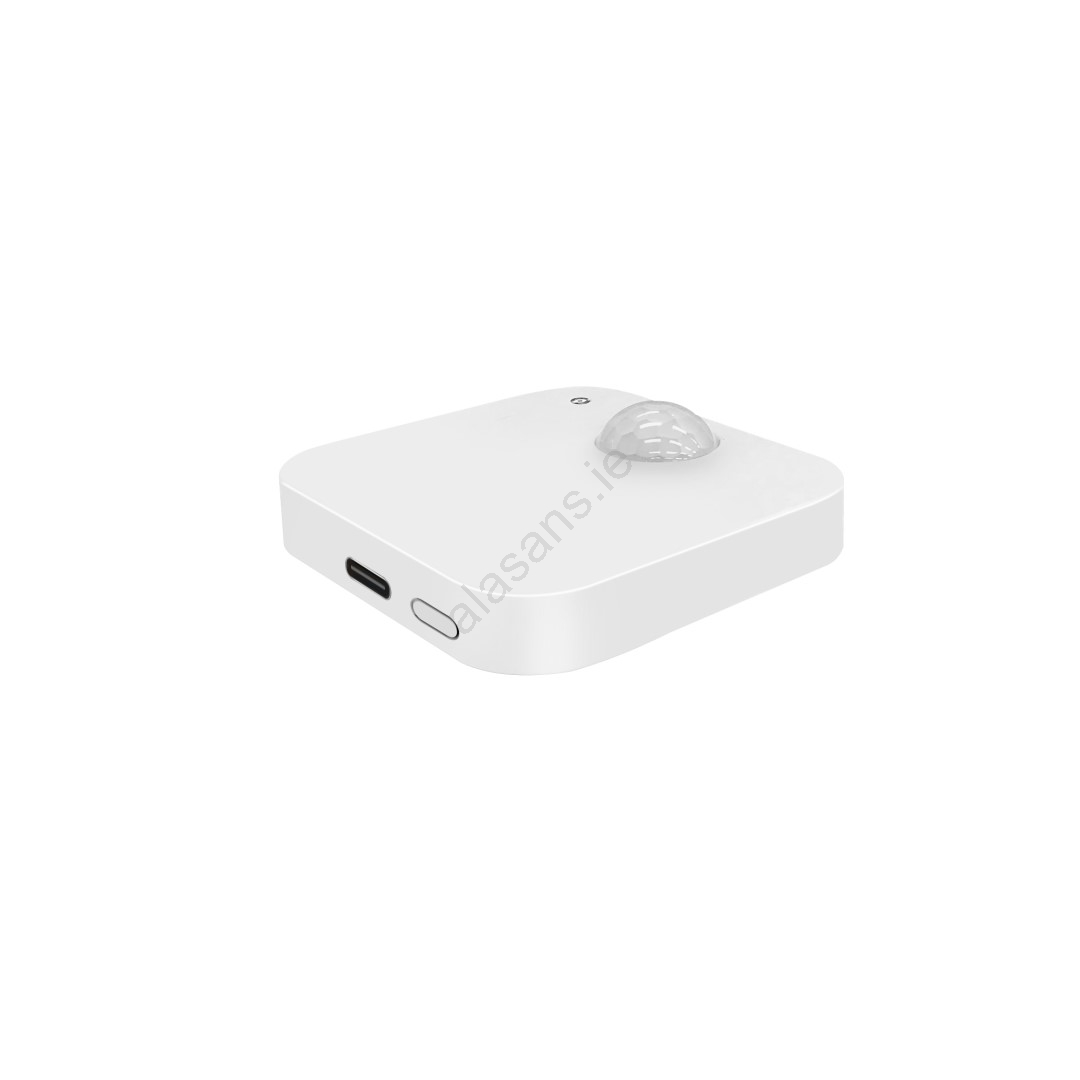

  • Power supply via USB-C connector.
  • PIR sensor (passive infrared) - detects motion based on thermal radiation, suitable for normal room entry detection.
  • Presence sensor (mmWave, microwave radar) - detects small movements (e.g., breathing or small hand movements), allowing reliable detection even when sitting or lying still.
  • Light sensor - measures the ambient light level and allows automation according to the light intensity.
  • Supports automation such as: switching on lights when motion is detected.
  • Adjusting the brightness of the lighting according to the ambient light.
  • Safety modes (e.g., alarm on unexpected movement).
  • Thanks to Zigbee communication, it easily connects with Tuya smart home, Immax NEO PRO app in English and 60 other languages, compatible with iOS, Android, Apple Siri shortcuts, and further with TUYA, LIDL systems. Ideal for smart lights, alarms, or optimizing energy consumption.
  • When installing (the sensor can easily be glued anywhere), take care that the sensor must not come into direct contact with water.
  • Another important requirement is that the sensor is within range of the smart gate. ATTENTION - this is not a WiFi sensor, it requires an Immax NEO SMART BRIDGE PRO, or another hub/bridge/gateway on the Tuya platform that communicates using the ZigBee 3.0 standard.
  • The system is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, TUYA, and Lidl.
  • Technical specifications:
  • Communication protocol Zigbee: 3.0.
  • Frequency: 2400MHz - 2483.5MHz, IEEE802.15.4.
  • Maximum RF output power: ZigBee: 10 dBm.
  • Wireless range: 30m line of sight, 10m in a built-up area.
  • PIR (Passive Infrared Sensor) detection technology.
  • Detection angle: 120°.
  • Detection technology: 24GHz-24.25GHz radar.
  • Maximum RF output power: radar: 10 dBm.
  • Detection range: 6m (adjustable).
  • Light detection range: 0 - 1000 lux.
  • Power supply: USB-C 5V 1A (adapter not included).
  • Operating temperature: -10°C to +50°C.
  • Operating humidity: maximum 95%.
  • Degree of protection: IP20.

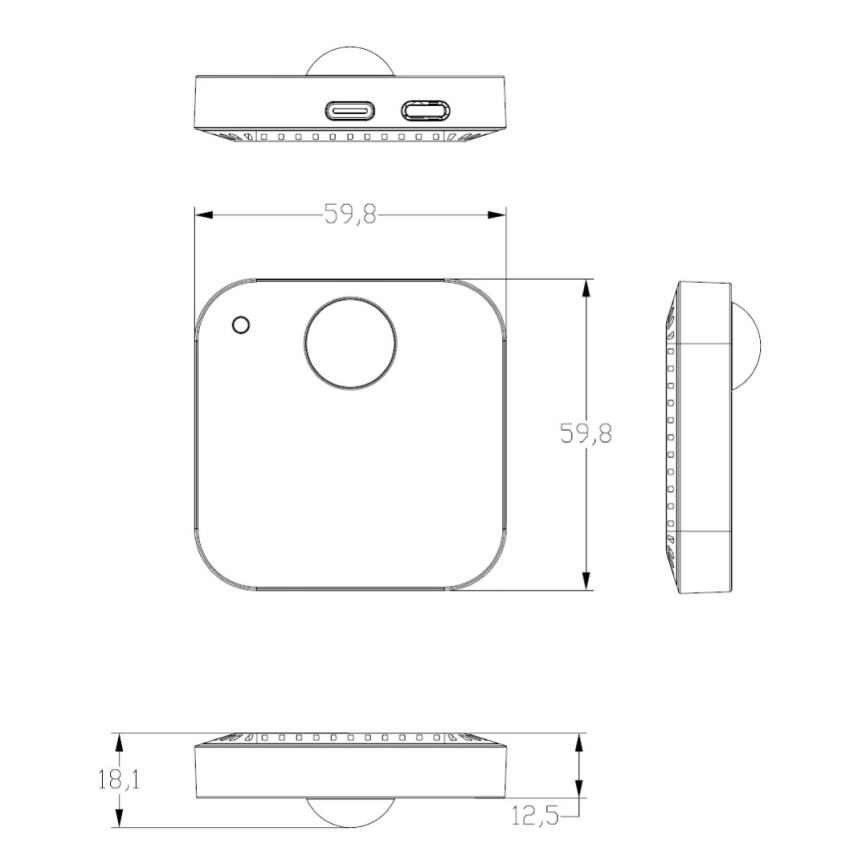

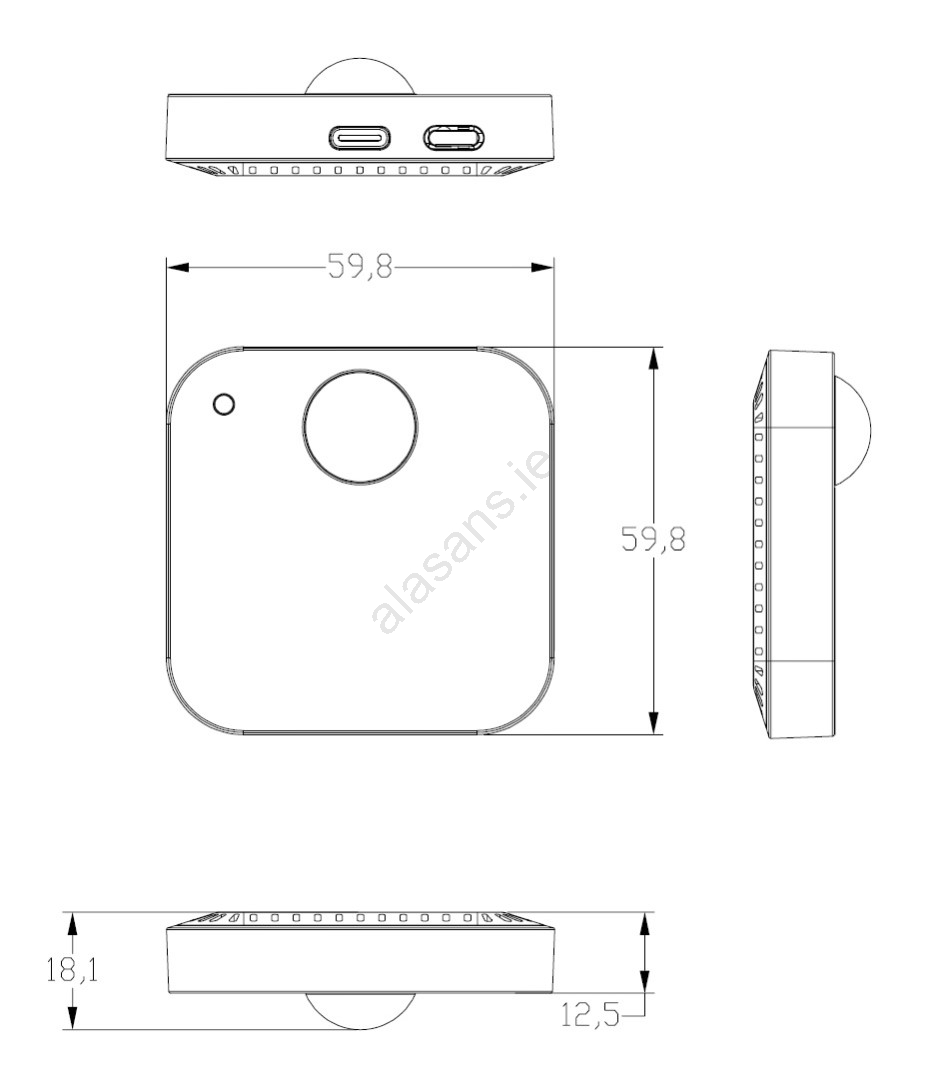

  • Certificates: CE Sensor dimensions: 59.8x59.8x12.5mm.
  • Package contents: 3in1 sensor, USB-C cable, user manual.

  Brand:

  Immax Neo



  This product is listed in the following categories

  Brands, Electrical equipment, Electrical installation, Immax Neo, Immax NEO, Interior lighting, Lights, Lights with sensor, Motion sensors, Motion sensors, Other, Other, Sensors, Sensors, Sensors and detectors, Smart electrical equipment, Smart lighting, Tuya Smart Home, ZigBee

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: IM1422
