• Product description

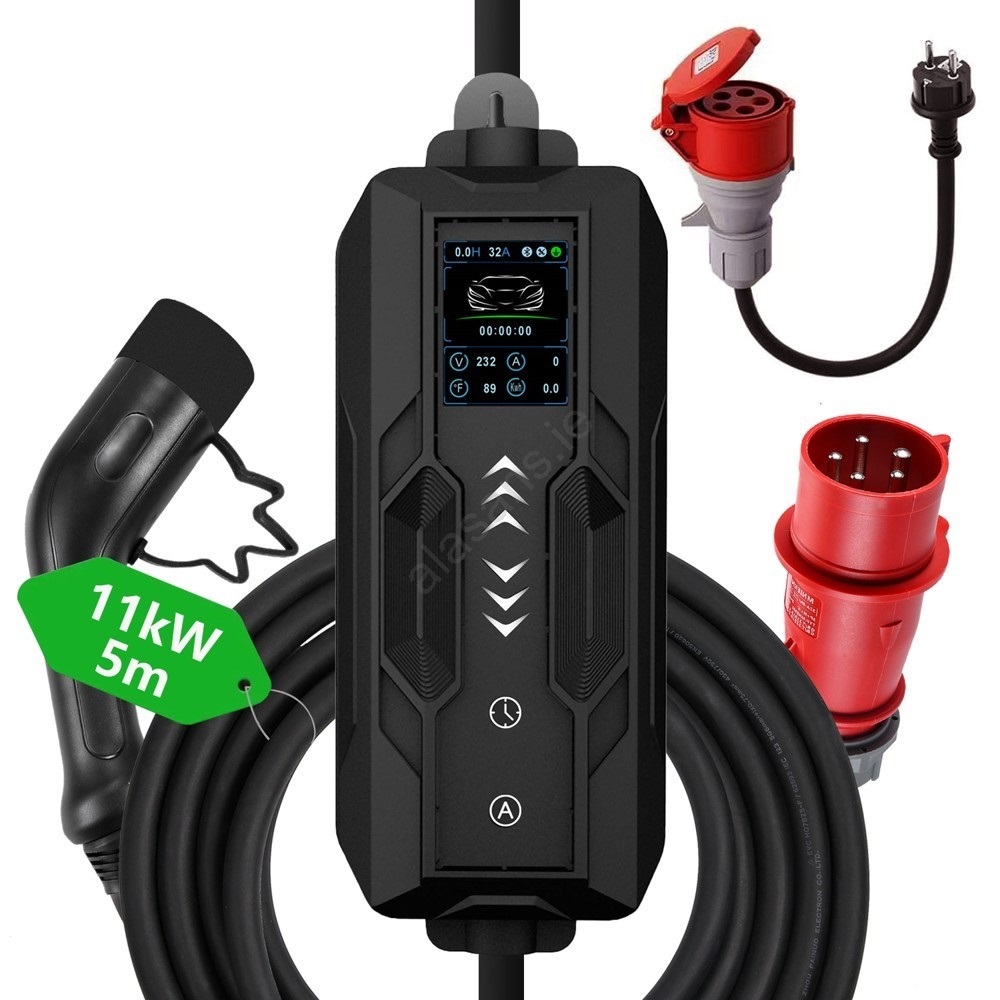

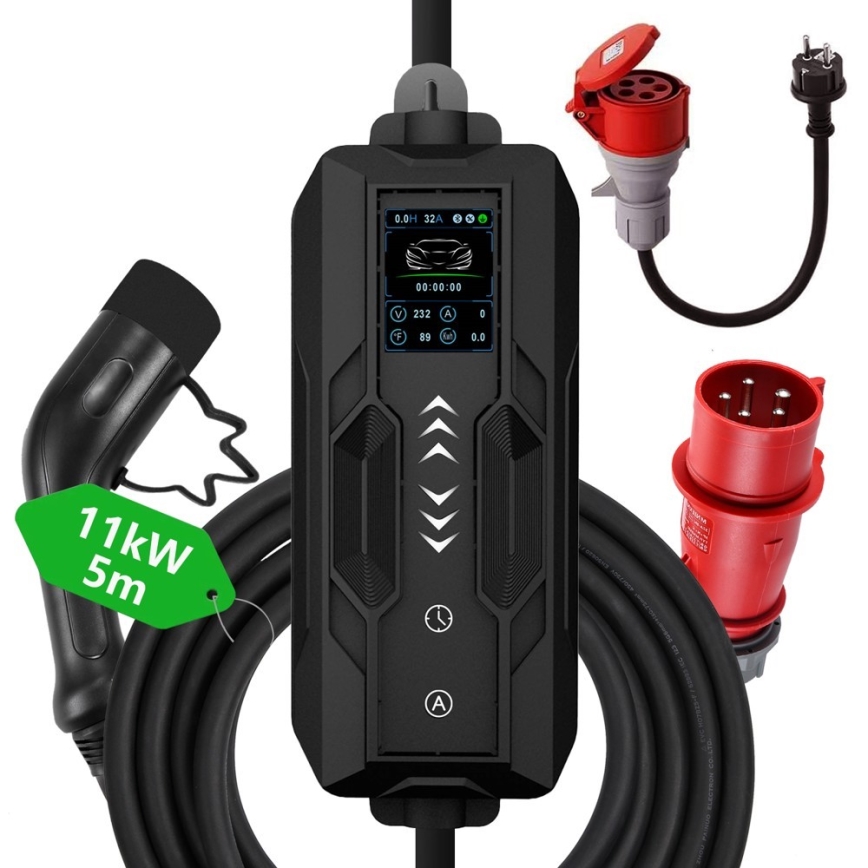

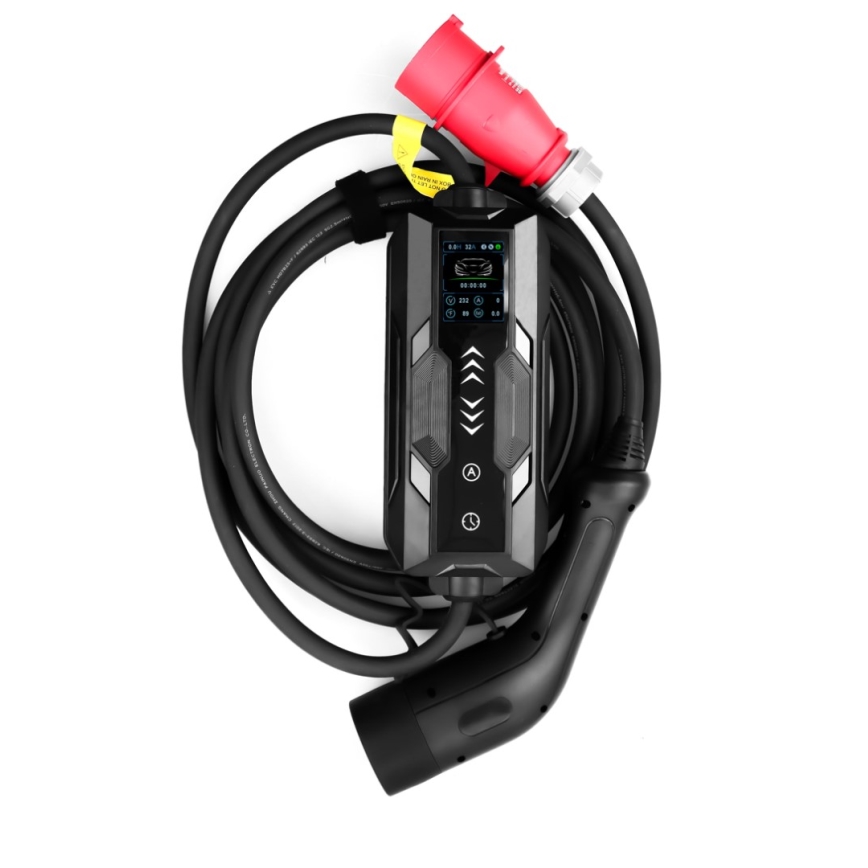

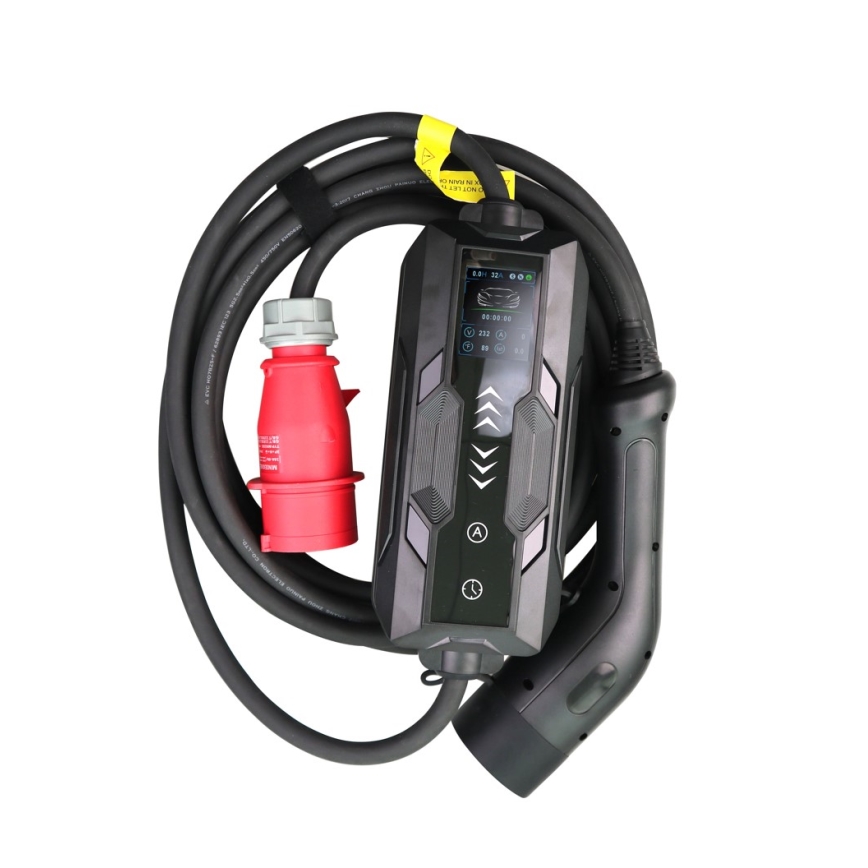

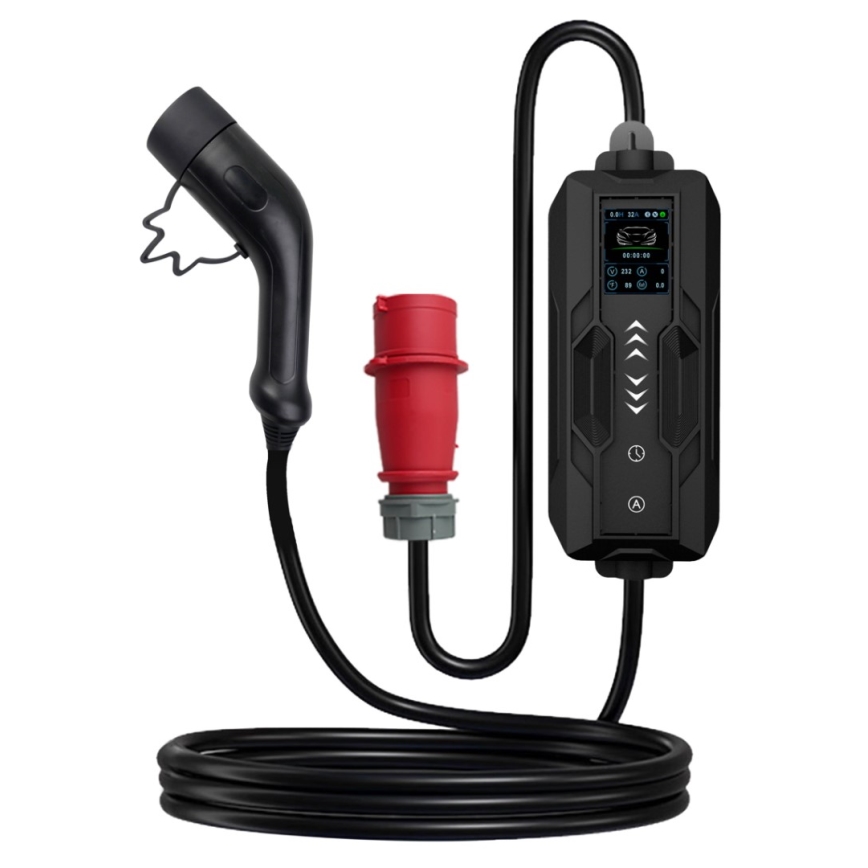

  • Travel charging station for EV/PHEV with Plug & Play functionality and a power output of 11 kW offers maximum convenience and simplicity when charging your electric vehicle.
  • With the innovative Plug & Play feature, you can easily connect and use this charging station without complicated configuration.
  • The Plug & Play feature is one of the many advantages of the charger - vehicle charging starts automatically once the charger is connected to the vehicle.

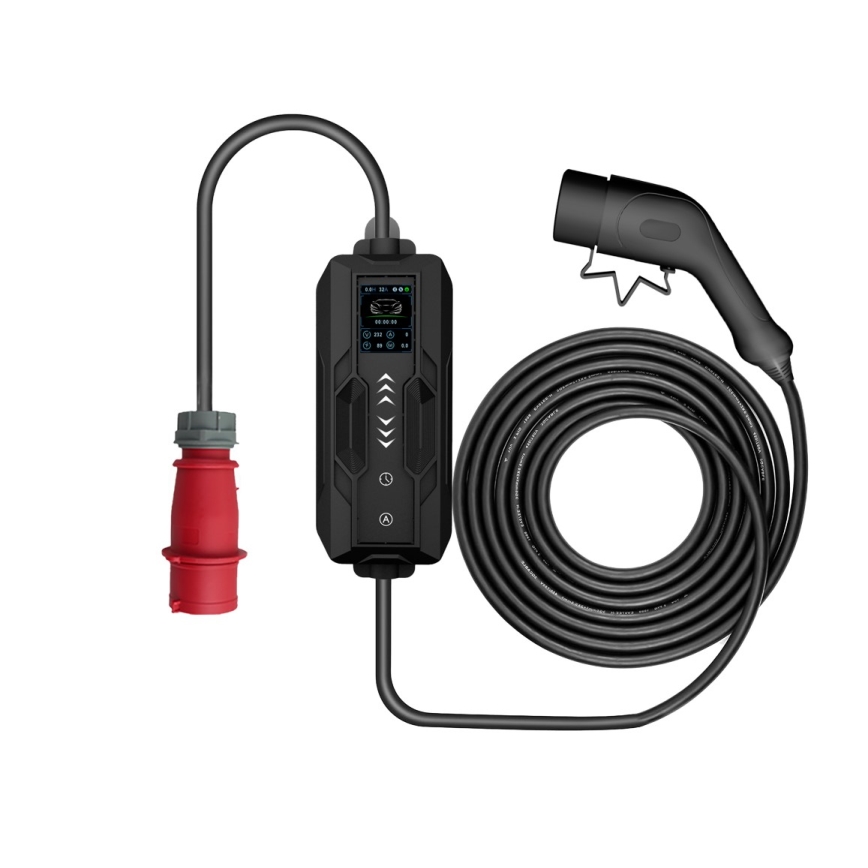

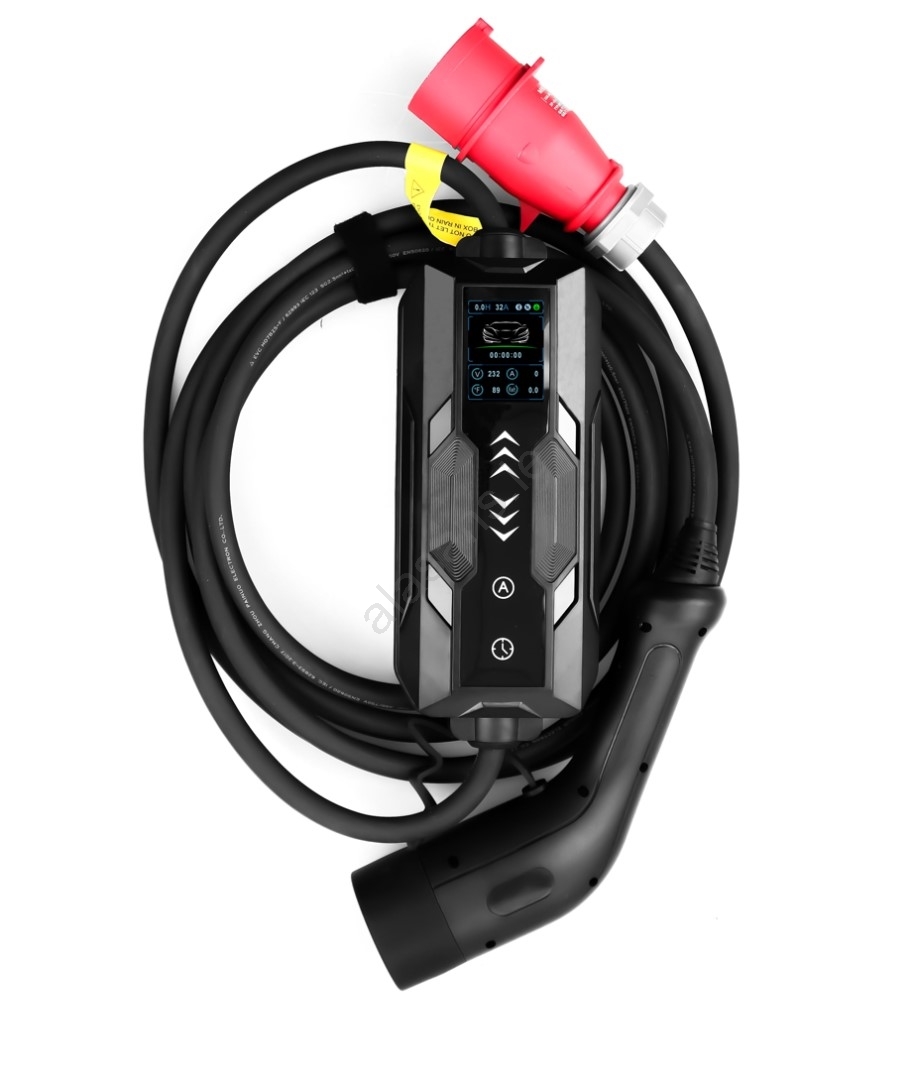

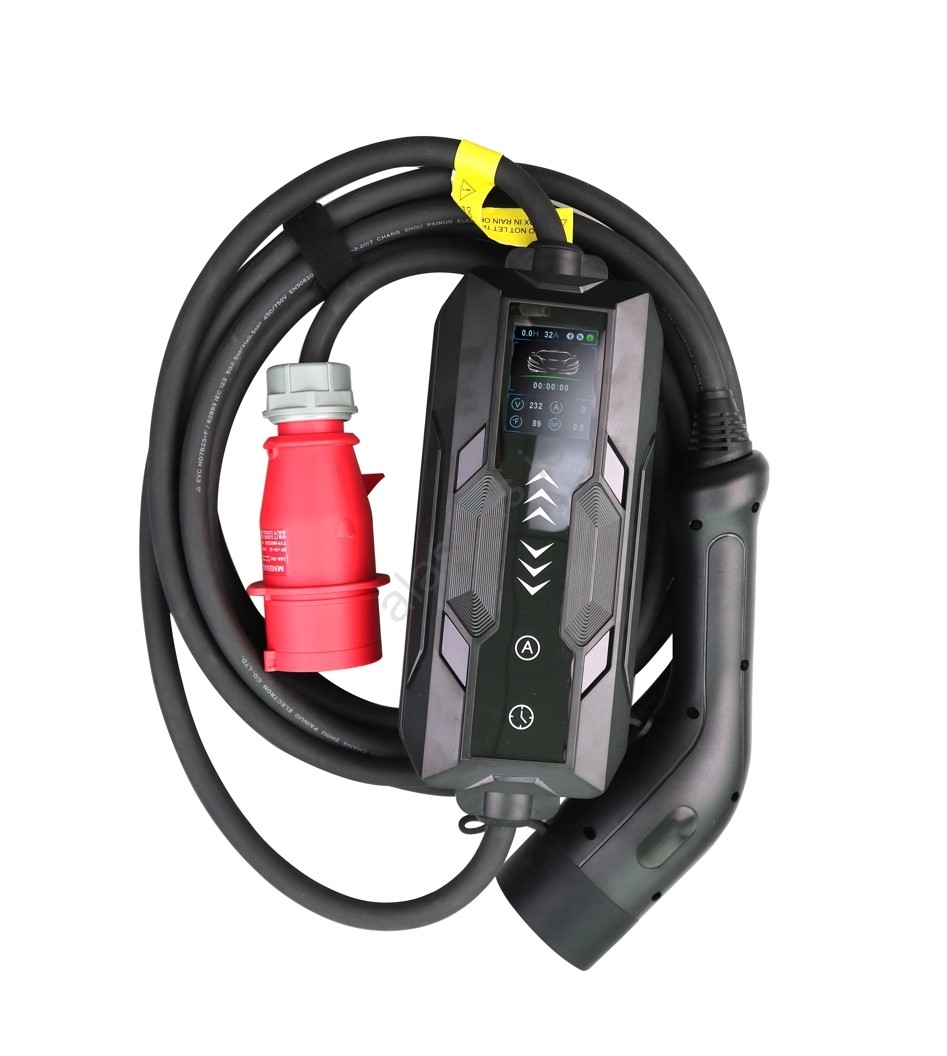

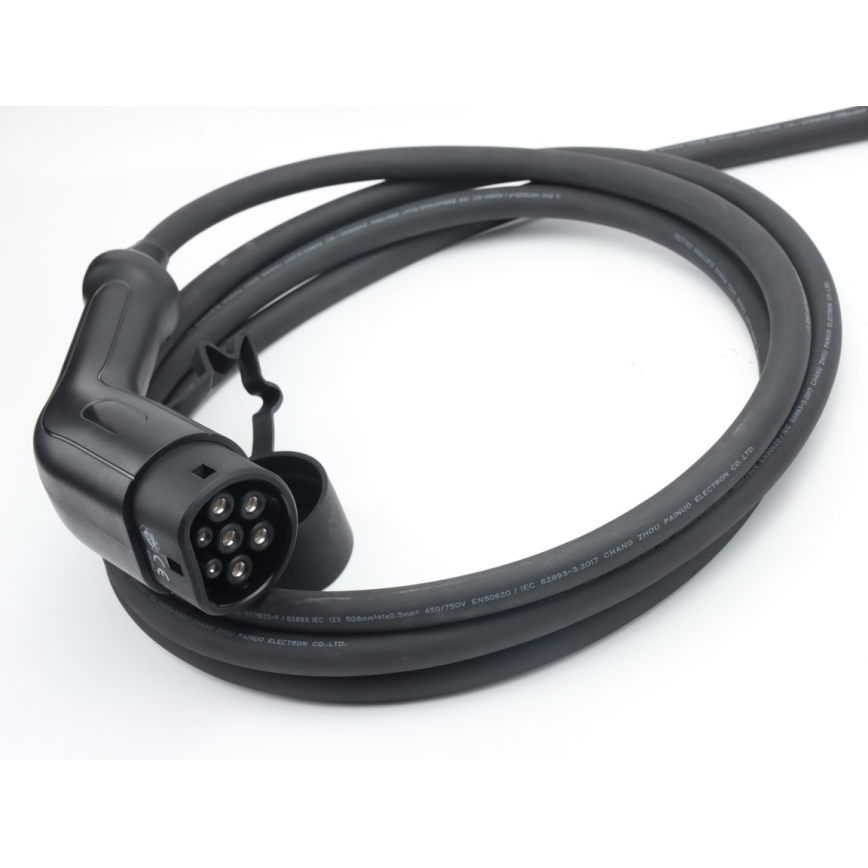

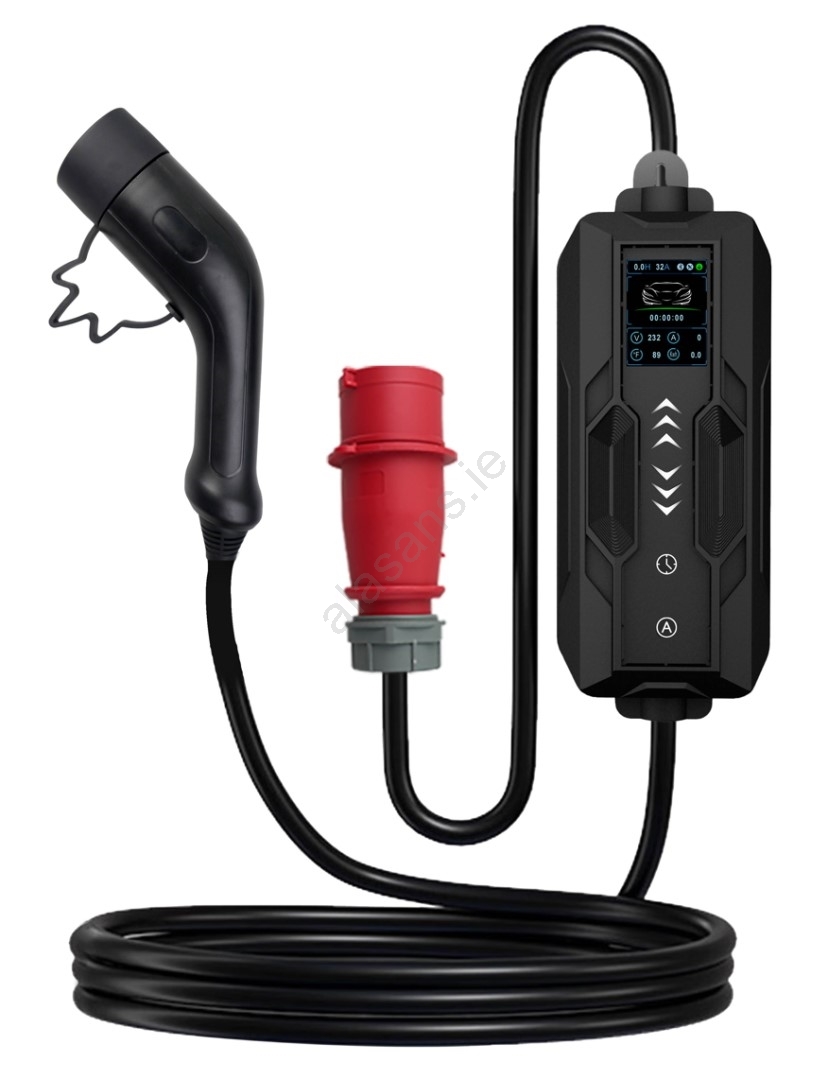

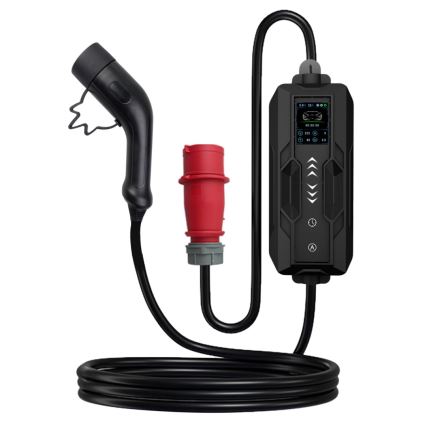

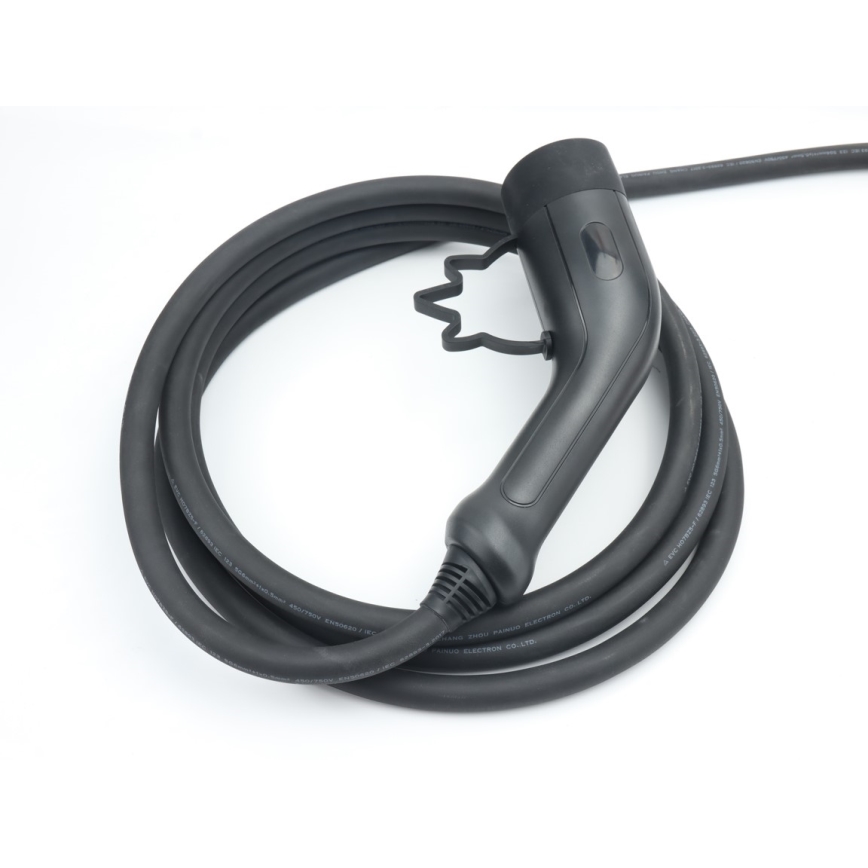

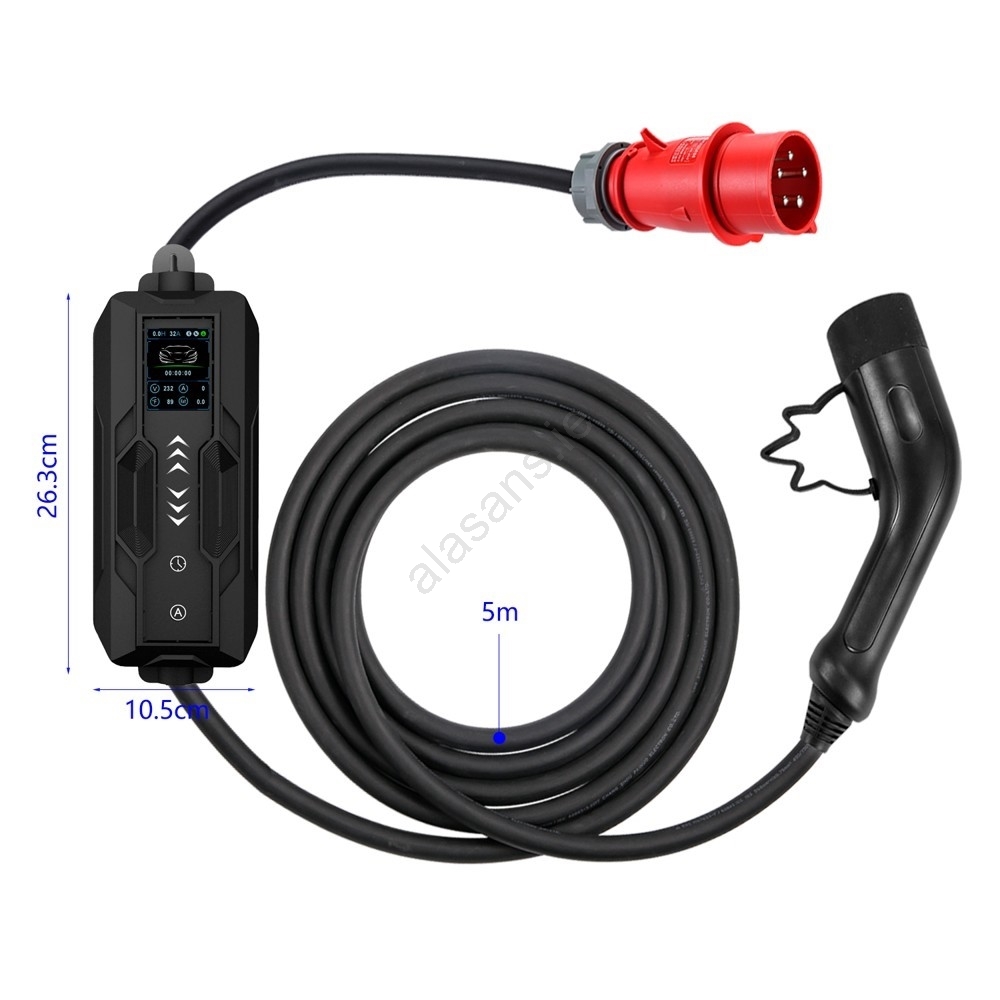

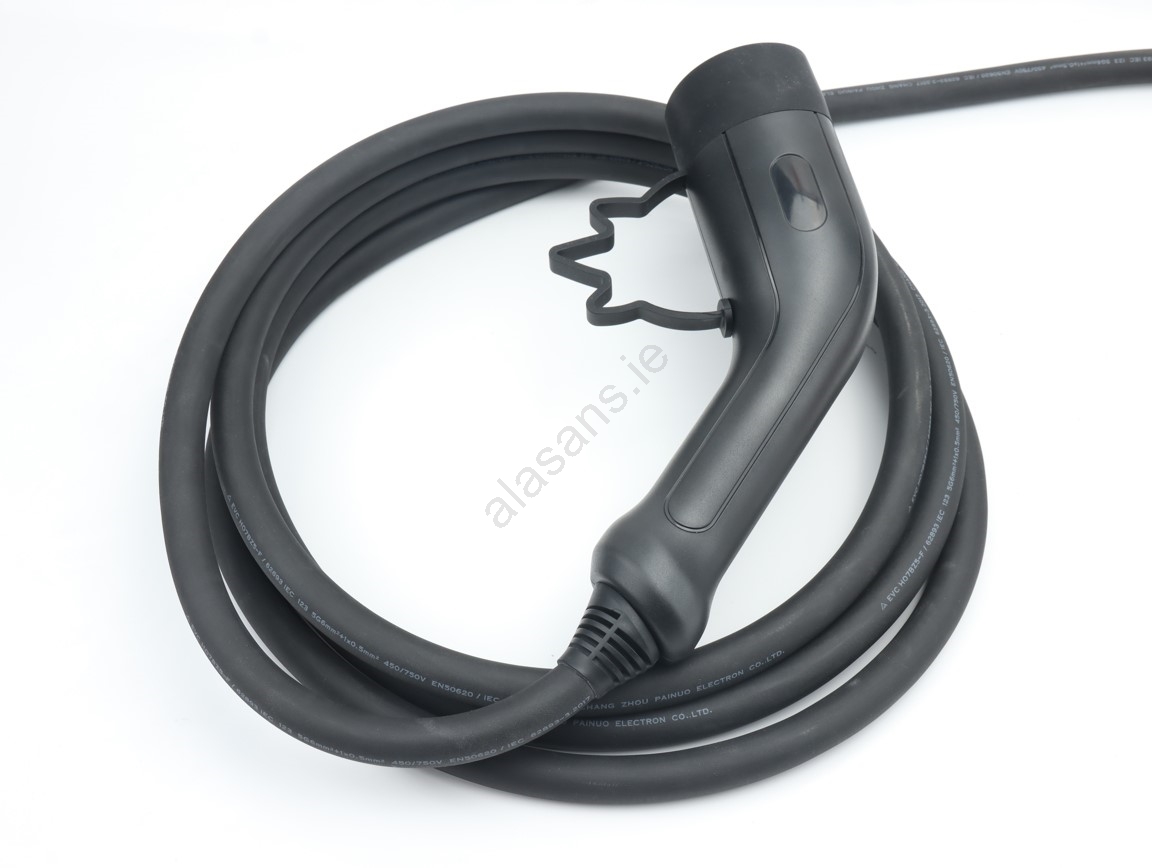

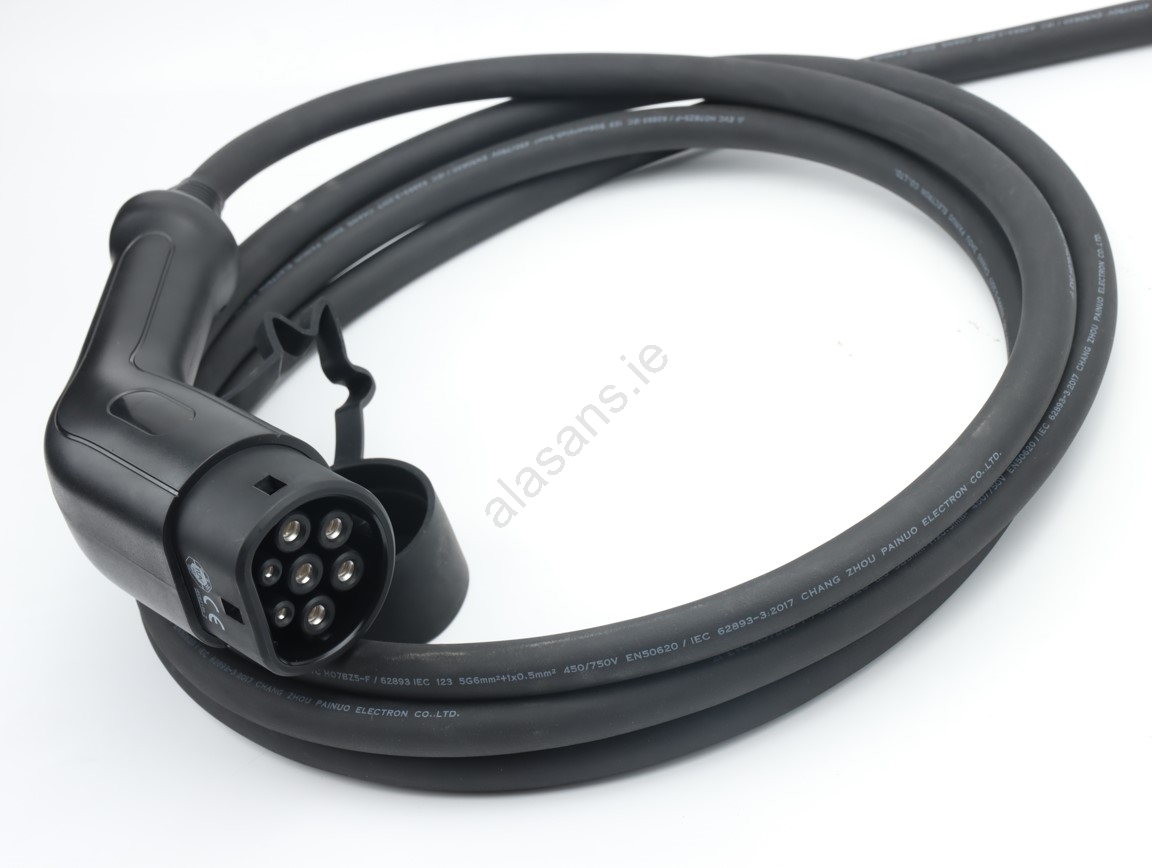

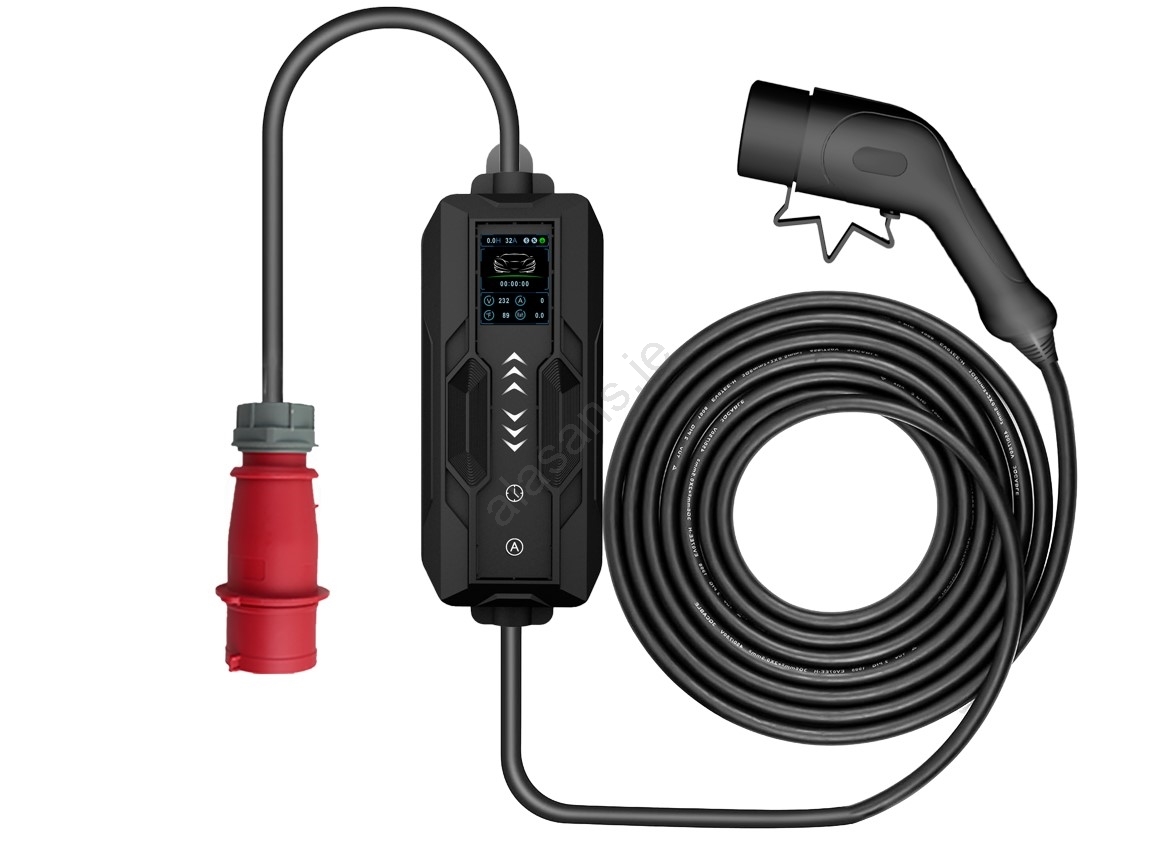

  • This charging station is equipped with a cable that has a CEE connector on one end and a TYPE-2 plug on the other, allowing compatibility with a wide range of electric vehicles and plug-in hybrids.
  • With a power output of 11 kW, it is ideal for fast and efficient charging, whether you are on the road, at home, or in a shopping parking lot.

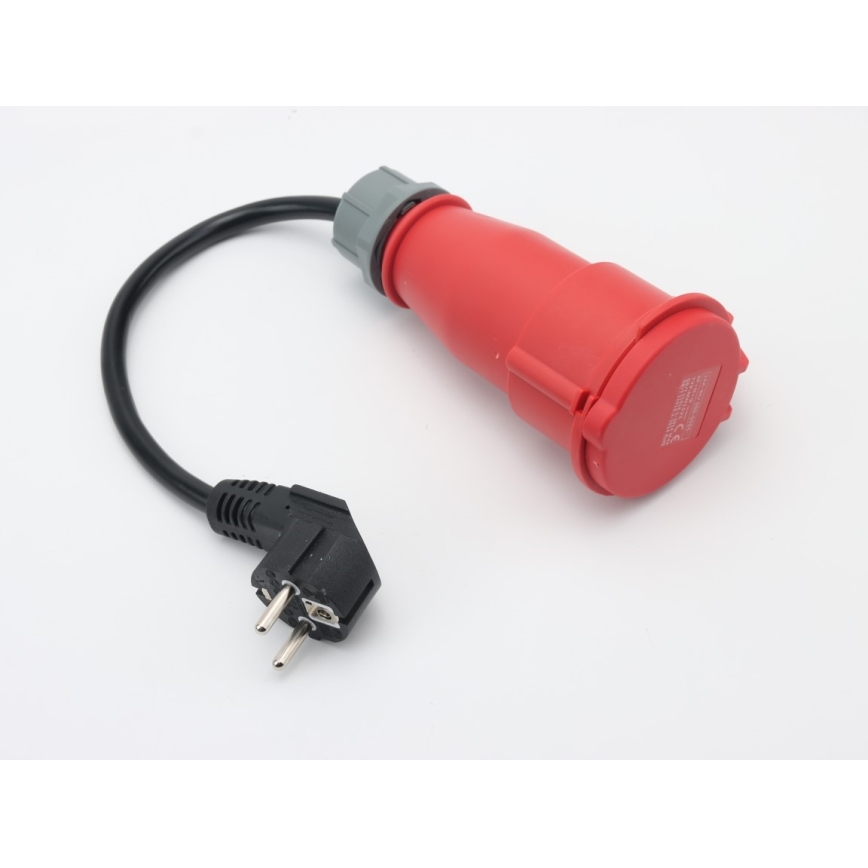

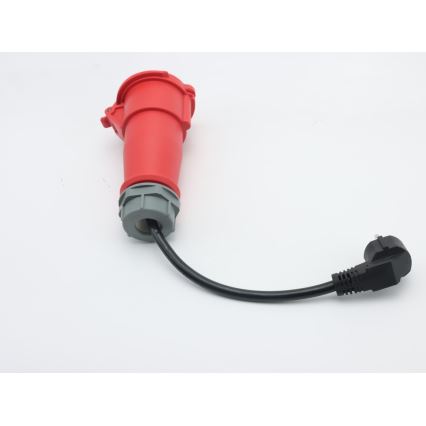

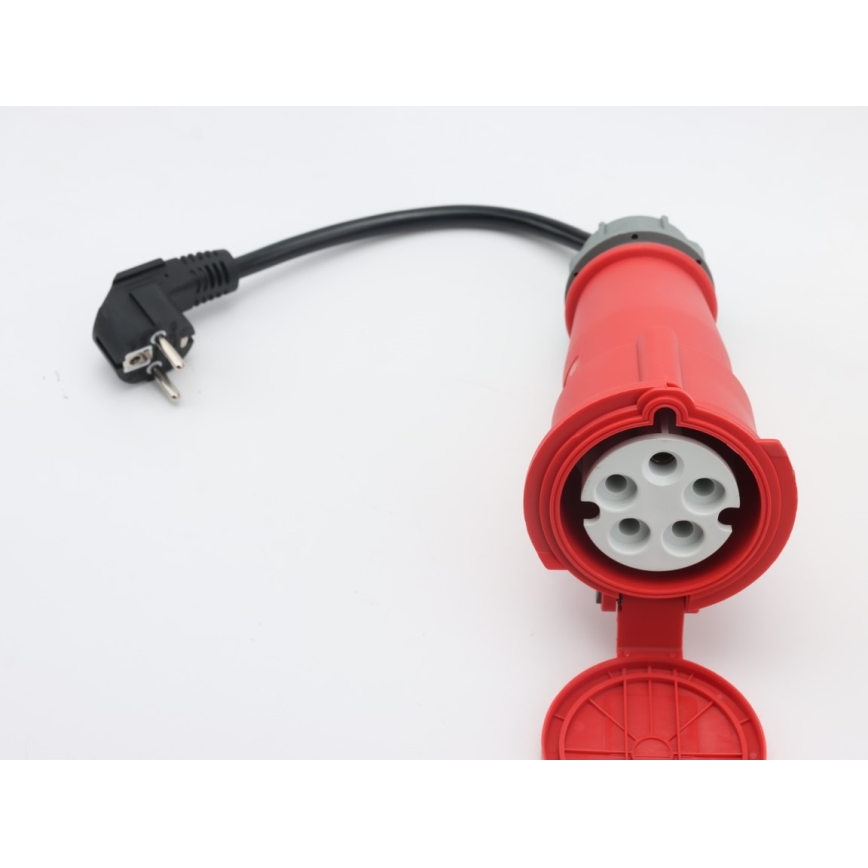

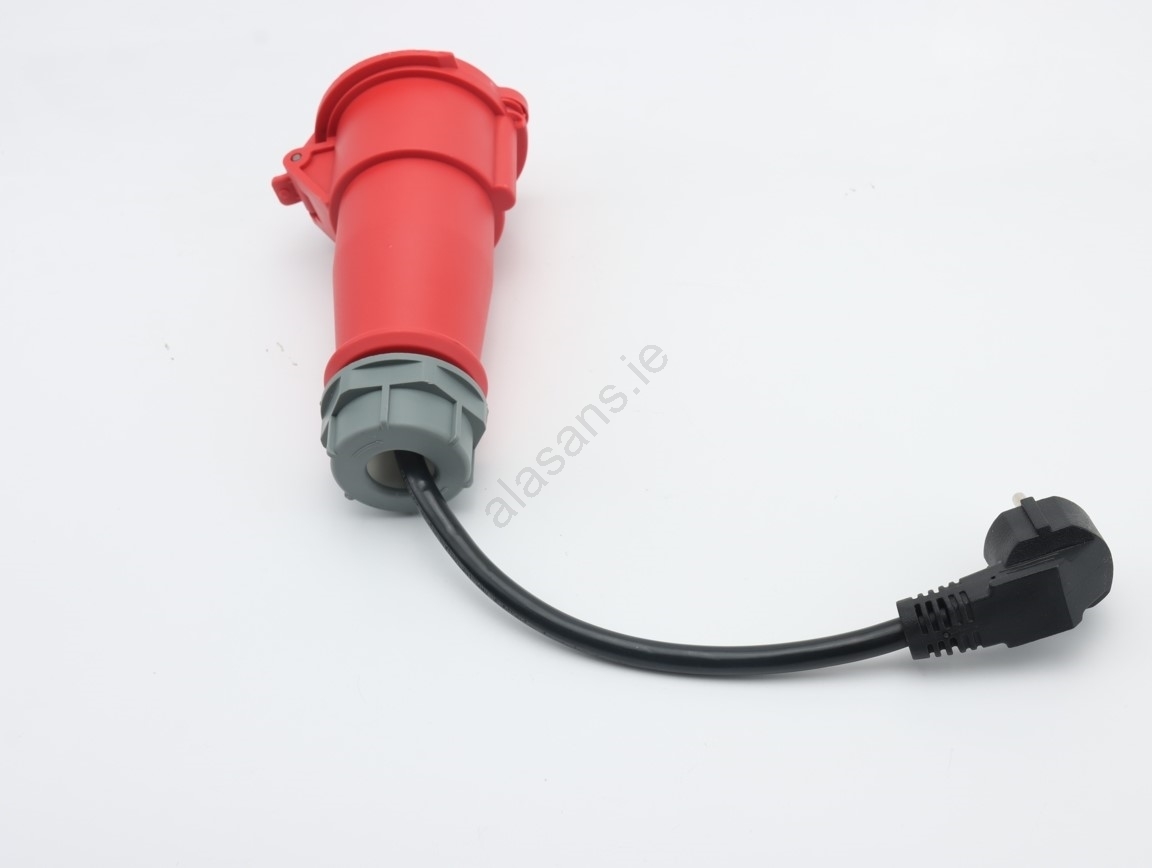

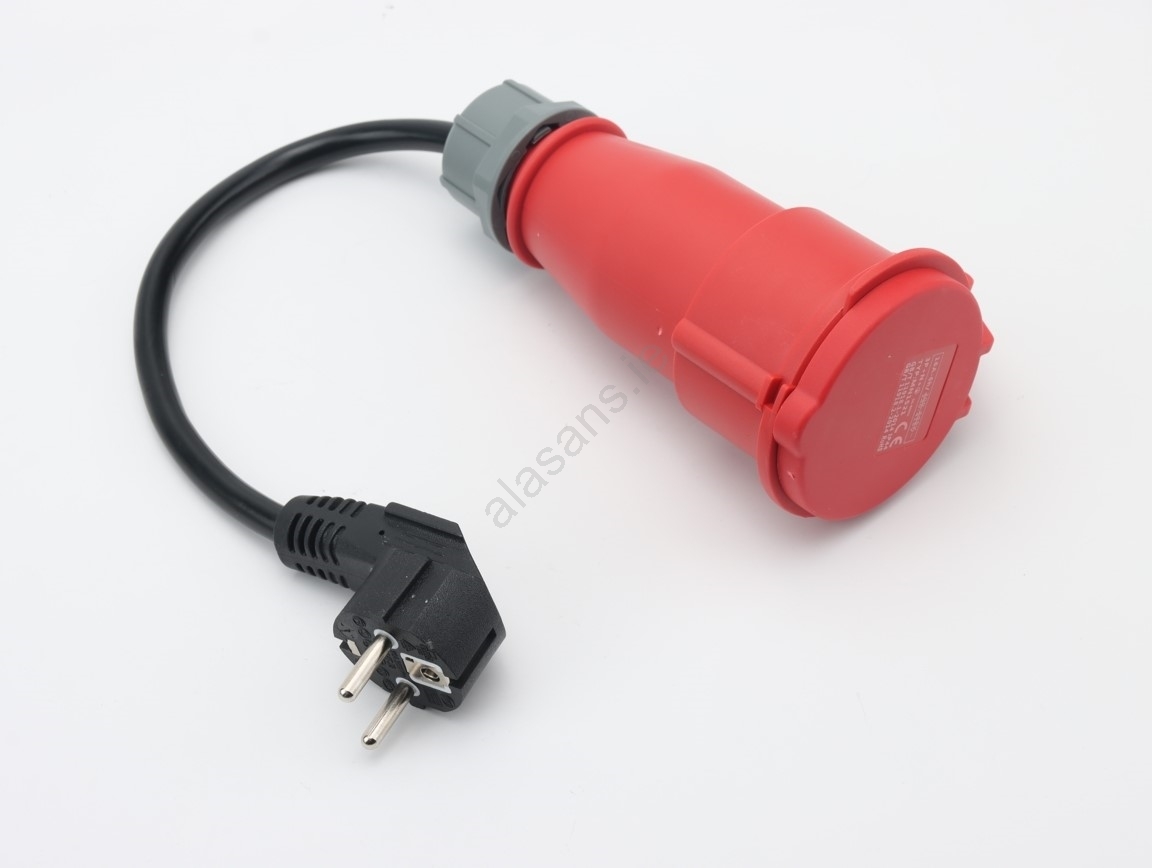

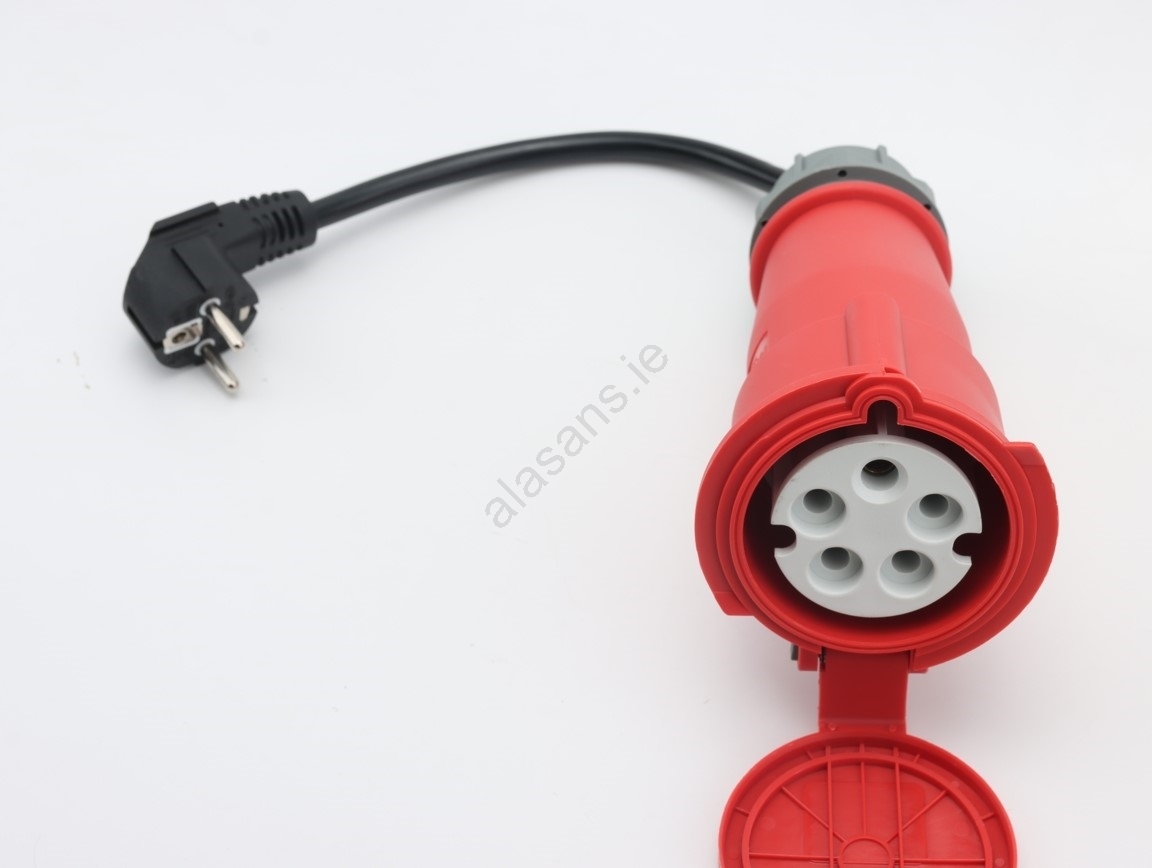

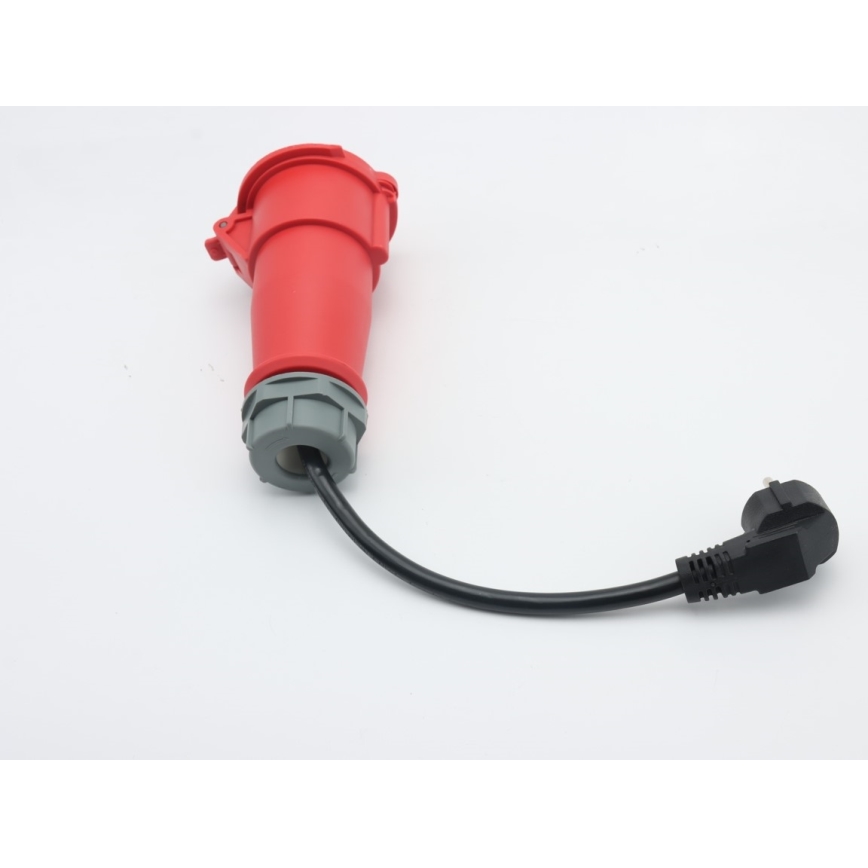

  • Included in the package is a CEE to standard Schuko plug adapter for easy connection to a regular electrical outlet.
  • Its compact design and intelligent technology ensure reliable operation and safe charging.
  • With this device, you gain flexibility and convenience when charging your electric vehicle anytime and anywhere.
  • Delayed charging feature:
  • Cost savings: Charge during off-peak hours (e.g., at night) and save money.
  • Readiness: The car is charged and ready to drive at your chosen time.
  • Lower network load: Charging during off-peak hours supports more efficient energy use.
  • After charging, the charger automatically turns off.
  • Technical specifications:

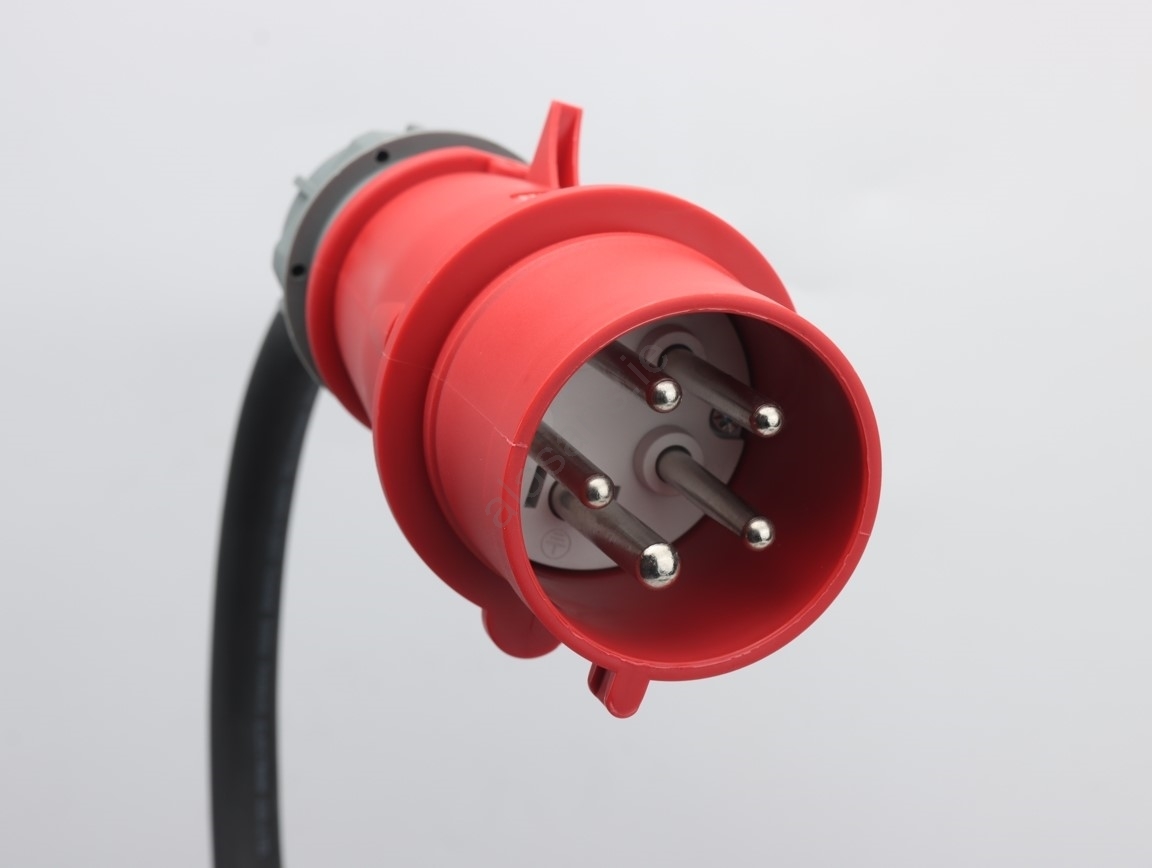

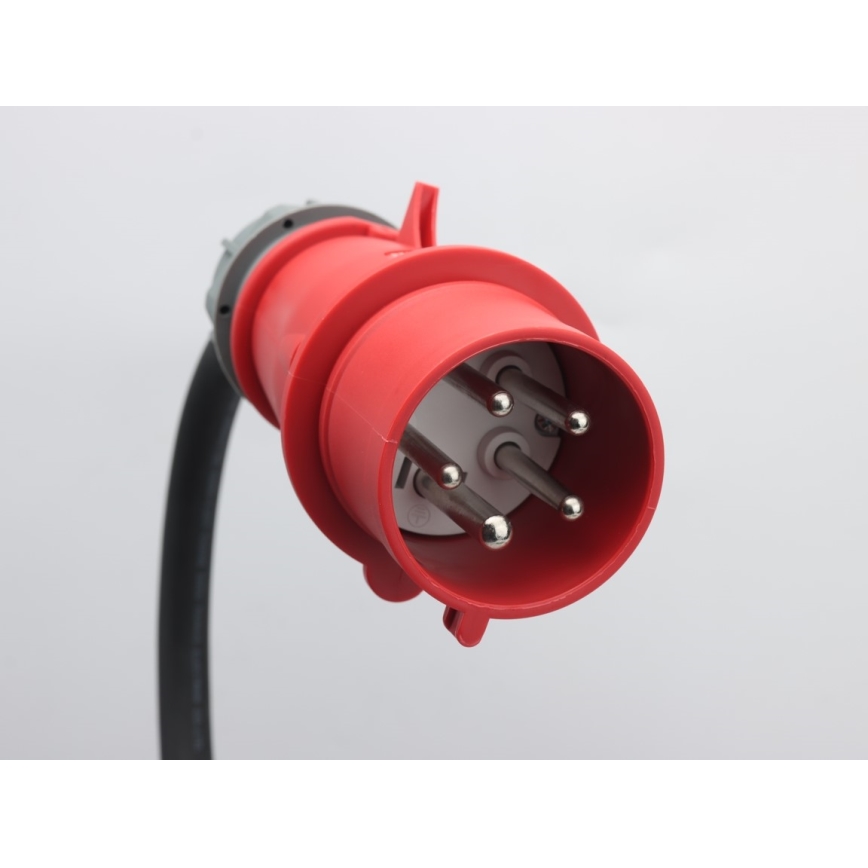

  • European standard plug (CEE red) 3 phase.
  • CEE to Shuko adapter 1 phase.

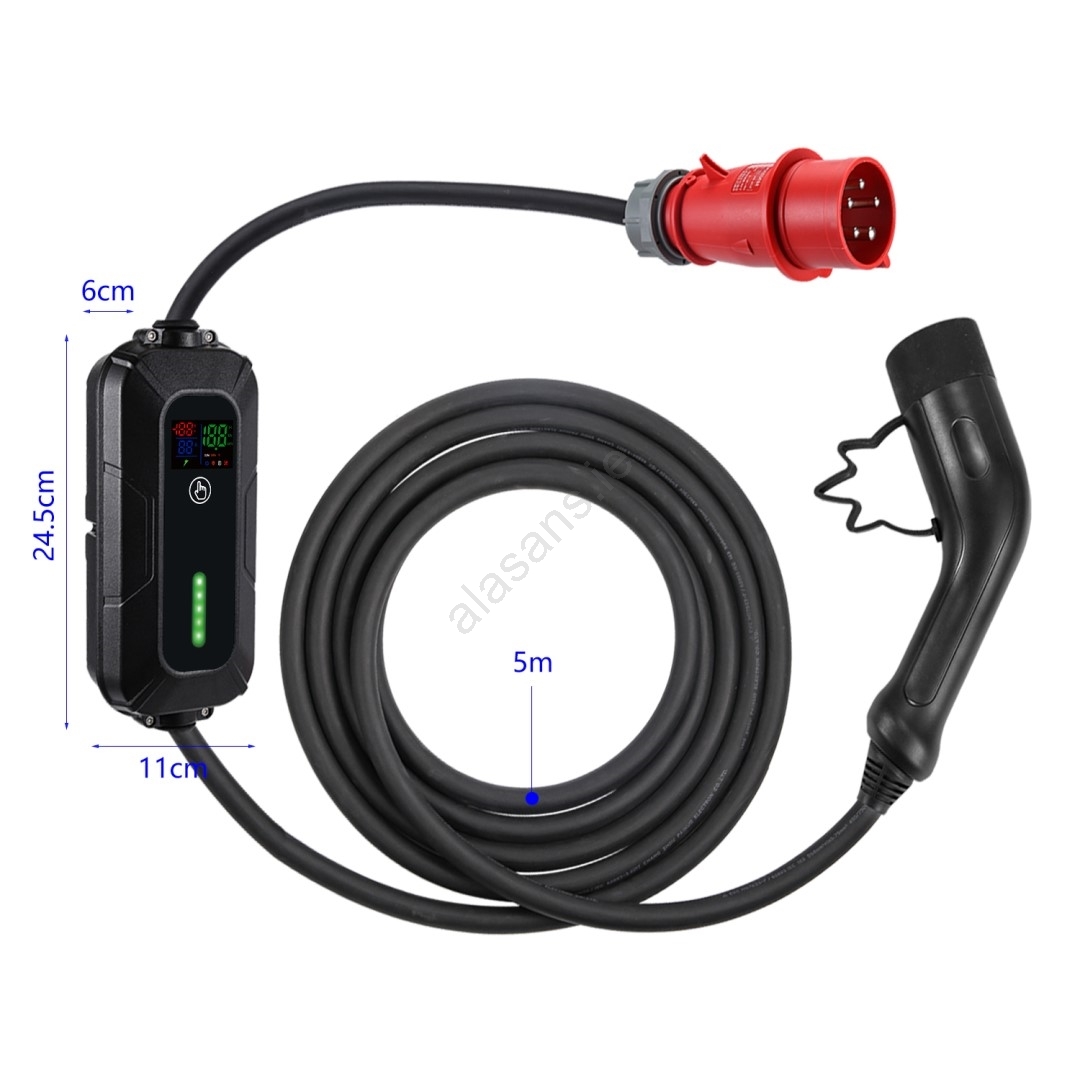

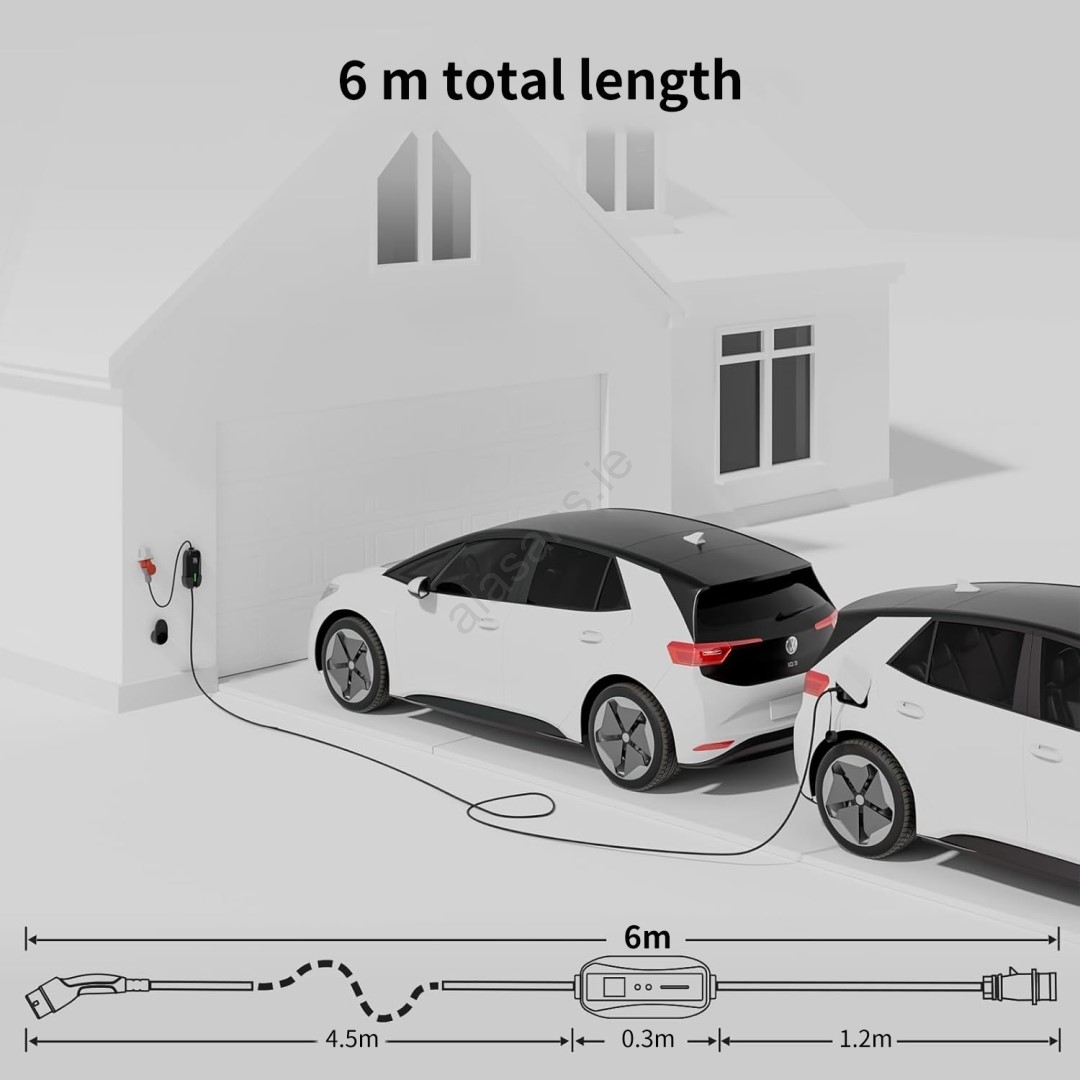

  • Cable length: 5 meters.
  • Rated input voltage: 85-380 V AC.
  • Rated output voltage: 85-380 V AC.
  • Rated current: standard 16 A, adjustable 8/10/13/16 A.
  • Rated power: Fast charging: up to 11 kW.
  • Residual current protection: Type A+DC 6mA (30mA AC RCD + 6mA DC RCD).
  • Insulation resistance of the cable: >1000MG (DC500V).
  • Contact resistance: 0.5mG MAX.
  • Fire resistance of the housing: UL94V-0.
  • Cable bundle size: 3x6 mm² + 1x0.5 mm².

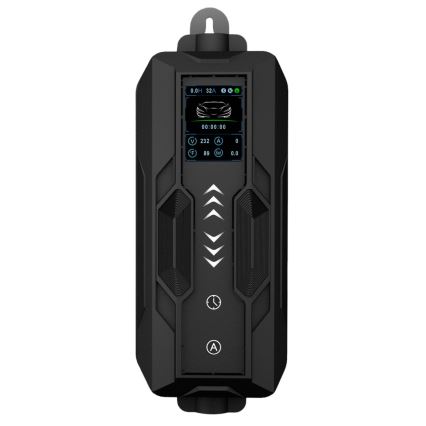

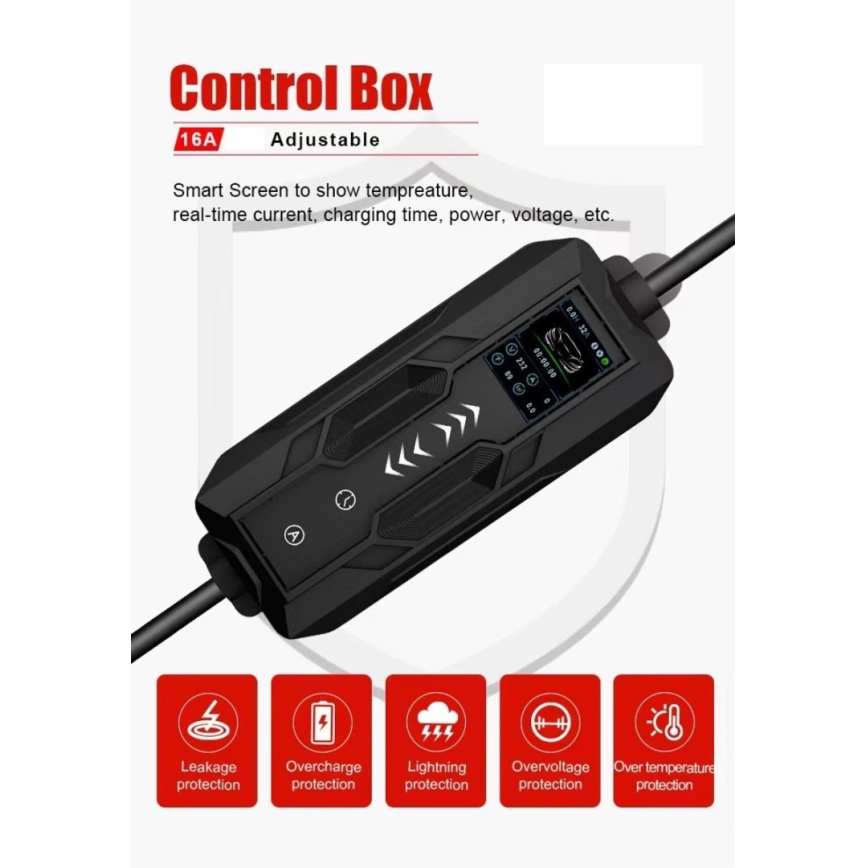

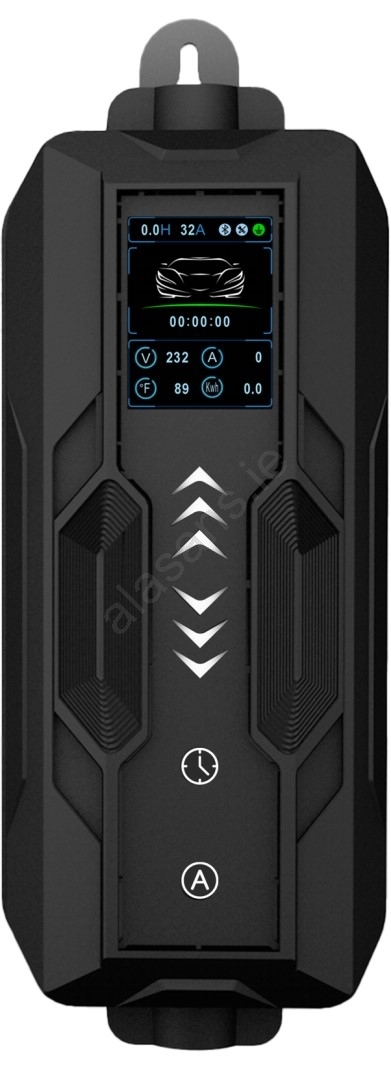

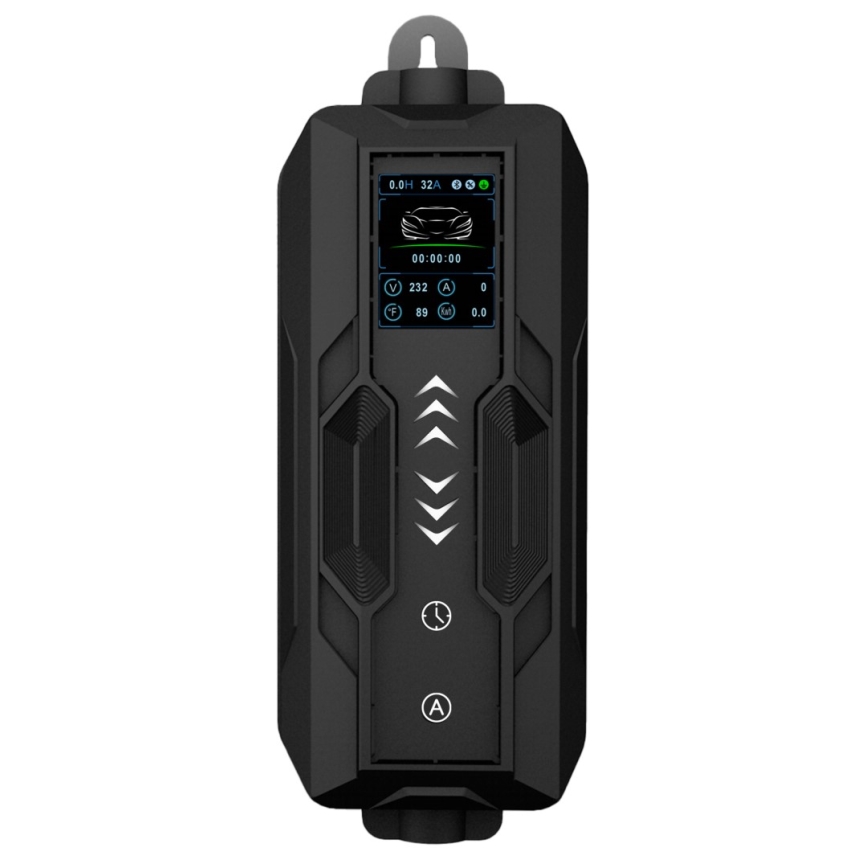

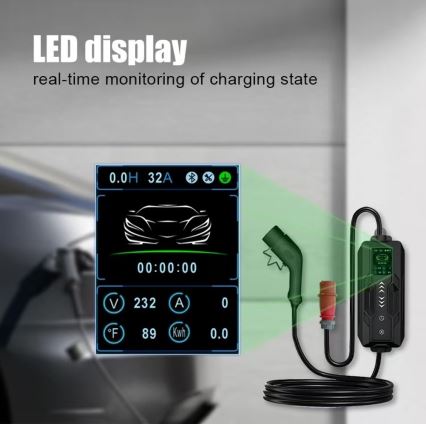

  • With LED display to show temperature, charging time, and actual current.
  • With leakage protection, overvoltage or undervoltage protection, overload protection (self-resetting), lightning protection, overheating protection.
  • Package contents: EV/PHEV AC Type 2 11 kW charging station, CEE to Shuko 1 phase adapter, user manual.
