• Product description

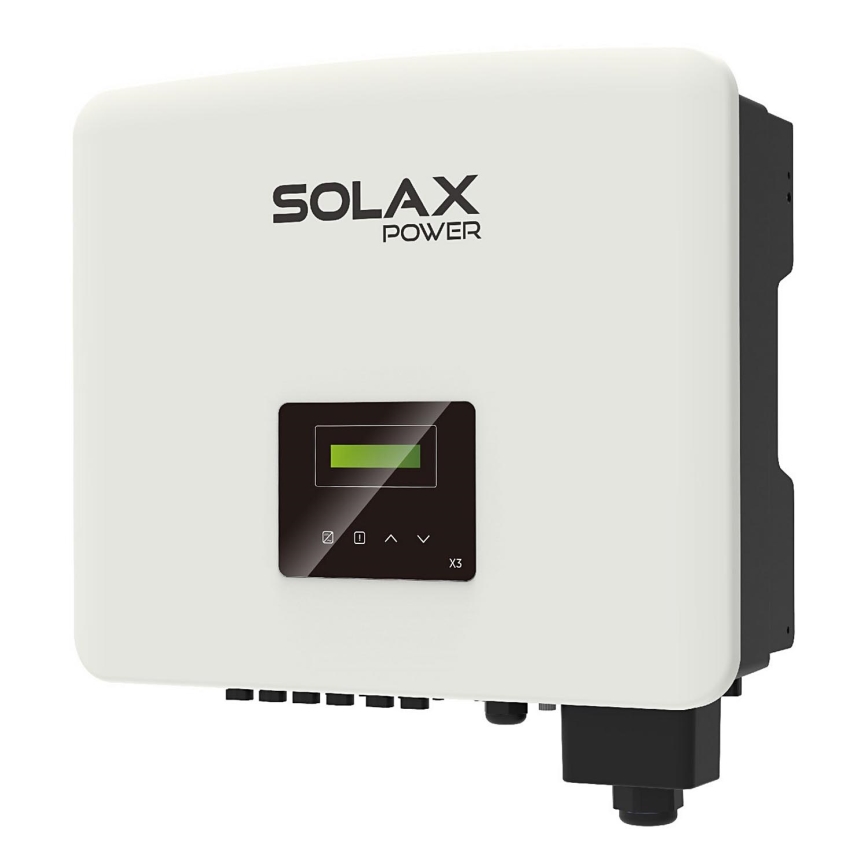

  • The three-phase grid inverter offers a low start-up voltage and a wide MPPT supply voltage range.
  • It achieves high input voltage (up to 1100 V) and high efficiency (98.5%).
  • The inverter can be connected to Wi-Fi and remotely controlled.
  • X3 = 3 phases.
  • PRO = series.
  • 20K = 20 kW.
  • 150% oversizing.
  • High IP protection.
  • Ultra-high power density.
  DC input:
  • Number of MPPTs: 2.
  • Starting Voltage: 200 V.
  • Rated Input Voltage: 650 V.
  • MPPT Voltage Range: 160 - 980 V.
  • Max DC Power: 30000 Wp.
  • Max Input Current (Input A / Input B): 32/32 A.
  • Max Short Circuit Current (Input A / Input B): 40/40 A.
  AC Output:
  • Rated AC Output Power: 20000 W.
  • Rated Output Current: 29 A.
  • Max Output Current: 33.6A.
  • A firmware update is required during installation.
  • The catalog sheet can be found in the downloadable documents below.

  Please note that installation and dismantling of solar panels and solar accessories must be carried out by a qualified person.

  Brand:

  SolaX Power
