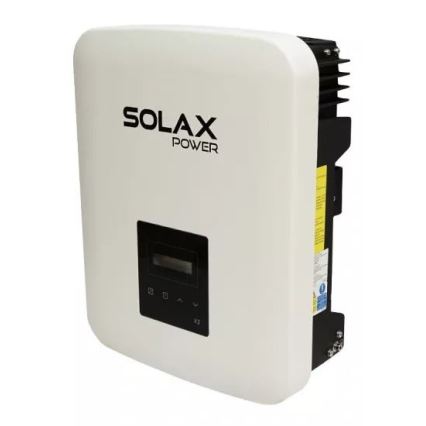

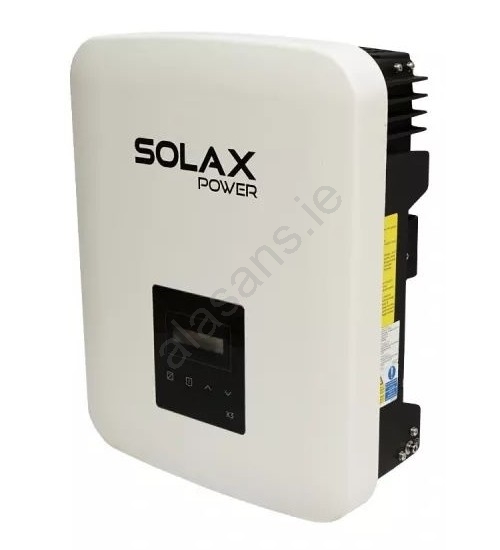

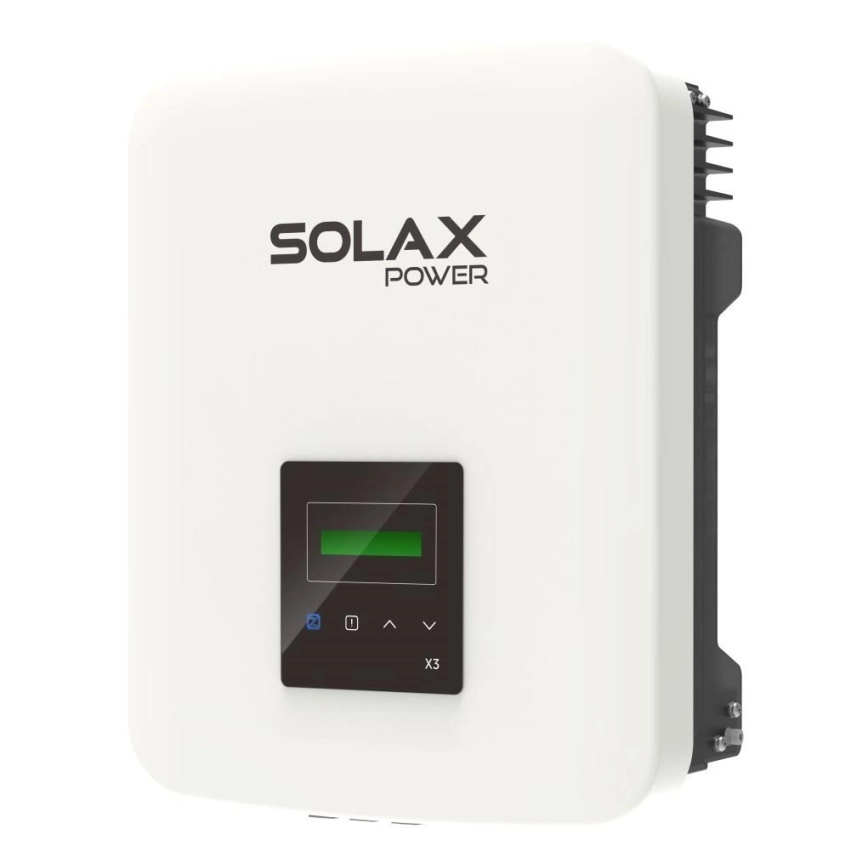

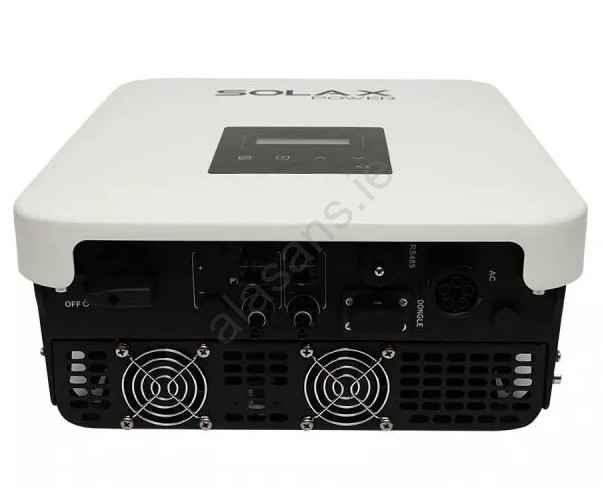

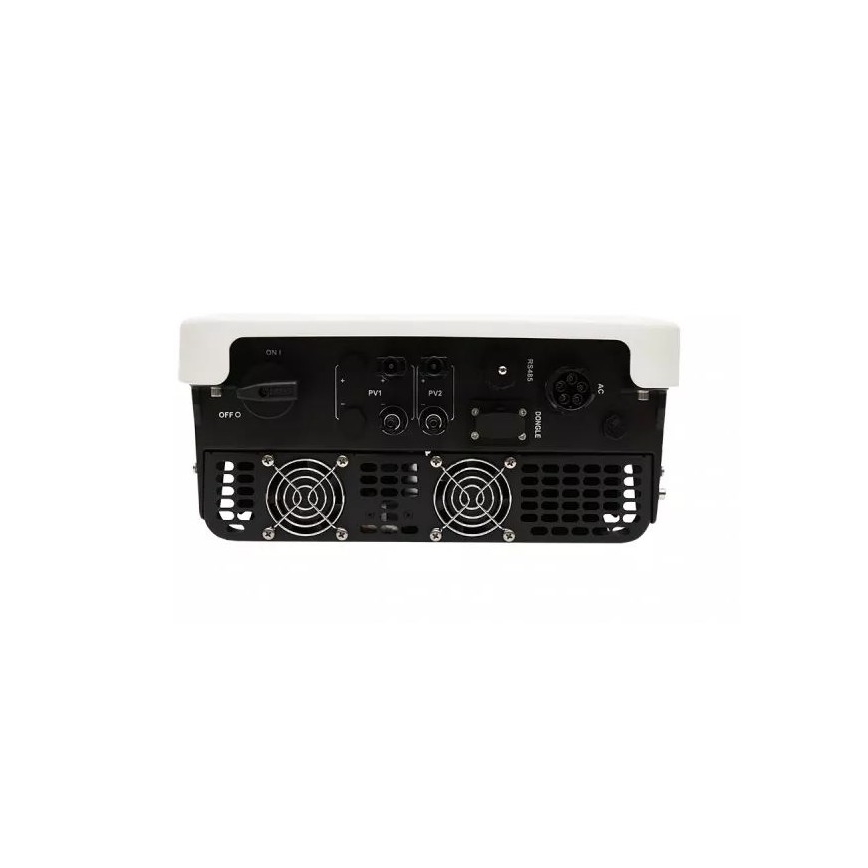

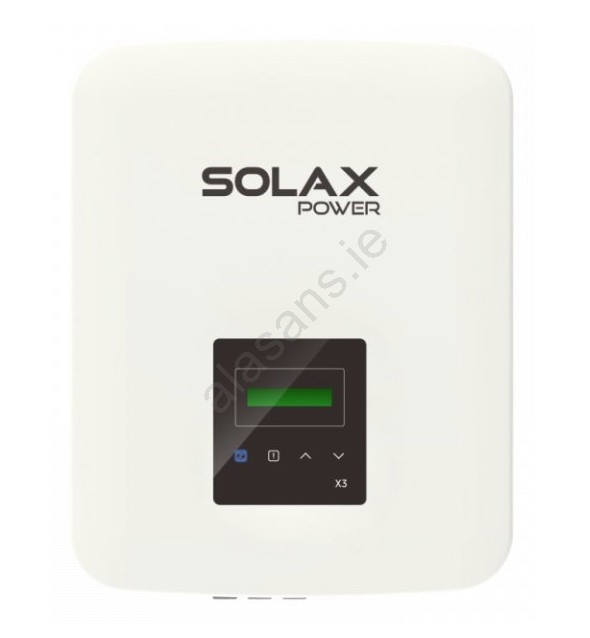

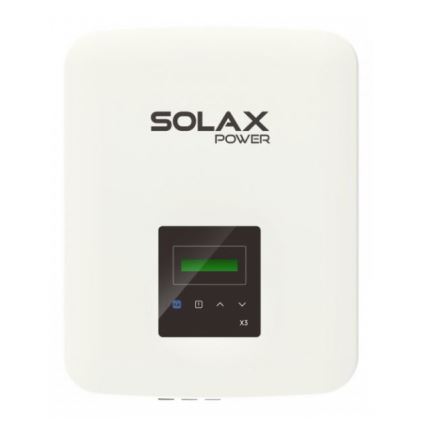

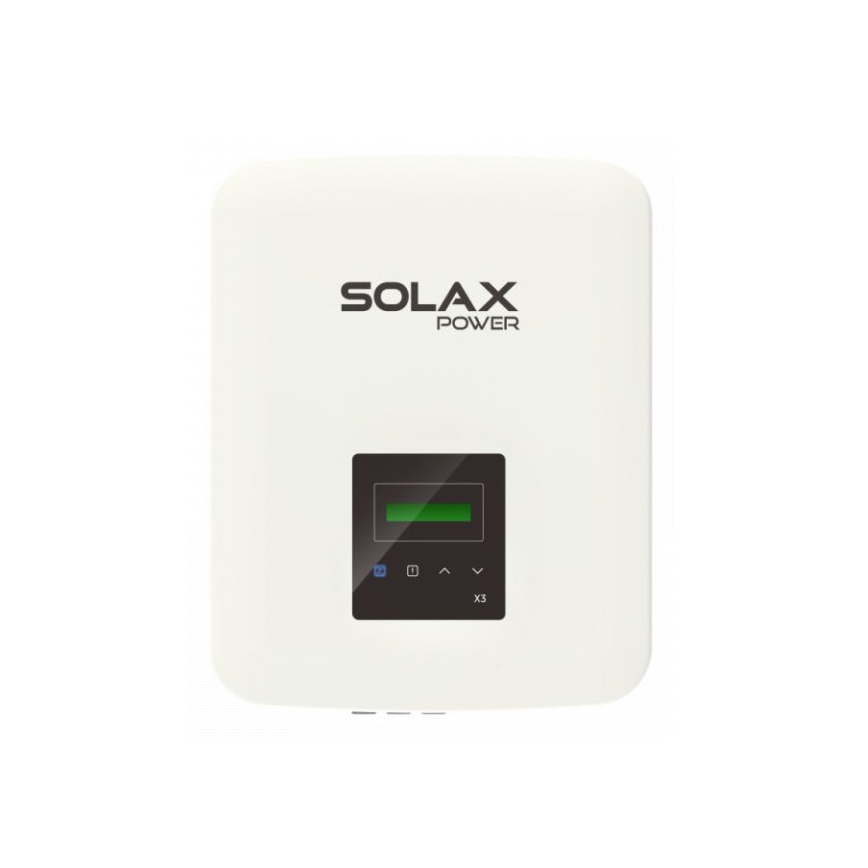

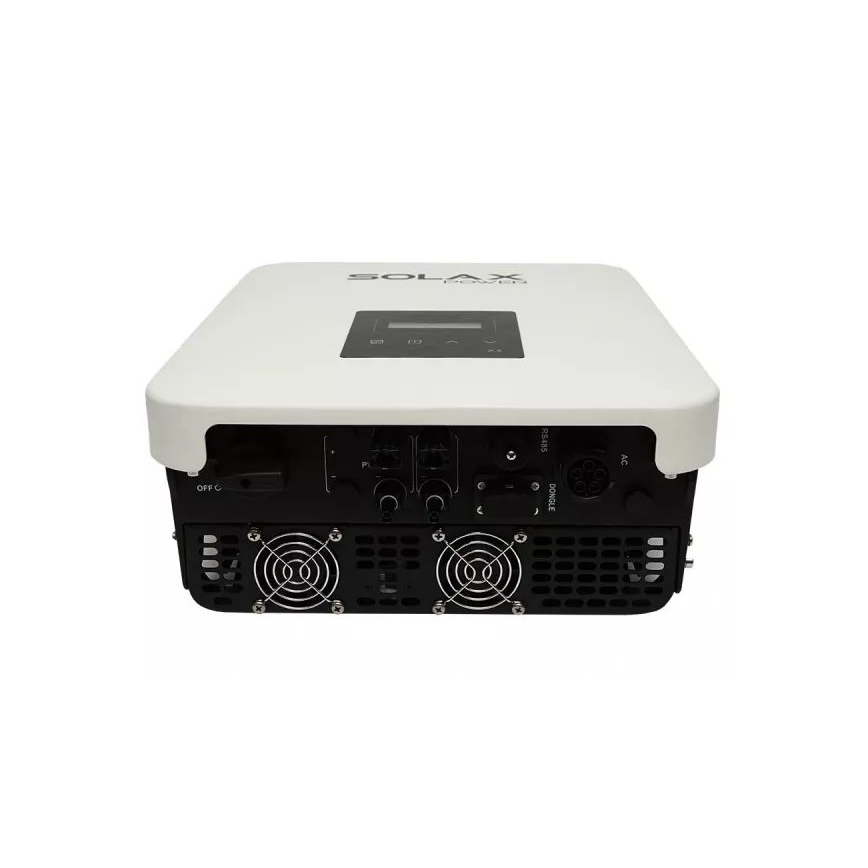

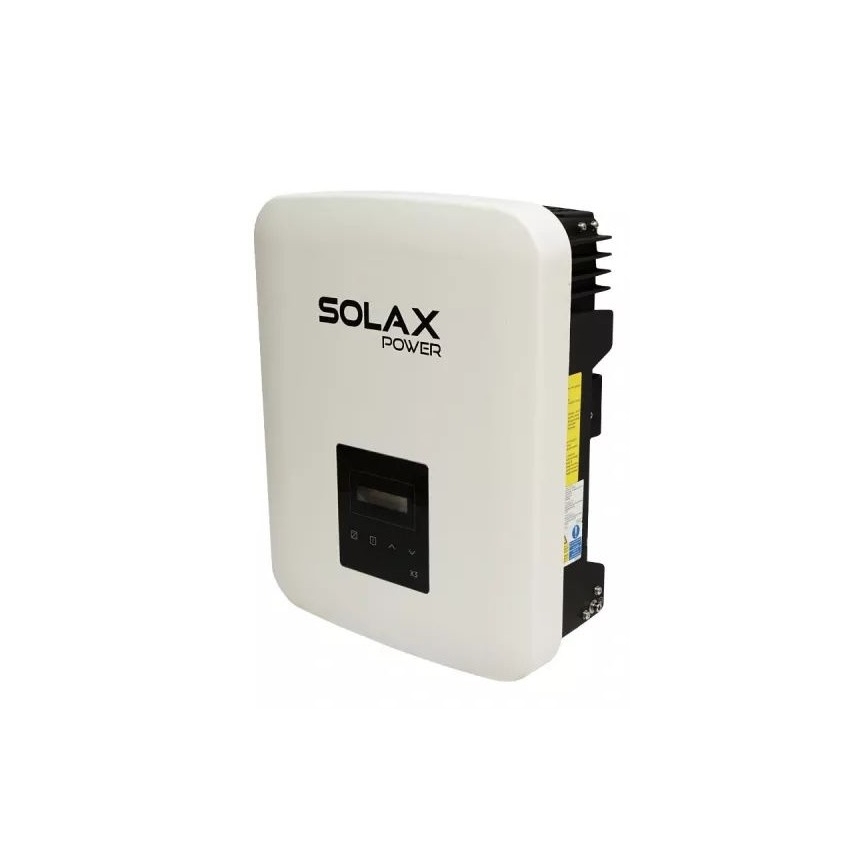

• SolaX's three-phase grid inverter offers a wide MPPT supply voltage range, achieving high input voltage (up to 640 V) and high efficiency (98.3%).
• The inverter can be connected to Wi-Fi and remotely controlled.
• X3-MIC-10K-G2:
• X3 = 3 phases.
• MIC = series.
• 10K = 10 kW.
• 200% oversizing.
• High IP protection.
• 24h real-time monitoring.

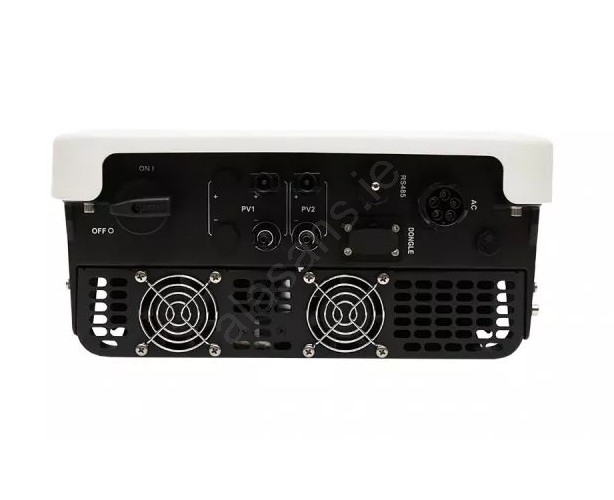

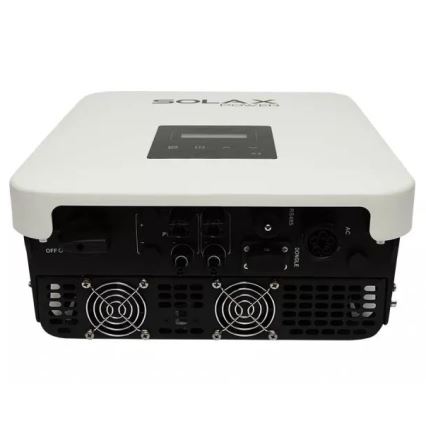

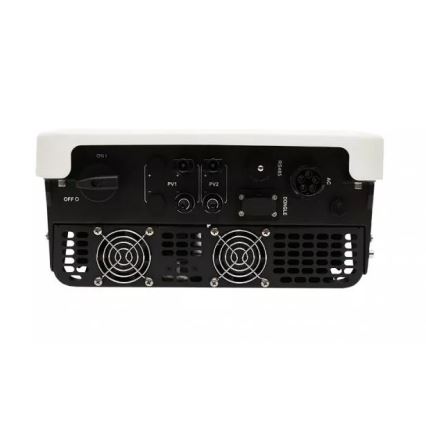

• DC input:
• Number of MPPT: 2.
• Starting voltage: 150 V.
• Rated input voltage: 640 V.
• MPPT voltage range: 120 - 980 V.
• Max DC power: 20000 Wp.
• Max. input current (input A / input B): 16/16 A.
• Max. short-circuit current (input A / input B): 18/18 A.
• AC output:
• Rated AC output power: 10,000 W.
• Rated output current: 14.5 A.
• Max. output current: 16.0 A.

A firmware update is required during installation.

The catalog sheet can be found in the downloadable documents below.
