• Product description

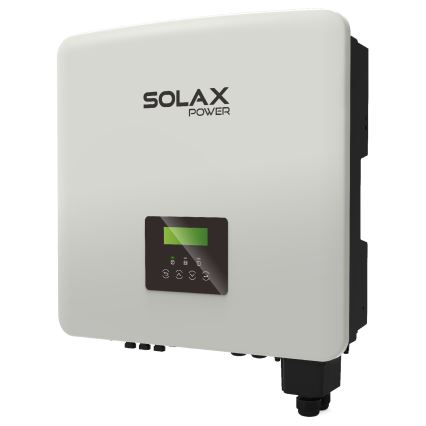

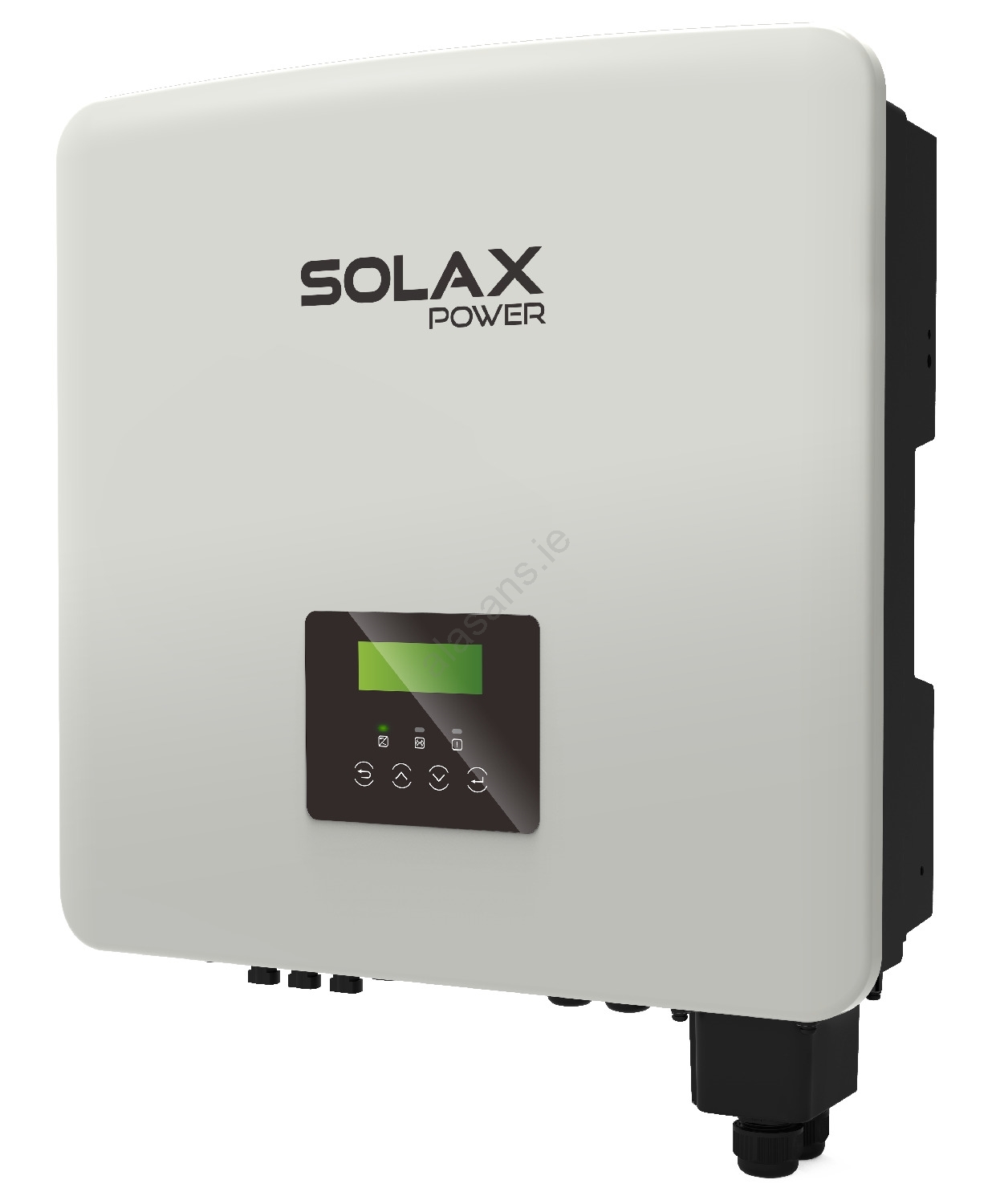

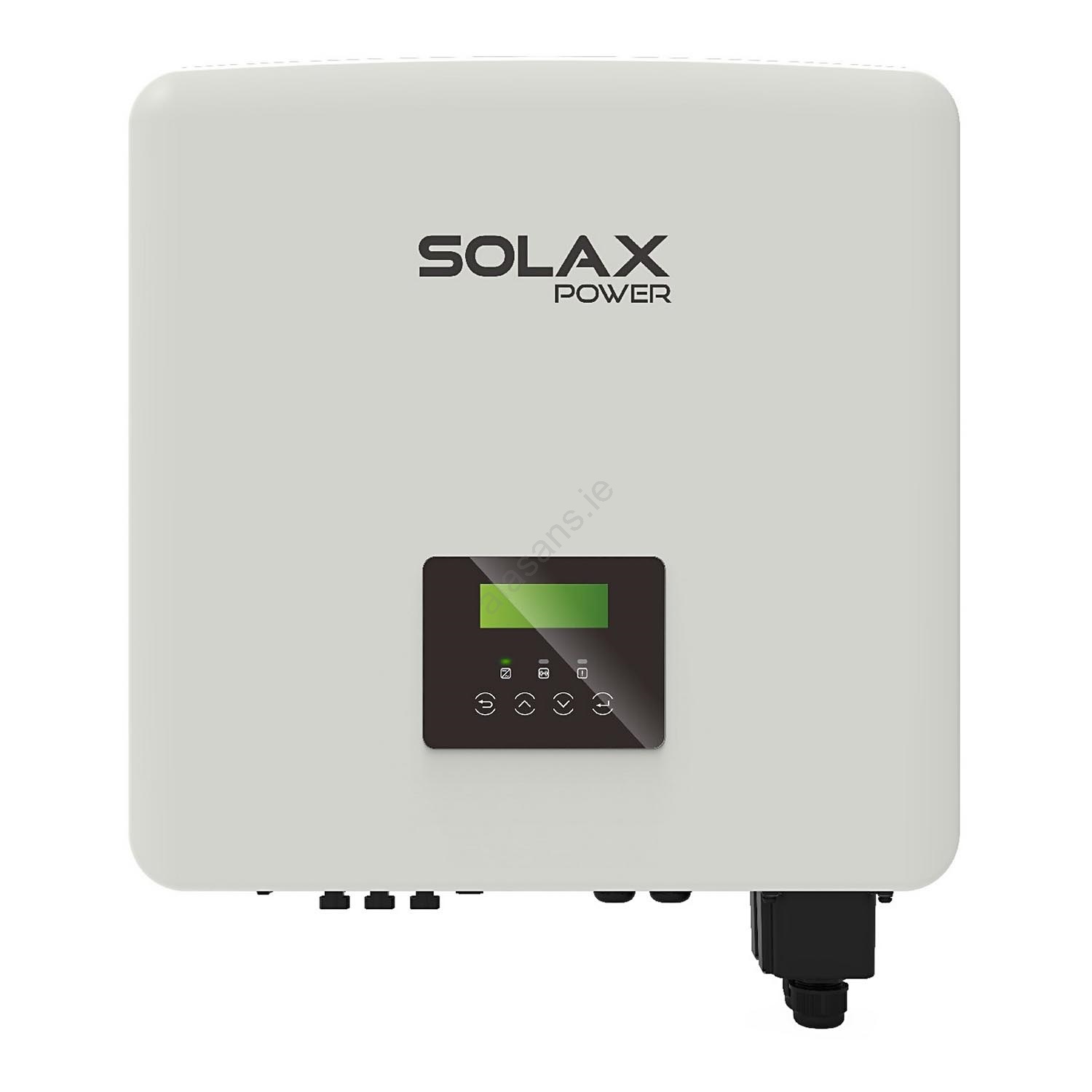

  • The three-phase hybrid inverter of the X3-Hybrid series converts energy from solar panels into alternating current and subsequently stores it in batteries.
  • This allows energy to be used later, optimizes self-consumption of electricity, or supplies energy to the public grid.
  • The inverter can be connected to Wi-Fi and controlled remotely.
  • Support for up to 150% oversizing on the DC input.
  • High-performance energy utilization.
  • High IP65 rating.
  • Maximum device performance even in extreme temperatures.
  • X3-hybrid-10.0-D (G4):
    X3 = three-phase;
    Hybrid = series;
    10.0 = 10.0 kW;
    D = with DC switch.
  • Number of phases: 3.
  • Number of MPPT: 2.
  • MPPT voltage range: 180 - 950 V.
  • Nominal AC power: 10000 W.
  • Max. DC power: 15000 Wp.
  • Max. input current input A/input B: 26/14 A.
  • Max. short-circuit current input A/input B: 30/16 A.
  • Max. AC output current: 16.1 A.
  • Battery type: Lead/Lithium.
  • Battery voltage range: 180 - 650 V.
  • Recommended battery voltage: 400 V.
  • Max. continuous/discharge current: 30 A.
  • During installation, a firmware update is required.


  Product datasheet and user manual can be found below in the download documents.


  Please note that installation and dismantling of solar panels and solar accessories must be carried out by a qualified person.
