• Product description

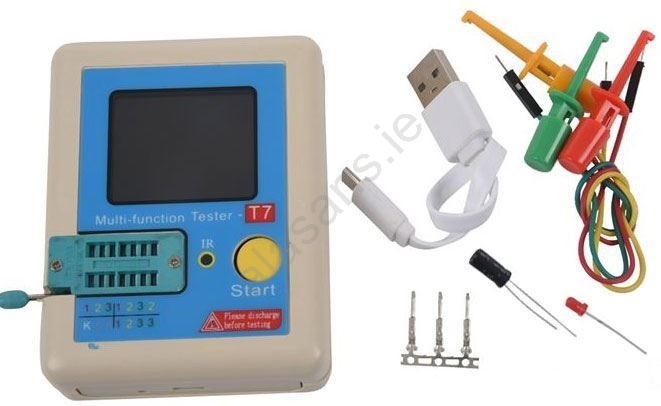

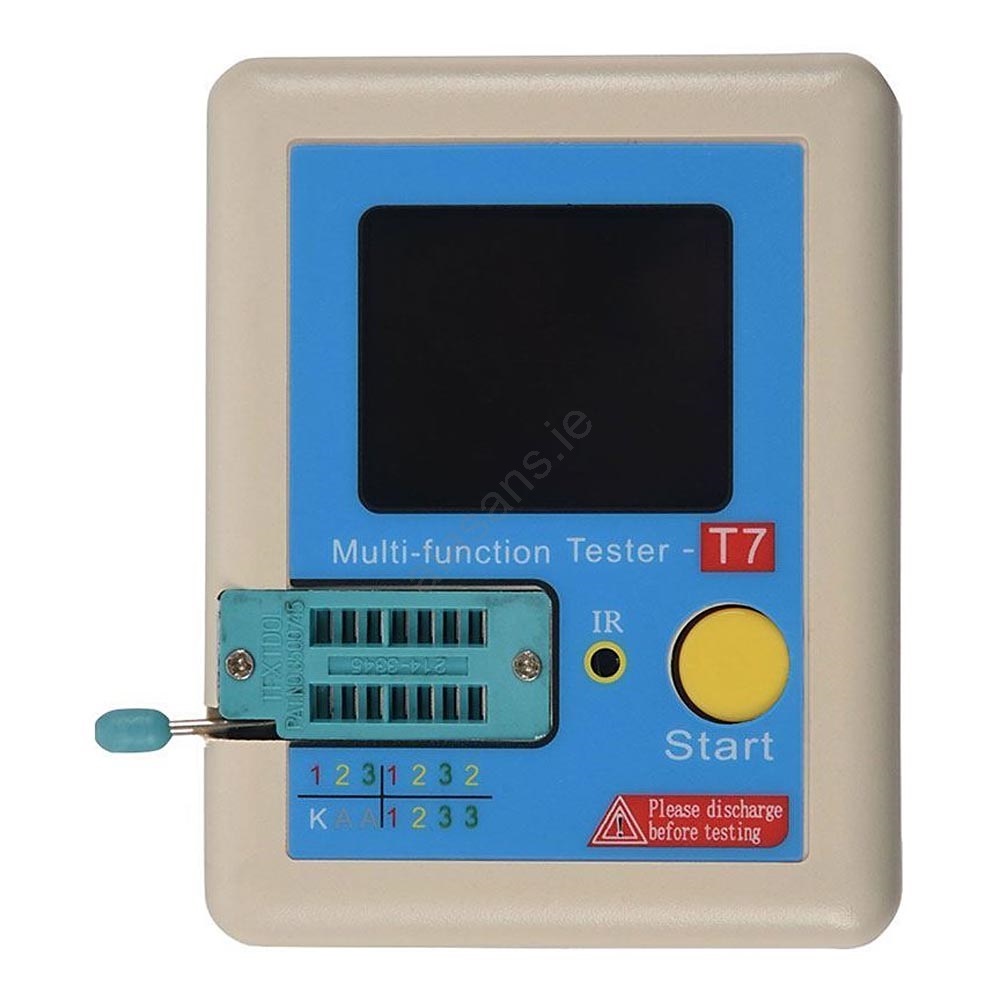

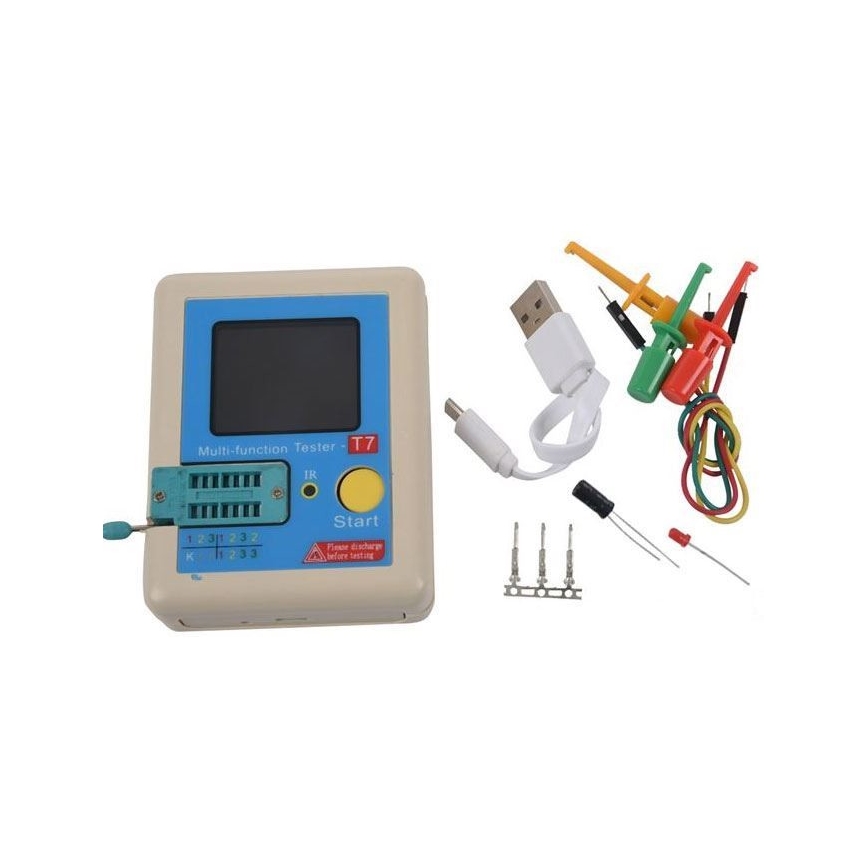

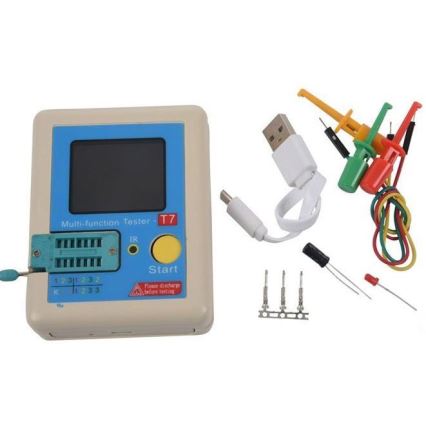

  • Universal automatic tester for RLC, ESR, and semiconductor components with ATmega328 processor.
  • A large, clear display with a green backlight is used to display the values.

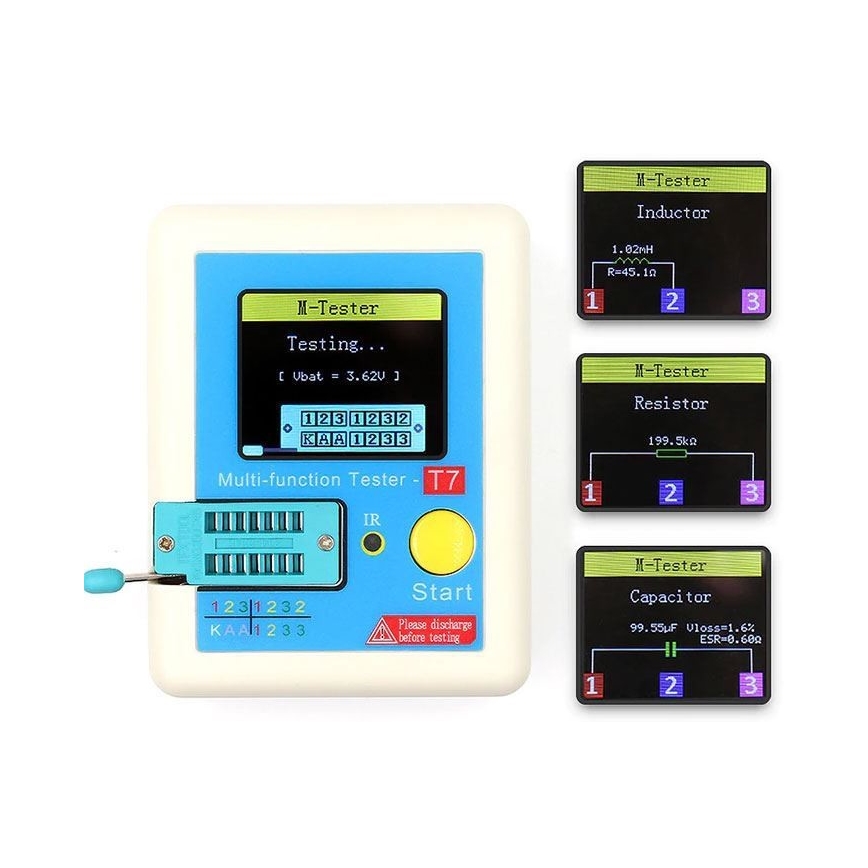

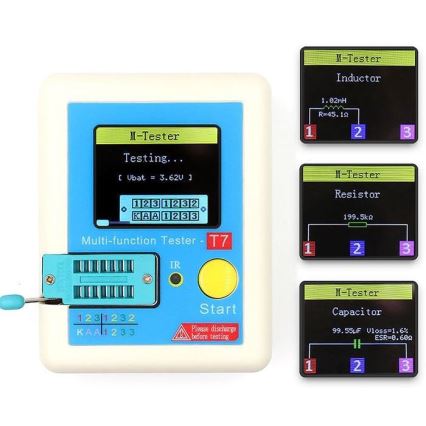

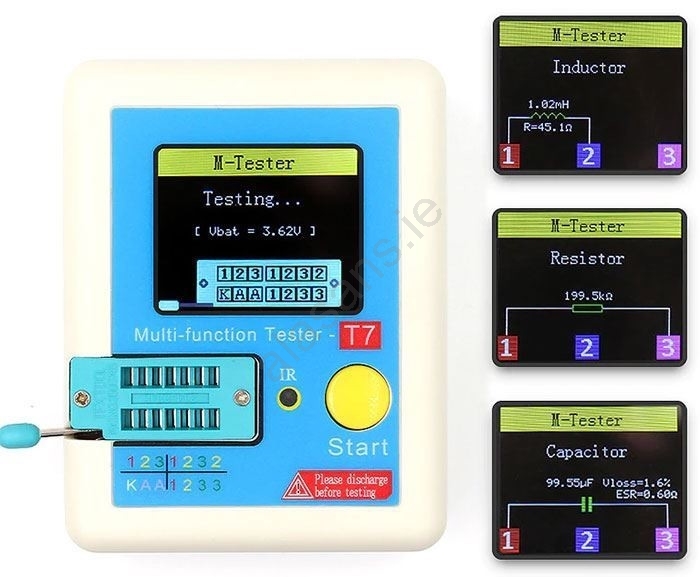

  • It automatically detects, schematizes, and measures many types of components:
  • 0.1ohm to 50 Mohm resistors.
  • Capacitors with the capacity of 25 pF to 100mF (for C>90 nF it also measures ESR).
  • Coils with inductance 0.01 mH to 20 H.
  • Transistors JFET, MOSFET, NPN, PNP, Thyristors, triacs.
  • Triac range: IGT <6mA.
  • Diodes, double diodes, LEDs, rectifier diodes, zener diodes.
  • Automatic component detection and pin placement.
  • IR tester with progress and code display.
  • Specifications:
  • Power supply: built-in battery, USB charging.
  • Automatic shutdown.
  • Display: 3.5" with backlight.
