• Product description

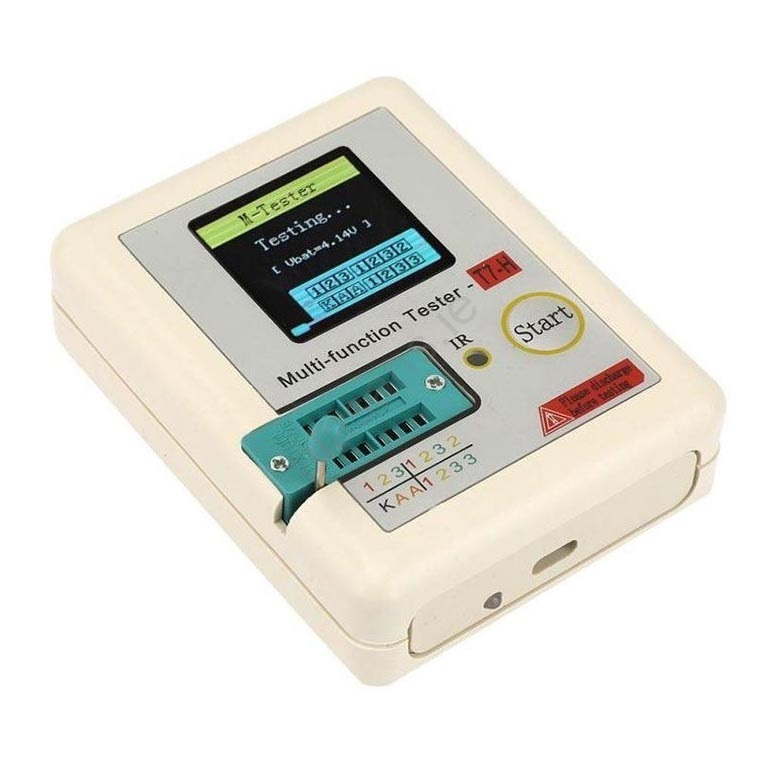

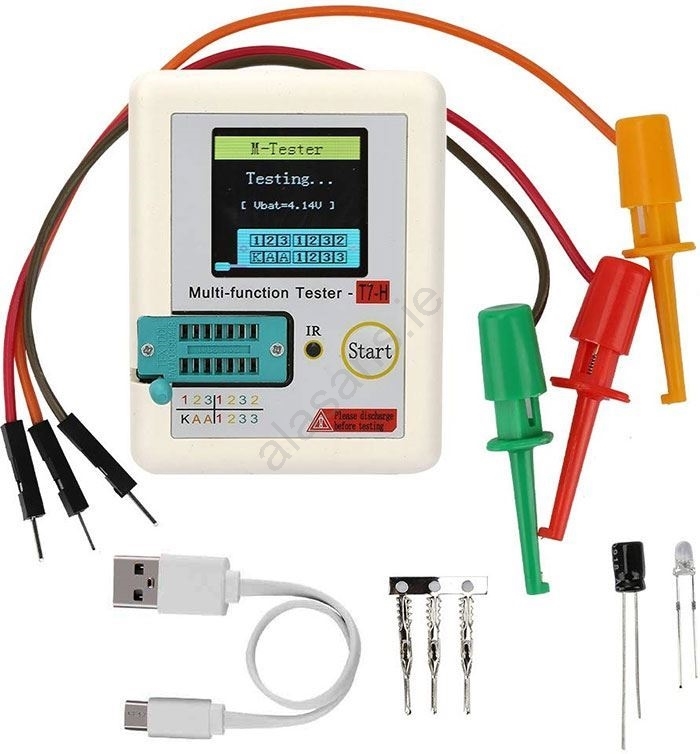

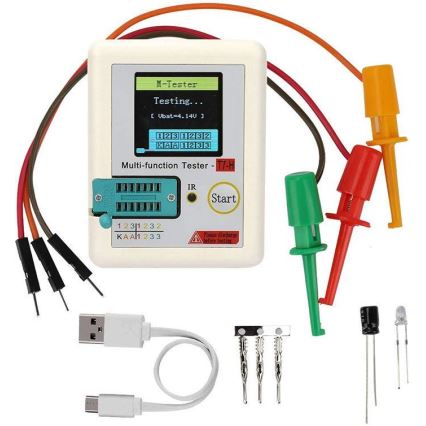

  • Universal automatic tester of RLC, ESR and semiconductor components with ATmega328 processor.
  • The T7H is an upgraded version of the T7 model (R098E).
  • A large, clear display with green backlight is used to display the quantities.
  • It automatically detects, schematizes and measures many types of components:
  • 0.1ohm to 50 Mohm resistors.
  • Capacitors with a capacity of 25 pF to 100mF (for C>90 nF it also measures ESR).
  • Coils with inductance 0.01 mH to 20 H.
  • Transistors JFET, MOSFET, NPN, PNP, Thyristors, triacs.
  • Triac range: IGT <6mA -diodes, double diodes, LEDs, rectifier diodes, zener diodes.
  • Automatic component detection and pin placement.
  • IR tester with progress and code display.
  • Specifications:
  • Power supply: built-in battery, USB charging.
  • Automatic shutdown.
  • 3.5" backlit display.

  Special coupon offer applies to this product.

  This product is listed in the following categories

  Hobby, House and garden, Power tools, Workshop

• Parameters

• Documents for download

• Ratings and reviews1

• Questions about the product0

Buy

Add to favourites

Product code: HD0299
