• Product description

  • PWM solar regulators connect the solar panels directly to the battery to be charged and after reaching a certain battery terminal voltage, the charging is regulated by pulse current limitation.
  • They are therefore suitable for panels with the same system voltage as the battery voltage, otherwise, losses occur where part of the potential power is lost due to inappropriate V-A characteristics of the panel.
  • More sophisticated regulators allow adjustment of operating parameters or the type of battery being charged, simple regulators have parameters set fixed for the most commonly used lead acid batteries.

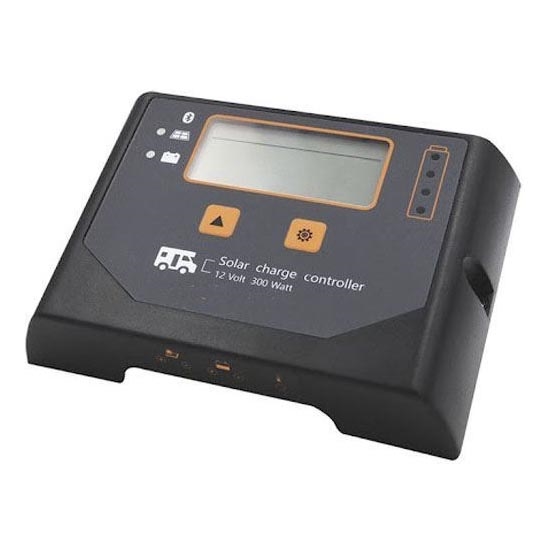

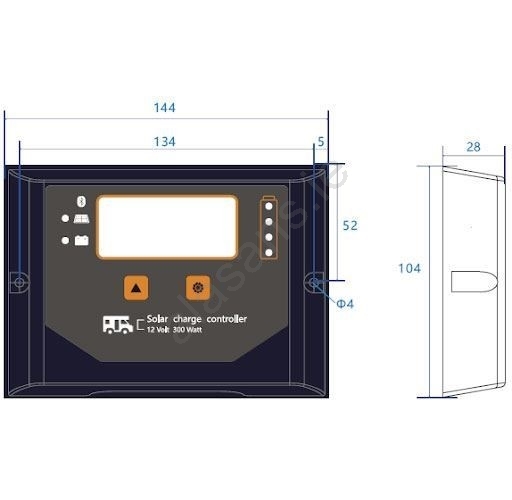

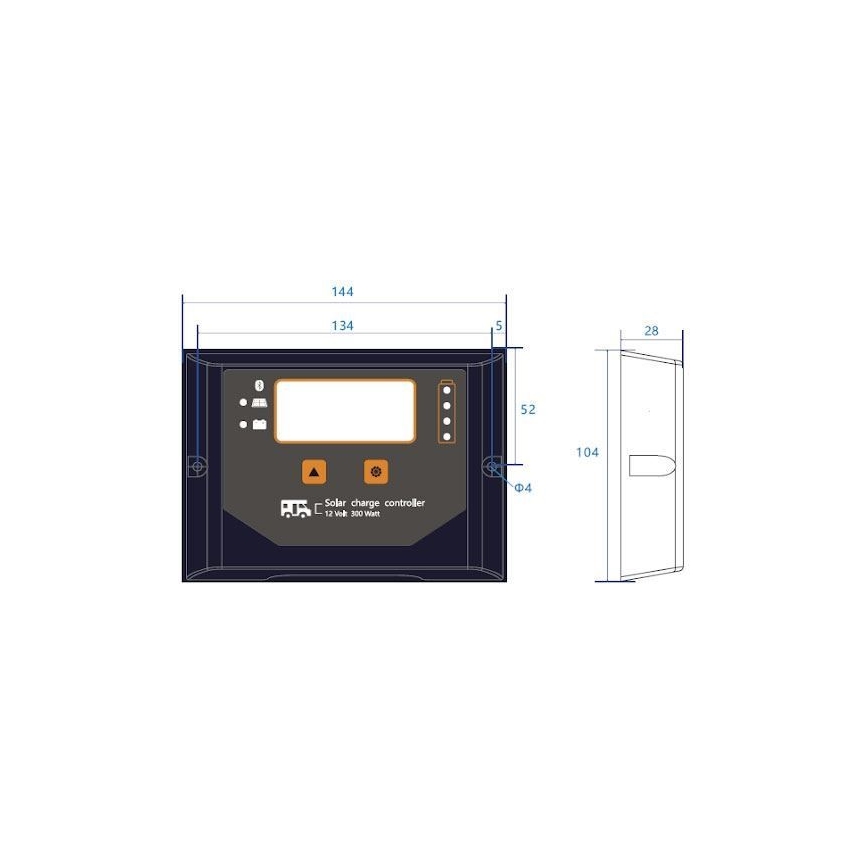

  • The Win300 regulator belongs to the group of PWM solar regulators, allowing setting the type of battery to be charged (Pb AGM, Pb GEL, Pb WET, Pb Calcium, LiFePO4, Li-Ion, LTO).
  • This also determines the relevant operating parameters.
  • The Win300-NBT is also equipped with Bluetooth technology for wireless setup from a mobile phone.
  • Primarily, these regulators are designed for operation in mobile devices such as caravans or boats.
  • Specifications:
  • Battery voltage range for active charging: 9-14V.
  • Batteries: Pb AGM, Pb GEL, Pb WET, Pb Calcium, LiFePO4, Li-Ion, LTO.
  • Voltage "boost": 12.6-14.9V / 1-2hrs (depending on battery type).
  • Sustaining voltage of a fully charged battery: 13.6V for Pb batteries.
  • 4-stage automatic battery charging by CC/CV method (CC, CV boost, CV buffer, CV sustain - for Pb batteries only).
  • Overvoltage protection: 12.8V-15.8V (depending on the battery type).
  • Disconnection of the regulator at Uvst<9-11V (depending on the battery type).
  • Temperature compensation: -4.17mV/K (boost,equal), -3.33mV (float).
  • Max. charging current: 20A.
  • Max. PV panel voltage: 40V.
  • Max. panel power: 300W.
  • Max. battery voltage: 25V.
  • Self-consumption: 12mA.
  • LCD display with battery status and charging information.
  • Bluetooth 4.2+BLE, range up to 10m.
  • Connection terminal: max.4 mm2.

  Please note that installation and dismantling of solar panels and solar accessories must be carried out by a qualified person.
