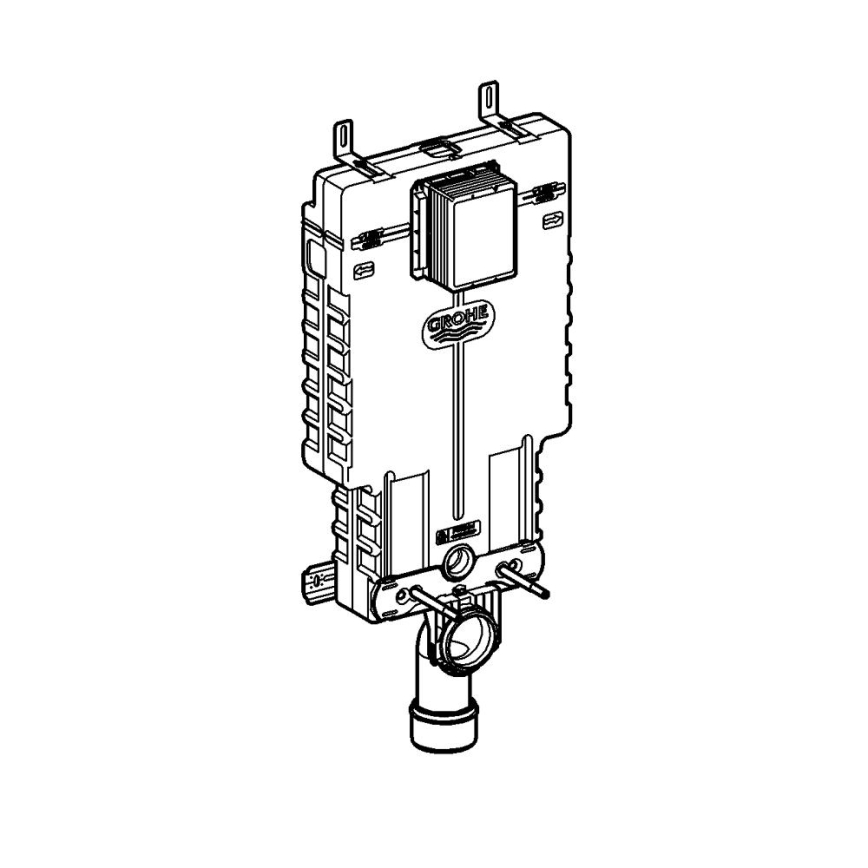

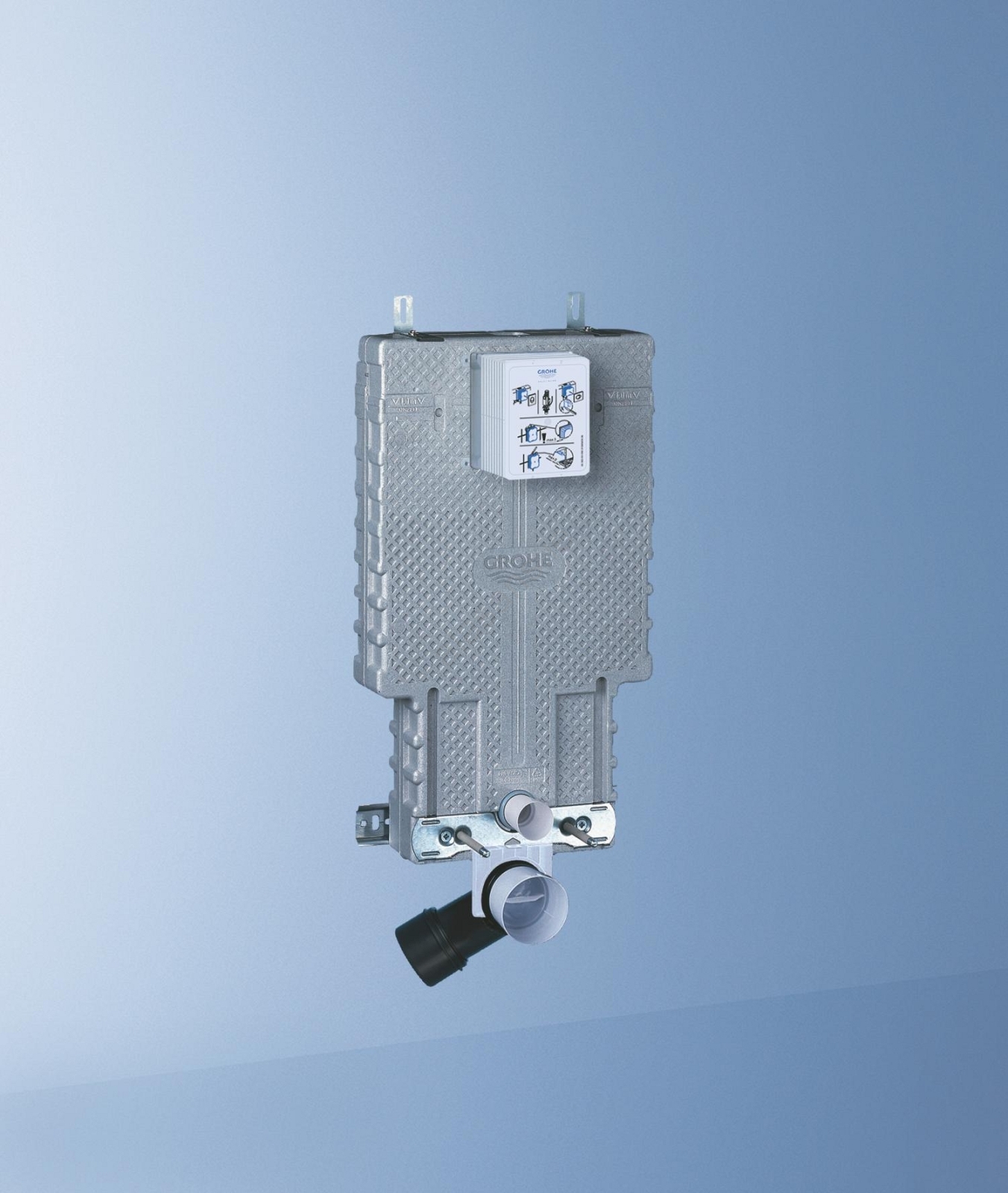

• Product description

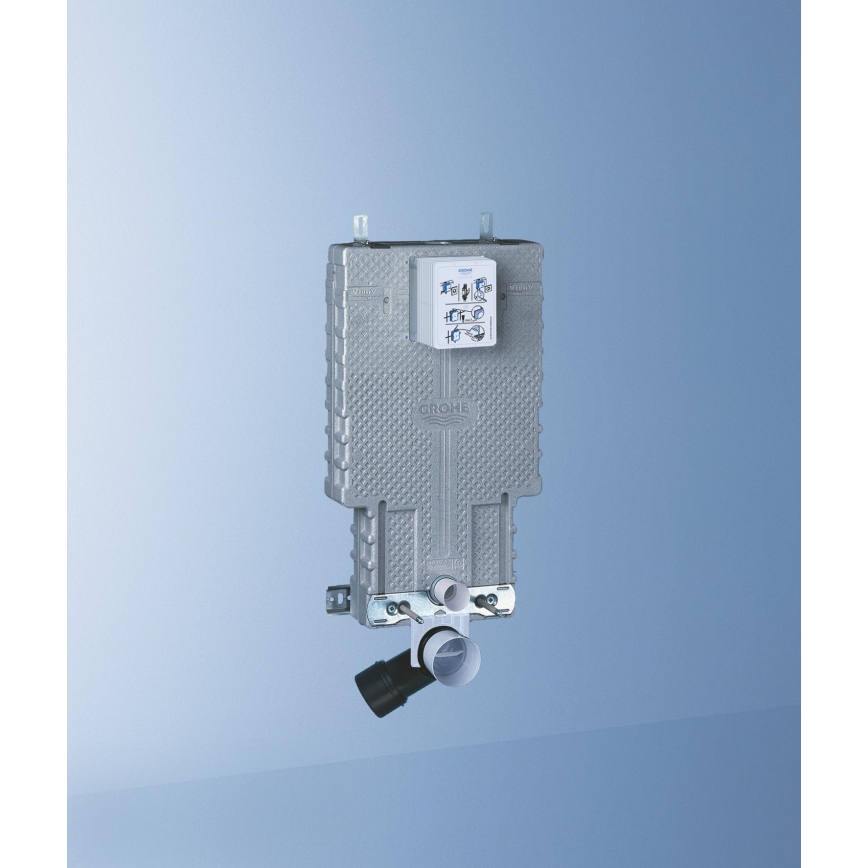

  • GD 2 flush cistern with adjustable capacity 6–9 L, factory-set to 6 L and 3 L for water conservation.
  • Pneumatic flush valve offers three modes: dual flush, start/stop or single flush.
  • Water inlet can be connected from the left, right, rear or top for flexible installation.
  • Sound-insulated EPS in-wall module ensures quiet operation and minimizes noise transmission.

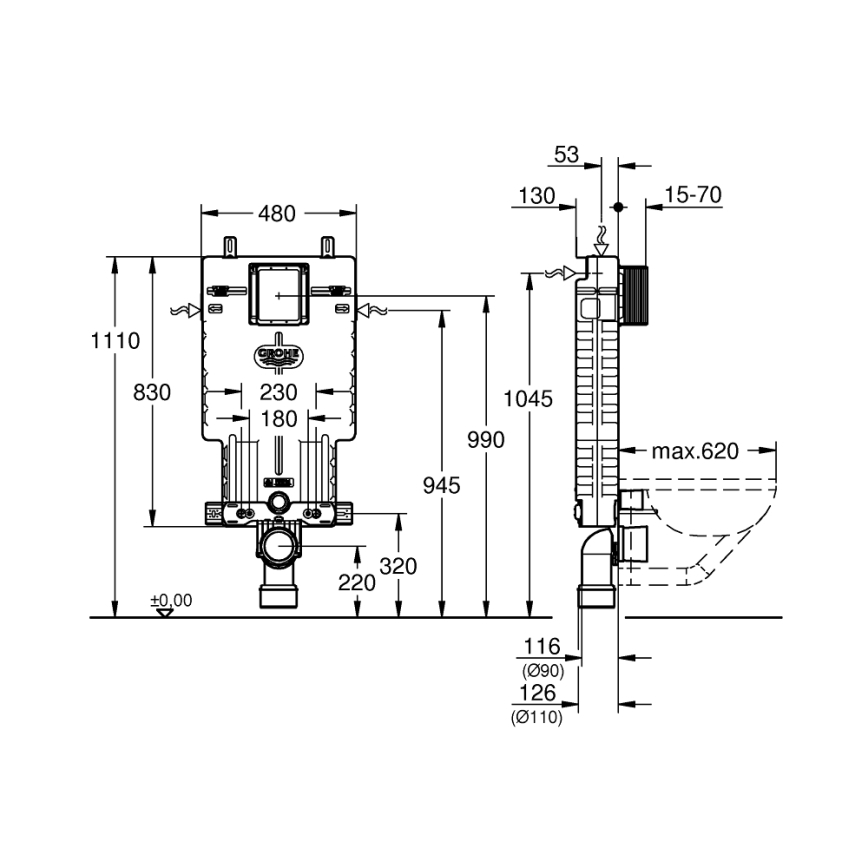

  • Dimensions 830 × 480 × 130 mm enable compact, space-efficient installation.

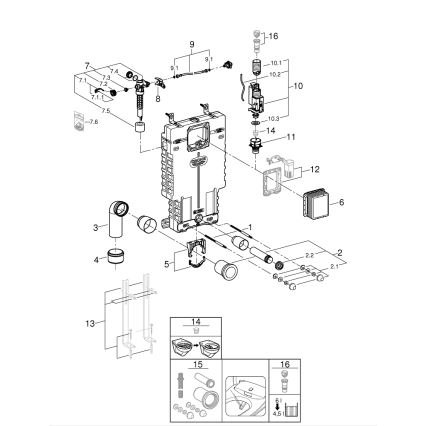

  • Rail adapters for modular mounting allow individual or rail mounting.
  • Wall rail with mounting accessories simplifies standalone installation.
  • Two toilet brackets with bolt centers 180/230 mm for easy ceramic mounting.
  • Outlet elbow Ø 90 mm with depth adjustment and Ø 90/110 mm reducer to adapt to the waste system.
  • Condensation-protection insulation ensures long service life and reliable performance.
  • Integrated angle valve and fitting for flexible hose enable easy, tool-free connection.
  • Prepared for shower toilets with additional accessory 40 899 000 (sold separately).
  • For mounting small flush buttons the inspection shaft 40 911 000 must be ordered (sold separately).

  Brand

  GROHE
