• Product description

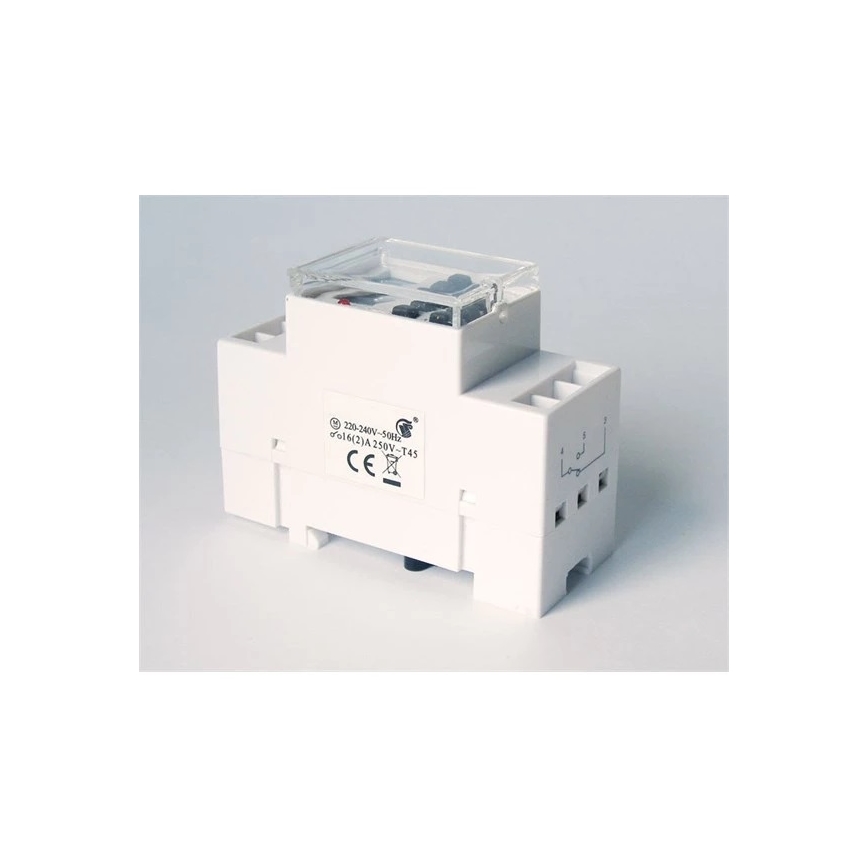

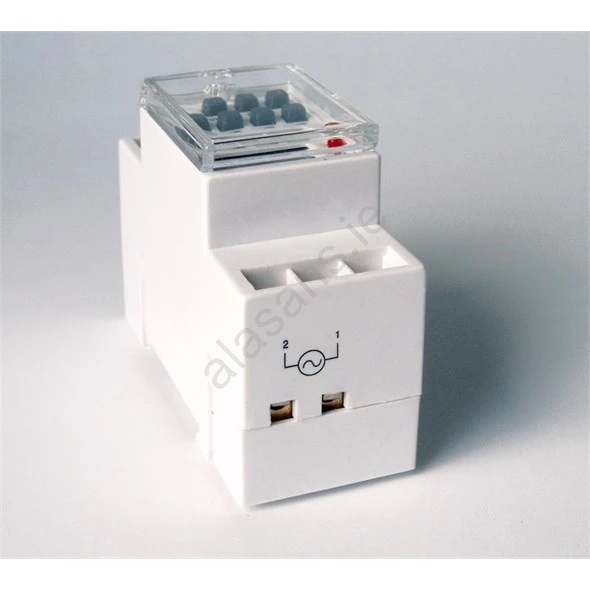

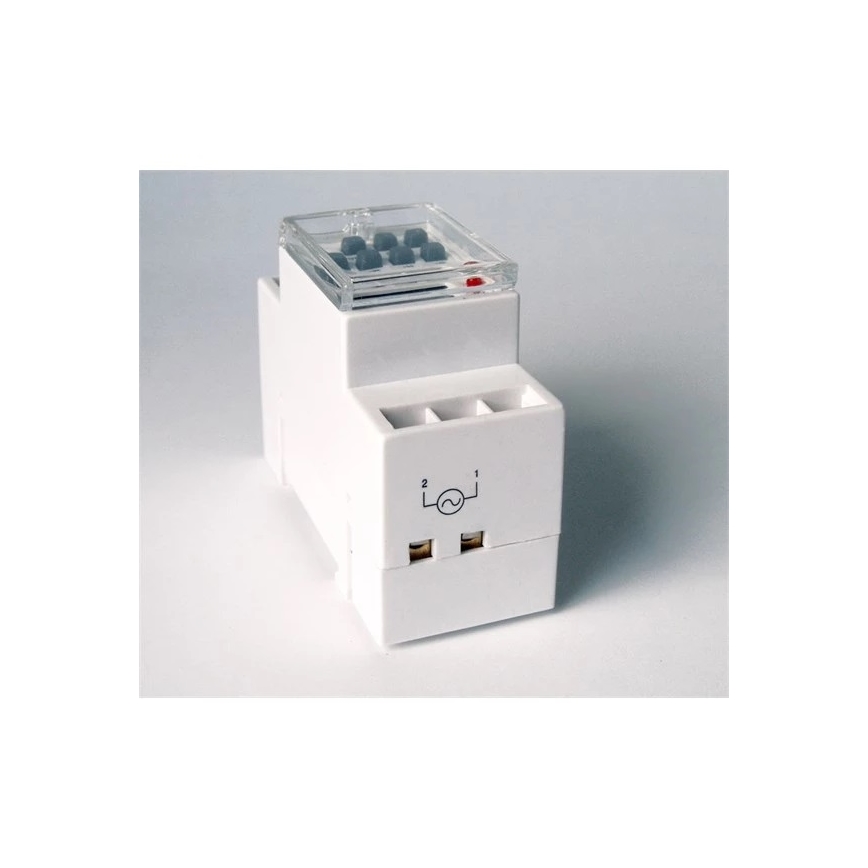

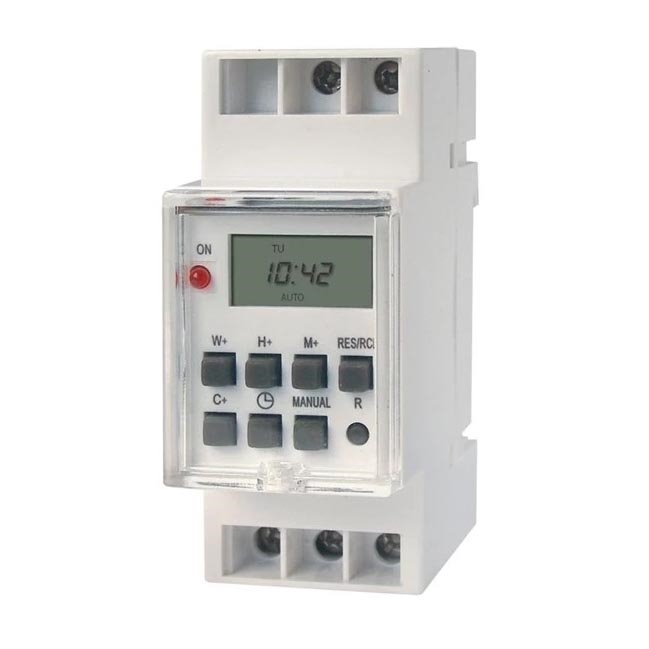

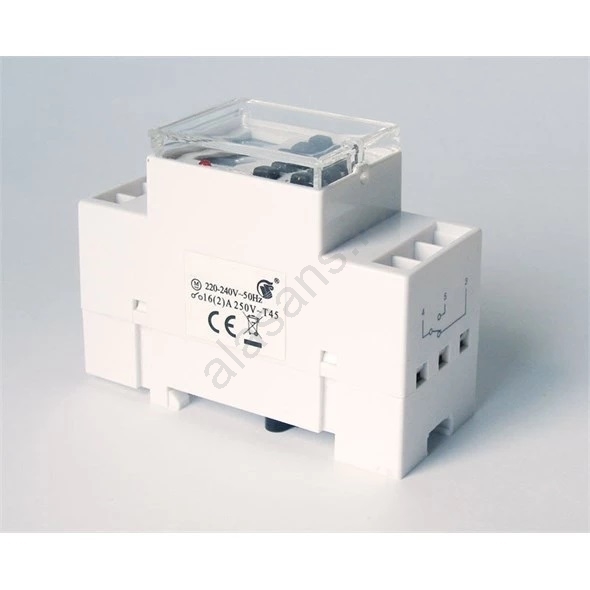

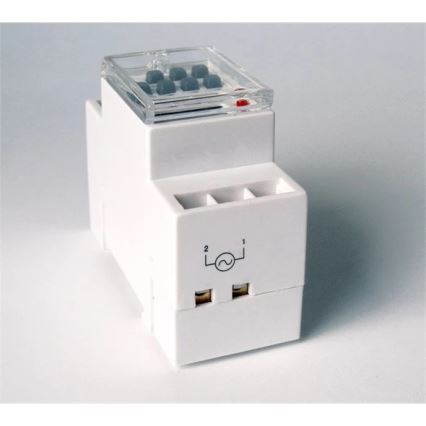

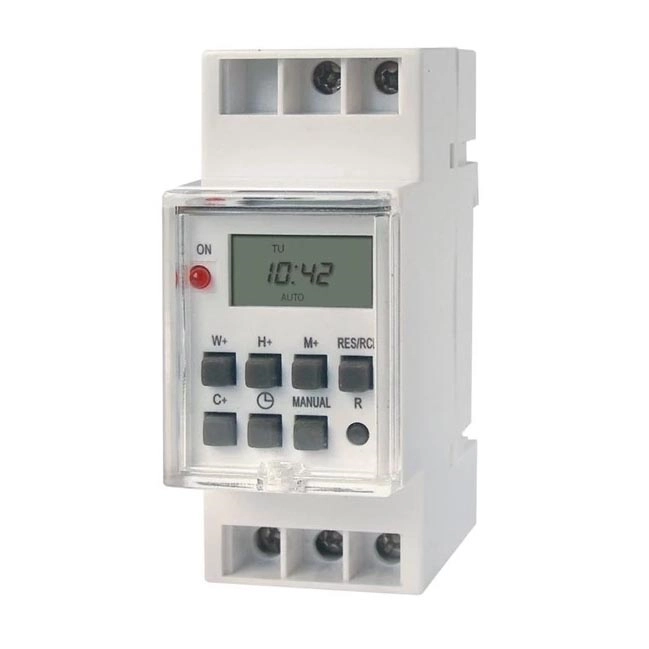

  • Switch clock for DIN rail for universal use.
  • Max. 8 adjustable time programs.
  • Up to 16 combinations of days or day blocks.
  • This function can be used to start timer programs on specific days, e.g. Sat-Sun, Mon-Sat-Fri, etc.
  • Possibility to set 12 or 24 hours mode.
  • Possibility to set daylight saving time - by connecting to this function, 1 hour is automatically added to the set time.
  • Manual or automatic control.

  Technical parameters:

  • Maximum switching power: 3680 W/16 A.
  • Maximum switching capacity of the induction power supply: 4 A.

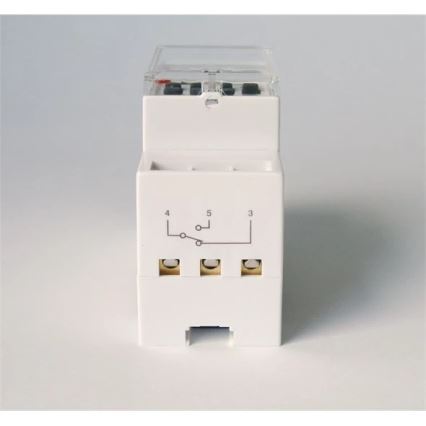

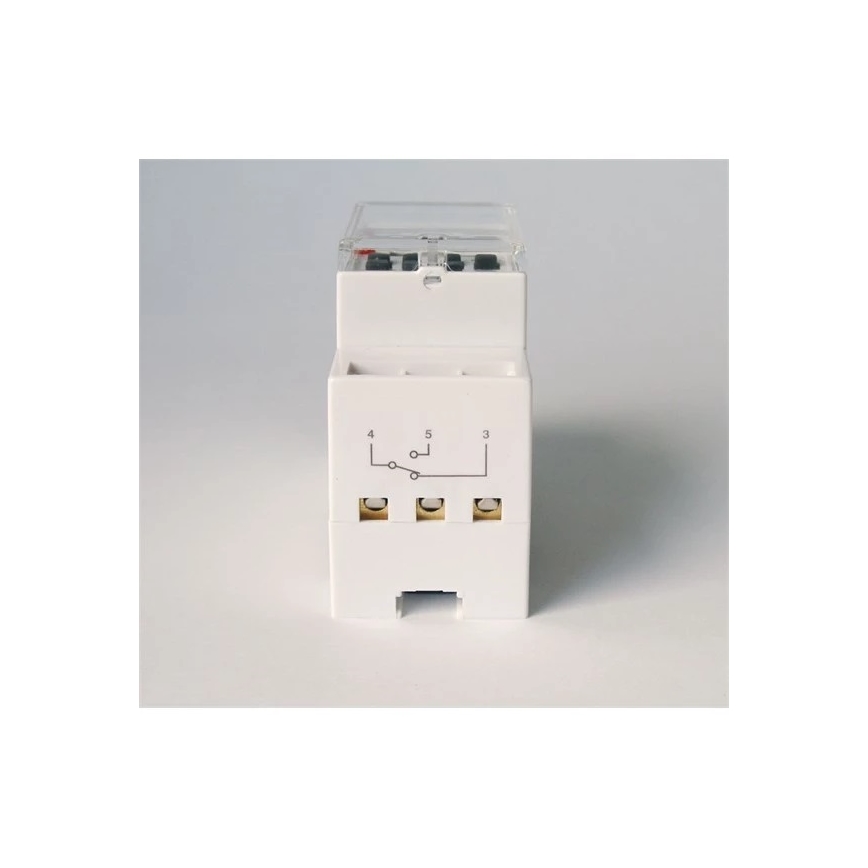

  • Switching element: relay.
  • Time step: 1 min.
  • Max. Time deviation (at 22 °C): max. 3 sec. per day.
  • Storage battery: 1,2V NiMH/100 h (built-in).
  • Operating temperature: -10 °C to 50 °C.
  • Protection: IP20.
  • Dimensions: 85 x 60 x 35 mm.
