• Product description

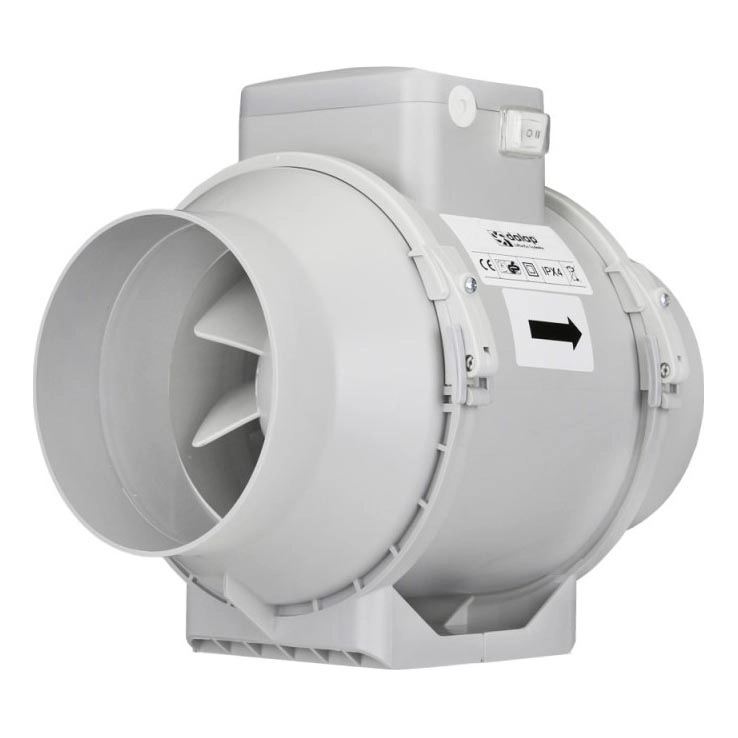

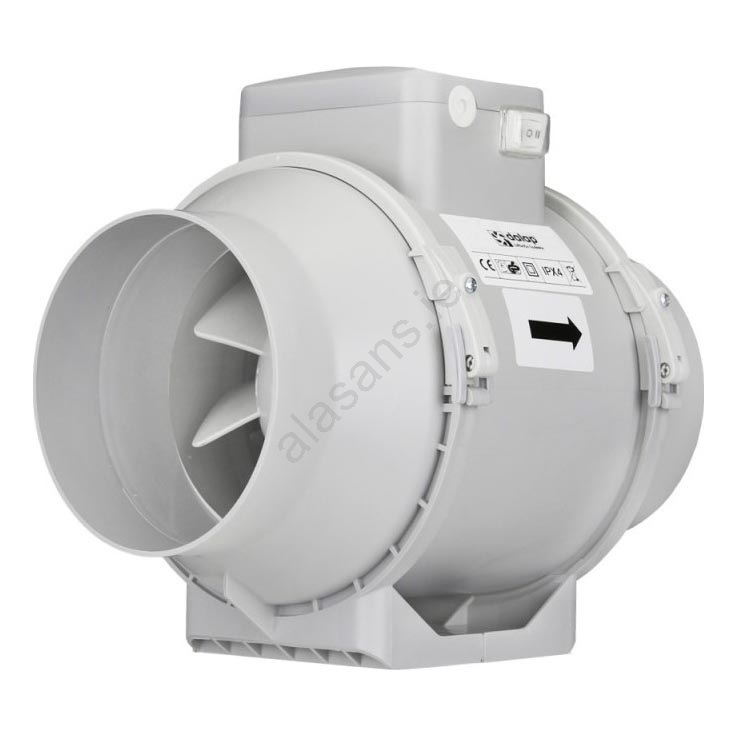

  • High performance and low noise professional inline duct fan with an integrated speed switch.

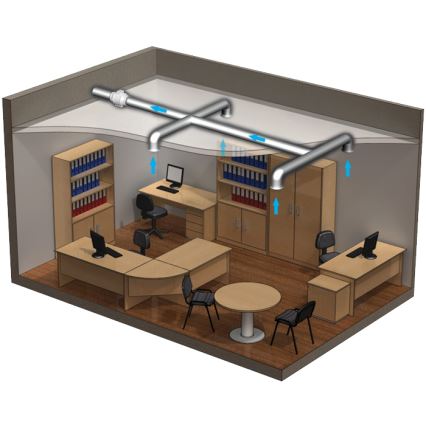

  • Designed to remove odors and excess humidity from small to medium-sized rooms such as bathrooms, showers, kitchens, greenhouses, cinemas, cottages, shops, etc.
  • Made from high-quality ABS plastic that is UV-resistant and does not release any phenols thanks to FENOLSTOP® technology.

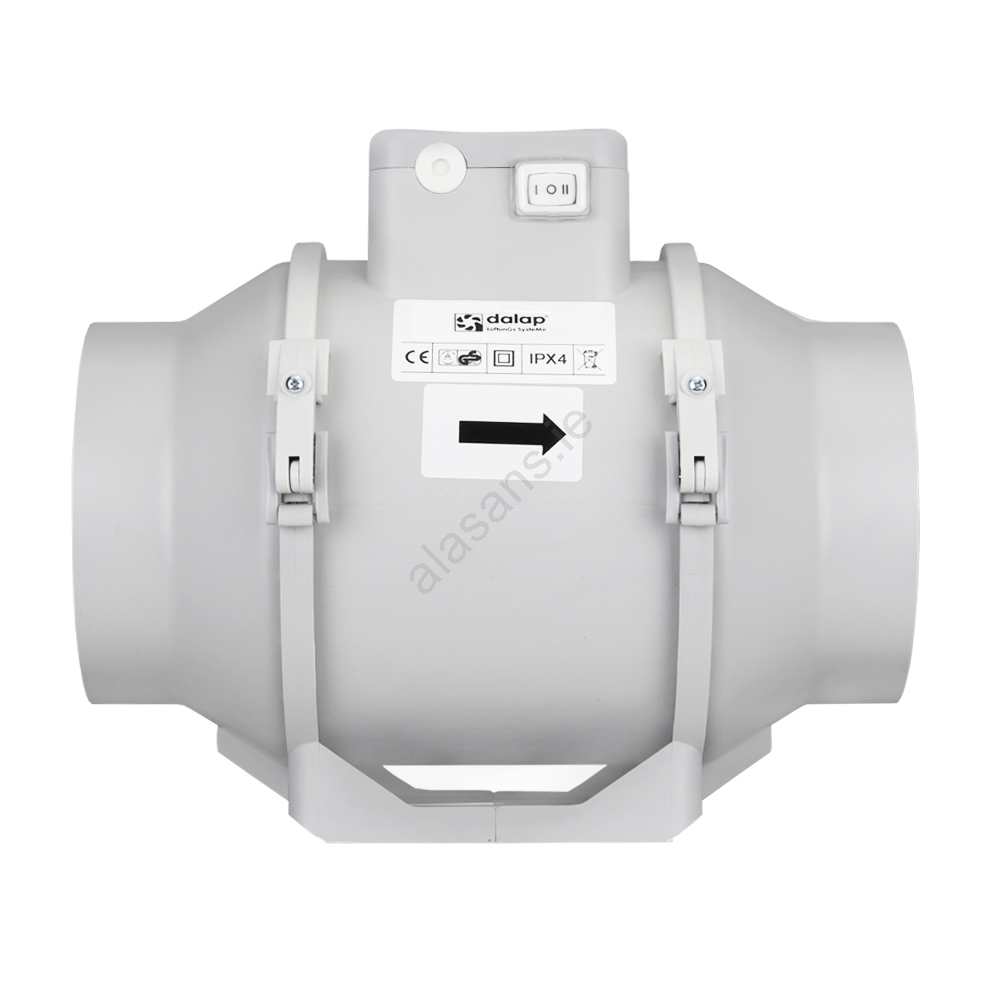

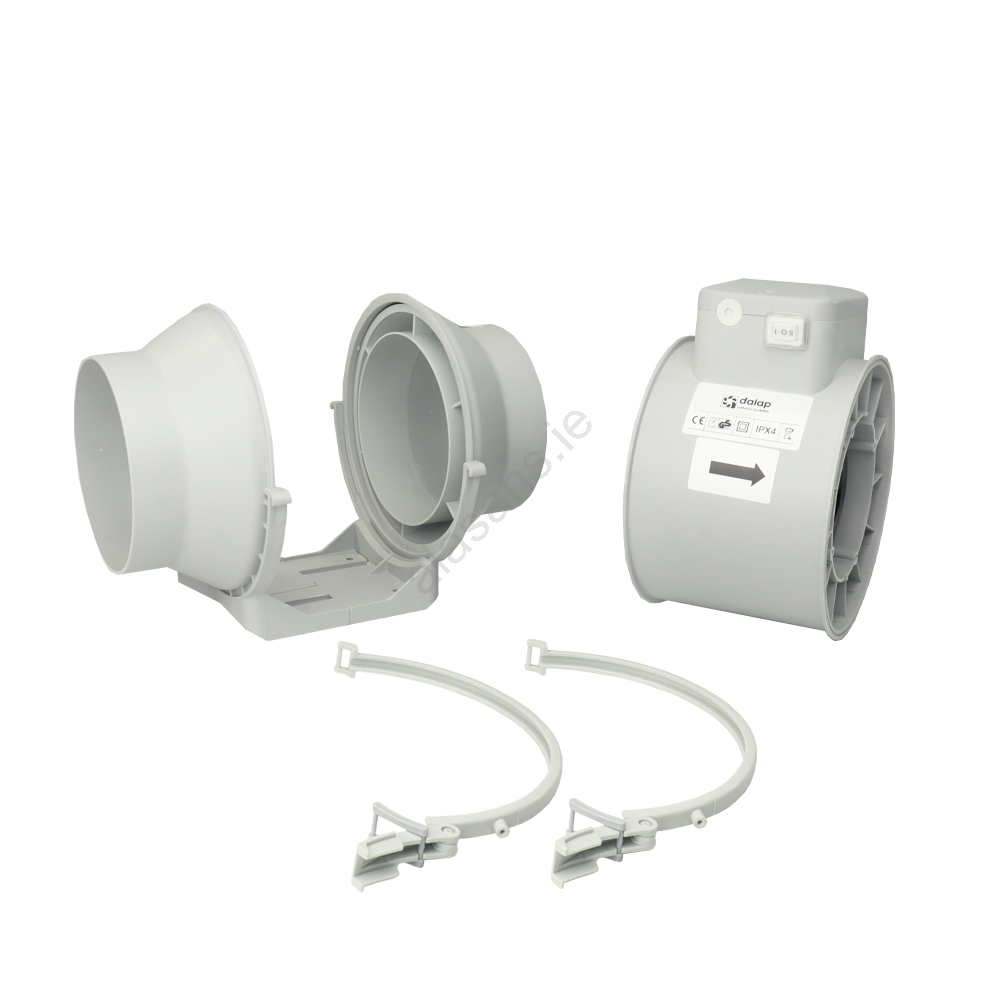

  • Thanks to the easy disassembly of the fan housing, you can first build the entire air duct and only then insert the fan housing.

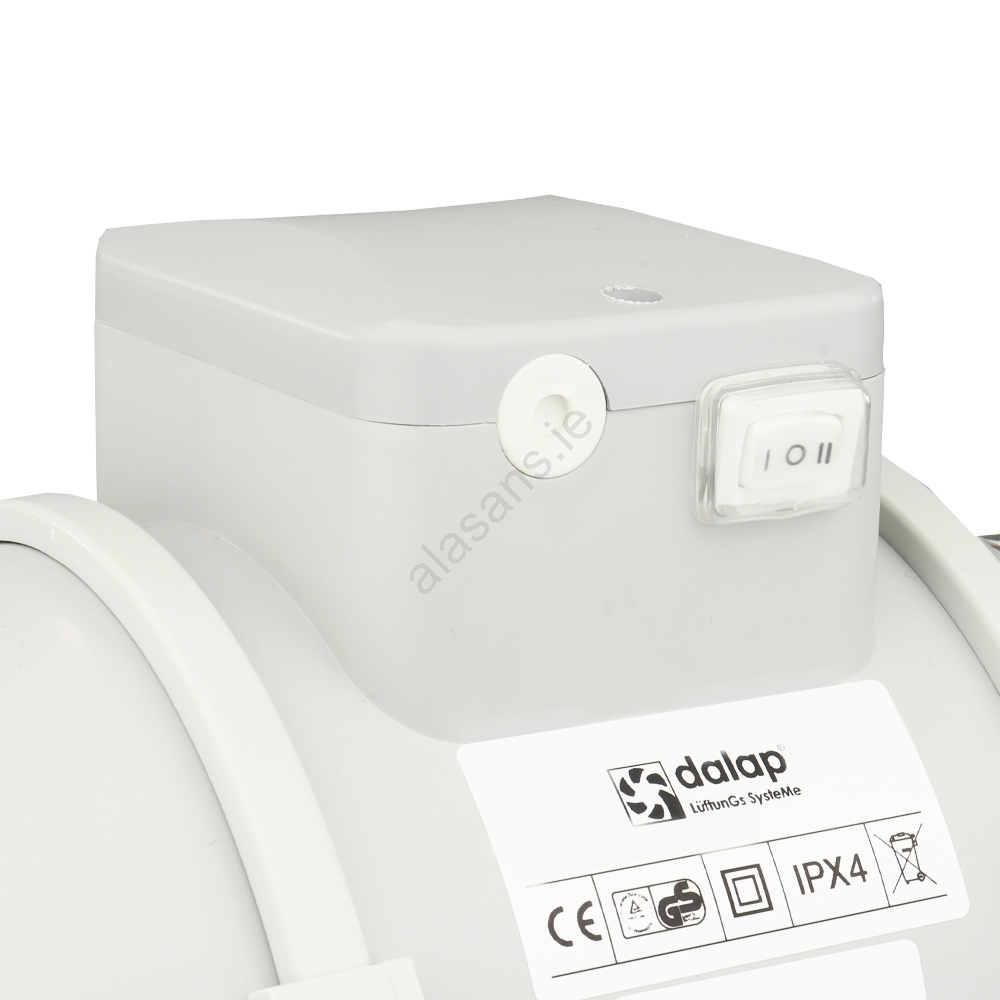

  • Single-phase motor has two speeds, which you can switch using the control integrated into the fan housing.
  • The motor is equipped with a thermal cut-out with automatic restart.
  • You can install the fan anywhere in the duct system - vertically or horizontally.

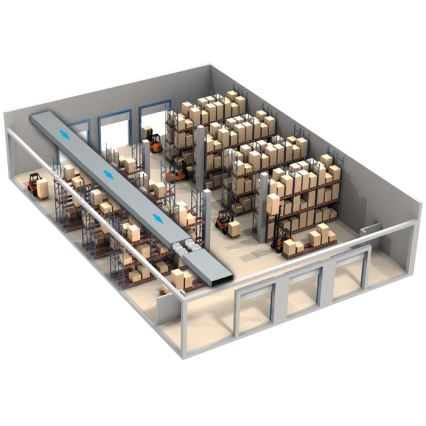

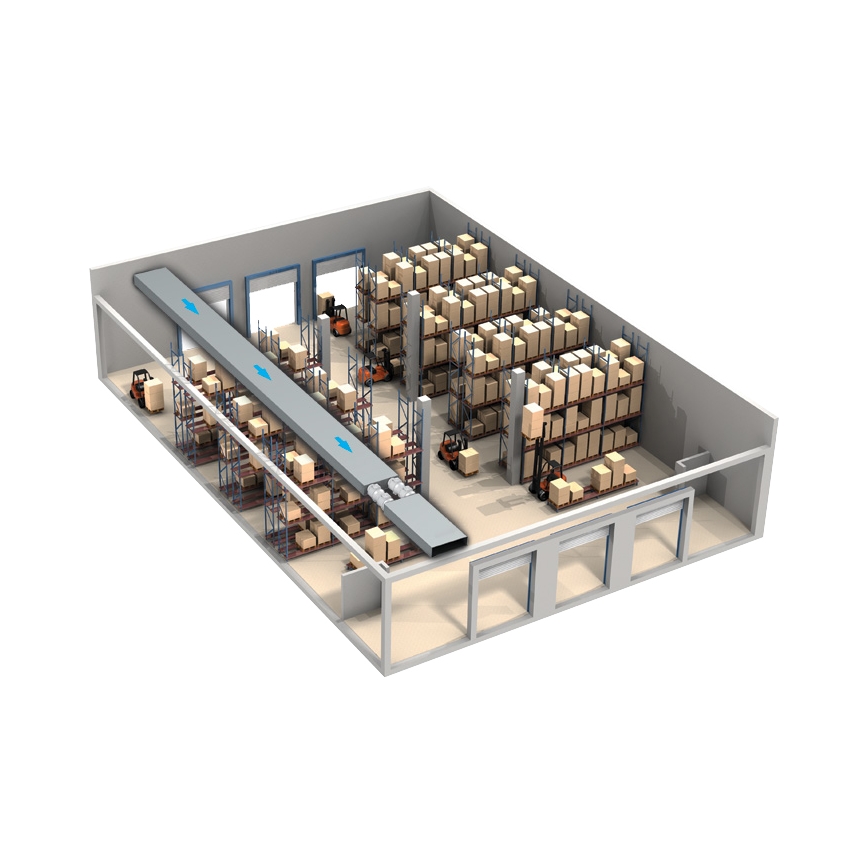

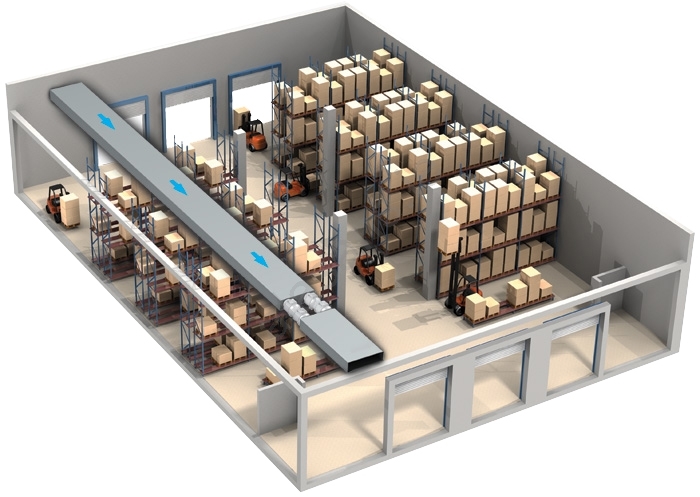

  • Multiple duct fans can also be installed in series to increase pressure or airflow capacity.
  • By design it is ideal for extracting air through ducting up to 10 metres in length.
  • The fan is intended for transporting clean air free of mechanical particles or grease that could damage the impeller or the fan itself.
  • If the unit is to be used in a kitchen or other places where greasy air must be removed, it is recommended to install a grease filter before the fan.

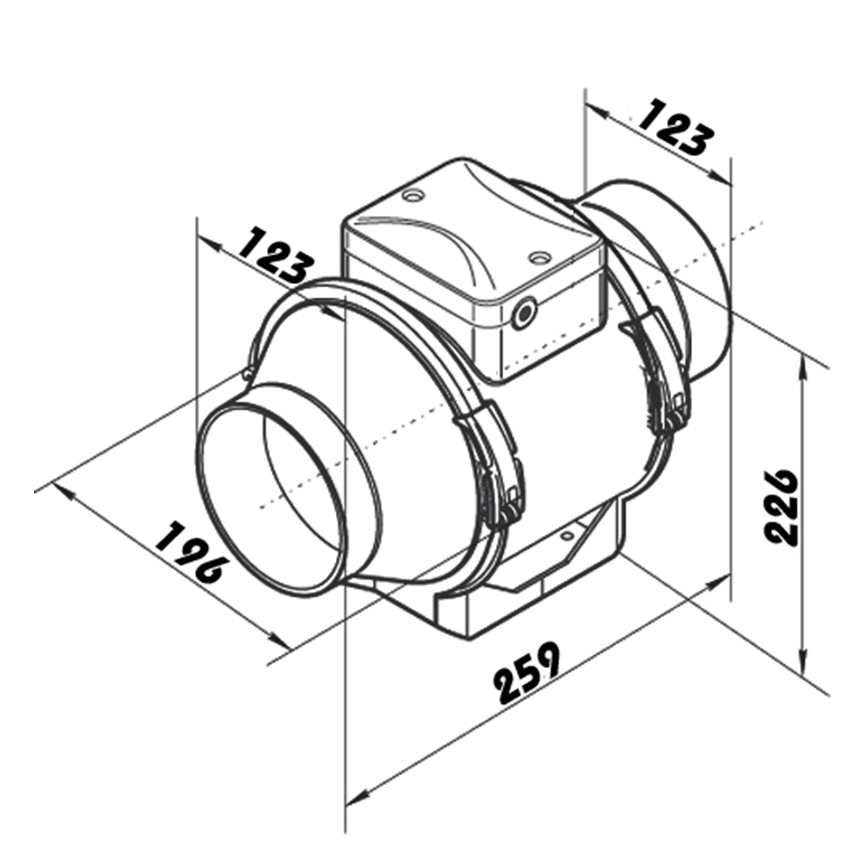

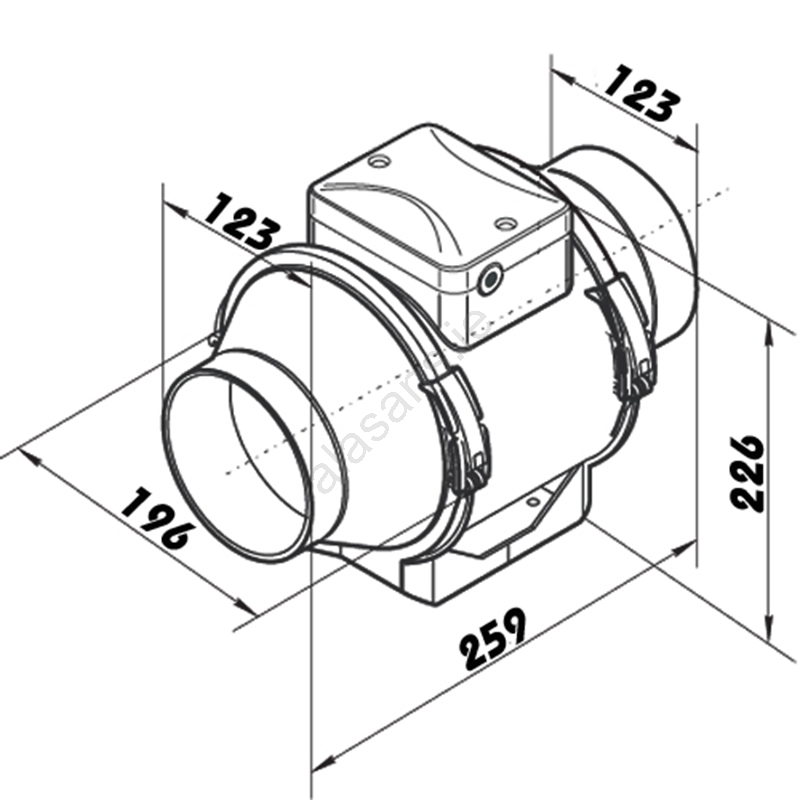

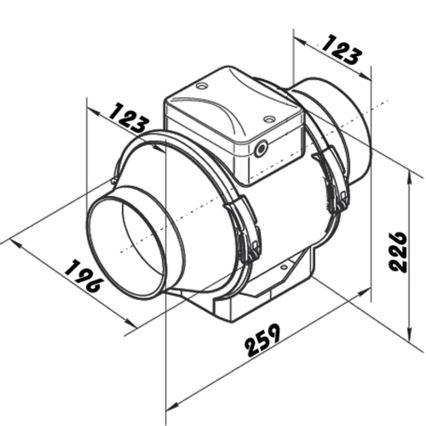

  • The fan is compatible with 125 mm diameter round ducting.
  • The integrated motor with ball bearings offers extended service life (up to 40,000 operating hours).
  • Operating temperature of the fan: -25° C to 60° C.
  • Airflow: 240/350 m³/h.

  Brand:

  Dalap



  This product is listed in the following categories

  Brands, Built-in bathroom fans, Dalap, Electrical equipment, Fans and air conditioners

• Parameters

• Documents for download

• Ratings and reviews0

• Questions about the product0

Buy

Add to favourites

Product code: DP0024
