• Product description

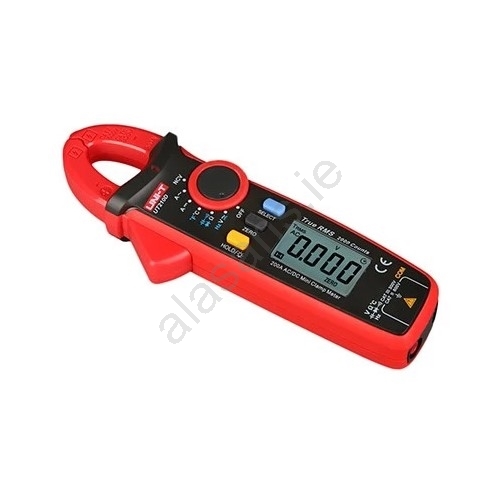

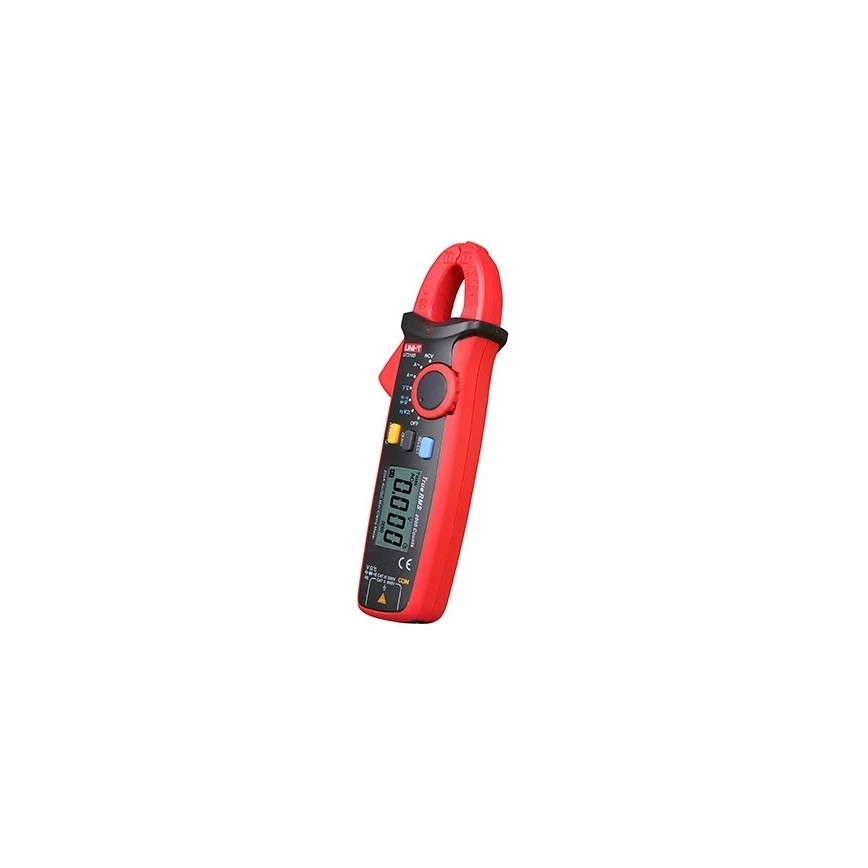

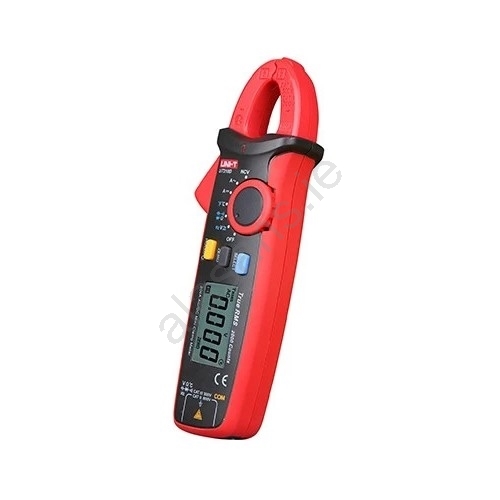

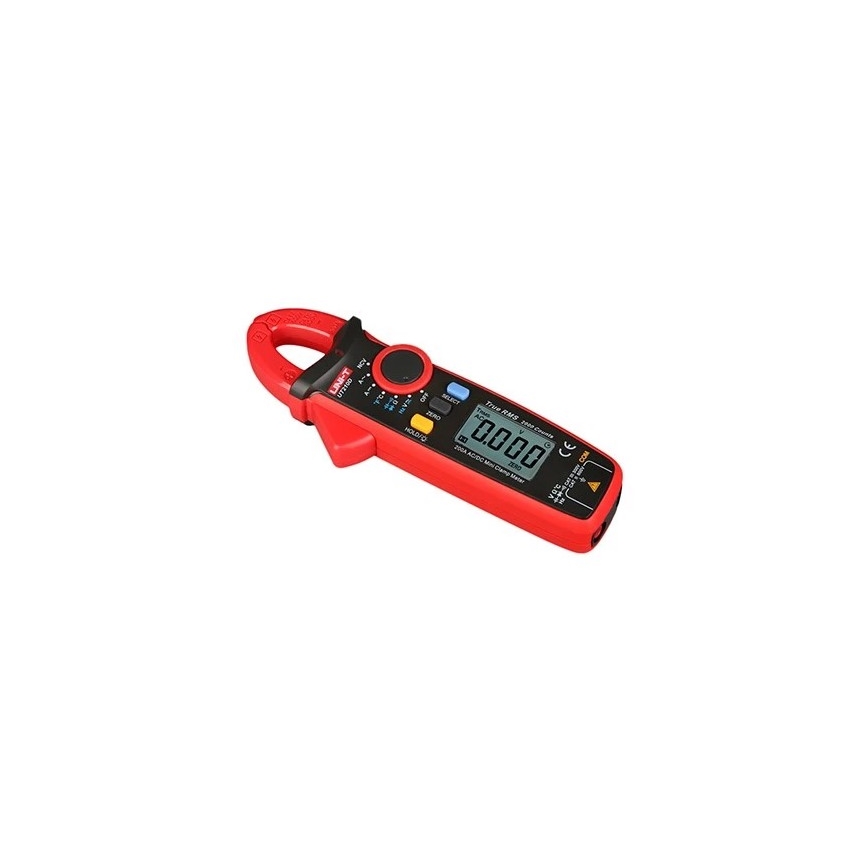

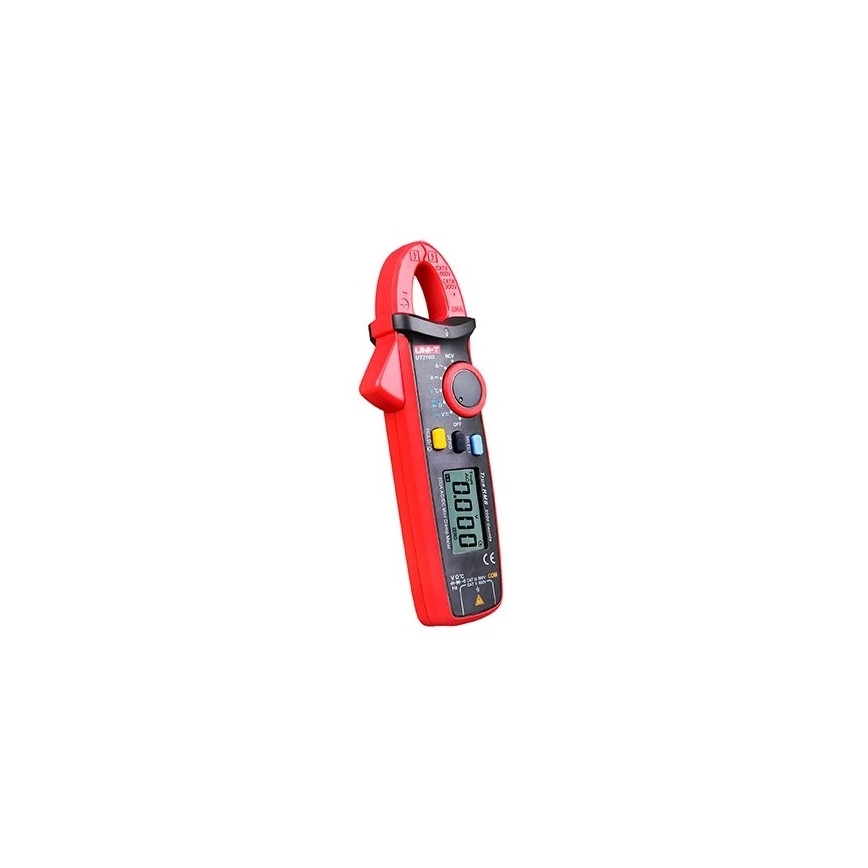

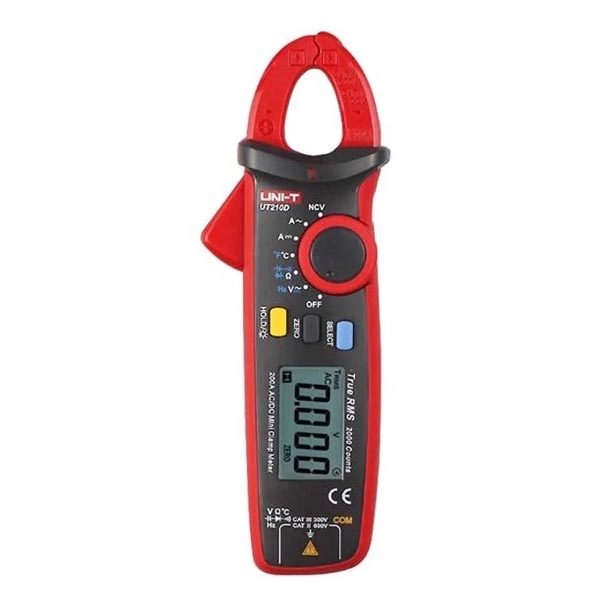

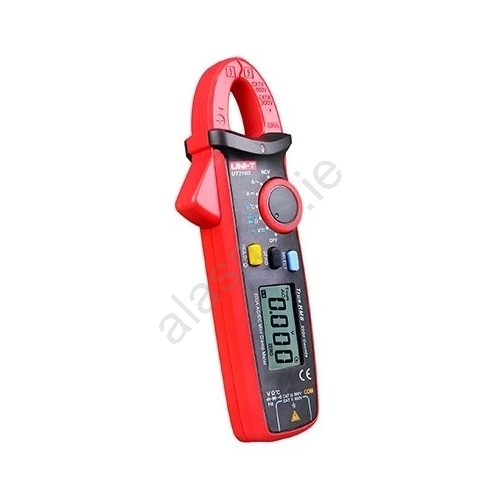

  • Compact digital multimeter that offers high reliability, a high level of safety, high accuracy, and small dimensions.
  • The device is suitable for measuring both DC and AC voltage, frequency, resistance, capacitance, diode testing, continuity, temperature measurement, as well as non-contact measurement of AC current, voltage, and electromagnetic fields.
  • Measurement of true voltage and current values, protection across the entire measurement range, reliable measurements, and a unique design.
  • NCV measurement – non-contact measurement of electric fields.
  • True RMS.
  • Automatic range setting.
  • Compact size.
  • Technical specifications: range, resolution, accuracy.
  • AC current: 20A/ 200A ±(2.5%+8).
  • DC current: 20A/ 200A ±(2%+3).
  • AC voltage:
  • 2V / 1mV / ±(1%+2).
  • 20V / 10mV / ±(1%+2).
  • 200V / 100mV / ±(1.2%+3).
  • 600V / 1V / ±(1.5V+5).
  • DC voltage:
  • 200mV / 0.1mV / ±(1%+8).
  • 2V / 1mV / ±(0.7%+3).
  • 20V / 10mV / ±(0.7%+3).
  • 200V / 100mV / ±(0.7%+3).
  • 600V / 1V / ±(0.7%+3).
  • Resistance measurement:
  • 200Ω / 0.1Ω / ±(1%+2).
  • 2kΩ / 1Ω / ±(1%+2).
  • 20kΩ / 10Ω / ±(1%+2).
  • 200kΩ / 1000Ω / ±(1%+2).
  • 2MΩ / 1kΩ / ±(1.2%+3).
  • 20MΩ /10kΩ / ±(1.5V+5).
  • Frequency measurement:
  • ACV frequency Hz 10Hz - 60kHz / 0.001Hz-0.1kHz / ±(0.1%+4).
  • Capacitance measurement:
  • 2nF / 1pF / ±(4%+10).
  • 20nF - 200.0μF / 10pF-100nF / ±(4%+5).
  • 2mF - 20mF / 1μF-10μF / ±10.
  • Temperature measurement:
  • Temperature °C -40°C – 1000°C ± (1%+3).
  • Temperature °F -40°F – 1832°F ± (1.5% +5).
  • Functions:
  • Max. display reading: 2000.
  • Automatic range setting.
  • Clamp diameter: 17 mm.
  • TRMS.
  • Diode test.
  • NCV.
  • Data Hold.
  • Zero mode.
  • Display backlight.
  • Automatic shutdown.
  • Low battery indication.
  • Input protection.
  • Input impedance for DCV 10MΩ+.

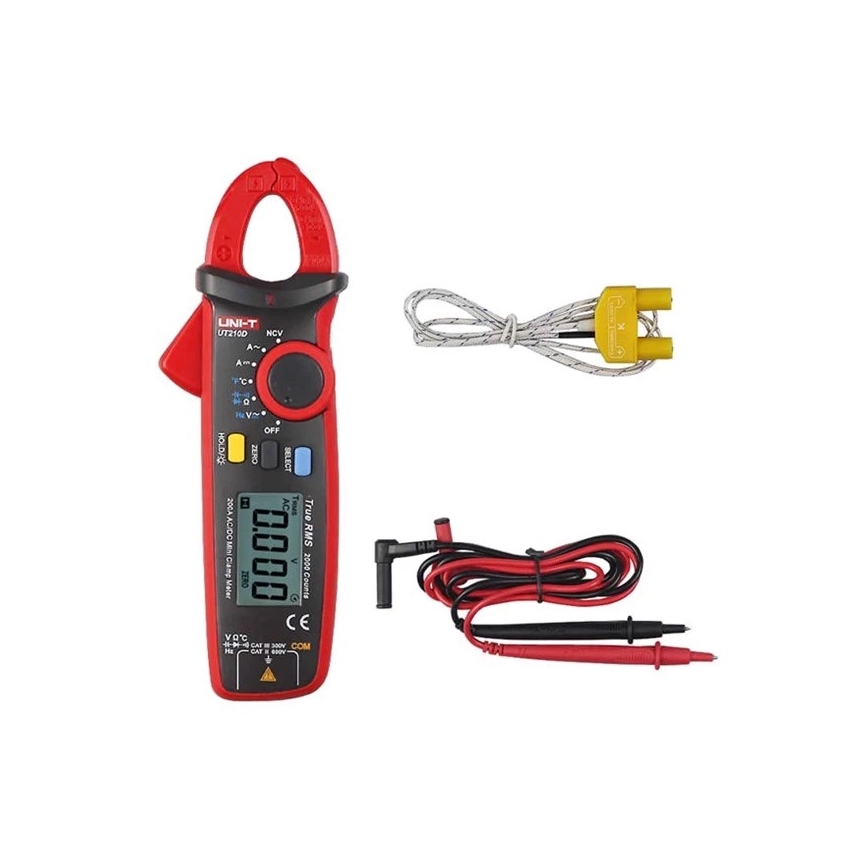

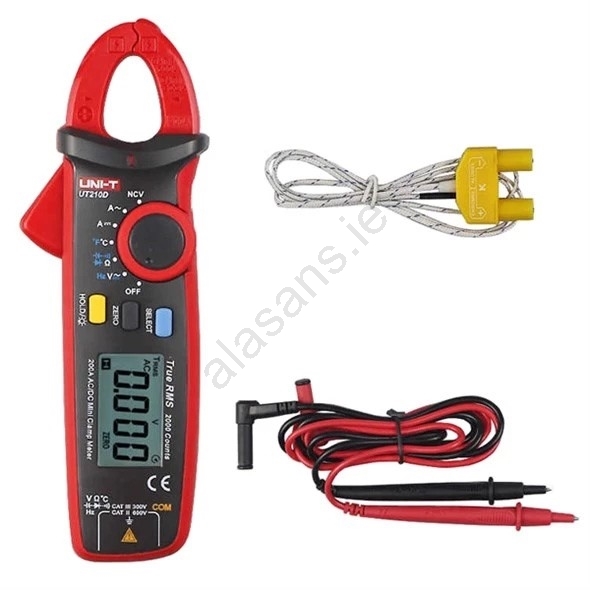

  • Power supply: 2x 1.5V AAA batteries (included).
  • LCD dimensions: 39.3 x 26.5 mm.
