• Product description

  • The perfect solution for users who value convenience, efficiency, and technology.

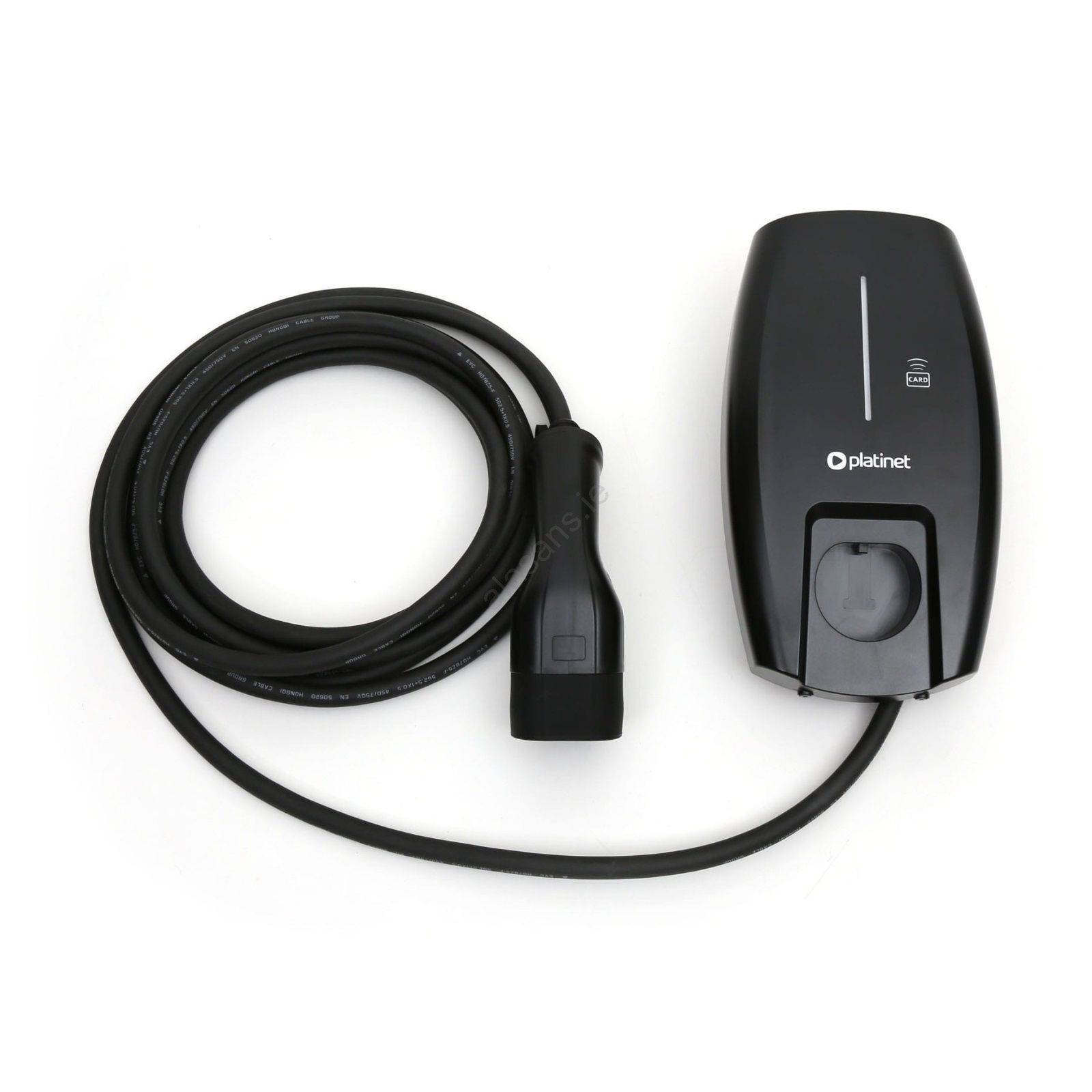

  • The product comes with a 7m long Type 2 cable, giving you the flexibility to access different vehicle models.
  • The 3P+N+PE power supply and rated voltage of 400V AC ensure stable and safe charging.
  • The 11kW rated power ensures fast charging and saves your time.
  • LED indicator (green/yellow/red) for intuitive monitoring of charging status.
  • A compliant RFID reader allows easy access management.
  • Wi-Fi and OCPP provide remote control and integration with existing systems.
  • The EVchargo app (iOS and Android compatible) allows you to configure charging parameters, bill users, manage RFID cards, and export energy consumption data.
  • Advanced electrical protection protects against various electrical hazards and ensures the safety of users and devices.

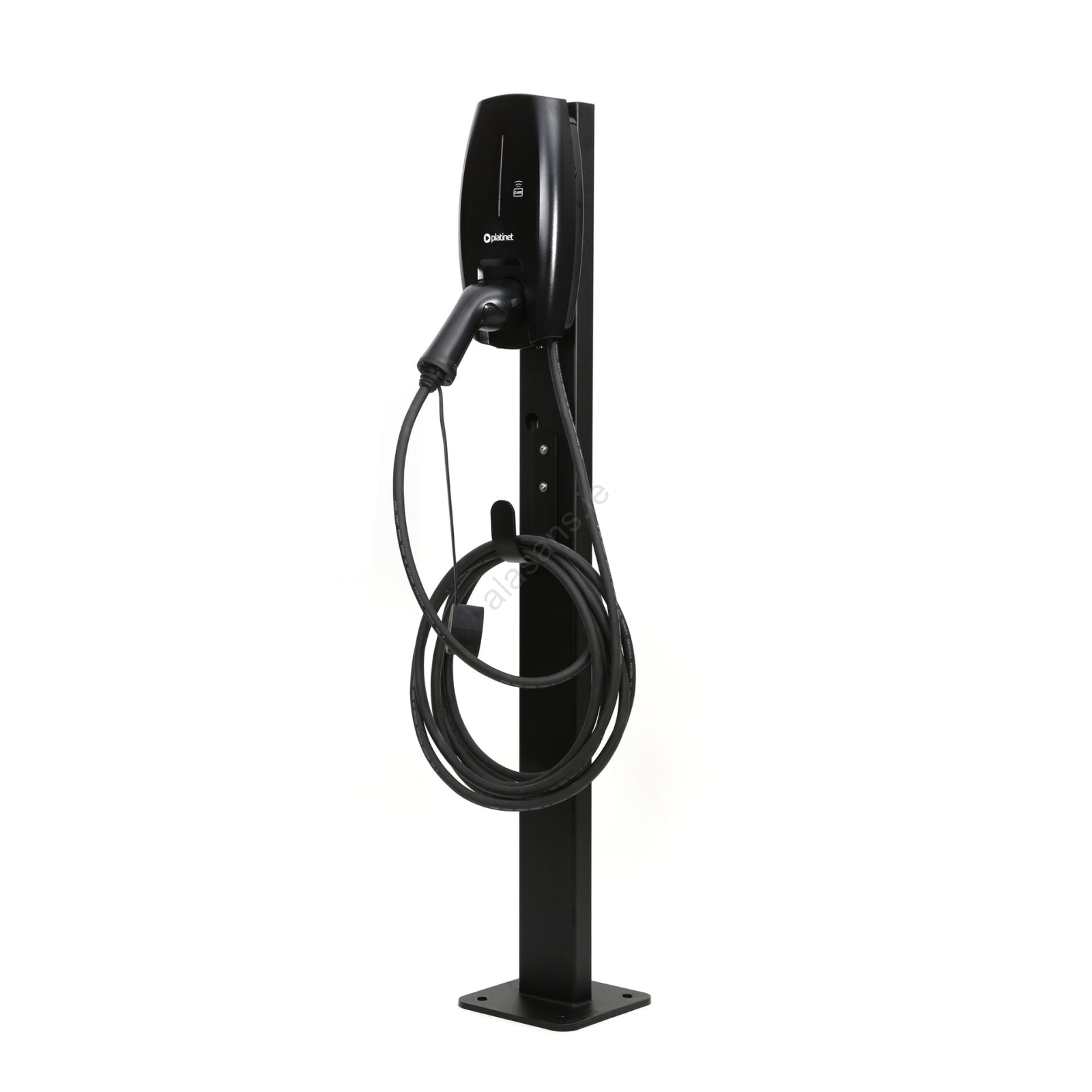

  • Can be wall or pole mounted.
  • Compact size and light weight allow easy installation in various locations.
  • IP65 protection and IK10 impact protection.
  • Adapted to work in a wide range of temperatures (-30 °C to +50 °C) and humidity (5% ~ 95%).
  • CE certificate confirms compliance with the highest European standards.
  • Power supply: 3P+N+PE.
  • Rated voltage: 400V AC.
  • Rated current: 16A.
  • Frequency: 50/60Hz.
  • Output voltage: 400V AC.
  • Maximum output current: 16A.
  • Rated power: 11kW.
  • Charging connector: type 2 cable.
  • Cable length: 7 m.
  • RFID reader: Mifare ISO/IEC 14443 A.
  • Turning on mode: Plug&Play/RFID card/app.
  • Communication: Wi-Fi/Ethernet.
  • OCPP 1.6 Json (OCPP 2.0 optional).
  • RCD: 6mA DC.
  • Protection level: IP65.
  • Impact protection: IK10.
  • Electrical protection: overcurrent protection, residual current protection, overvoltage protection, overvoltage protection, undervoltage protection, overheat/underheat protection, grounding.
  • The package includes: AC charger, insulated terminals for a three-phase power supply (5 pcs), screws and mounting pins (6 pcs), RFID cards (5 pcs), and Allen M4 (1 pcs).
