• Product description

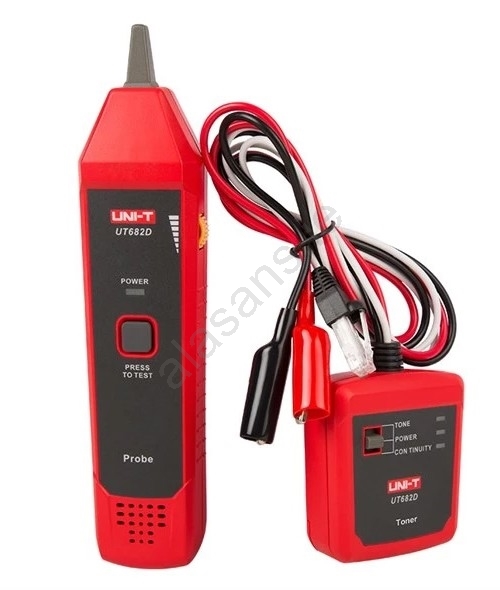

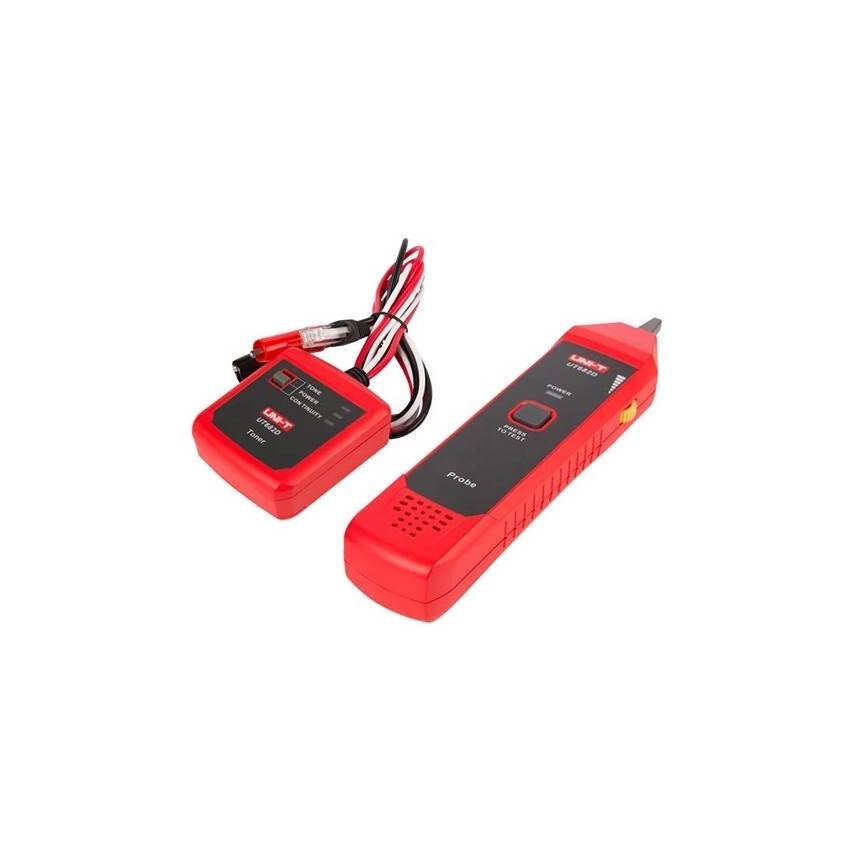

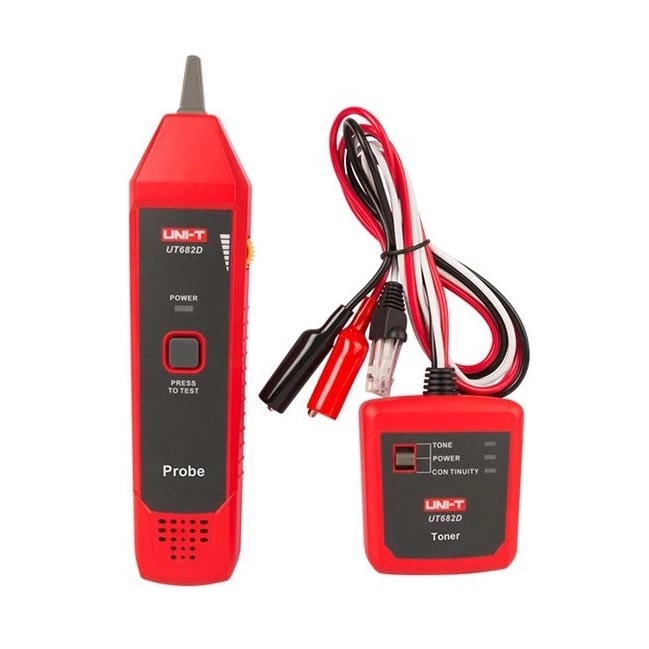

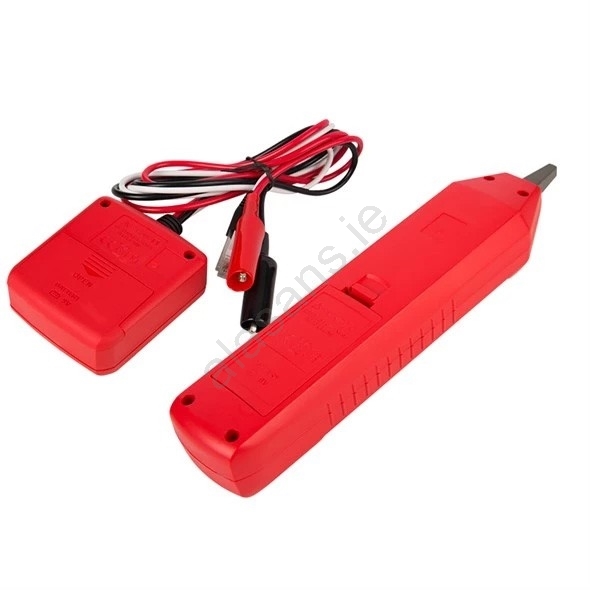

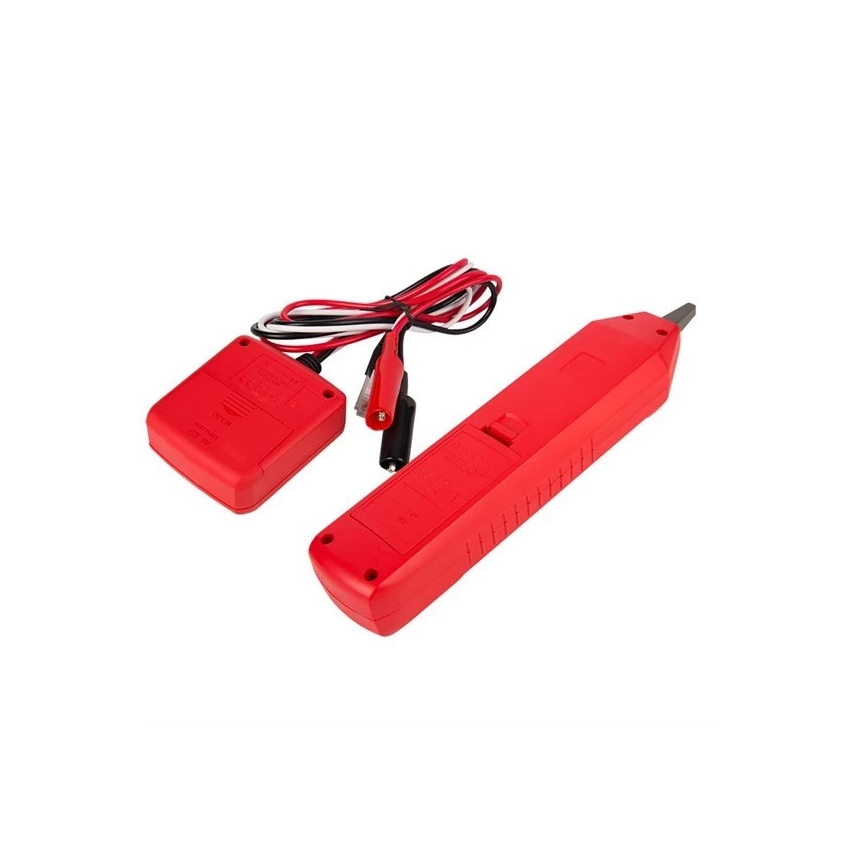

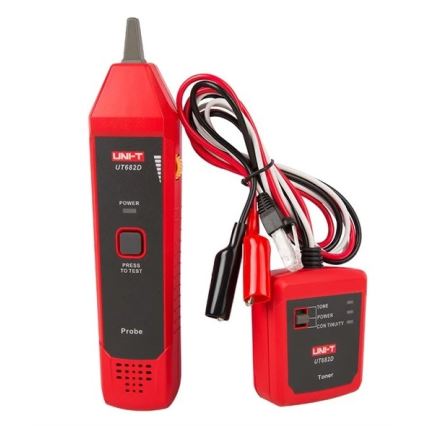

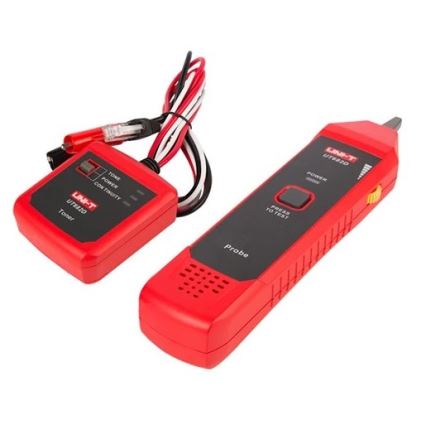

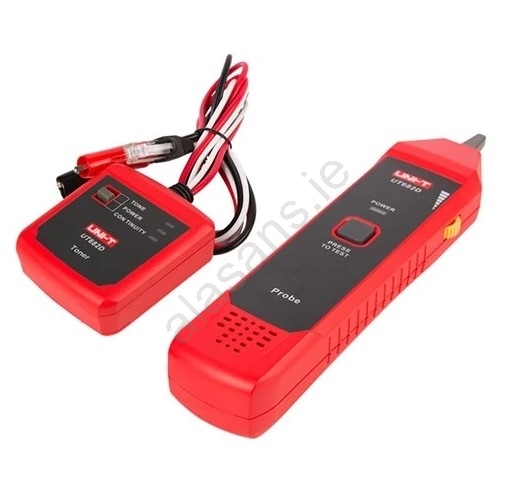

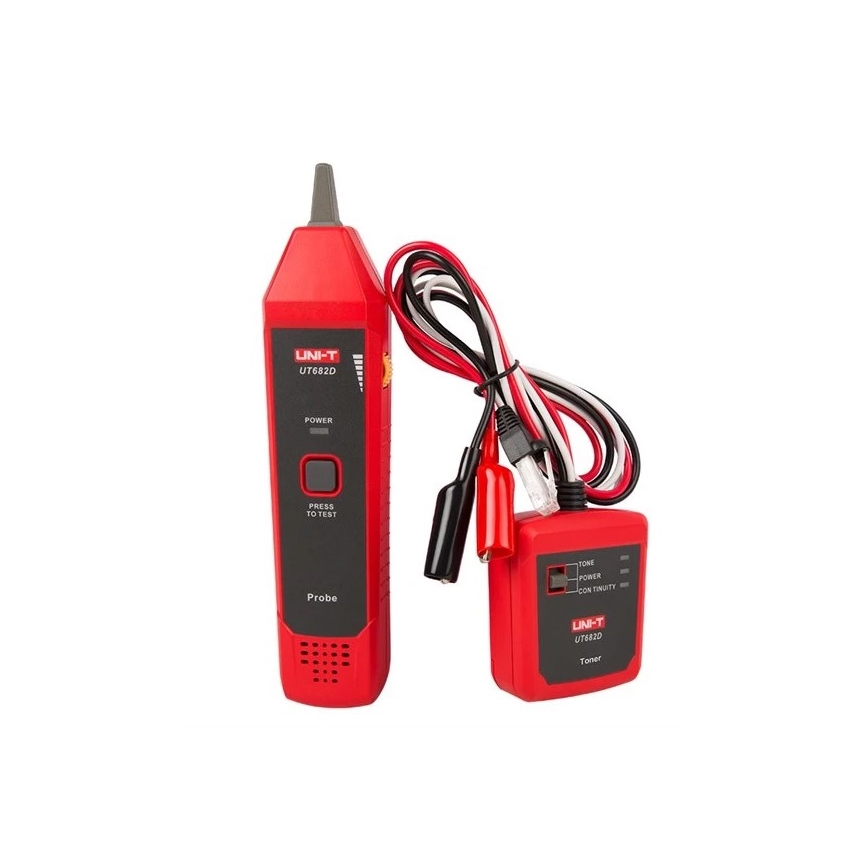

  • The cable tester offers a simple way to quickly find and identify cables, wires, and cable harnesses.
  • Connect the device to the cable and then monitor the cable and signal with the probe.
  • The device can also be used to test line continuity and polarity on telephone lines.
  • The device complies with CE standards: EN61326-1:2013, EN61326-2-2:2013.
  • Product parameters:
  • Cable search.
  • Cable harness search.
  • Line condition check.
  • Line continuity test.
  • Detector:
  • Output power: 10mW (at 600Ω).
  • Output frequency: alternating 1.25/1.4kHz; variable 6Hz.
  • Output voltage in line continuity test mode: 8V DC.
  • Overvoltage protection: 60V DC.
  • Power supply: 9V DC (6LR61) battery.
  • Low battery warning: approx. 7V.
  • Dimensions: 74 x 68 x 28 mm.
  • Probe:
  • Input impedance: >100MΩ.
  • Power supply: 9V DC (6LR61) battery.
  • Low battery warning: approx. 7V.
  • Dimensions: 208 x 47 x 33 mm.
  • Package contents: detector, probe, 2x 9V batteries, and instruction manual.
