• Product description

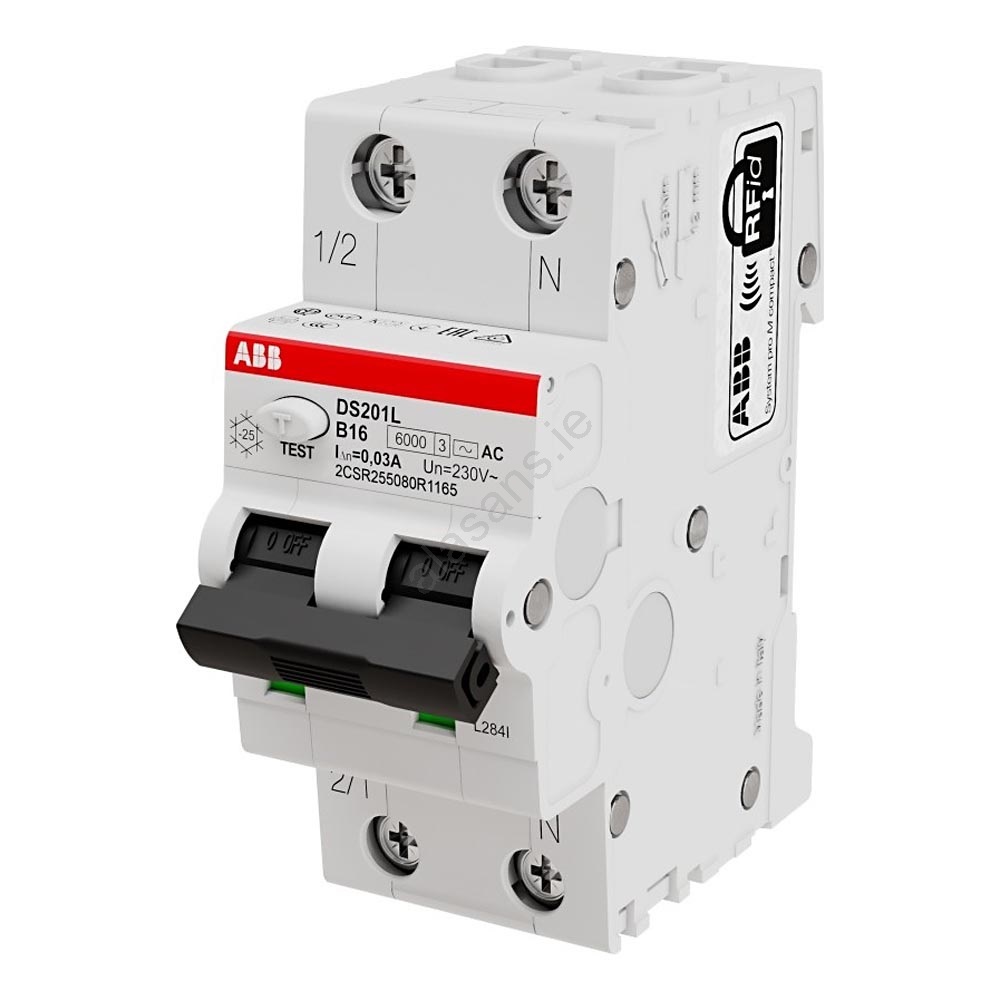

  • Two-pole circuit breaker with a switch, designed for installation on a DIN rail.
  • Includes protection against overload, short circuits, the effects of sinusoidal alternating earth fault currents, indirect contact, and additional protection against direct contact (sensitivity: 30 mA).
  • Number of poles: 2.
  • Tripping characteristic: B.
  • Rated short-circuit breaking capacity Icn: 6 kA.
  • Rated current: 16 A.
  • Rated residual current: 30 mA.
  • Rated voltage: 230 V.
  • Rated frequency: 50/60 Hz.
  • Tightening torque: 2.8 Nm.
  • Connection for stranded/solid copper conductor: max. 25 mm².
  • Connection for flexible copper conductor: max. 16 mm².
  • Maximum cross-section of busbar: 10 mm².

  Special coupon offer applies to this product.

  Brand:

  ABB



  This product is listed in the following categories

  ABB, Brands, Electrical equipment, Electrical installation, Last piece, Lights, Other, Special offers
