• Product description

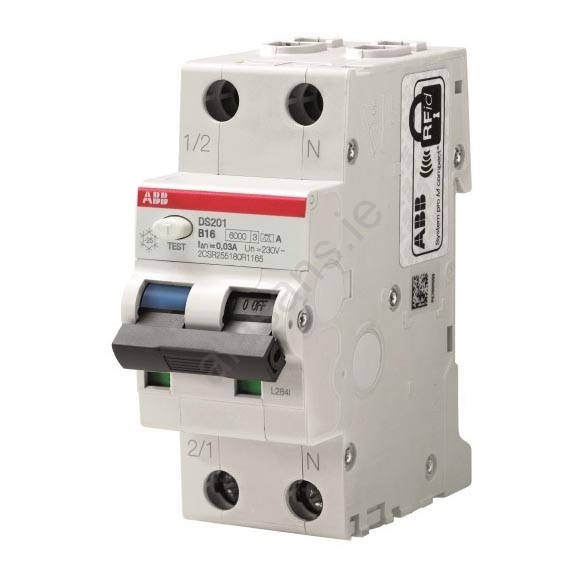

  • Two-pole protector with circuit breaker, which is designed for installation on a DIN rail.
  • Includes protection against overload, short circuits, effects of sinusoidal alternating earth fault currents, indirect contact, and additional protection against direct contact (sensitivity: 30 mA).
  • Number of poles: 2.
  • Switching characteristic: B.
  • Rated short-circuit switching capacity Icn: 6 kA.
  • Rated current: 10 A.
  • Rated residual current: 30 mA.
  • Rated voltage: 230/400 V AC.
  • Rated frequency: 50/60 Hz.
  • Tightening torque: 2,8 Nm.
  • Connection of stranded/rigid copper conductor: max. 25 mm².
  • Connection of flexible copper conductor: max. 25 mm².
  • Maximum busbar cross-section: 10 mm².

  Brand:

  ABB
